SKU: 503TXM

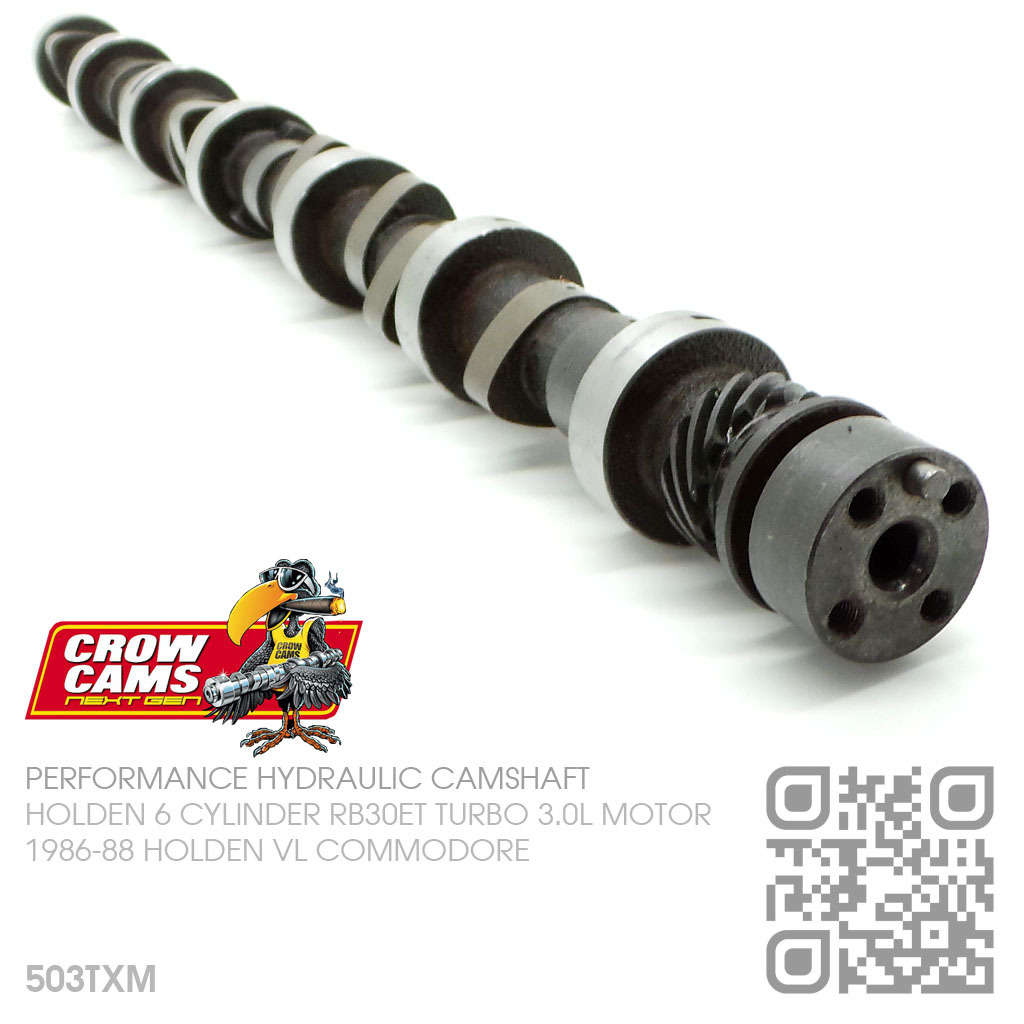

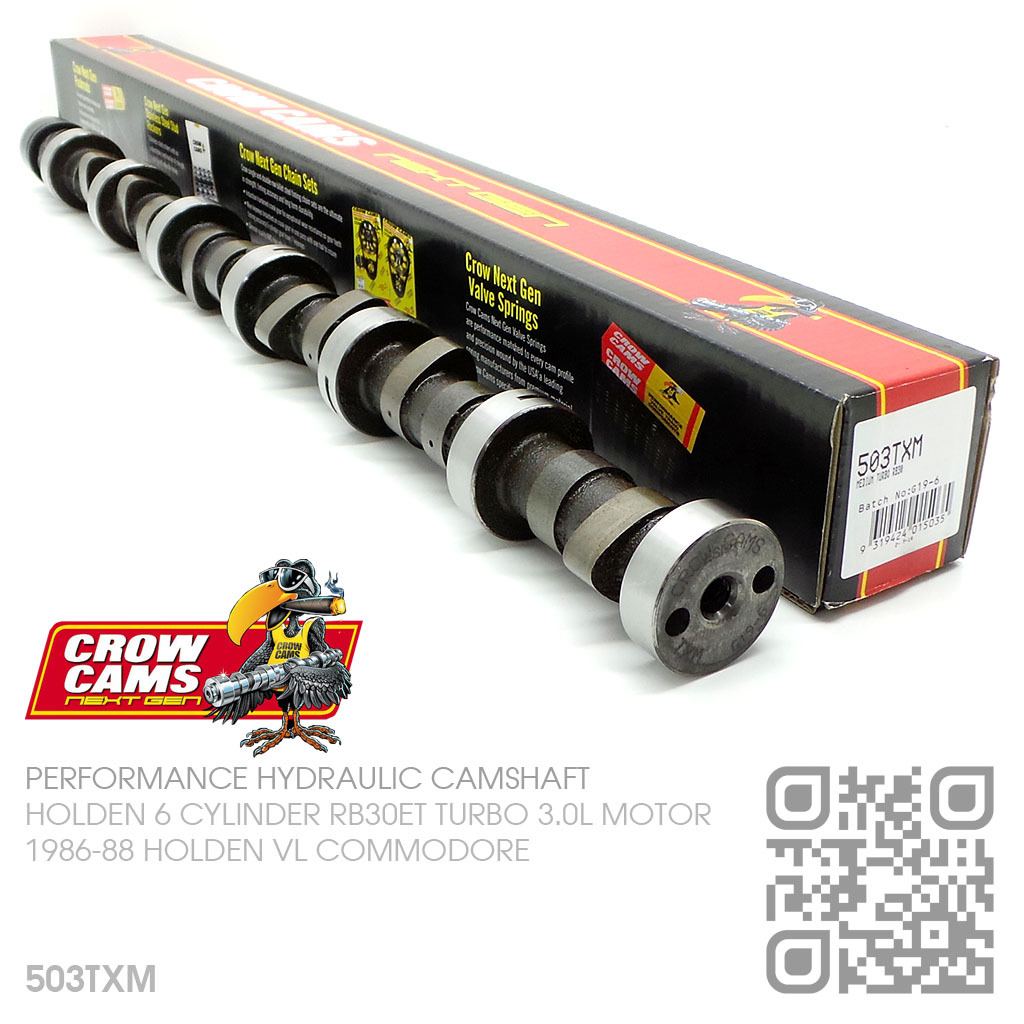

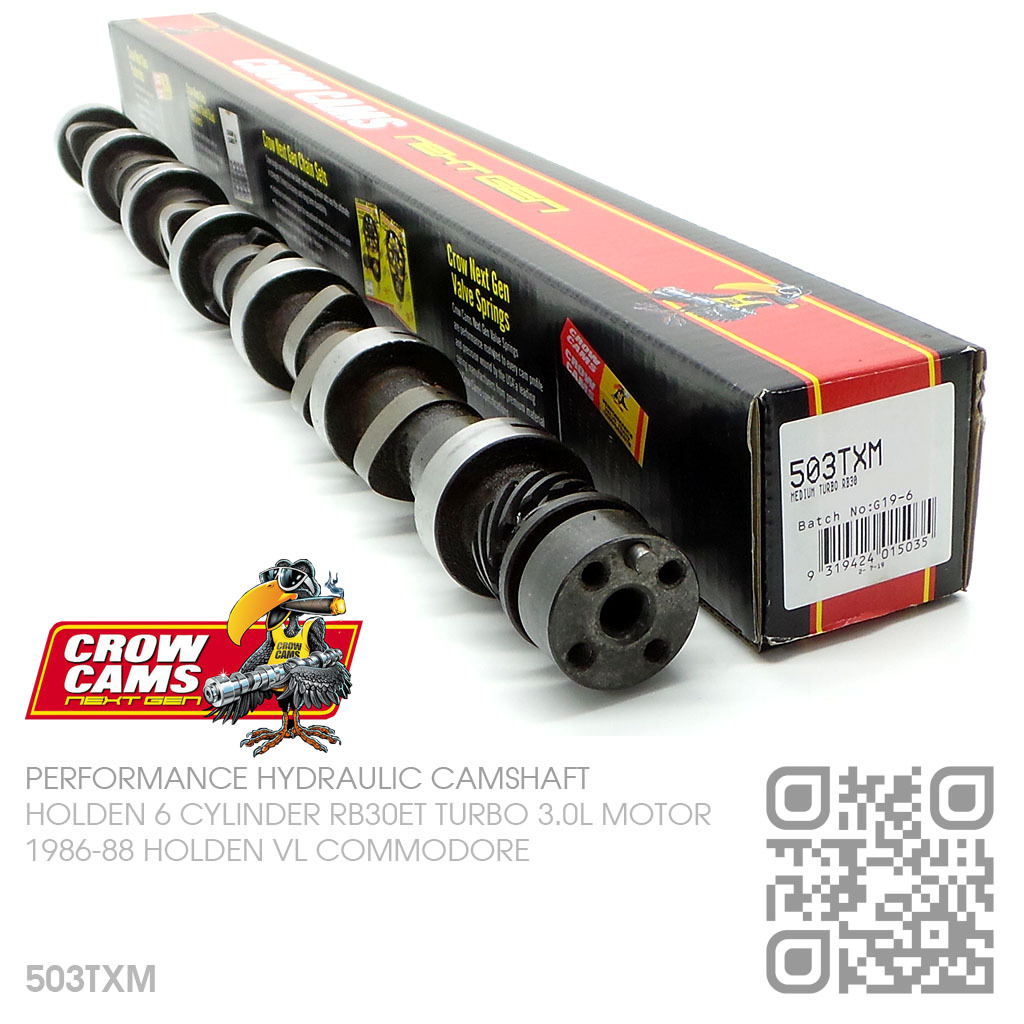

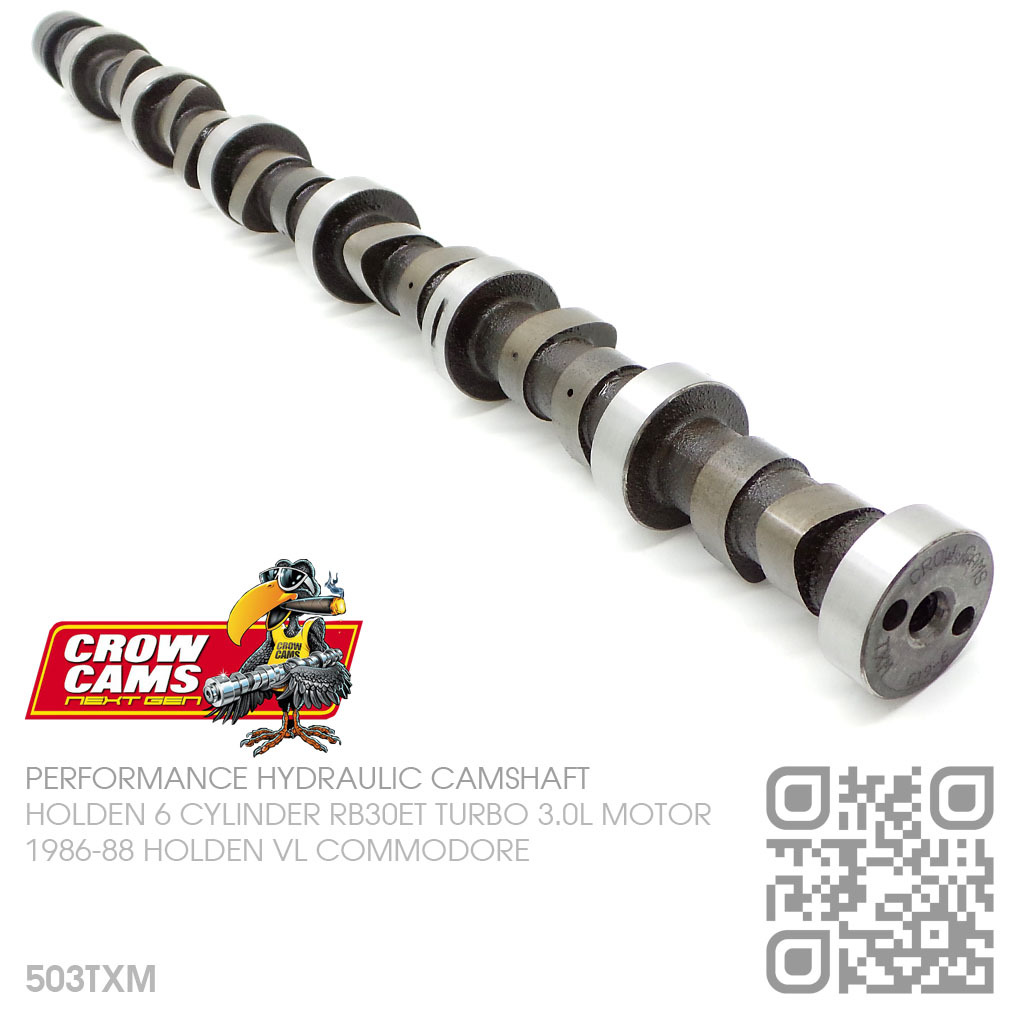

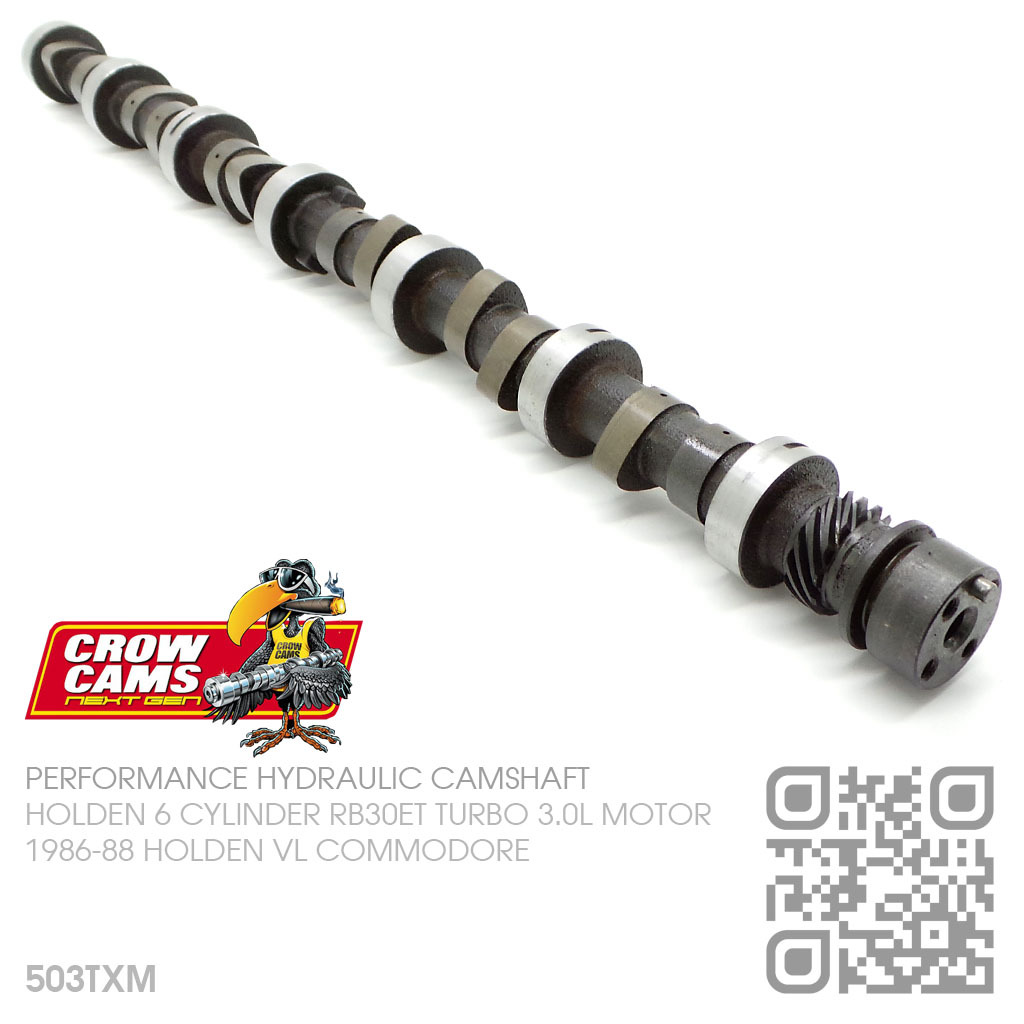

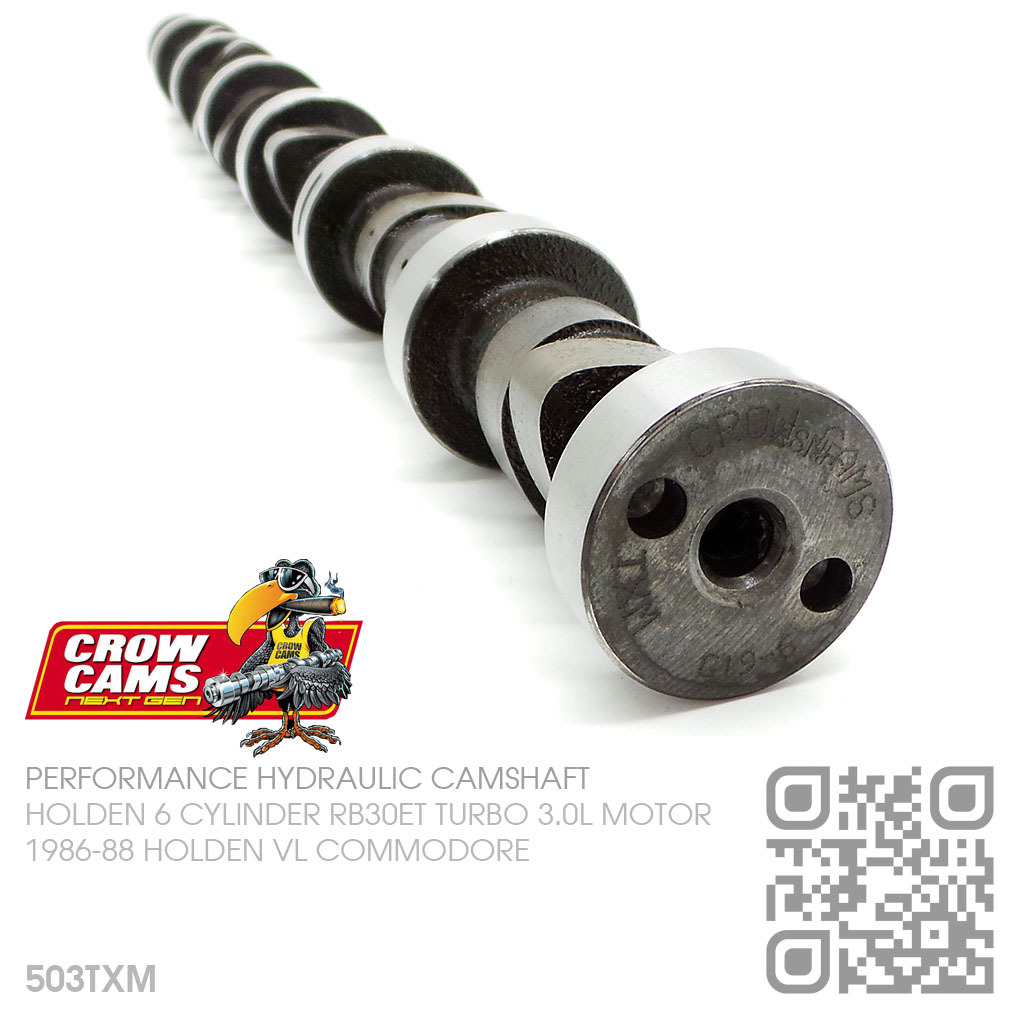

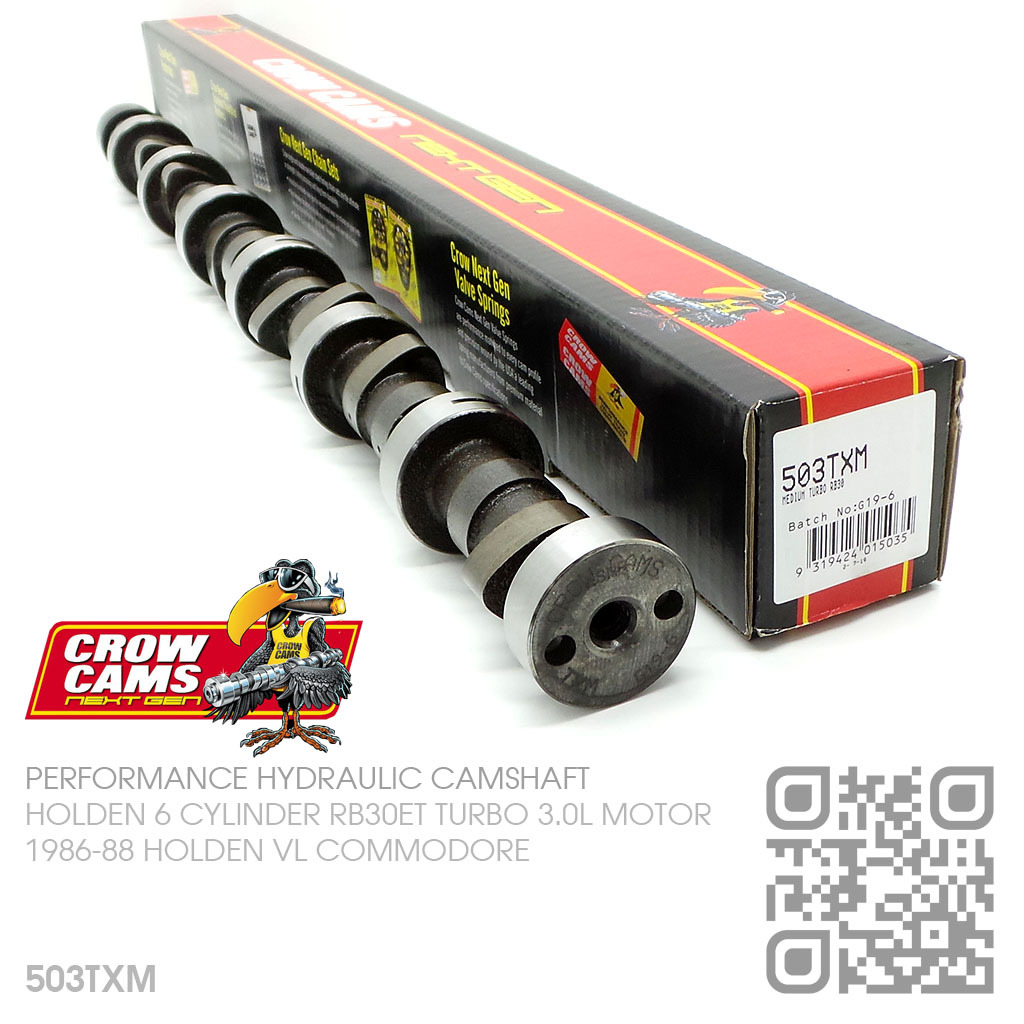

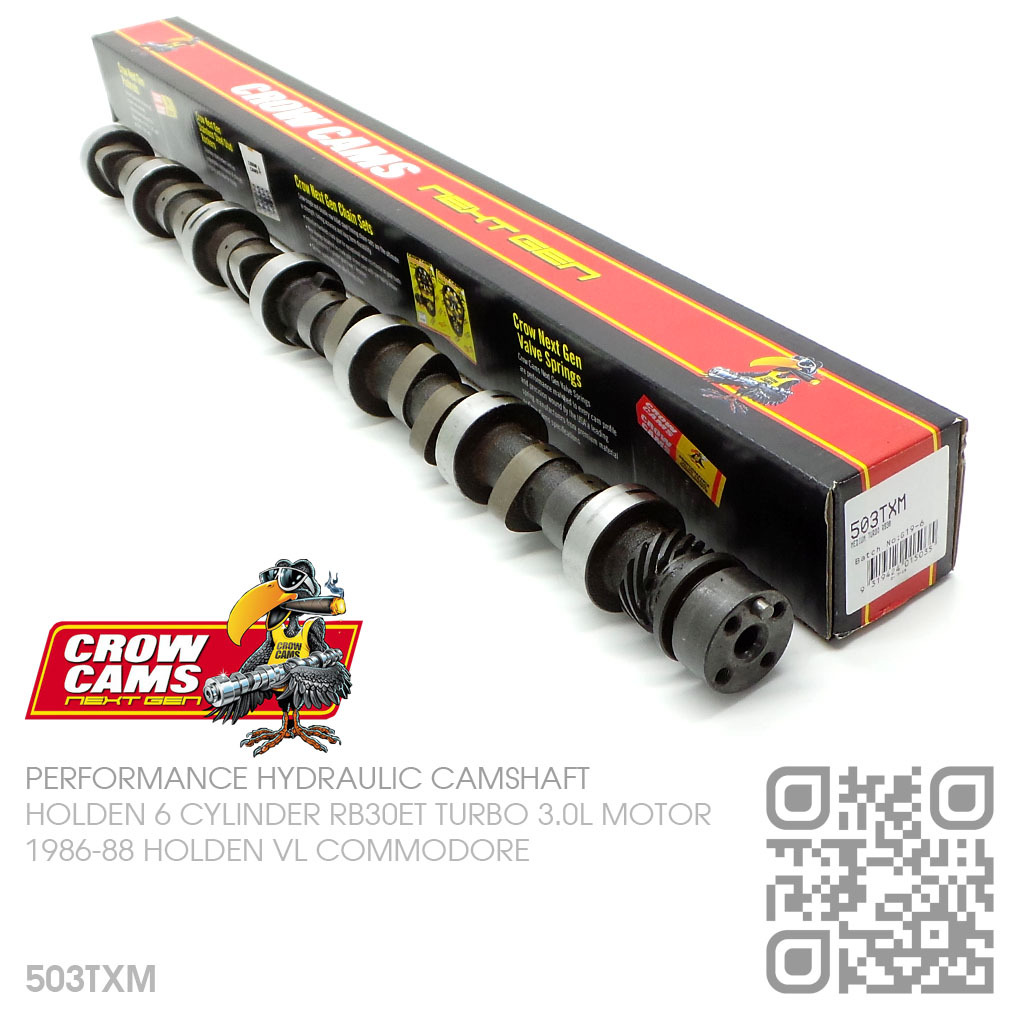

CROW CAMS 503TXM PERFORMANCE BILLET HYDRAULIC CAMSHAFT [HOLDEN 6-CYL RB30ET TURBO 3.0L MOTOR]

1986-88 HOLDEN [VL COMMODORE]

$669.50
In Stock


Calculate Shipping



Free shipping - $0.00

CROW CAMS PERFORMANCE BILLET HYDRAULIC CAMSHAFT
HOLDEN 6 CYL RB30ET TURBO 3.0L MOTOR

1986-88 HOLDEN [VL COMMODORE]

Description

CROW CAMS 503TXM NEXT GEN PERFORMANCE BILLET HYDRAULIC CAMSHAFT
HOLDEN 6 CYL RB30ET TURBO 3.0L MOTOR

02/1986-1988 HOLDEN [VL COMMODORE]

Crow Cams' unique Next Gen cam design and CNC grinding technology is applied to a huge range of hydraulic lifter camshafts, for maximum torque and power in street or race applications.

Crow Cams' world class CNC grinding and inspection facilities have also been upgraded to ensure an even greater degree of grinding accuracy in terms of surface finish and cam position. These characteristics are checked on every cam on our CNC checking machines, which are regularly calibrated on our in-house Adcole camshaft coordinate measuring machine.

SPECIFICATIONS:
Camshaft Part Number: 503TXM
RPM Range: 2500 - 6500
Advertised Duration Intake: 280º
Advertised Duration Exhaust: 280º
Duration @.050" Intake: 214º
Duration @.050" Exhaust: 214º
Valve Lift Intake: 0.470"
Valve Lift Exhaust: 0.470"
Rocker Ratio: 1.60:1
Lobe Separation Angle: 117º

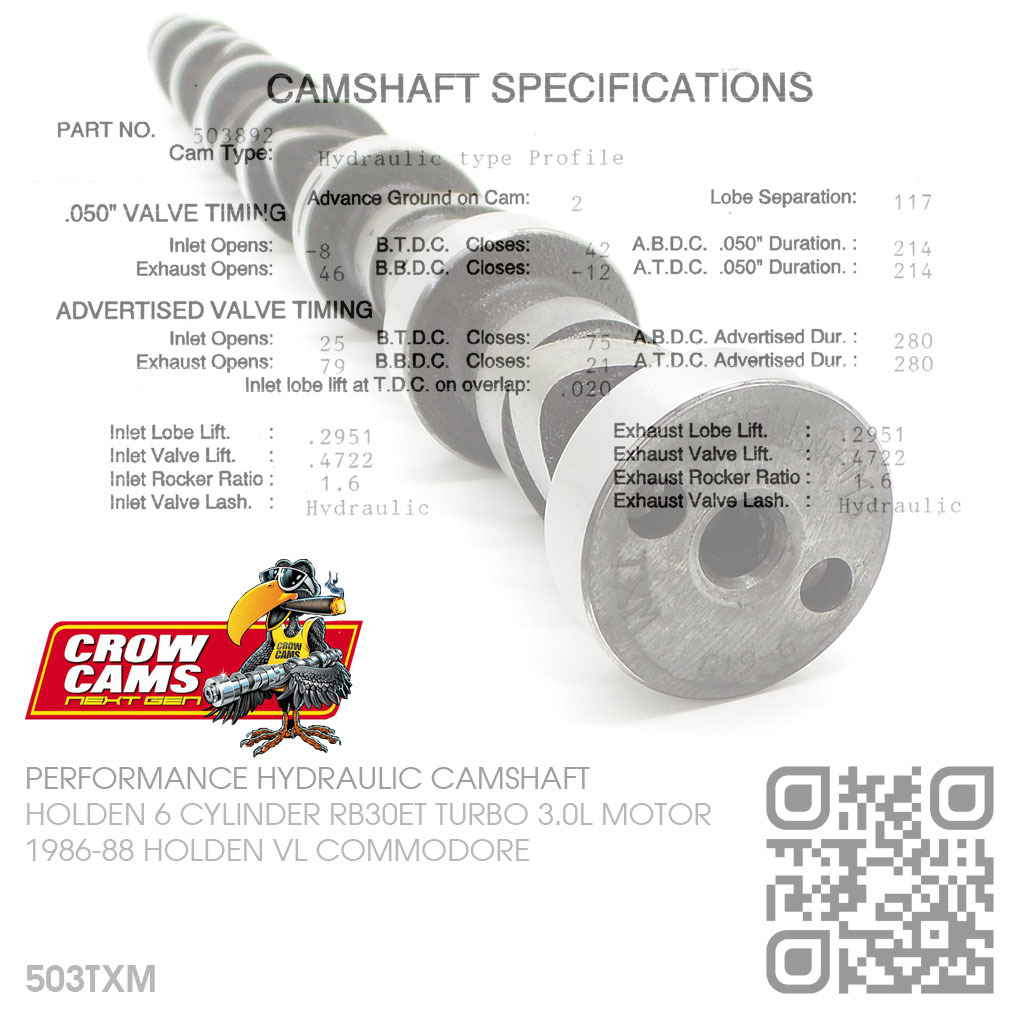

Detailed Cam Card: SEE LAST PRODUCT PHOTO
Camshaft Characteristics: MEDIUM STREET PERFORMANCE TURBO CAM

CAMSHAFT REQUIREMENTS:
Cylinder Head Requirements: PERFORMANCE VALVE SPRINGS
Engine Requirements: NEW PERFORMANCE HYDRAULIC LIFTERS

For more than 30 years, Crow Cams in Australia, have developed valve train products and developed unique camshafts.

SPECIAL NOTE:
NEW HYDRAULIC LIFTERS ARE HIGHLY RECOMMENDED

IMPORTANT NOTE:
NOT SUITABLE FOR NON TURBO APPLICATION

CRITICAL NOTE:
USE ZDDP100 OIL ADDITIVE AND QUALITY MINERAL ENGINE OIL ONLY

MADE IN AUSTRALIA

Warranty

Features

Specifications

SKU 503TXM
Model # 503TXM
Barcode # 9319424015035
Brand Crow Cams
Shipping Weight 4.3000kg
Shipping Width 0.070m
Shipping Height 0.070m
Shipping Length 0.790m
Shipping Cubic 0.003871000m3
