SKU: W814

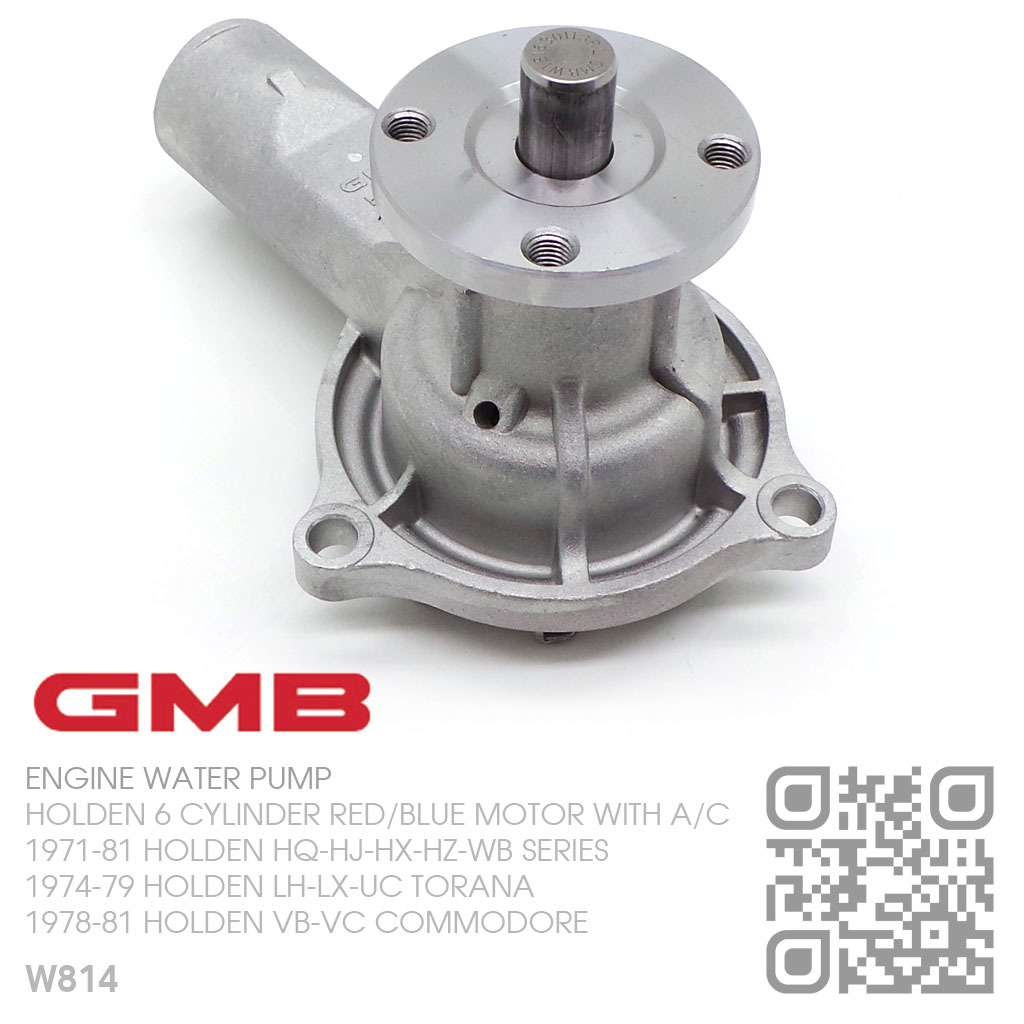

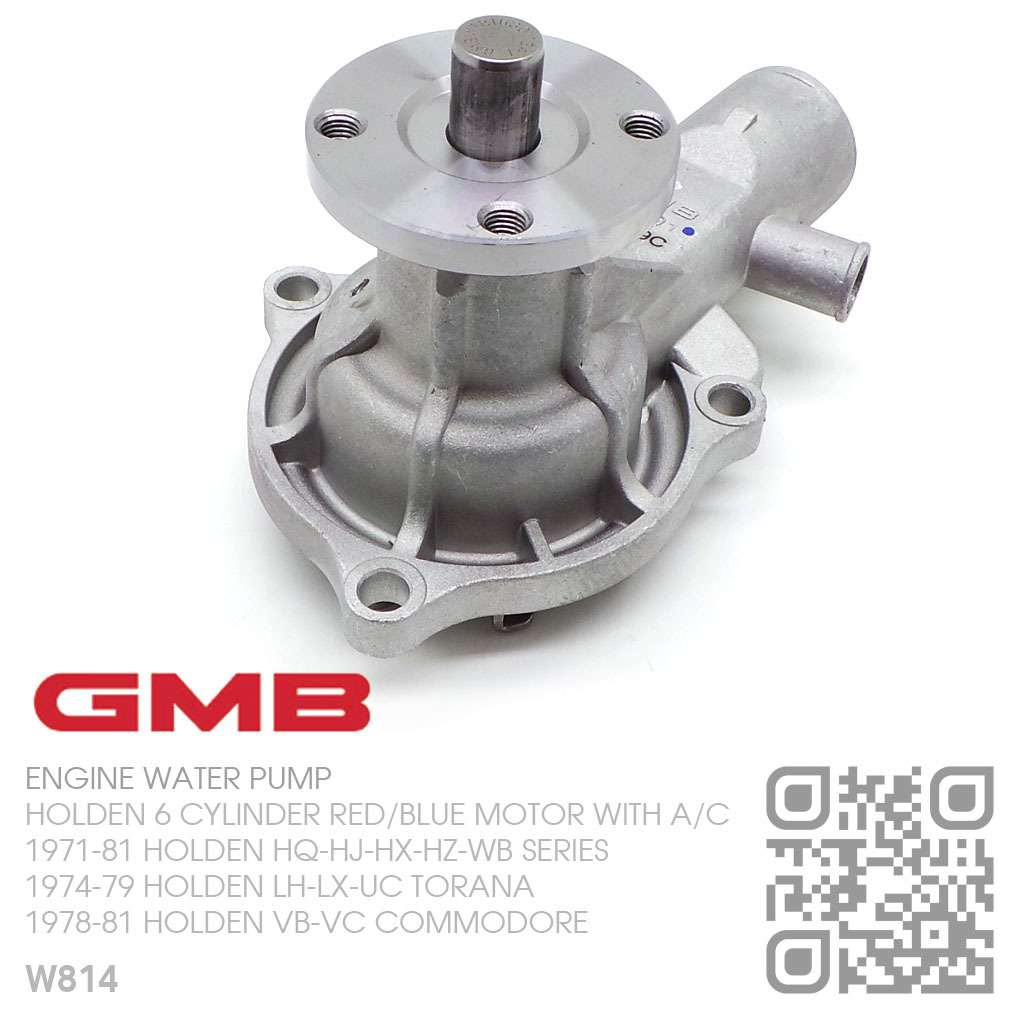

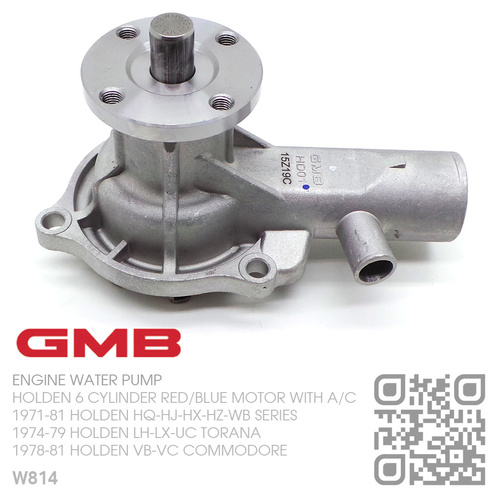

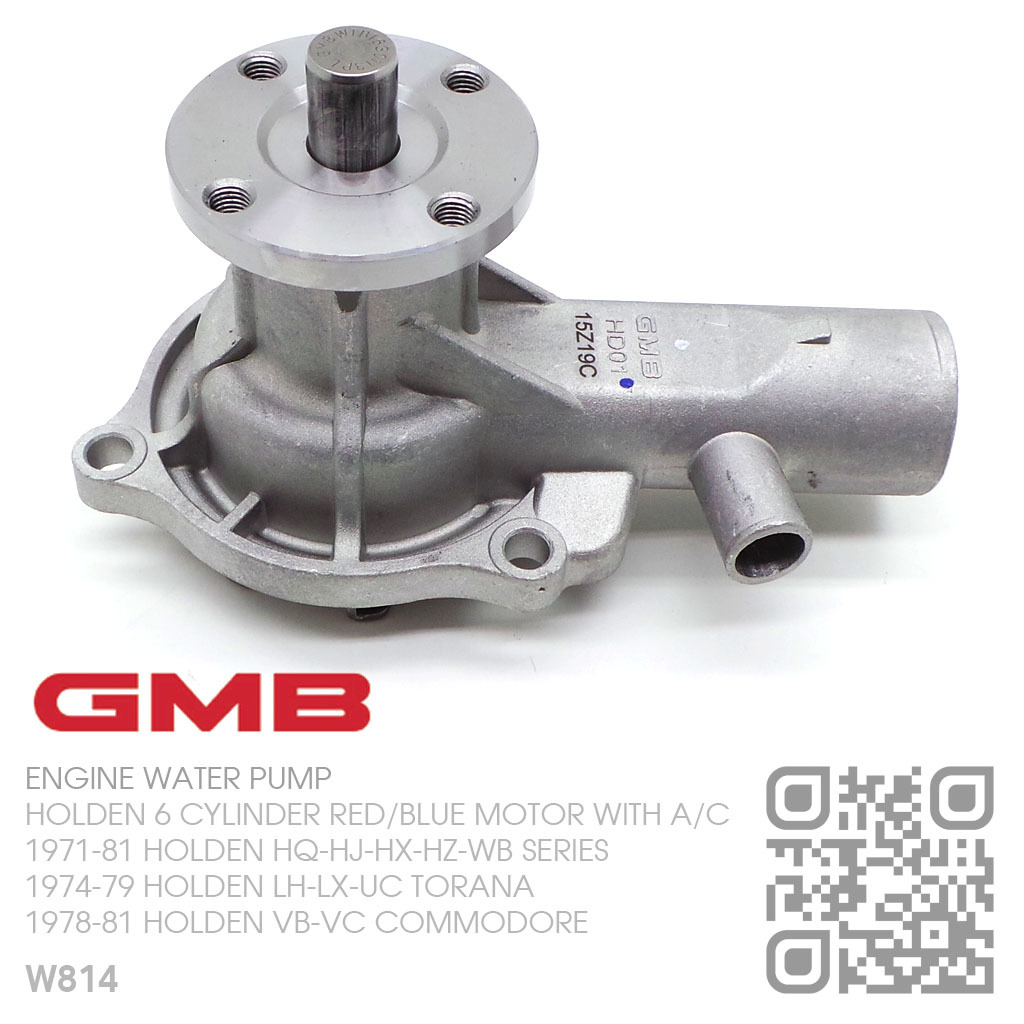

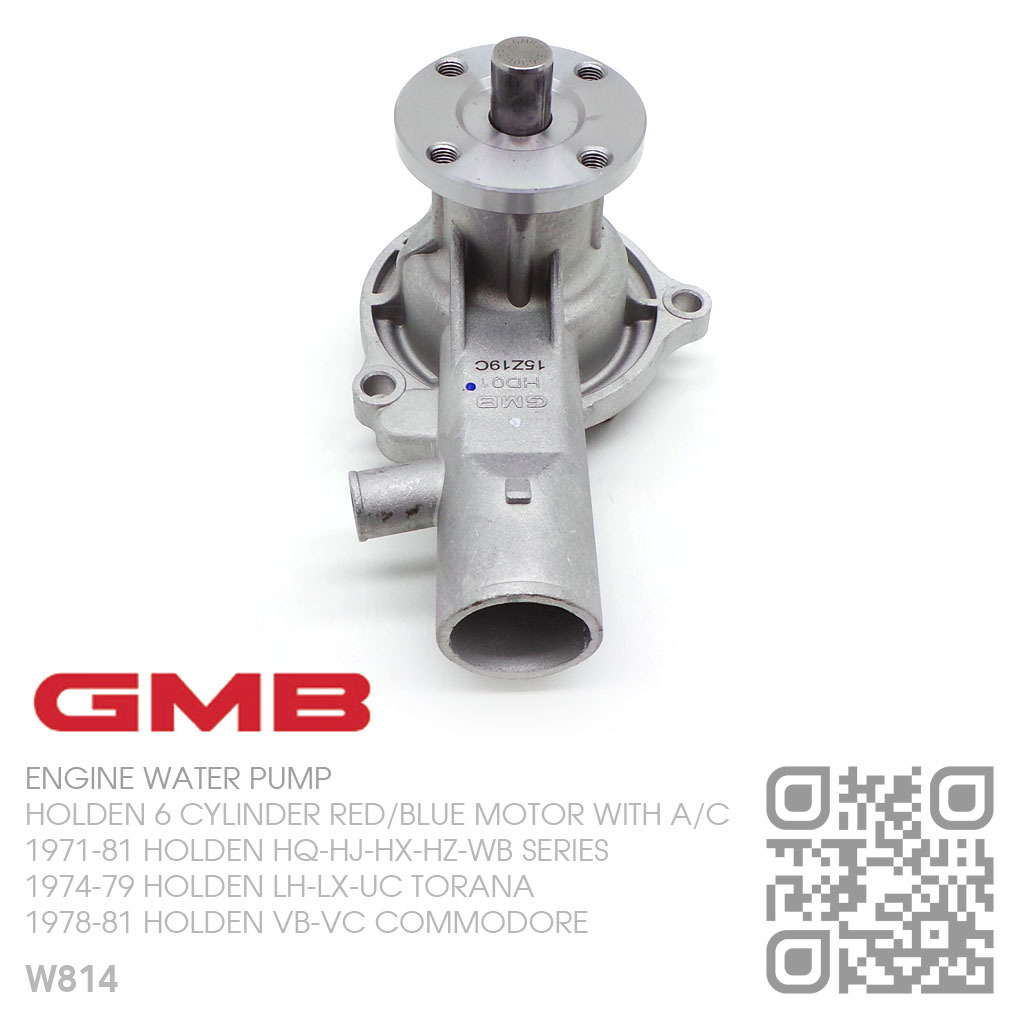

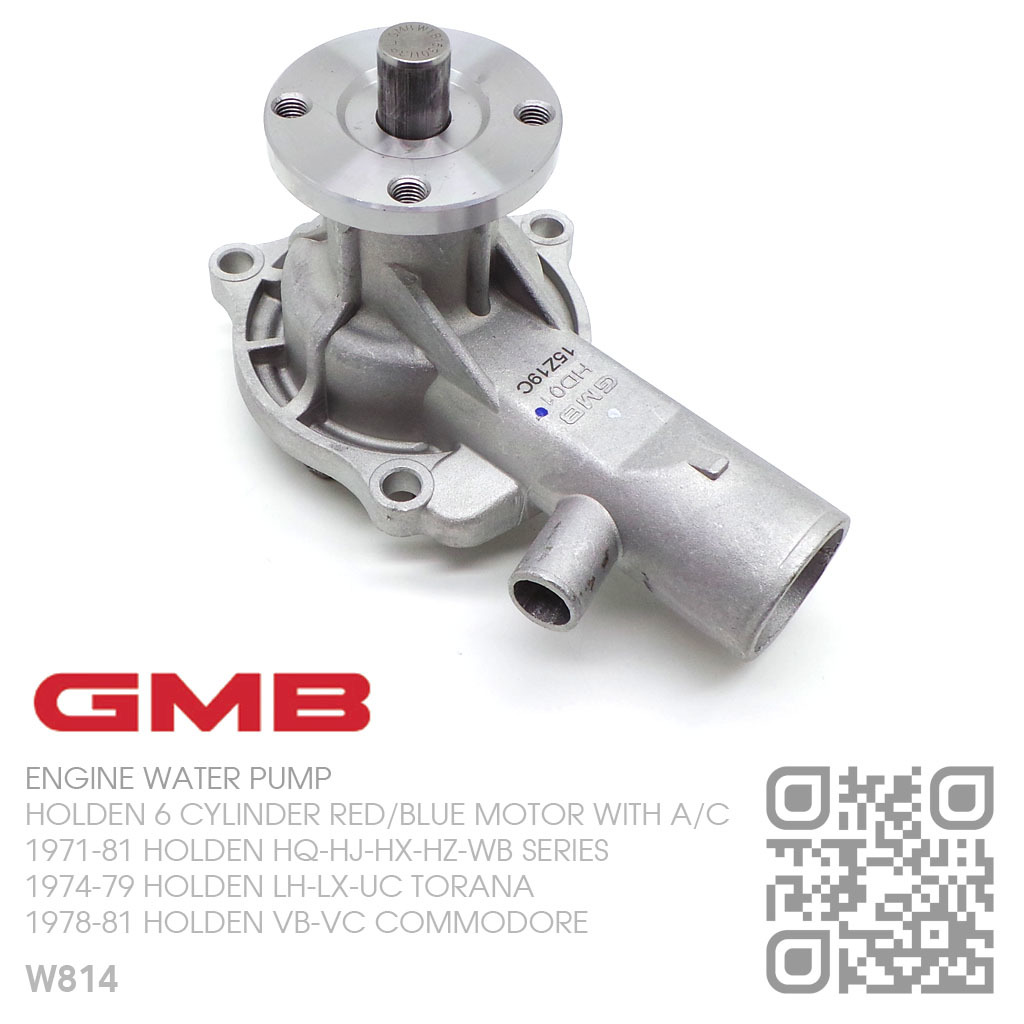

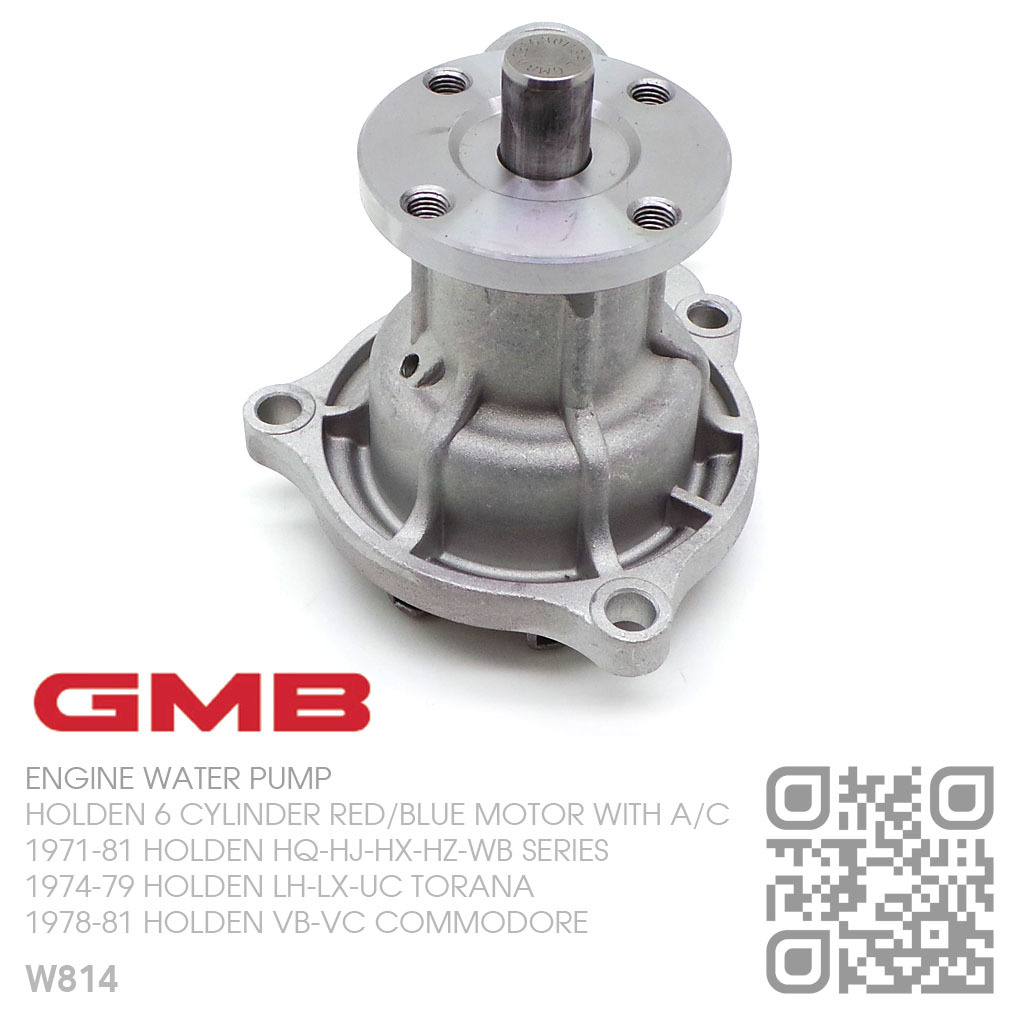

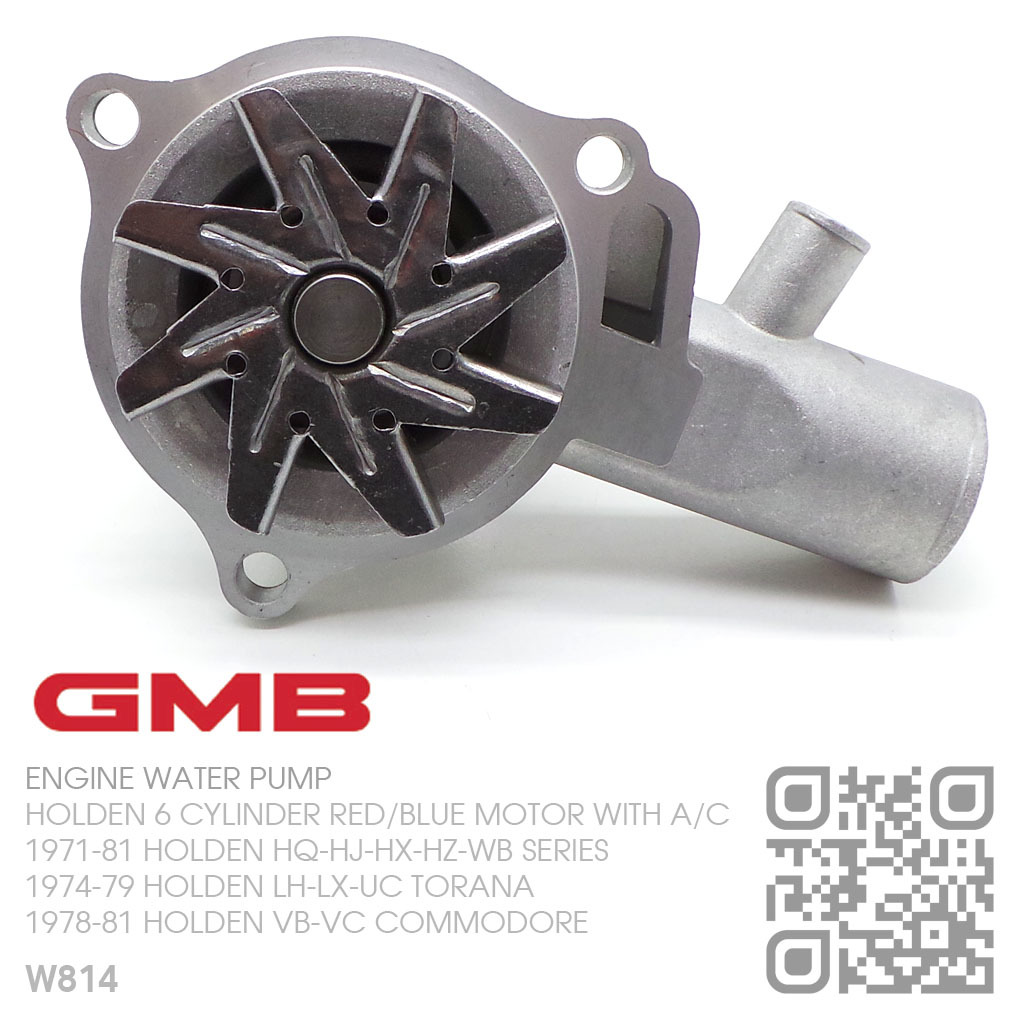

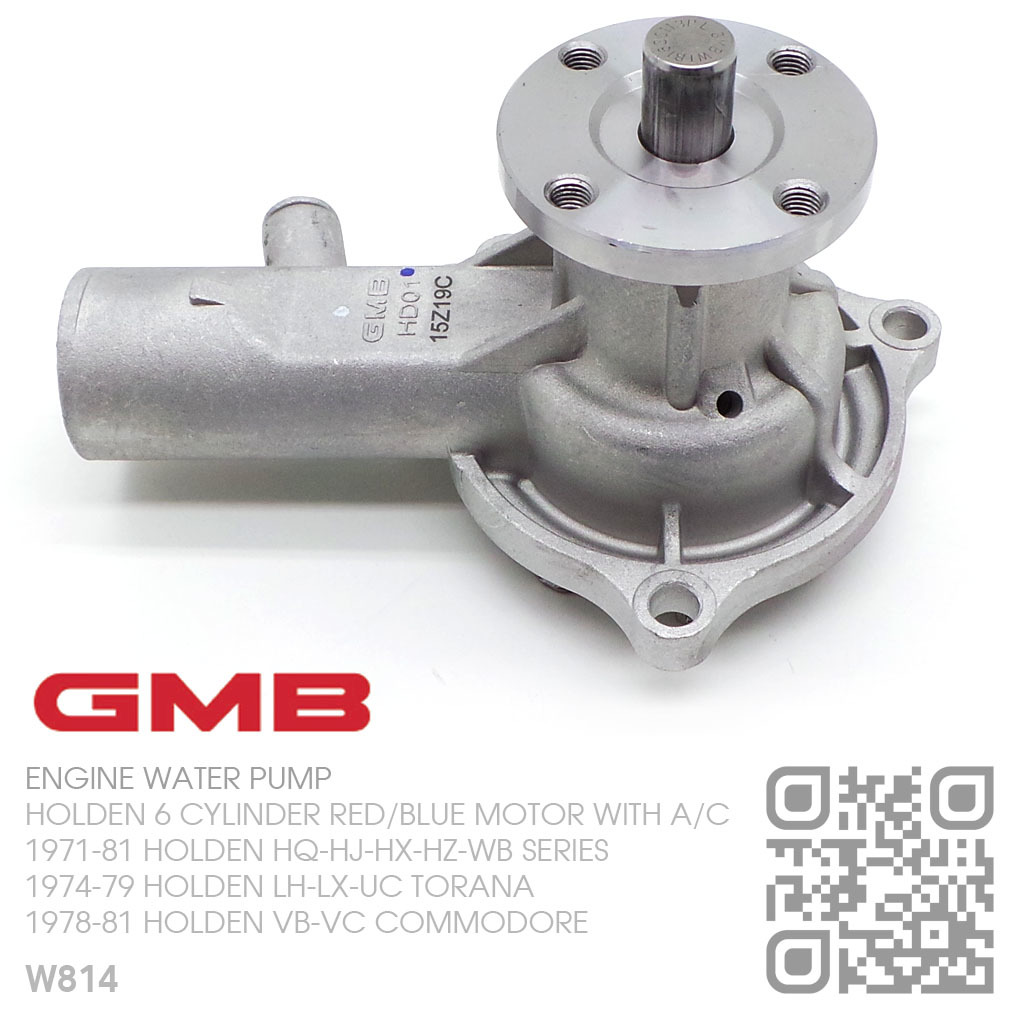

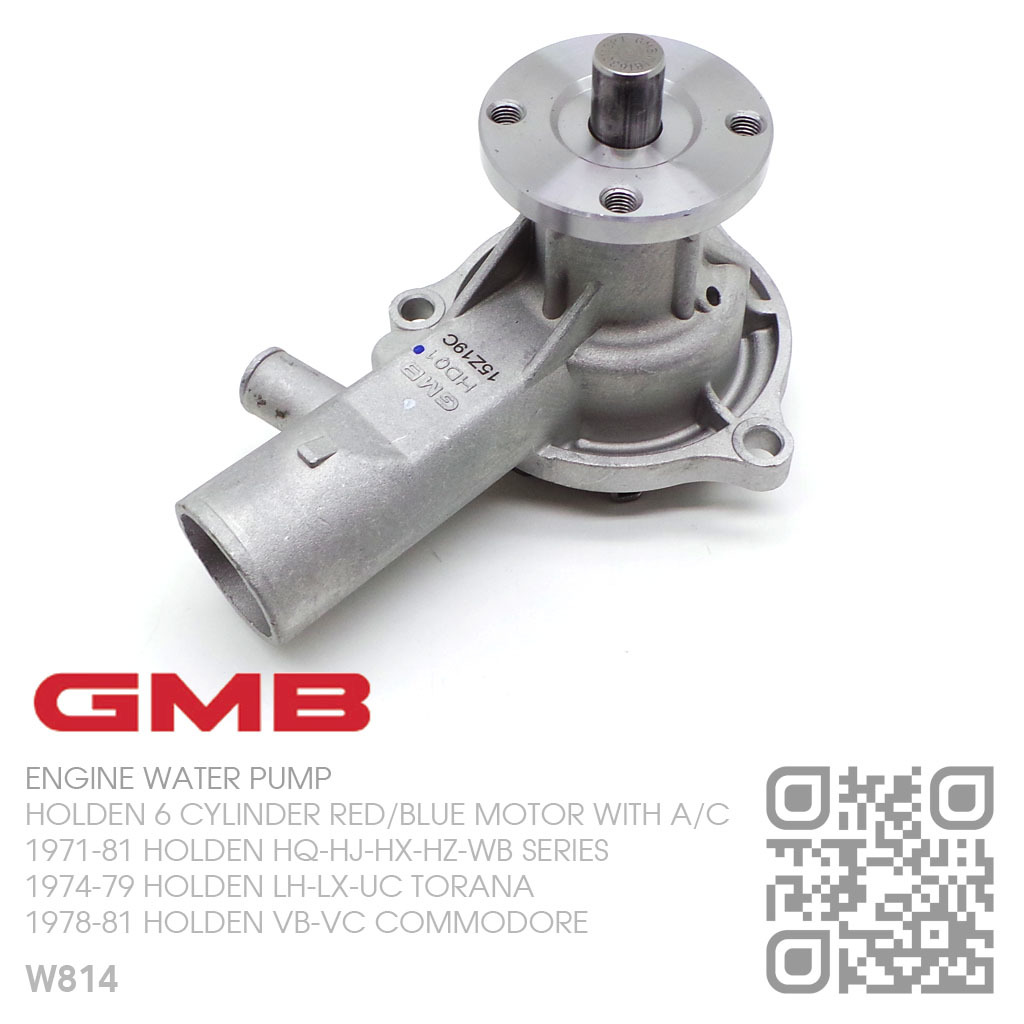

GMB WATER PUMP [HOLDEN 6-CYL 173 & 202 RED/BLUE MOTOR WITH AIR]

1971-80 HOLDEN [HQ-HJ-HX-HZ-WB, LH-LX-UC TORANA VB-VC]

$44.00
In Stock


Calculate Shipping



Free shipping - $0.00

GMB LARGE HUB WATER PUMP
HOLDEN 6 CYLINDER 173 & 202 RED/BLUE MOTOR
WITH FACTORY AIR CONDITIONING

1971-80 HOLDEN [HQ-HJ-HX-HZ-WB SERIES]
1974-79 HOLDEN [LH-LX-UC TORANA]
1978-80 HOLDEN [VB-VC COMMODORE]

Description

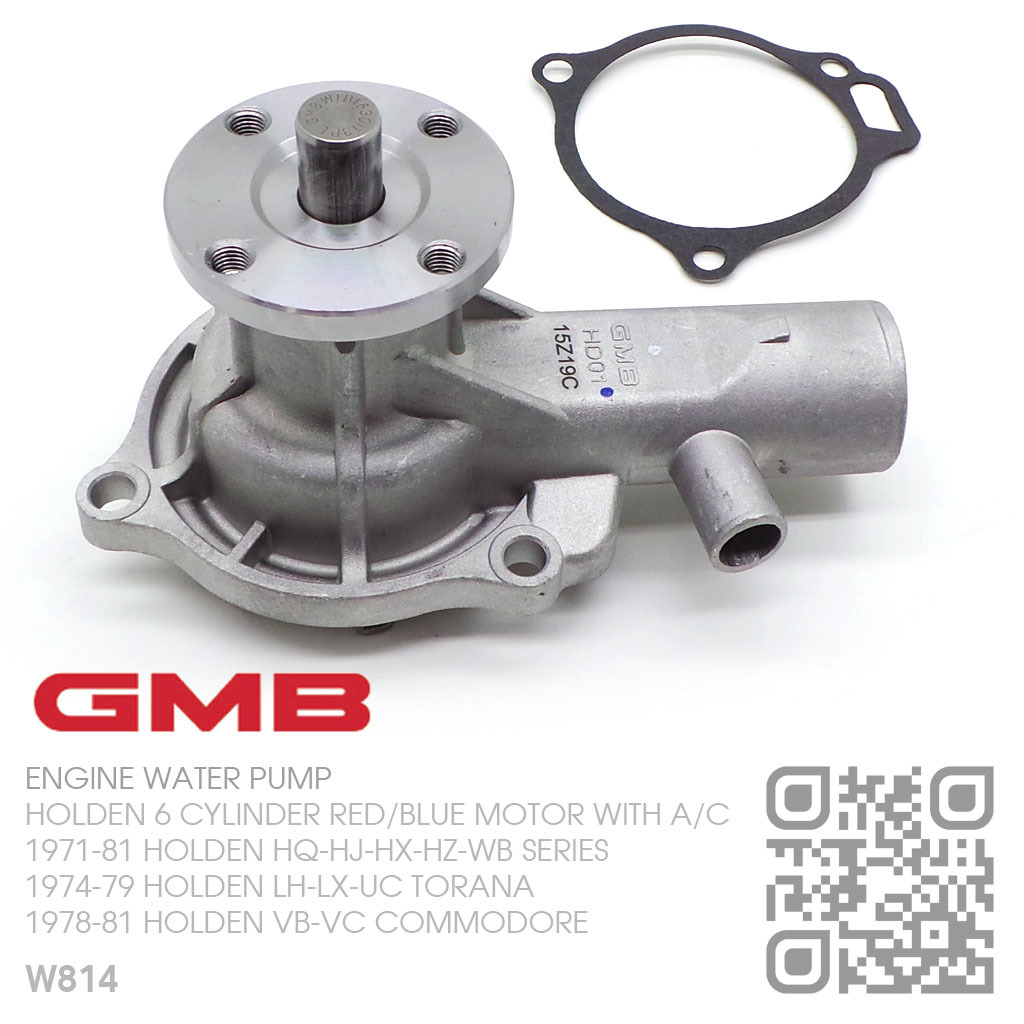

GMB LARGE HUB WATER PUMP & GASKET KIT
HOLDEN 6 CYLINDER 173 & 202 RED/BLUE MOTOR
WITH FACTORY AIR CONDITIONING

05/1969-1980 HOLDEN [HQ-HJ-HX-HZ-WB SERIES]
03/1974-1979 HOLDEN [LH-LX-UC TORANA]
10/1978-1980 HOLDEN [VB-VC COMMODORE]

The water pump is a vital part required to circulate coolant around engine. Heat produced by engine combustion is absorbed by coolant which then passes through radiator to cool down before returning to engine. Water pump is situated between radiator and engine and driven by pulley & fan belt.

Engines stay cooler when the water pump causes coolant to circulate, however a leaking or failing pump due to the impeller simply rusting away or heavy corrosion of the body or bearing failure prevent this process from happening and can lead to serious over heating problems and usually occur when a engine hasn't been run in a long time with usually plain tap water in the system.

SPECIFICATIONS:
Main Shaft Length: 4.500" / 114.300mm
Engine Block to Pulley Front Face: 80mm
Hub Size: LARGE

GMB a Japanese based manufacturing company, started back in 1943 and steadily over the years has been renowned for producing high quality and durable long lasting water pumps.

The water pump is a direct bolt up and replaces your tired factory fitted Holden unit, with no modification required and comes with a engine block to water pump gasket for easy application, gasket sealer is highly recommended on installation.

REPLACES HOLDEN PART# 2823988, 92009771 & 92008365

SPECIAL NOTE:
NOT SUITABLE FOR VEHICLES BUILT AFTER 1980


173ci 2850 (2838cc) 2.85L RED/BLUE
WITH FACTORY AIR CONDITIONING
07/1971-1980 HOLDEN [HQ-HJ-HX-HZ SERIES]
03/1974-1979 HOLDEN [LH-LX-UC TORANA]
10/1978-1980 HOLDEN [VB-VC COMMODORE]

202ci 3300 (3298cc) 3.3L RED/BLUE
WITH FACTORY AIR CONDITIONING
07/1971-1980 HOLDEN [HQ-HJ-HX-HZ-WB SERIES]
02/1972-1979 HOLDEN [LH-LX-UC TORANA]
10/1978-1980 HOLDEN [VB-VC COMMODORE]

Warranty

Features

Specifications

SKU W814
Model # W814
Barcode # 9324297001825
Brand GMB
Shipping Weight 1.1000kg
Shipping Width 0.120m
Shipping Height 0.120m
Shipping Length 0.170m
Shipping Cubic 0.002448000m3
