SKU: W726

GMB WATER PUMP [HOLDEN 6-CYL 138-161-173-186-202 RED MOTOR]

1969-80 HOLDEN [HT-HG-HQ-HJ-HX-HZ,LC-LJ-LH-LX-UC TORANA]

$39.00
In Stock


Calculate Shipping



Free shipping - $0.00

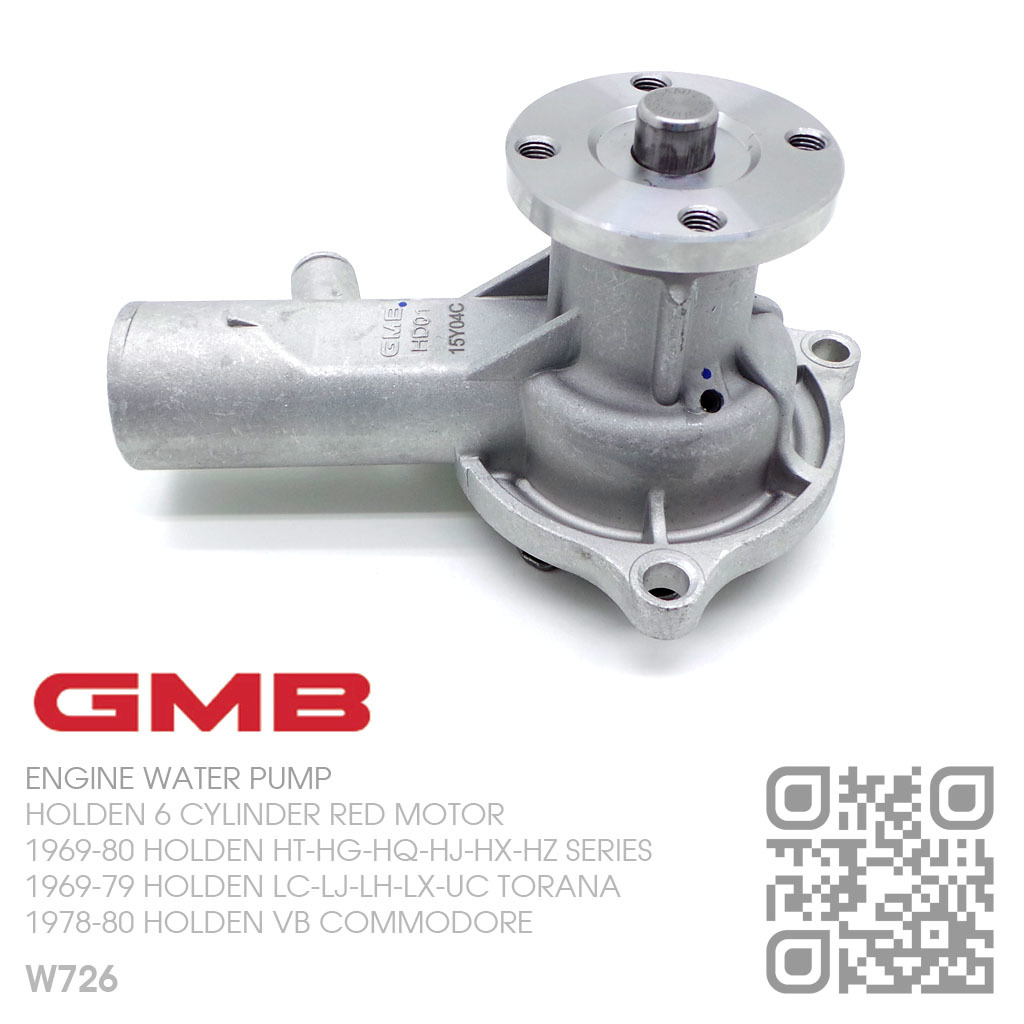

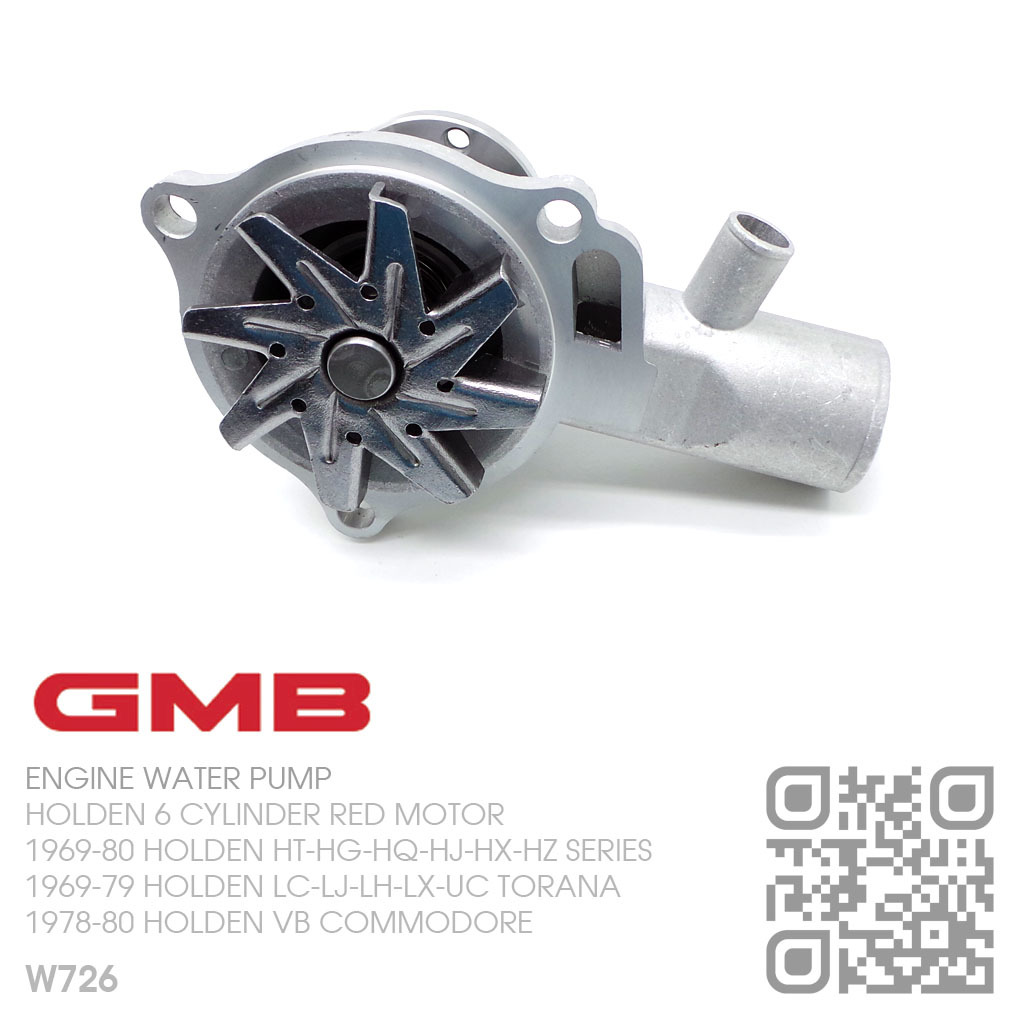

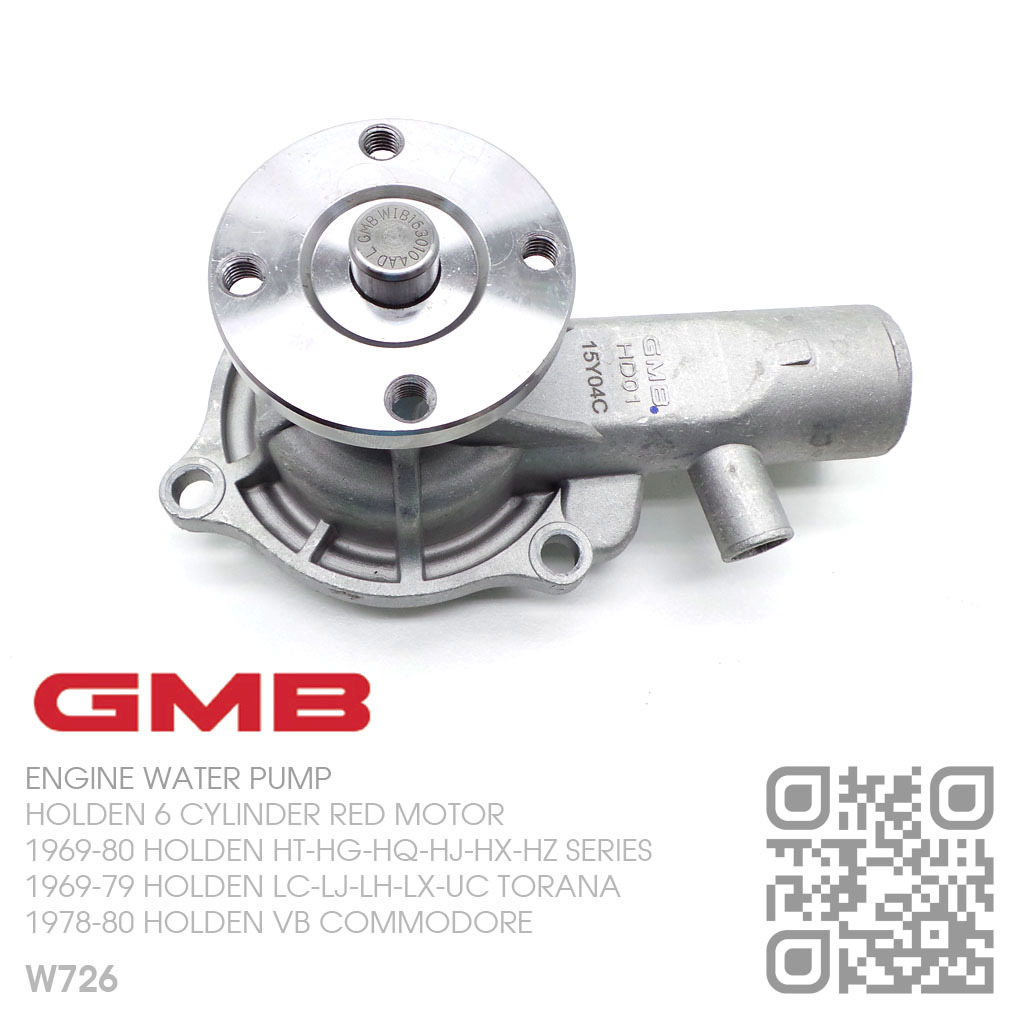

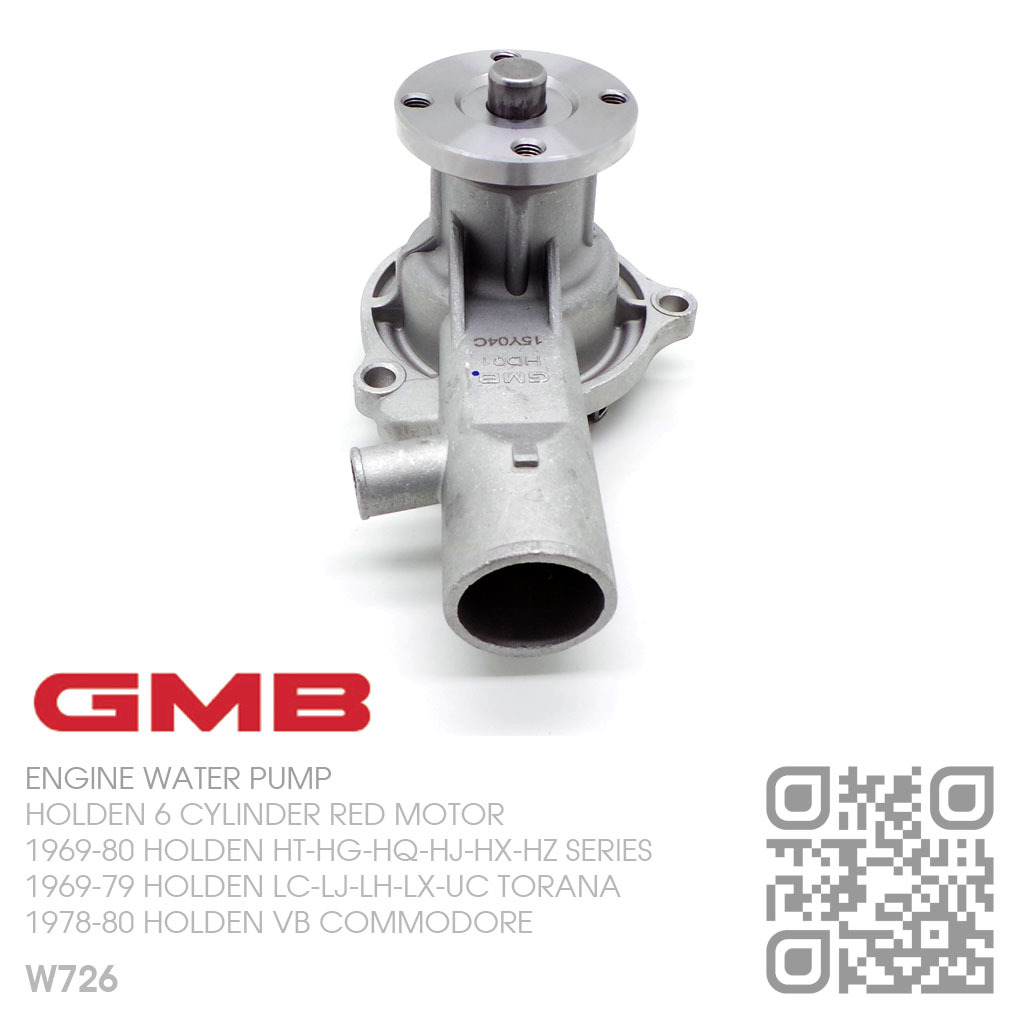

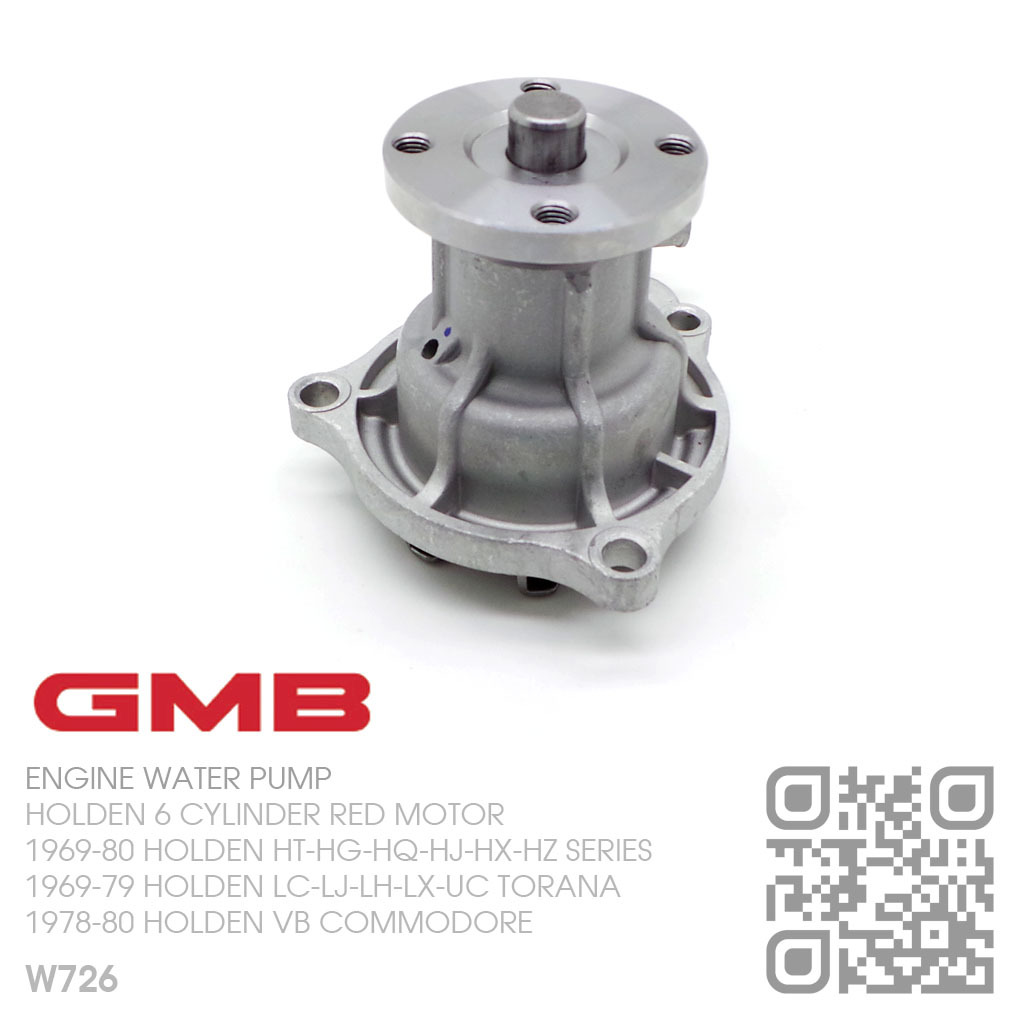

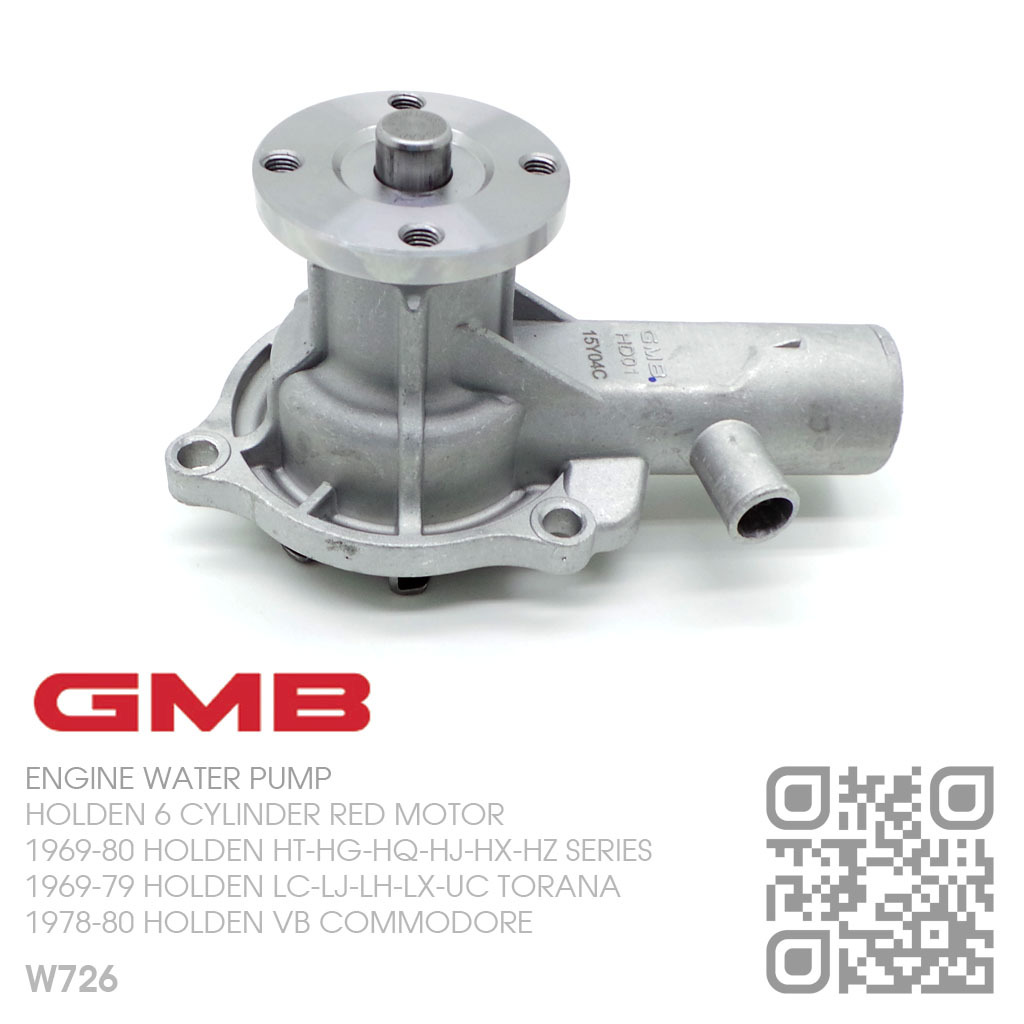

GMB LARGE HUB WATER PUMP
HOLDEN 6 CYLINDER 138-161-173-186-202 RED MOTOR

1969-80 HOLDEN [HT-HG-HQ-HJ-HX-HZ SERIES]
1969-79 HOLDEN [LC-LJ-LH-LX-UC TORANA]
1978-80 HOLDEN [VB COMMODORE]

Description

GMB LARGE HUB WATER PUMP
HOLDEN 6 CYLINDER 138-161-173-186-202 RED MOTOR

05/1969-1980 HOLDEN [HT-HG-HQ-HJ-HX-HZ SERIES]
10/1969-1979 HOLDEN [LC-LJ-LH-LX-UC TORANA]
10/1978-1980 HOLDEN [VB COMMODORE]

The water pump is a vital part required to circulate coolant around engine. Heat produced by engine combustion is absorbed by coolant which then passes through radiator to cool down before returning to engine. Water pump is situated between radiator and engine and driven by pulley & fan belt.

Engines stay cooler when the water pump causes coolant to circulate, however a leaking or failing pump due to the impeller simply rusting away or heavy corrosion of the body or bearing failure prevent this process from happening and can lead to serious over heating problems and usually occur when a engine hasn't been run in a long time with usually plain tap water in the system.

SPECIFICATIONS:
Main Shaft Length: 4.125" / 104.775mm
Engine Block to Pulley Front Face: 80mm
Hub Size: LARGE

GMB a Japanese based manufacturing company, started back in 1943 and steadily over the years has been renowned for producing high quality and durable long lasting water pumps.

The water pump is a direct bolt up and replaces your tired factory fitted Holden unit, with no modification required and comes with a engine block to water pump gasket for easy application, gasket sealer is highly recommended on installation.

REPLACES HOLDEN PART# 2808367, 92009770 & 92008366


138ci 2250 (2262cc) RED
10/1969-1973 HOLDEN [LC-LJ TORANA]

161ci 2600 (2638cc) RED
05/1969-1971 HOLDEN [HT-HG SERIES]
10/1969-1971 HOLDEN [LC TORANA & GTR]

173ci 2850 (2838cc) 2.85L RED
07/1971-1971 HOLDEN [HG UTE/VAN]
07/1971-1980 HOLDEN [HQ-HJ-HX-HZ SERIES]
07/1971-1979 HOLDEN [LC-LJ-LH-LX-UC TORANA]
10/1978-1980 HOLDEN [VB COMMODORE]

186ci (3048cc) RED
05/1969-1971 HOLDEN [HT-HG SERIES]
08/1970-1972 HOLDEN [LC TORANA GTR-XU1]

202ci 3300 (3298cc) 3.3L RED
07/1971-1971 HOLDEN [HG UTE/VAN]
07/1971-1980 HOLDEN [HQ-HJ-HX-HZ SERIES]
02/1972-1979 HOLDEN [LJ-LH-LX-UC TORANA]
10/1978-1980 HOLDEN [VB COMMODORE]

Warranty

Features

Specifications

SKU W726
Model # W726
Barcode # 9324297001849
Brand GMB
Shipping Weight 1.0000kg
Shipping Width 0.120m
Shipping Height 0.120m
Shipping Length 0.170m
Shipping Cubic 0.002448000m3
