SKU: CST100941-HV8

CROW CAMS PERFORMANCE 7/16" ROCKER ARM STUD KIT [HOLDEN V8 RED/BLUE/BLACK/INJECTED MOTOR]

1969-00 HOLDEN [HT-WB, LH-LX TORANA & VB-VT COMMODORE]

$115.50
In Stock


Calculate Shipping



Free shipping - $0.00

CROW CAMS PERFORMANCE 7/16" ROCKER ARM STUD KIT
HOLDEN V8 253 4.2L & 308 5.0L RED/BLUE MOTOR
HOLDEN V8 304 & 308 5.0L BLACK MOTOR
HOLDEN V8 304 INJECTED 5.0L MOTOR
HOLDEN V8 355 STROKER 5.7L MOTOR

Description

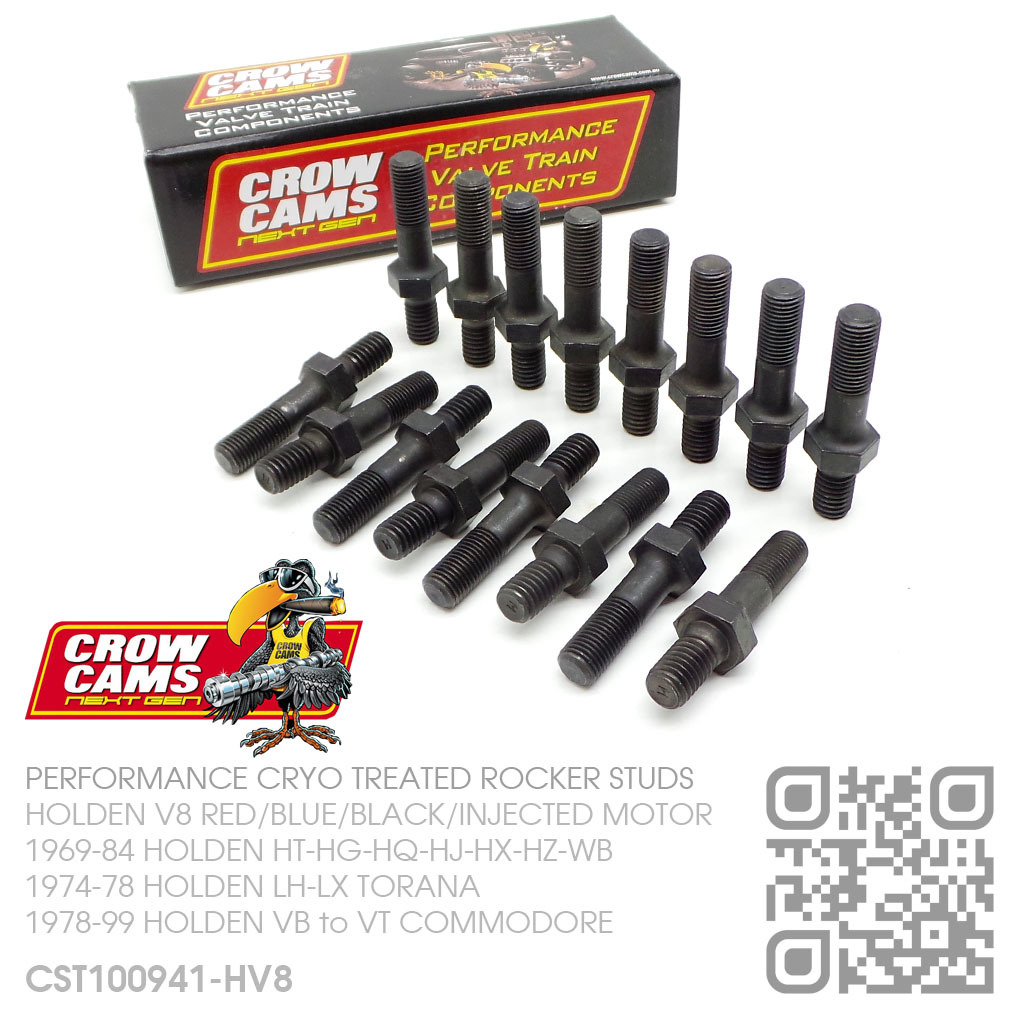

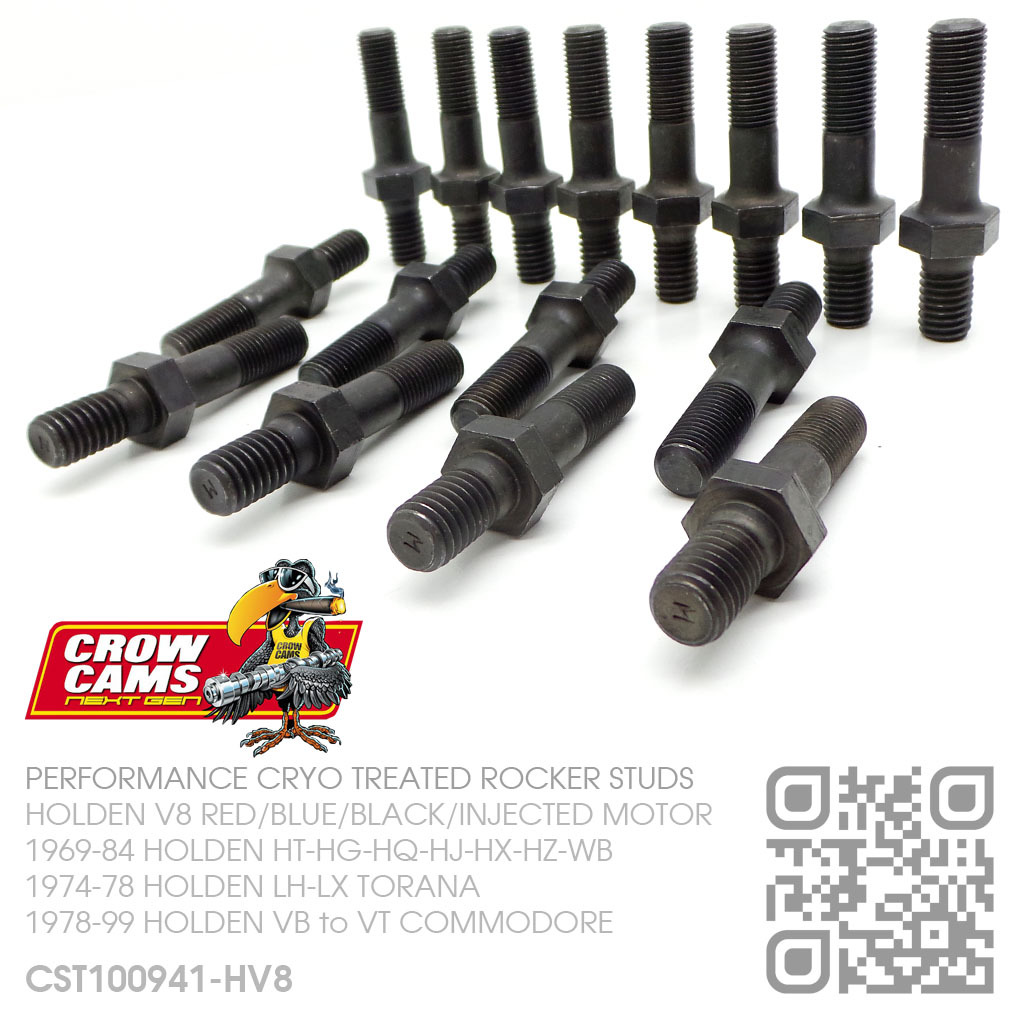

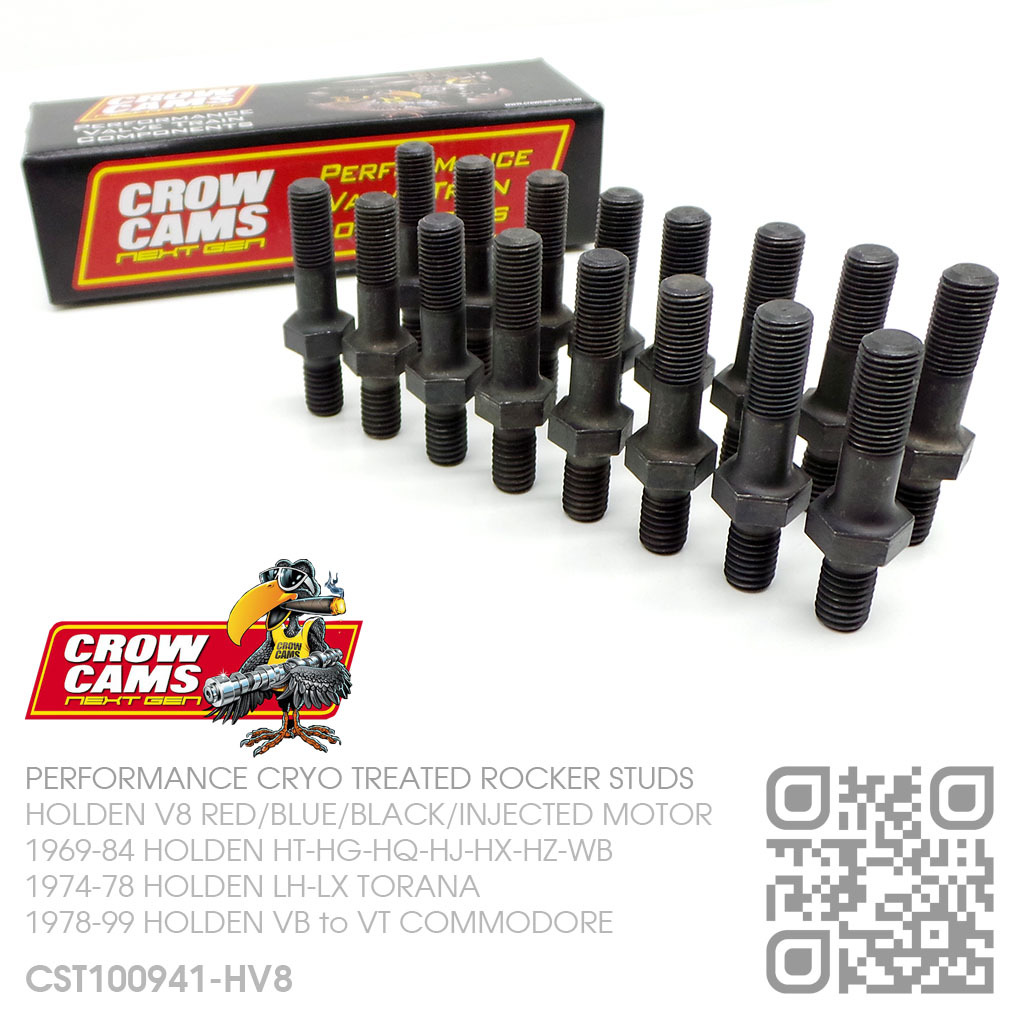

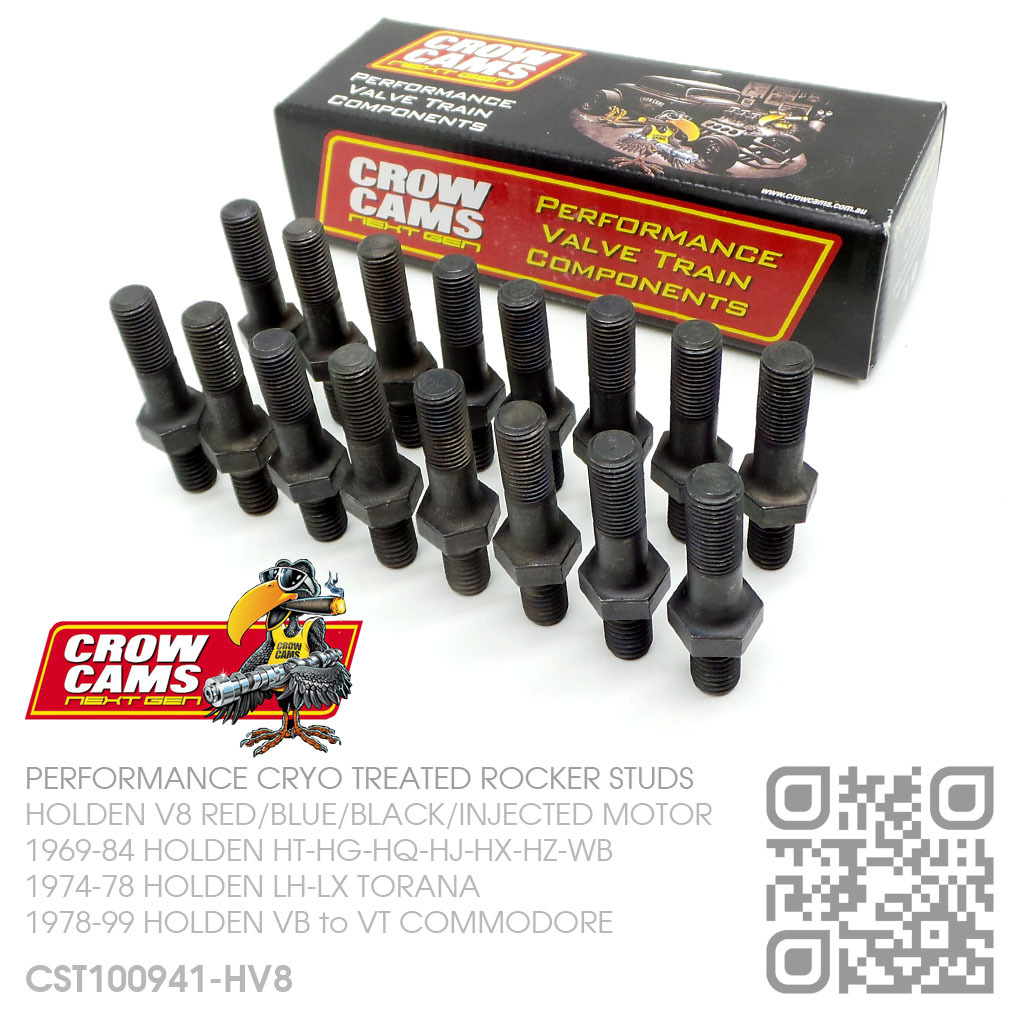

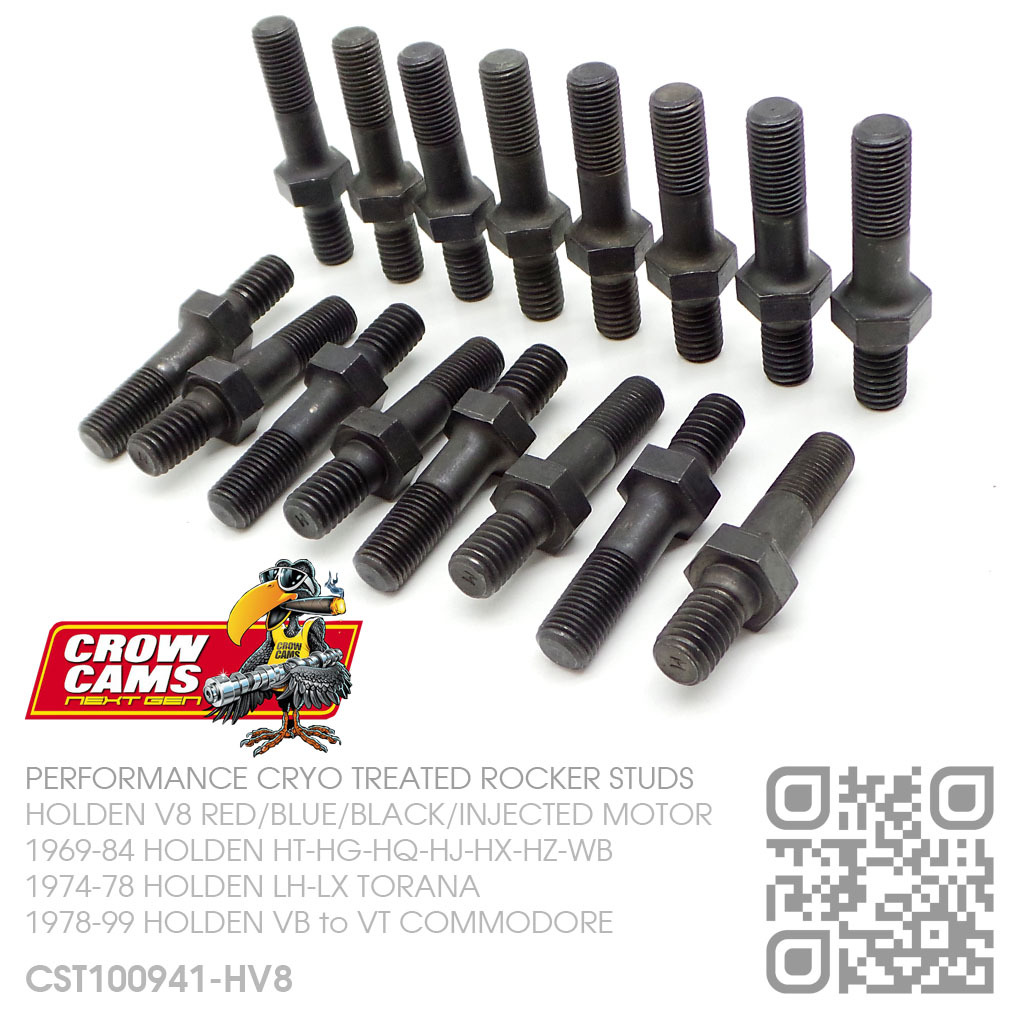

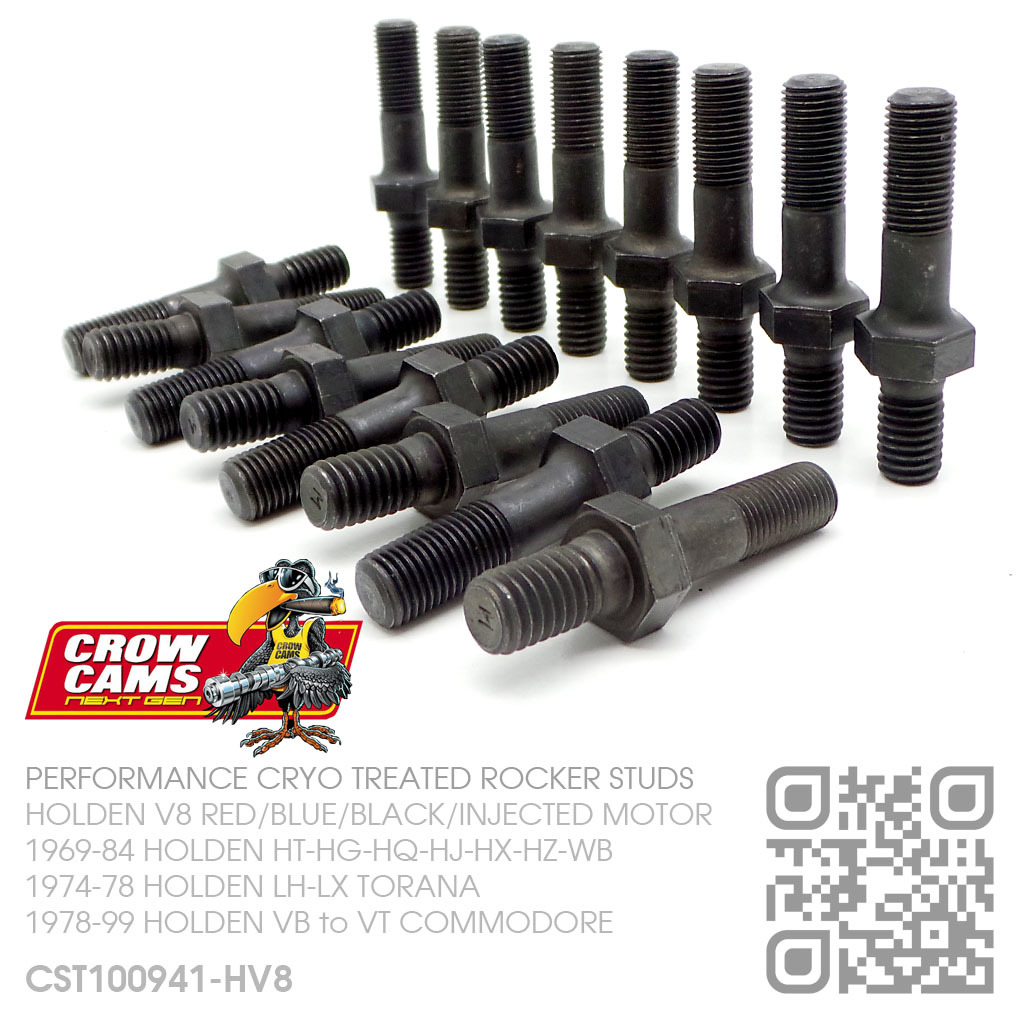

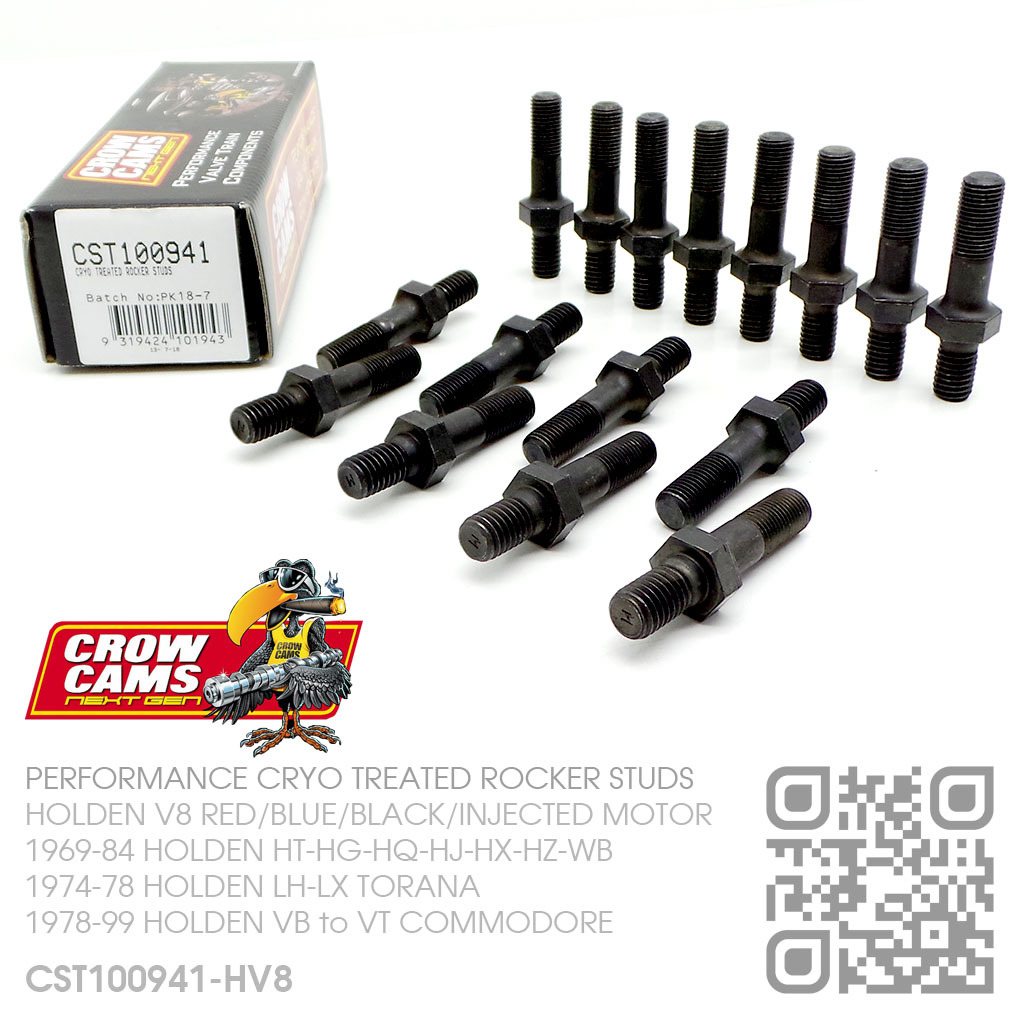

CROW CAMS NEXT GEN PERFORMANCE CRYO TREATED 7/16" ROCKER ARM STUD KIT
HOLDEN V8 253 4.2L & 308 5.0L RED/BLUE MOTOR
HOLDEN V8 304 & 308 5.0L BLACK MOTOR
HOLDEN V8 304 5.0L INJECTED MOTOR
HOLDEN V8 355 5.7L STROKER MOTOR (348ci)

HOLDEN V8 RED/BLUE/BLACK MOTOR
05/1969-1984 HOLDEN [HT-HG-HQ-HJ-HX-HZ-WB SERIES]
03/1974-03/1978 HOLDEN [LH-LX TORANA]
10/1978-08/1988 HOLDEN [VB-VC-VH-VK-VL COMMODORE]

HOLDEN V8 INJECTED MOTOR
03/1989-1999 HOLDEN [VN-VP-VR-VS-VT COMMODORE]
03/1990-1999 HOLDEN [VQ-VR-VS STATESMAN/CAPRICE]
09/1990-2000 HOLDEN [VG-VP-VR-VS UTE]

The best stud rockers deserve the best screw in roller studs and Crow Cams now offer a high tech cryogenically treated rocker studs to suit 7/16" rockers.

Cryogenic treatment stabilises the material for greater strength and maximises surface harness for wear resistance. An excellent choice if your using Crow Cams Next Generation stainless steel roller rockers and are total overkill for traditional alloy roller rockers.

SPECIFICATIONS:
Overall Length: 2.560˝
Adjuster Thread Length: 0.890˝
Adjuster Installed Length: 1.765˝
Adjuster Diameter-Pitch: 7/16"-20 (UNF)
Screw-in Depth: 0.795˝
Screw-in Diameter-Pitch: 7/16"-14 (UNC)
Set Quantity: 16

For more than 30 years, Crow Cams in Australia, have developed valve train products and developed unique camshafts. Crow Cams, work closely with the USA’s leading performance manufacturers to produce extremely high quality rocker studs.

SPECIAL NOTE:
TIGHTEN STUDS TO SPECIFICATIONS

CRITICAL NOTE:
CYLINDER HEAD MACHINING IS REQUIRED

MADE IN USA


HOLDEN V8 RED MOTOR

L31 HOLDEN V8 308 5.0L RED MOTOR
05/1969-04/1980 HOLDEN [HT-HG-HQ-HJ-HX-HZ SERIES]
03/1974-03/1978 HOLDEN [LH-LX TORANA]
10/1978-03/1980 HOLDEN [VB COMMODORE]

L32 HOLDEN V8 253 4.2L RED MOTOR (HIGH COMP)
05/1969-04/1980 HOLDEN [HT-HG-HQ-HJ-HX-HZ SERIES]
03/1974-03/1978 HOLDEN [LH-LX TORANA]

L33 HOLDEN V8 253 4.2L RED MOTOR (LOW COMP)
05/1969-07/1976 HOLDEN [HT-HG-HQ-HJ SERIES]

L36 HOLDEN V8 253 4.2L RED MOTOR
10/1978-03/1980 HOLDEN [VB COMMODORE]

HOLDEN V8 BLUE MOTOR

L31 HOLDEN V8 308 5.0L BLUE MOTOR
03/1980-02/1984 HOLDEN [VC-VH COMMODORE]
04/1980-1984 HOLDEN [WB STATESMAN]

L36 HOLDEN V8 253 4.2L BLUE MOTOR
03/1980-02/1984 HOLDEN [VC-VH COMMODORE]
04/1980-1984 HOLDEN [WB COMMERCIAL]

HOLDEN V8 BLACK MOTOR

L31 HOLDEN V8 308 5.0L BLACK MOTOR
02/1984-08/1984 HOLDEN [VK COMMODORE]

LV2 HOLDEN V8 304 5.0L BLACK MOTOR
09/1984-08/1988 HOLDEN [VK-VL COMMODORE]

HOLDEN V8 INJECTED MOTOR

LB9 HOLDEN V8 304 INJECTED 5.0L MOTOR
07/1988-1988 HOLDEN [VL COMMODORE SS GROUP A]
03/1989-05/1999 HOLDEN [VN-VP-VR-VS-VT COMMODORE]
03/1990-04/1999 HOLDEN [VQ-VR-VS STATESMAN]
09/1990-2000 HOLDEN [VG-VP-VR-VS UTE]

L98 HOLDEN V8 355 STROKER 5.7L MOTOR (348ci)
05/1994-05/1999 HSV [VR-VS-VT GTS/SENATOR & LIMITED EDITIONS]

Warranty

Features

Specifications

SKU CST100941-HV8
Model # CST100941
Barcode # 9319424101943
Brand Crow Cams
Shipping Weight 1.0000kg
