ENGINE PRO PERFORMANCE SINGLE BEEHIVE VALVE SPRING SET [CHEV V8 307-327-350 SMALL BLOCK MOTOR]

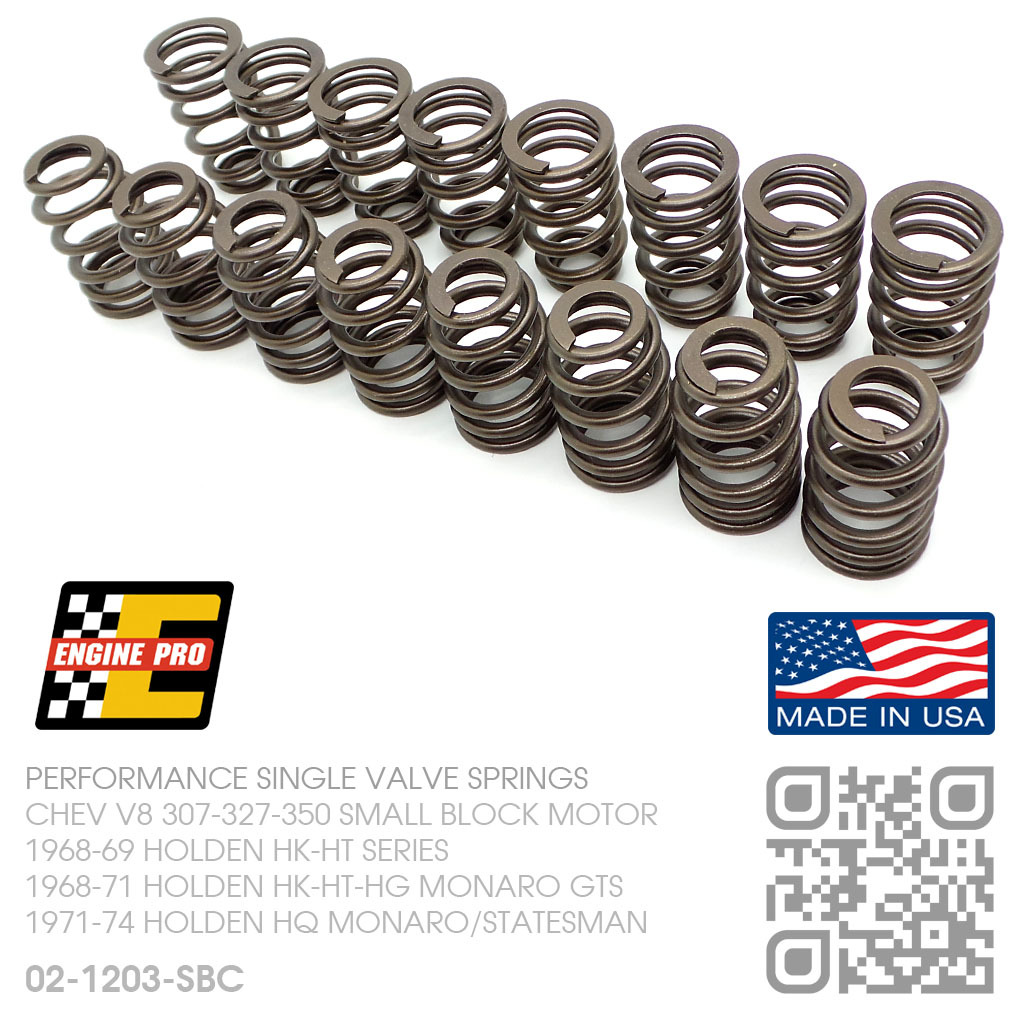

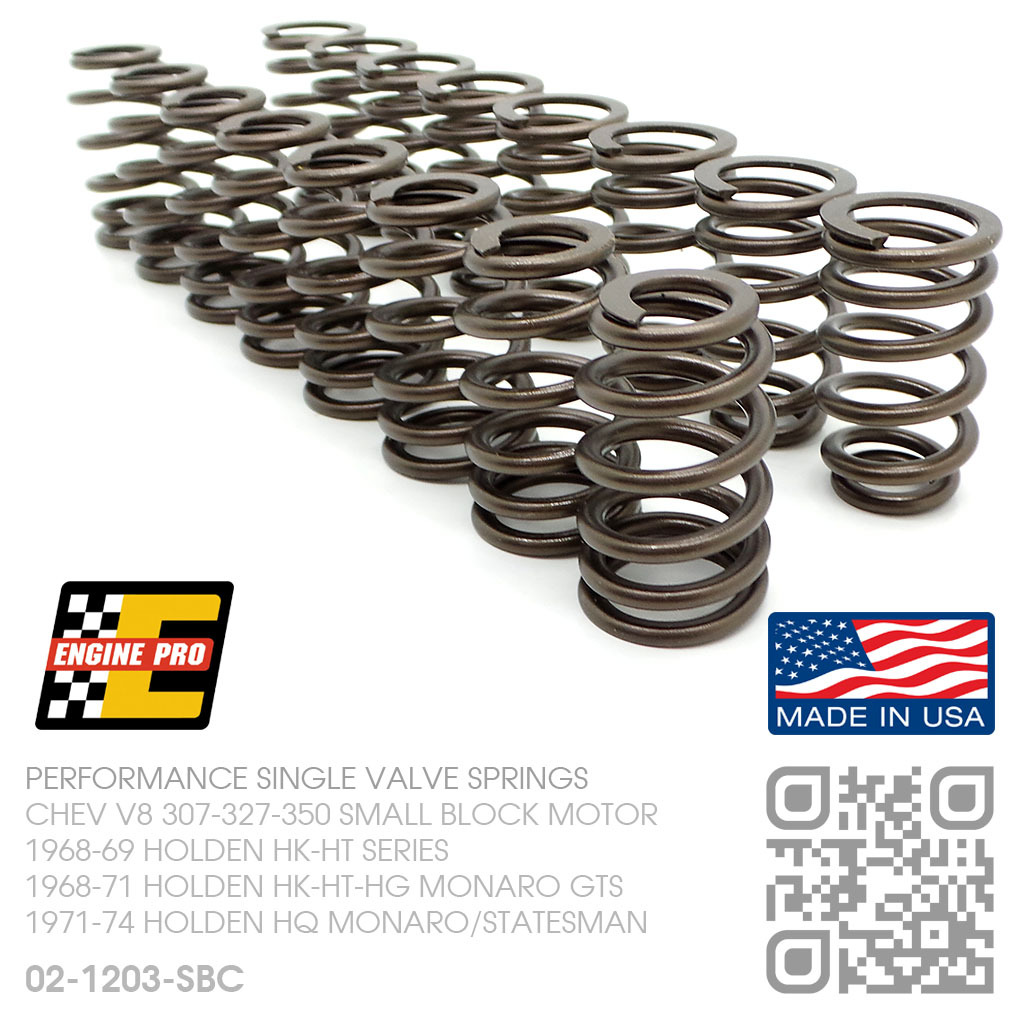

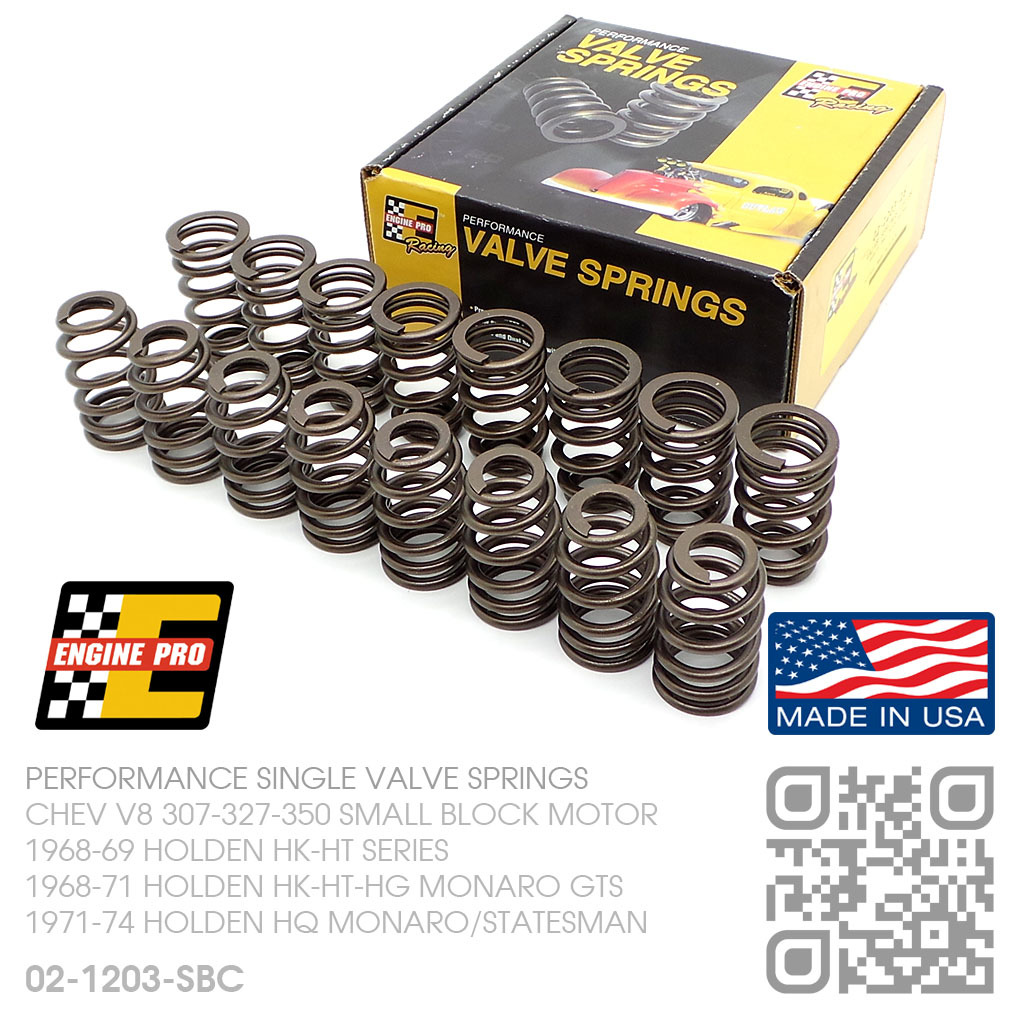

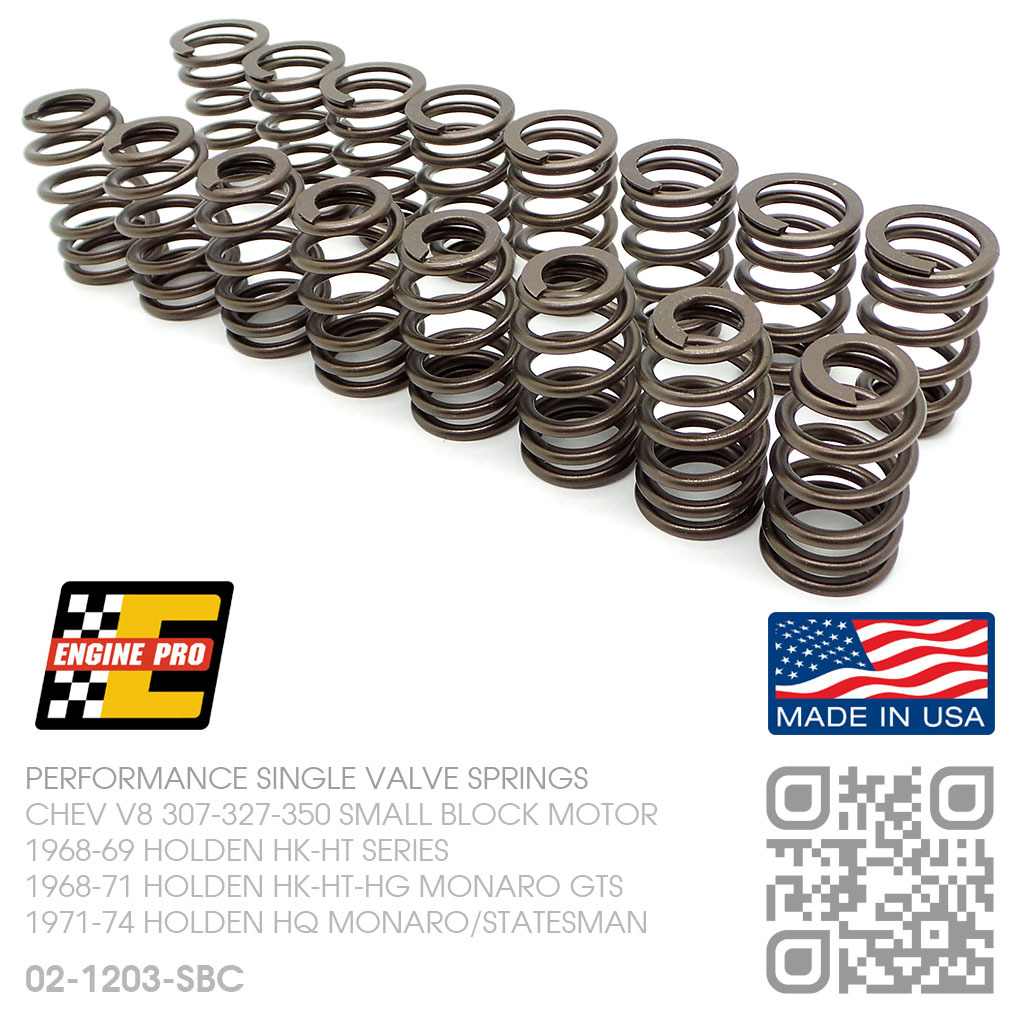

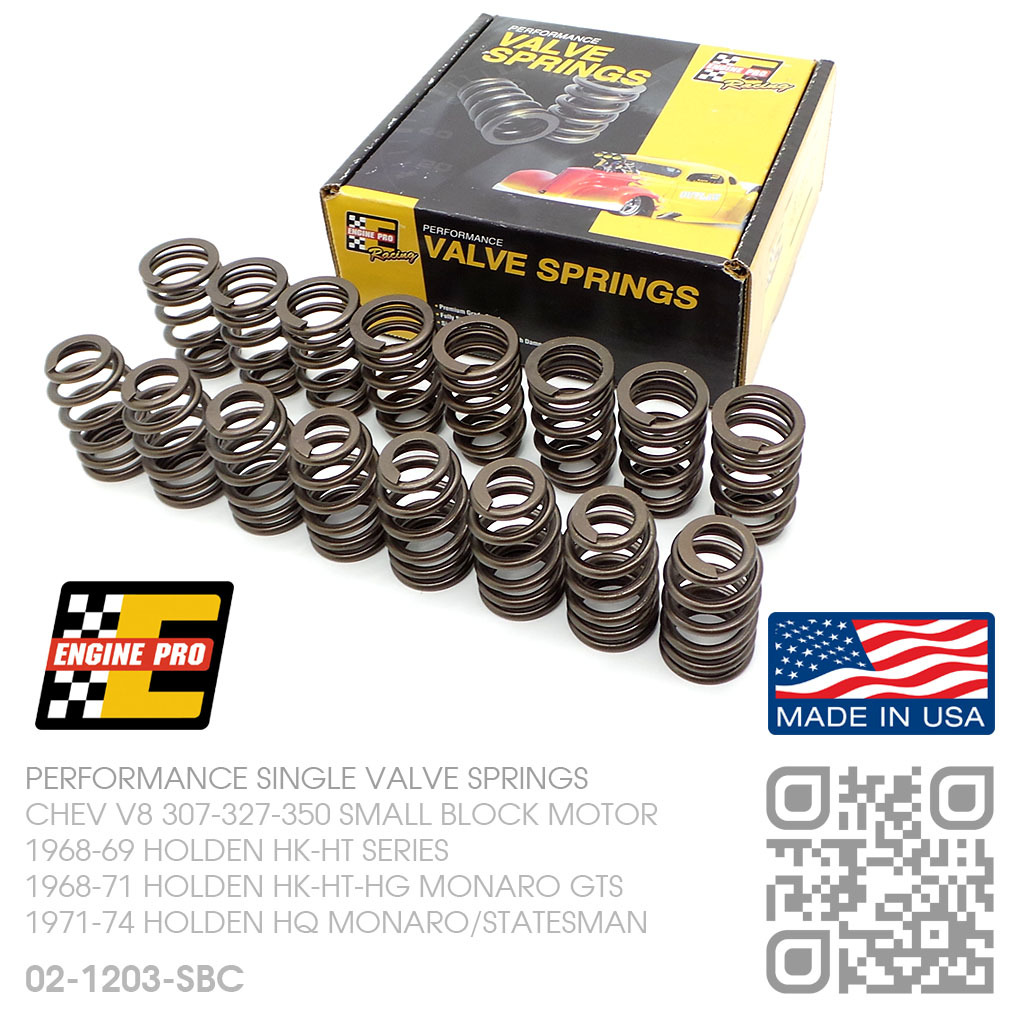

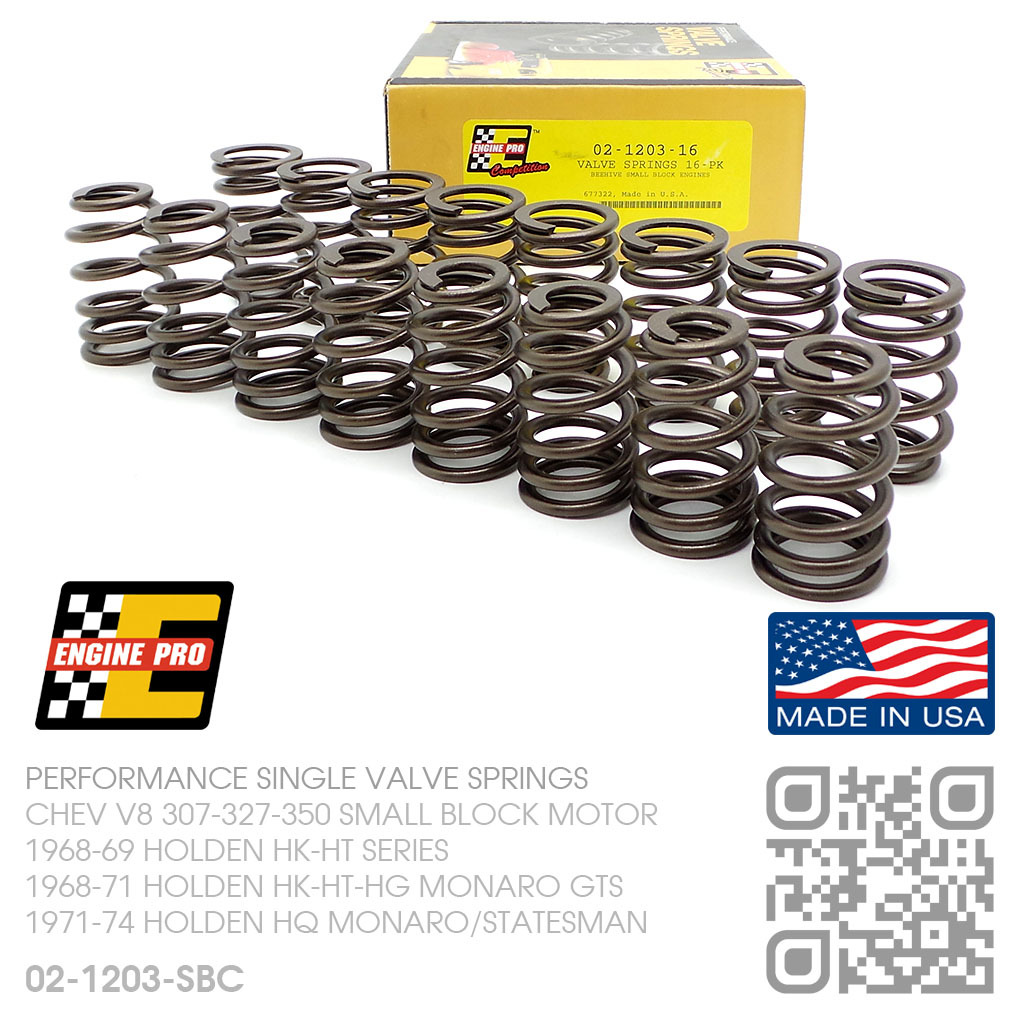

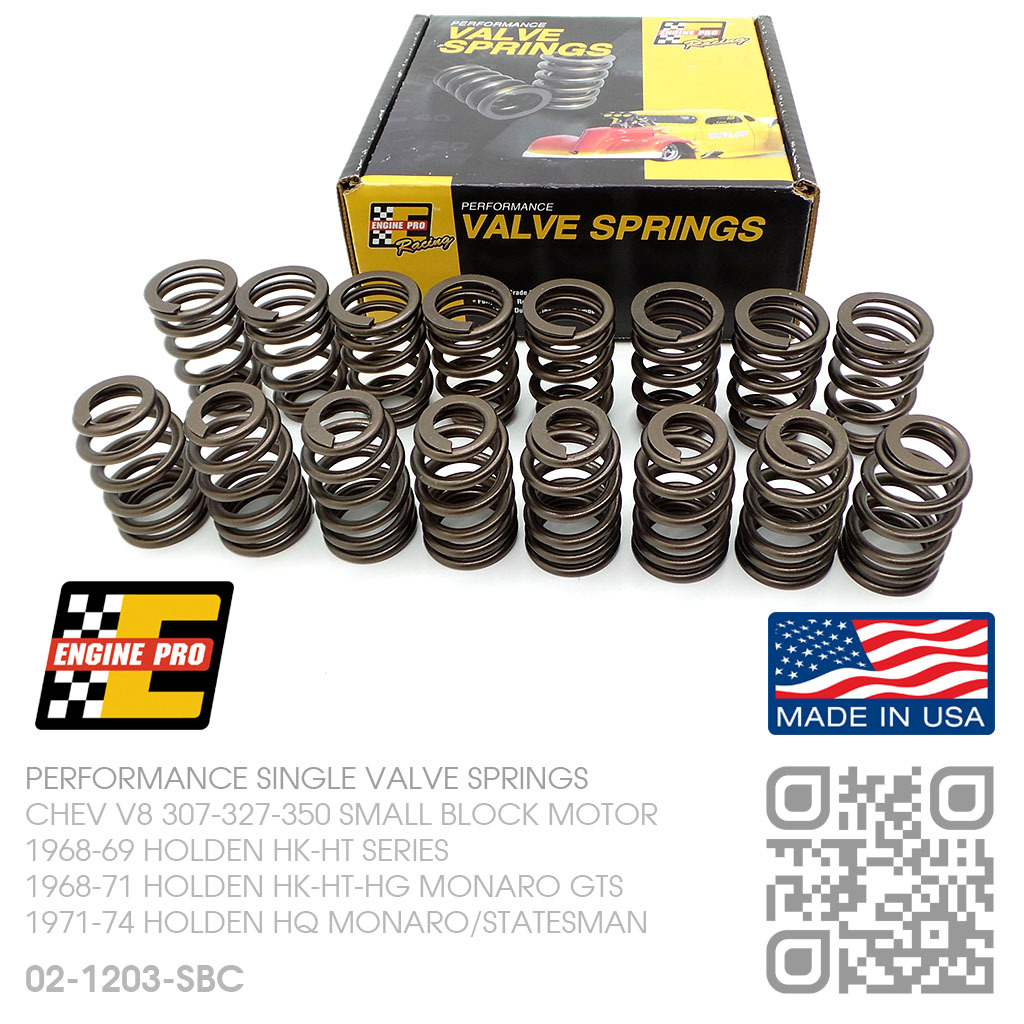

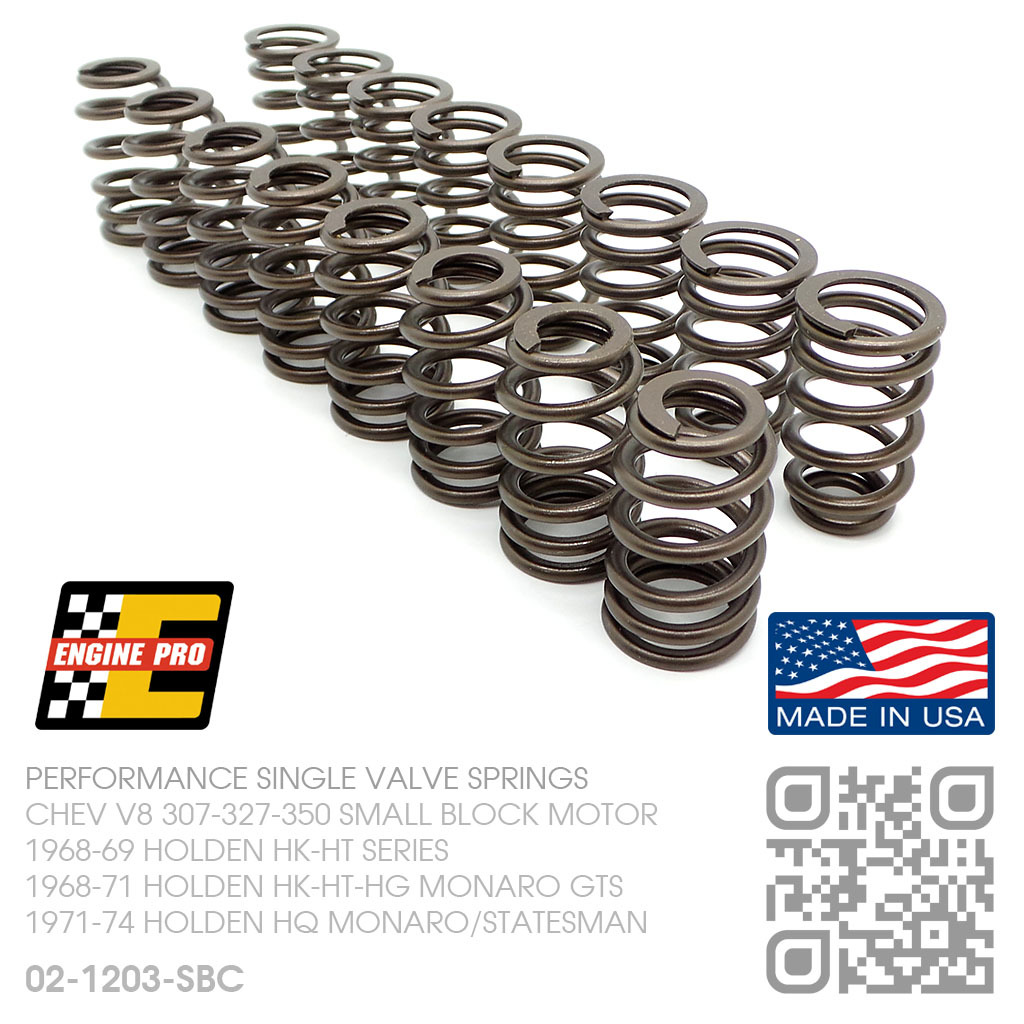

ENGINE PRO PERFORMANCE SINGLE BEEHIVE VALVE SPRING SET
CHEV V8 307-327-350 SMALL BLOCK MOTOR

01/1968-1969 HOLDEN [HK-HT SERIES]
08/1968-1969 HOLDEN [HK MONARO GTS 327]
05/1969-1974 HOLDEN [HT-HG-HQ MONARO GTS 350]
07/1971-1974 HOLDEN [HQ MONARO LS & STATESMAN]

Beehive shaped valve spring design allows a reduced retainer end mass for improved rpm potential. Every Engine Pro performance valve spring goes through a multiple shotpeening process for maximum durability and stress relief.

The chrome silicon vanadium nickel alloy valves spring goes through a "Heat Set" process and special heat treatment are used to extend spring life and minimise load loss. Ovate wire shape more evenly distributes mass throughout the wire cross section.

SPECIFICATIONS:
Outside Diameter Top: 1.000"
Inside Diameter Top: 0.650"
Outside Diameter Bottom: 1.412"
Inside Diameter Bottom: 1.065"
Closed Height: 1.750"
Closed Load: 123lb/in
Open Height: 1.175"
Open Load: 284lb/in
Coil Bind: 1.100"
Max Lift: 0.650"
Spring Type: SINGLE BEEHIVE VALVE SPRING
Material: CHROME SILICON VANADIUM NICKEL ALLOY
Set Quantity: 16

Since 1989, American Based Engine Pro has been manufacturing performance engine parts as is now one of the leading distrubutors to the performance engine building industry.

MADE IN USA
