AEROFLOW PERFORMANCE CYLINDER HEAD STUD KIT [HOLDEN V8 GEN III LS1 5.7L MOTOR]
1999-03 HOLDEN [VTII-VX-VY COMMODORE WH-WK STATESMAN]
Description

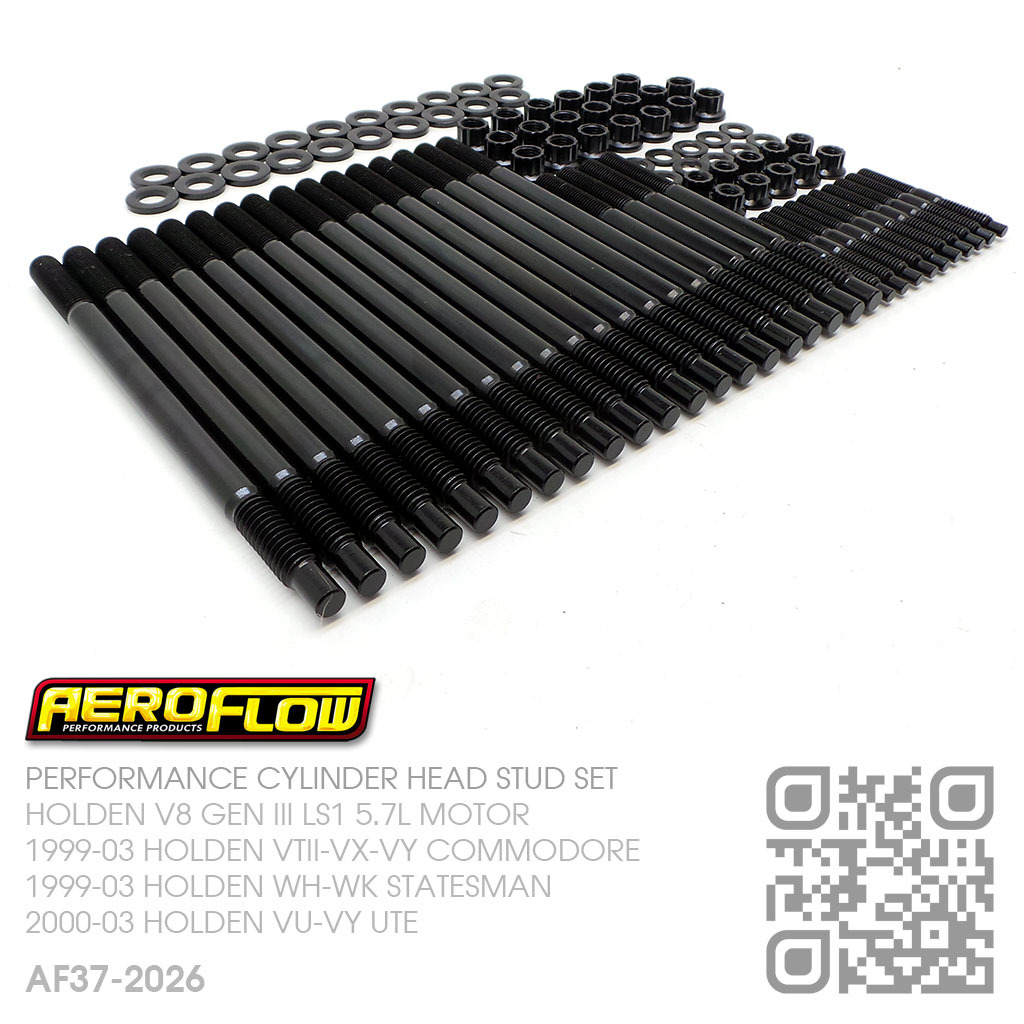

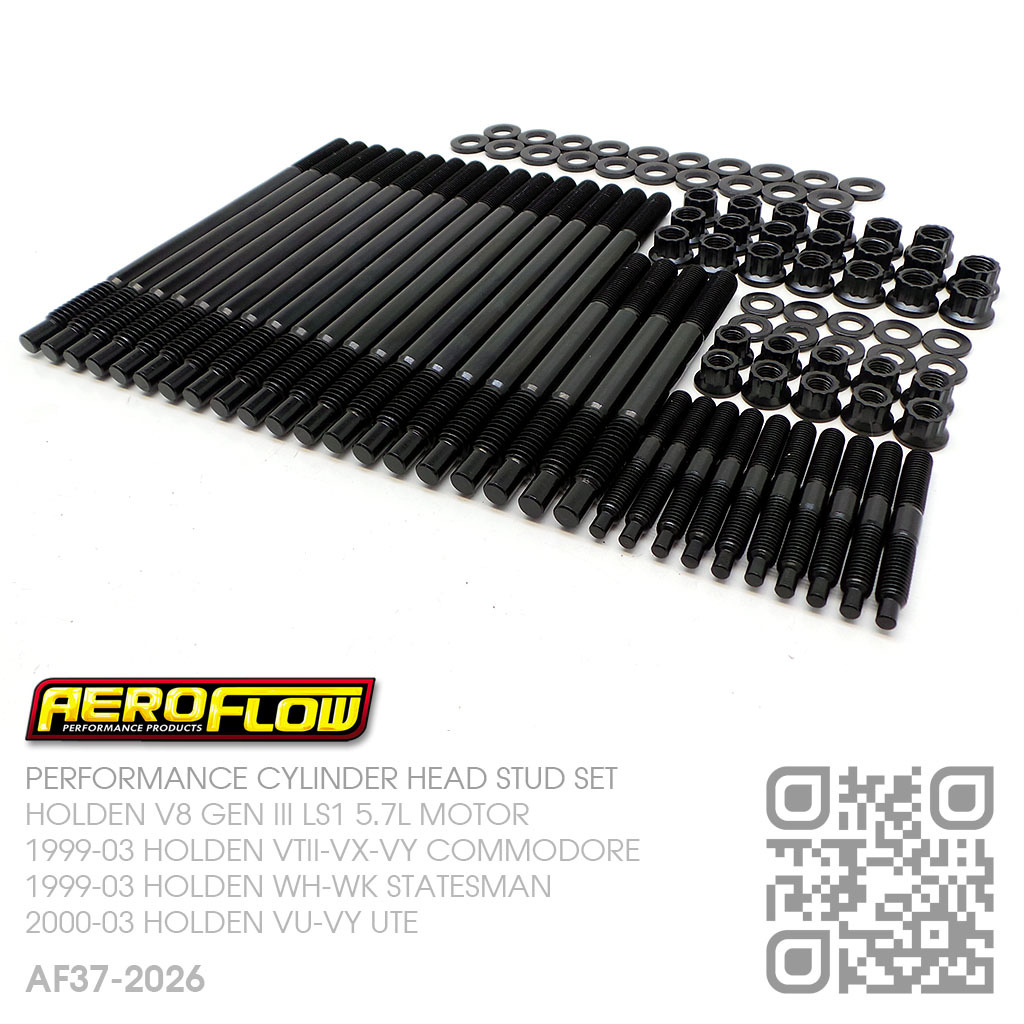

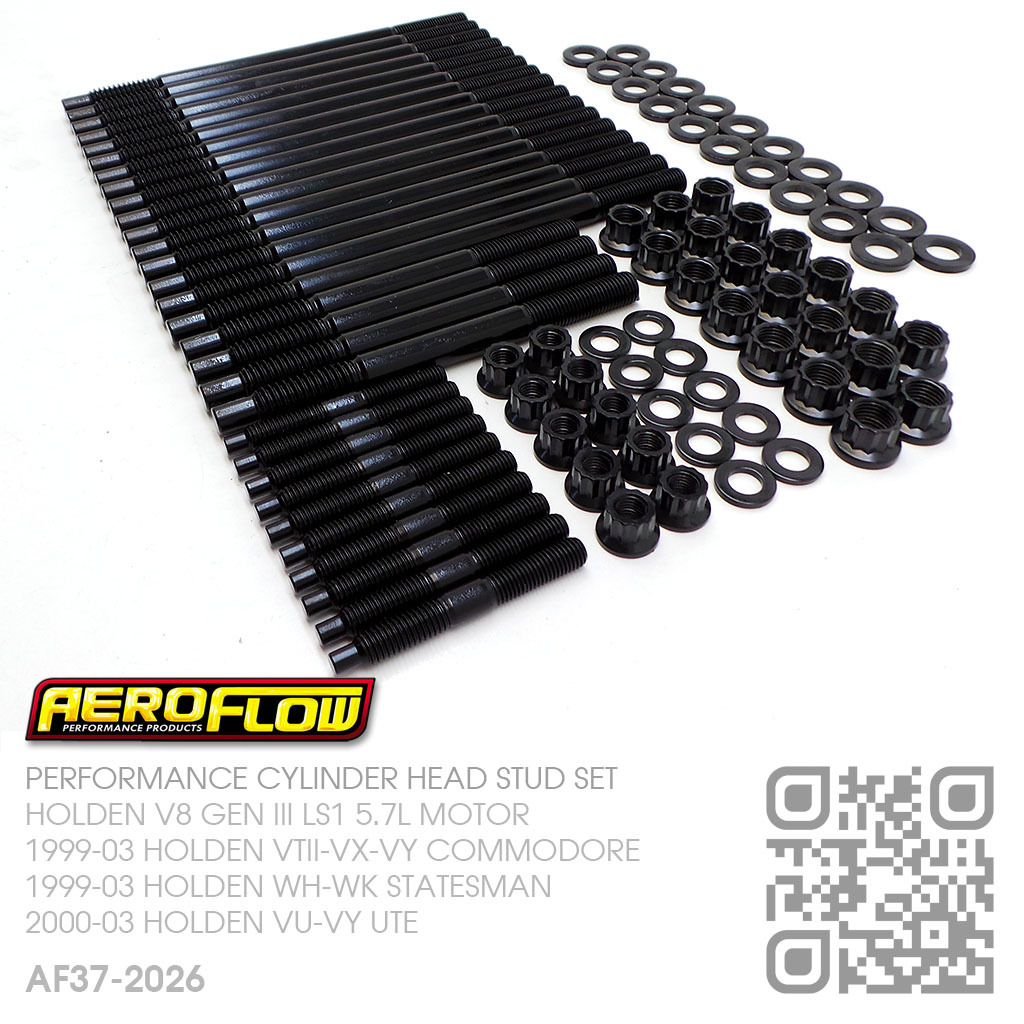

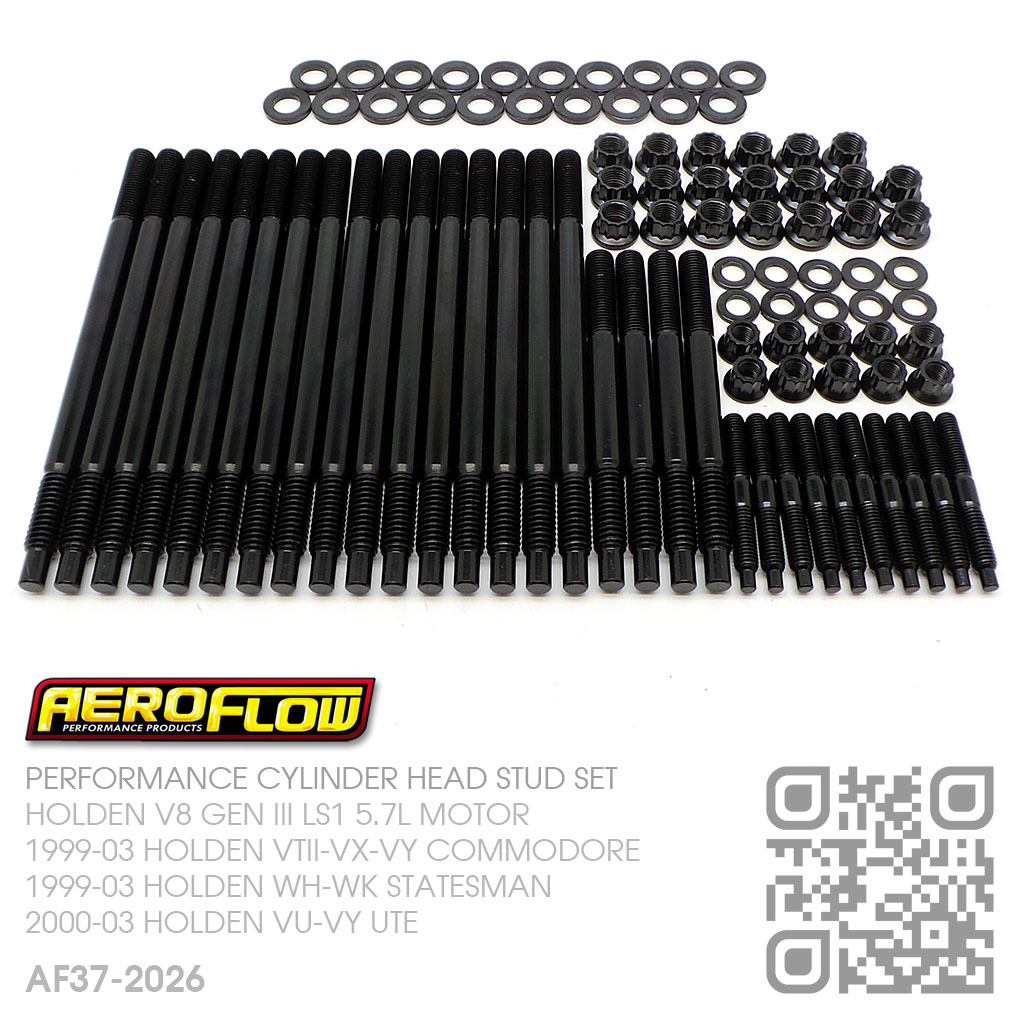

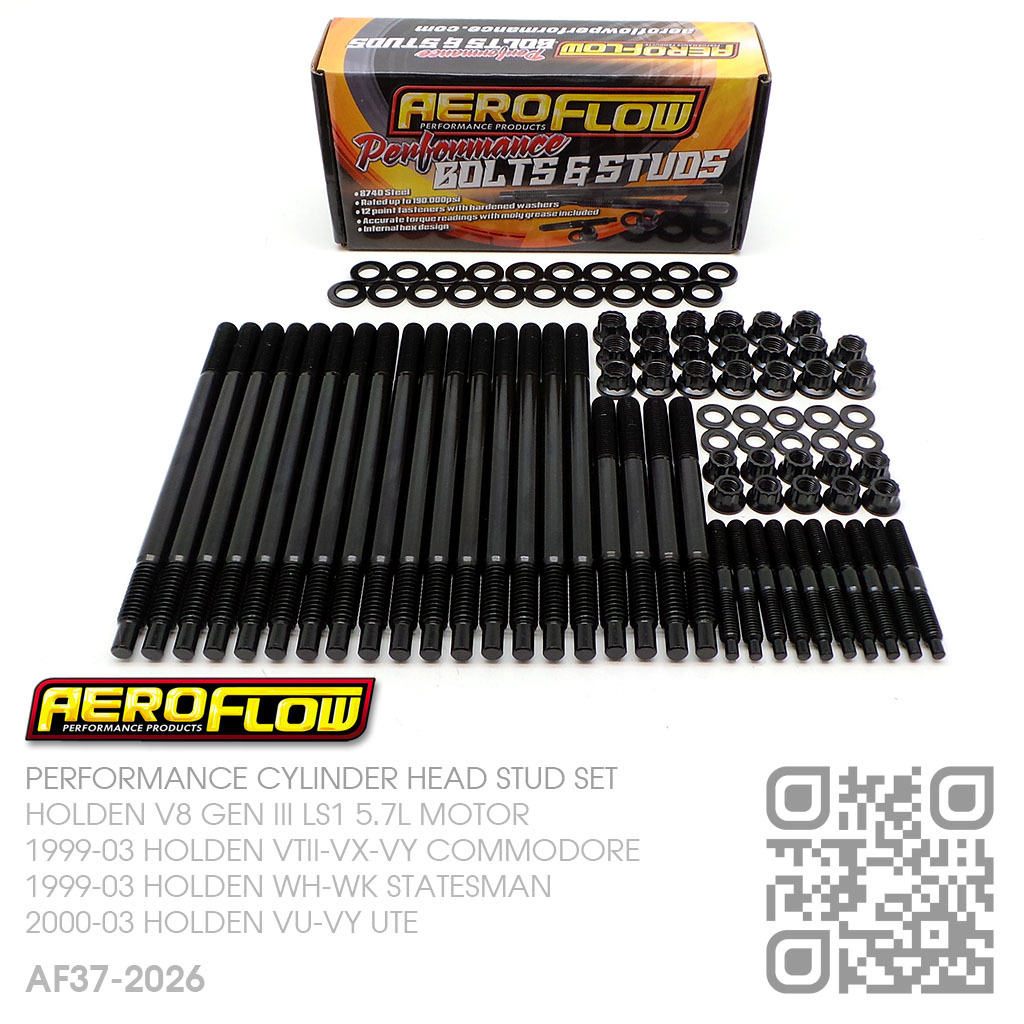

AEROFLOW PERFORMANCE 8740 GRADE CYLINDER HEAD STUD KIT
12 POINT NUTS
HOLDEN V8 GEN III LS1 5.7L MOTOR
FIRST DESIGN CYLINDER HEAD
05/1999-2003 HOLDEN [VTII-VX-VY COMMODORE]
06/1999-2003 HOLDEN [WH-WK STATESMAN]
12/2000-2003 HOLDEN [VU-VY UTE]
10/2001-2003 HOLDEN [V2 MONARO CV8]
Aeroflow Performance head studs greatly improve your cylinder head-to-block sealing compatibilities. This is important in engines with high power adders such as turbochargers, superchargers or nitrous. They can even be agreat addition to a mildly modified build as insurance against failure. All head studs provide a more accurate and consistent torque loading over traditional head bolts.
These head studs are manufactured from aircraft quality 8740 high tensile strength chromoly steel and cold-forged to ensure molecular integrity within the stud. Meaning these studs are rated up to 190,000 psi making them stronger than Grade 8 and OEM fasteners. All kits come complete with 12-point nuts and hardened washers for an even load distribution and accurate torque readings.
SPECIFICATIONS:
16 X EVEN LENGTH STUDS
187MM OVERALL LENGTH
108MM SHANK LENGTH
M11 X 2.00MM THREAD INTO ENGINE BLOCK
M11 X 1.25MM NUT END
4 X ODD LENGTH STUDS
133MM OVERALL LENGTH
53MM SHANK LENGTH
M11 X 2.00MM THREAD INTO ENGINE BLOCK
M11 X 1.25MM NUT END
20 X 12 POINT NUTS
M11 X 1.25MMTHREAD
18MM OUTSIDE DIAMETER
20 X FLAT WASHERS
19.85MM OUTSIDE DIAMETER
11.10MM INSIDE DIAMETER
10 X SUPPORT STUDS
63.55MM OVERALL LENGTH
10.70MM SHANK LENGTH
M8 X 1.25MM THREAD INTO ENGINE BLOCK
M8 X 1.00MM NUT END
10 X 12 POINT NUTS
M8 X 1.25MM THREAD
15.65MM OUTSIDE DIAMETER
10 X FLAT WASHERS
15.95MM OUTSIDE DIAMETER
8.10MM INSIDE DIAMETER
REPLACES GENERAL MOTORS (GM) PART# 11588291, 12560745 & 12558840
SPECIAL NOTE:
MUST HAVE 1MA ON REAR OF CYLINDER HEAD(S)
IMPORTANT NOTE:
FOLLOW HOLDEN'S RECOMMENDED TORQUE SEQUENCE AND TIGHTEN TO SPECIFICATIONS
Warranty
Features
Specifications
SKU | AF37-2026 |
Model # | AF37-2026 |
Barcode # | 9337206139663 |
Brand | Aeroflow |
Shipping Weight | 3.1000kg |
