SKU: NHBS511

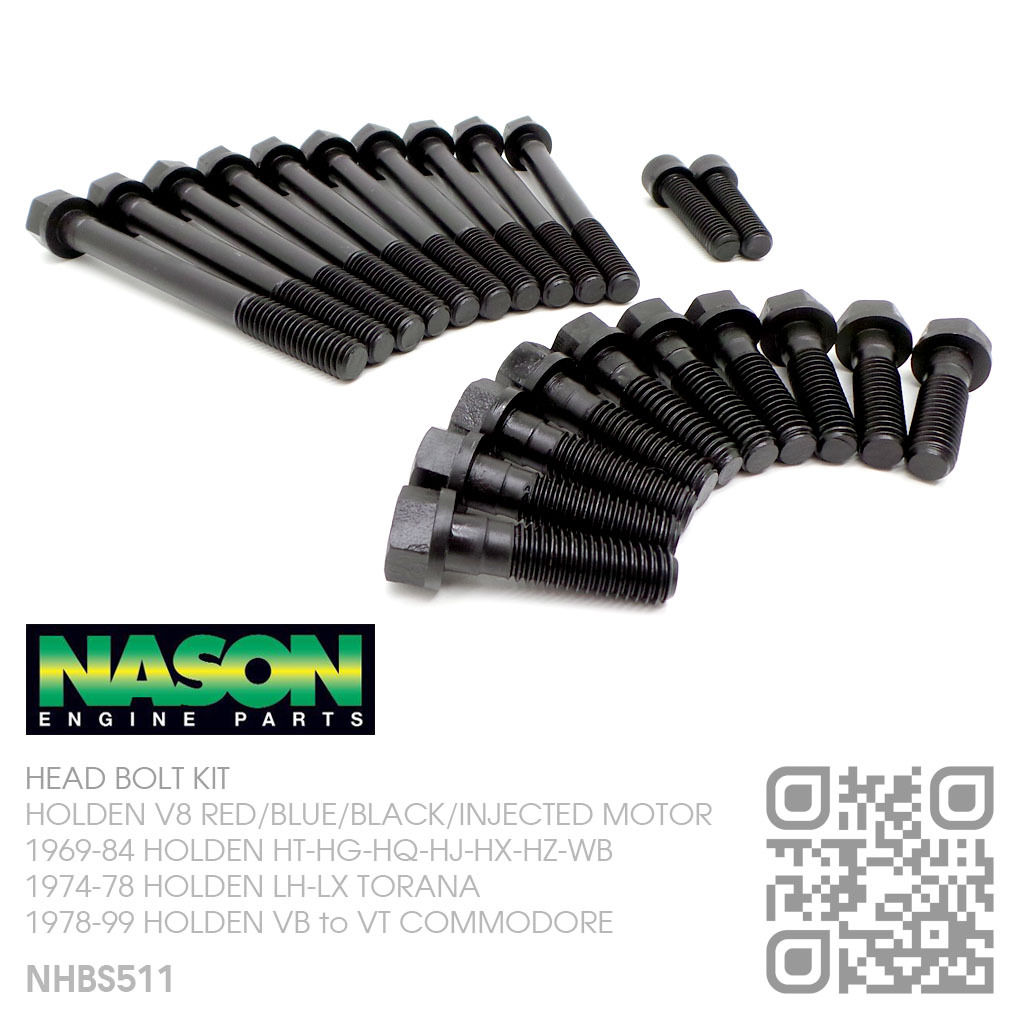

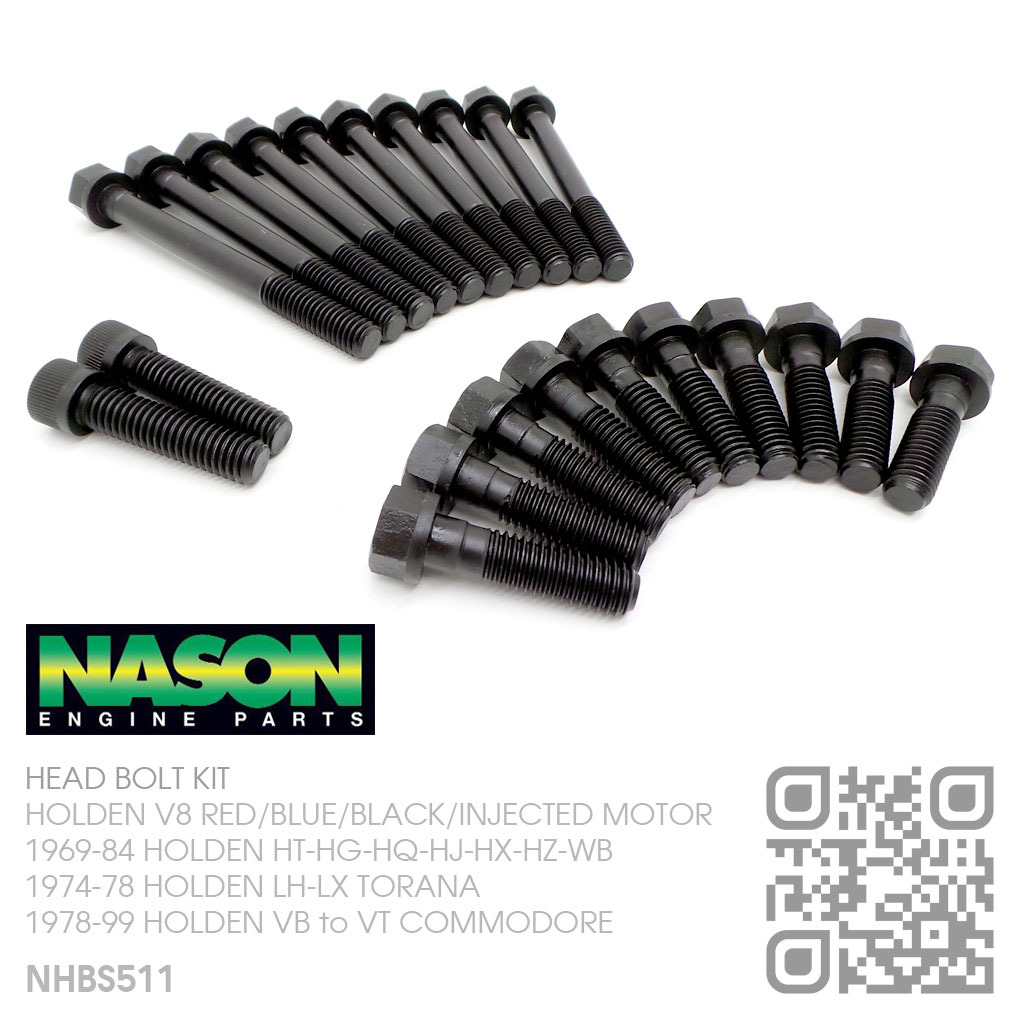

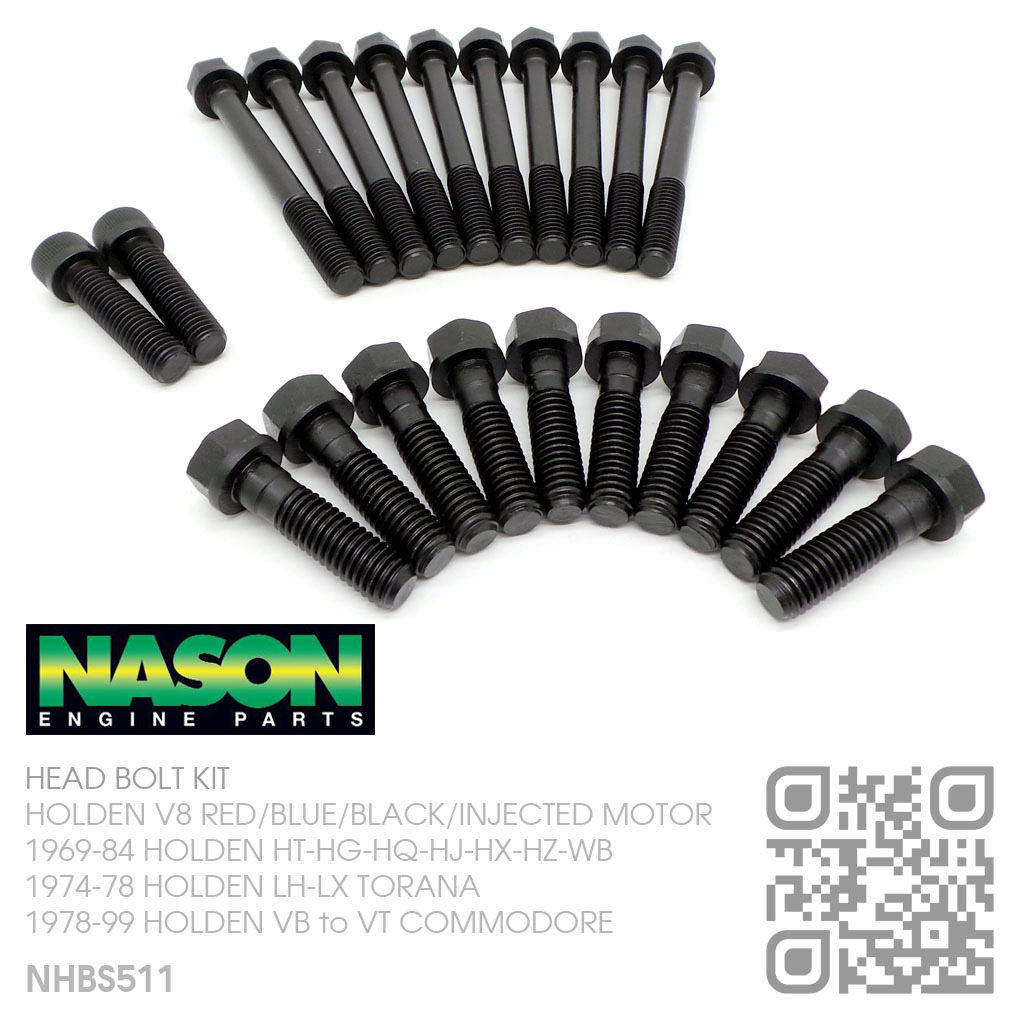

NASON CYLINDER HEAD BOLT KIT [HOLDEN V8 RED/BLUE/BLACK/INJECTED MOTOR]

1969-00 HOLDEN [HT-WB, LH-LX TORANA & VB-VT COMMODORE]

$67.50
In Stock


Calculate Shipping



Free shipping - $0.00

NASON CYLINDER HEAD BOLT KIT
HOLDEN V8 253 4.2L & 308 5.0L RED/BLUE MOTOR
HOLDEN V8 304 & 308 5.0L BLACK MOTOR
HOLDEN V8 304 INJECTED 5.0L MOTOR
HOLDEN V8 355 STROKER 5.7L MOTOR

Description

NASON CYLINDER HEAD BOLT KIT
HOLDEN V8 253 4.2L & 308 5.0L RED/BLUE MOTOR
HOLDEN V8 304 & 308 5.0L BLACK MOTOR
HOLDEN V8 304 5.0L INJECTED MOTOR
HOLDEN V8 355 5.7L STROKER MOTOR (348ci)

HOLDEN V8 RED/BLUE/BLACK MOTOR
05/1969-1984 HOLDEN [HT-HG-HQ-HJ-HX-HZ-WB SERIES]
03/1974-03/1978 HOLDEN [LH-LX TORANA]
10/1978-08/1988 HOLDEN [VB-VC-VH-VK-VL COMMODORE]

HOLDEN V8 INJECTED MOTOR
03/1989-1999 HOLDEN [VN-VP-VR-VS-VT COMMODORE]
03/1990-1999 HOLDEN [VQ-VR-VS STATESMAN/CAPRICE]
09/1990-2000 HOLDEN [VG-VP-VR-VS UTE]

The head bolt kits are manufactured to exacting standards by Nason, which had being supplying engine parts in Australia since 1927.

SPECIFICATIONS:

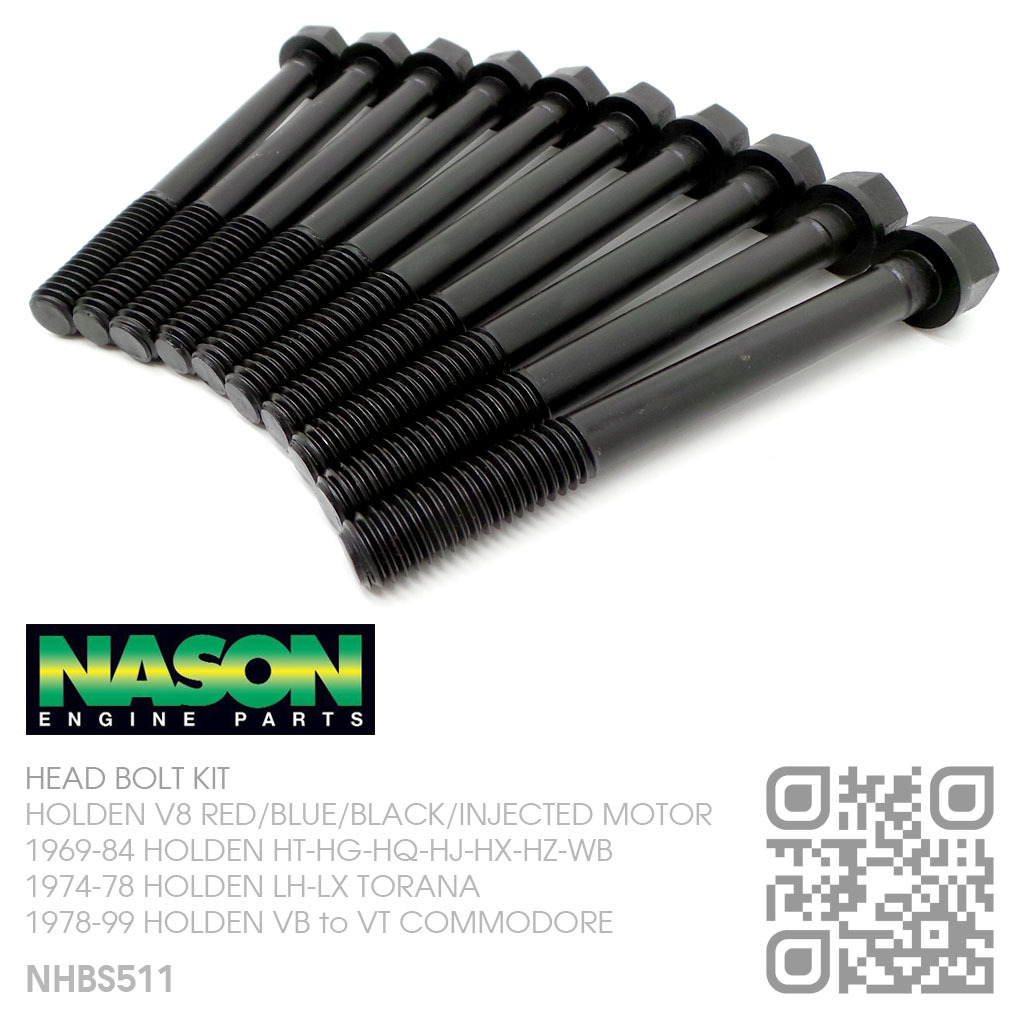

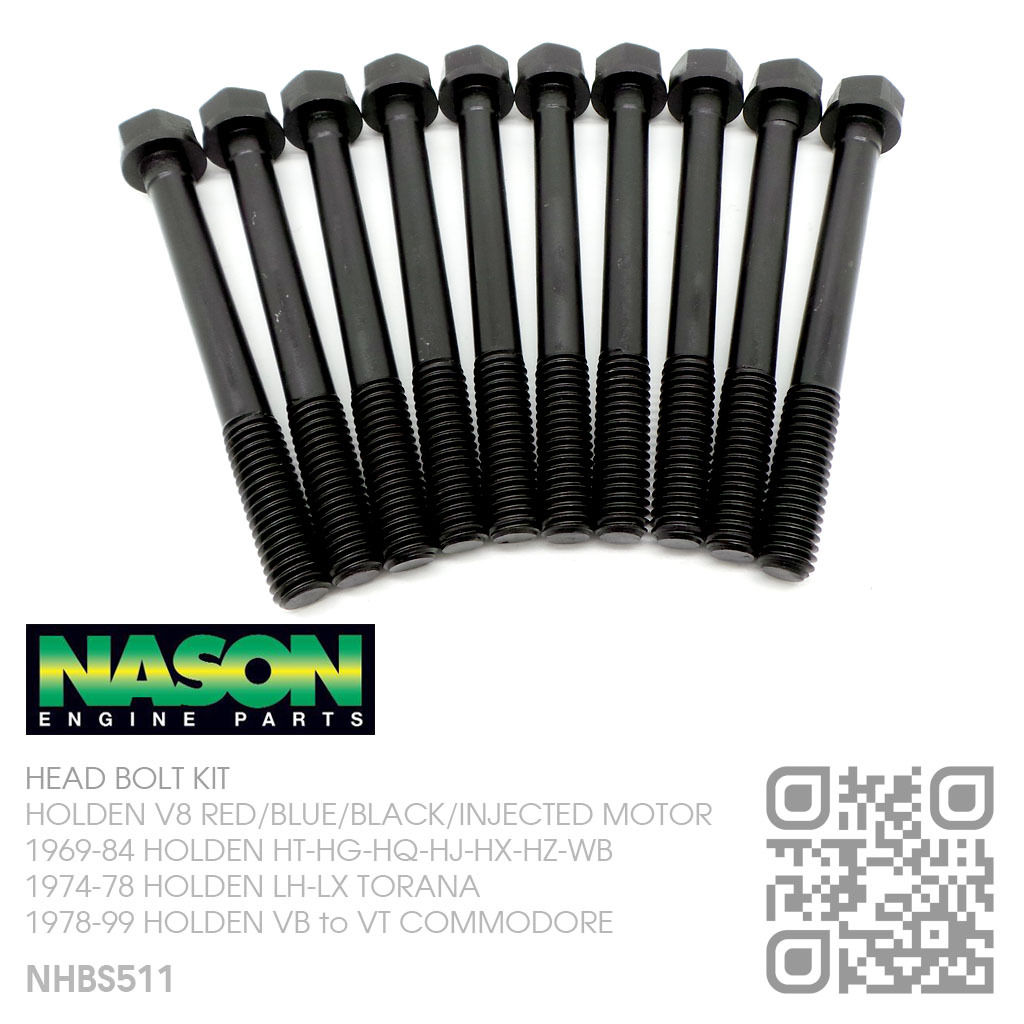

Head Type: MALE HEX
Length: 108.00mm (10)
Thread: 7/16" UNC

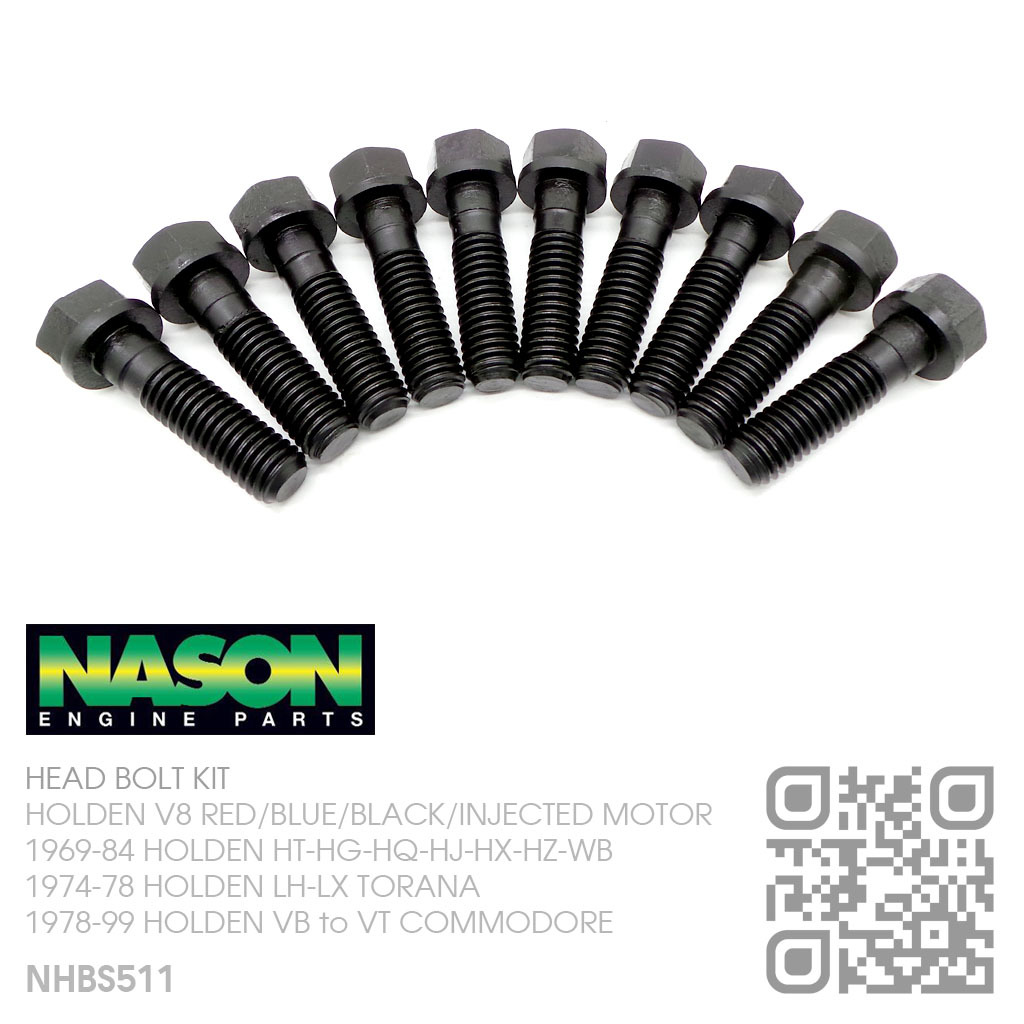

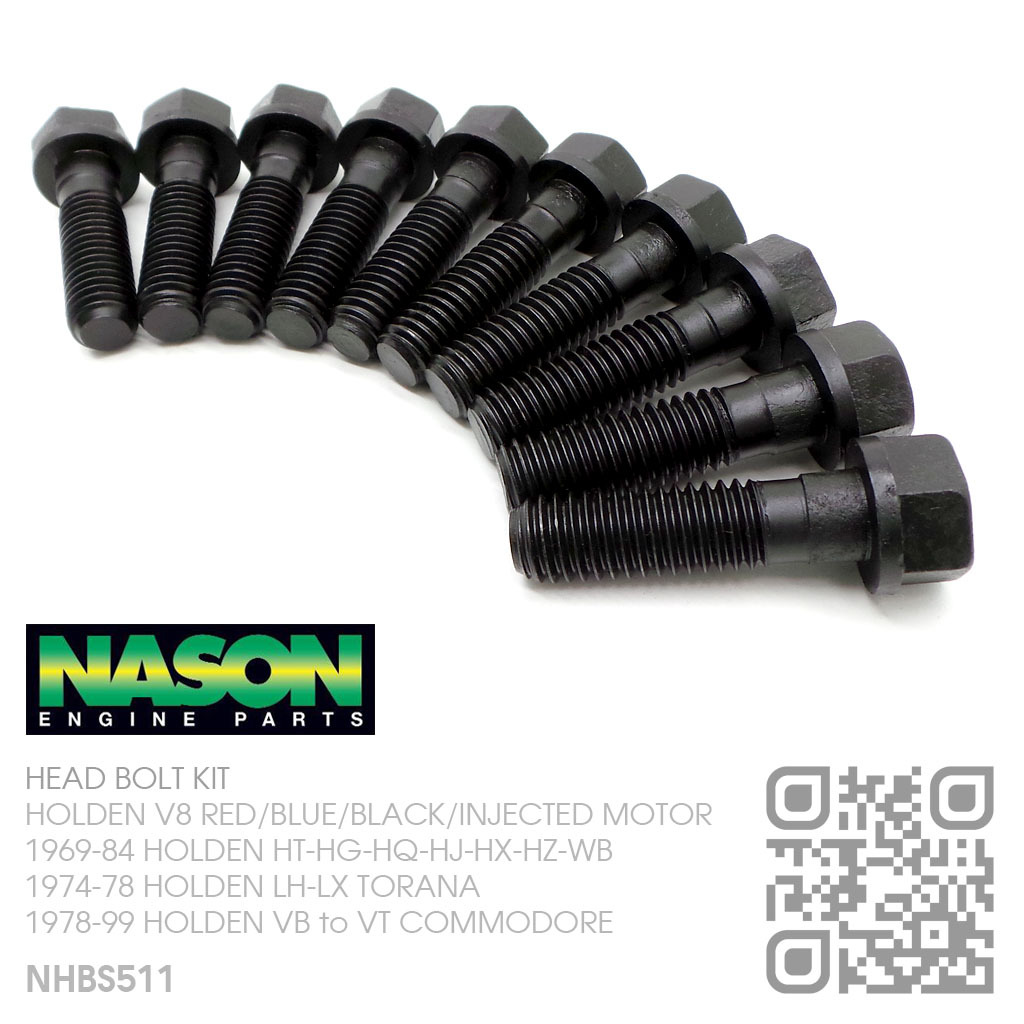

Head Type: MALE HEX
Length: 43.00mm (10)
Thread: 7/16" UNC

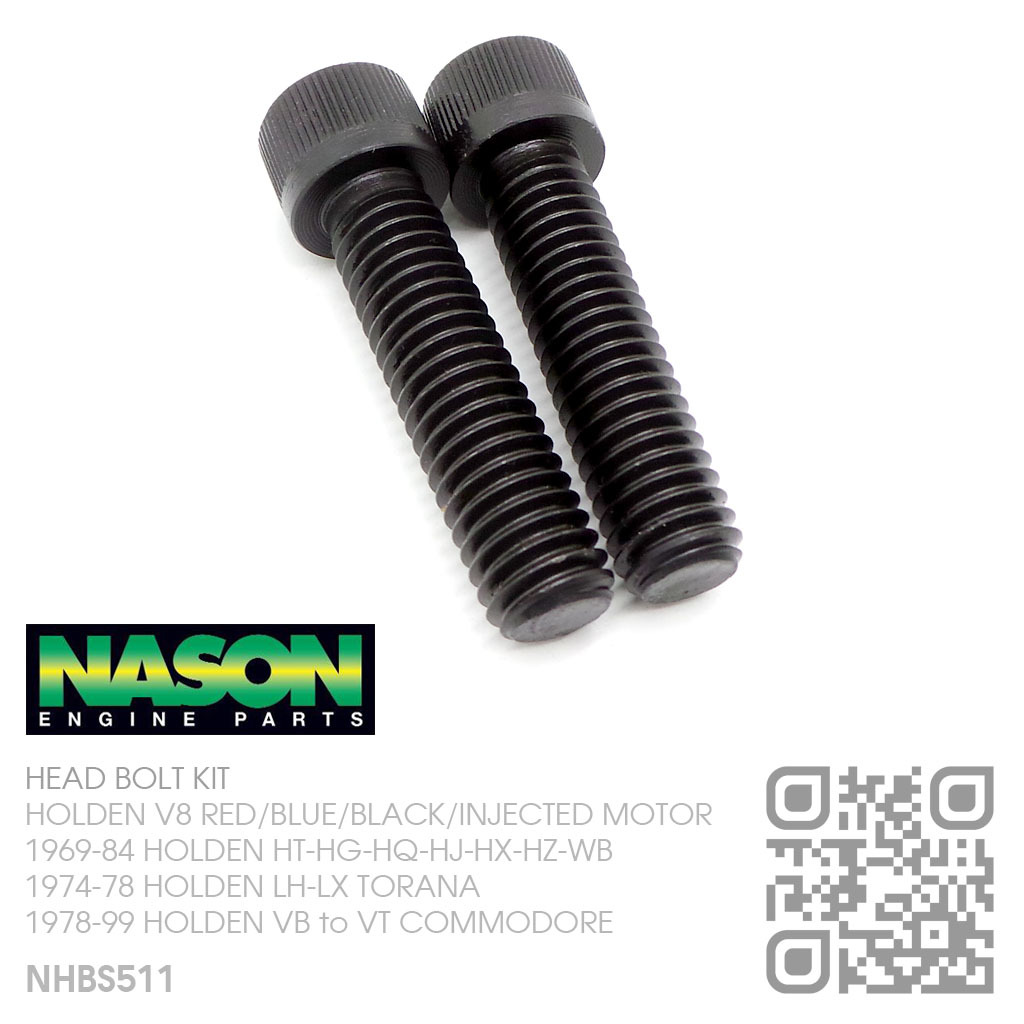

Head Type: FEMALE HEX
Length: 43.00mm (2)
Thread: 7/16" UNC
Set Quantity: 22

SPECIAL NOTE:
FOUR CENTER VALLEY BOLTS NOT INCLUDED

CRITICAL NOTE:
FOLLOW HOLDEN'S RECOMMENDED TORQUE SEQUENCE AND TIGHTEN BOLTS TO SPECIFICATIONS


HOLDEN V8 RED MOTOR

L31 HOLDEN V8 308 5.0L RED MOTOR
05/1969-04/1980 HOLDEN [HT-HG-HQ-HJ-HX-HZ SERIES]
03/1974-03/1978 HOLDEN [LH-LX TORANA]
10/1978-03/1980 HOLDEN [VB COMMODORE]

L32 HOLDEN V8 253 4.2L RED MOTOR (HIGH COMP)
05/1969-04/1980 HOLDEN [HT-HG-HQ-HJ-HX-HZ SERIES]
03/1974-03/1978 HOLDEN [LH-LX TORANA]

L33 HOLDEN V8 253 4.2L RED MOTOR (LOW COMP)
05/1969-07/1976 HOLDEN [HT-HG-HQ-HJ SERIES]

L36 HOLDEN V8 253 4.2L RED MOTOR
10/1978-03/1980 HOLDEN [VB COMMODORE]

HOLDEN V8 BLUE MOTOR

L31 HOLDEN V8 308 5.0L BLUE MOTOR
03/1980-02/1984 HOLDEN [VC-VH COMMODORE]
04/1980-1984 HOLDEN [WB STATESMAN]

L36 HOLDEN V8 253 4.2L BLUE MOTOR
03/1980-02/1984 HOLDEN [VC-VH COMMODORE]
04/1980-1984 HOLDEN [WB COMMERCIAL]

HOLDEN V8 BLACK MOTOR

L31 HOLDEN V8 308 5.0L BLACK MOTOR
02/1984-08/1984 HOLDEN [VK COMMODORE]

LV2 HOLDEN V8 304 5.0L BLACK MOTOR
09/1984-08/1988 HOLDEN [VK-VL COMMODORE]

HOLDEN V8 INJECTED MOTOR

LB9 HOLDEN V8 304 INJECTED 5.0L MOTOR
07/1988-1988 HOLDEN [VL COMMODORE SS GROUP A]
03/1989-05/1999 HOLDEN [VN-VP-VR-VS-VT COMMODORE]
03/1990-04/1999 HOLDEN [VQ-VR-VS STATESMAN]
09/1990-2000 HOLDEN [VG-VP-VR-VS UTE]

L98 HOLDEN V8 355 STROKER 5.7L MOTOR (348ci)
05/1994-05/1999 HSV [VR-VS-VT GTS/SENATOR & LIMITED EDITIONS]

Warranty

Features

Specifications

SKU NHBS511
Model # NHBS511
Barcode # 9320833239066
Brand Nason
Shipping Weight 1.5000kg
