SKU: 5M2357H-8B2356H-STD-HV8

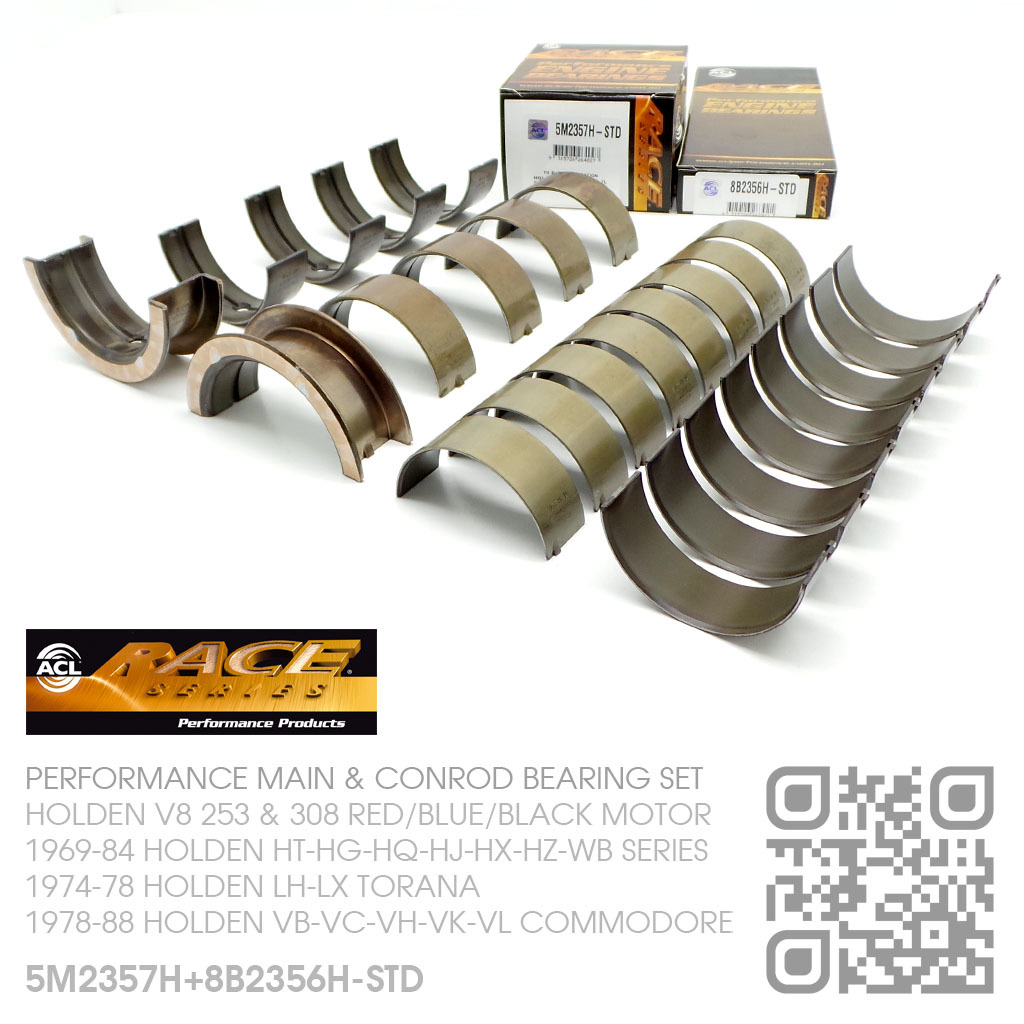

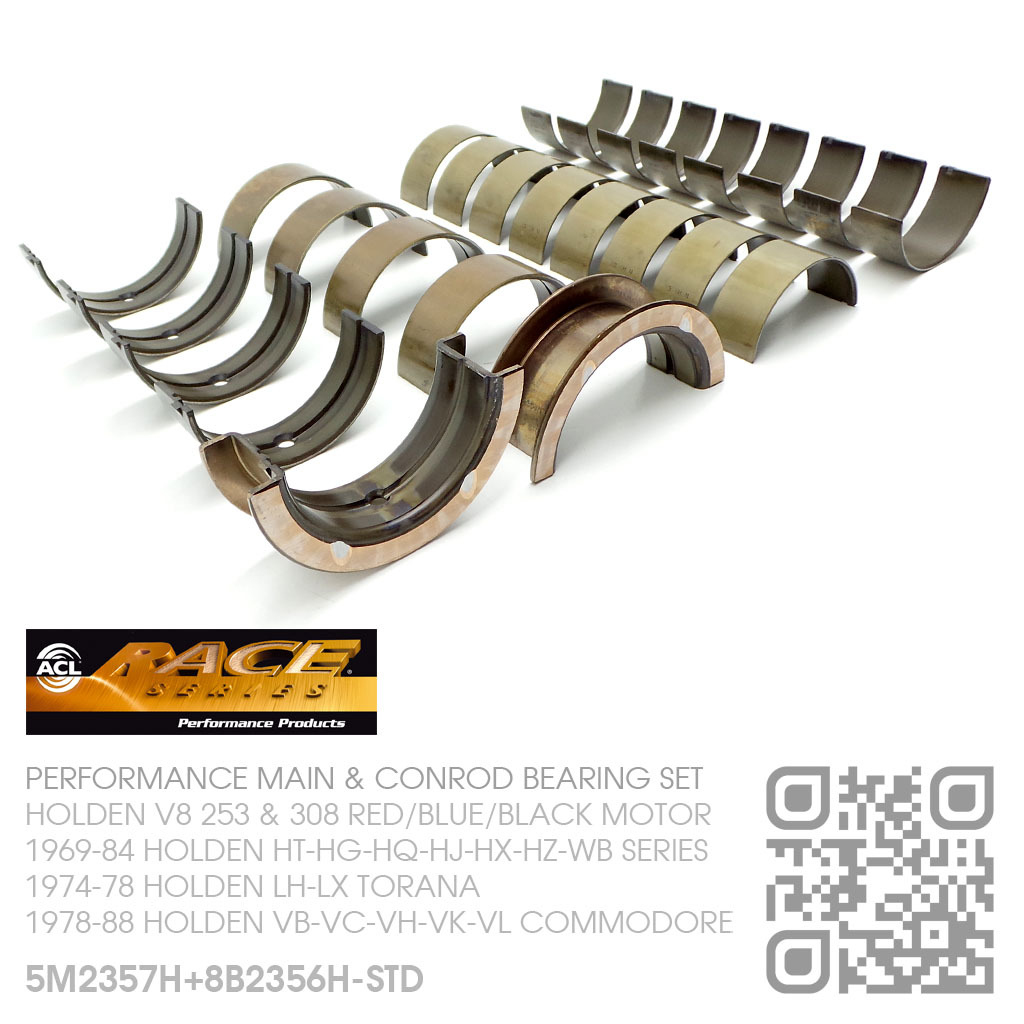

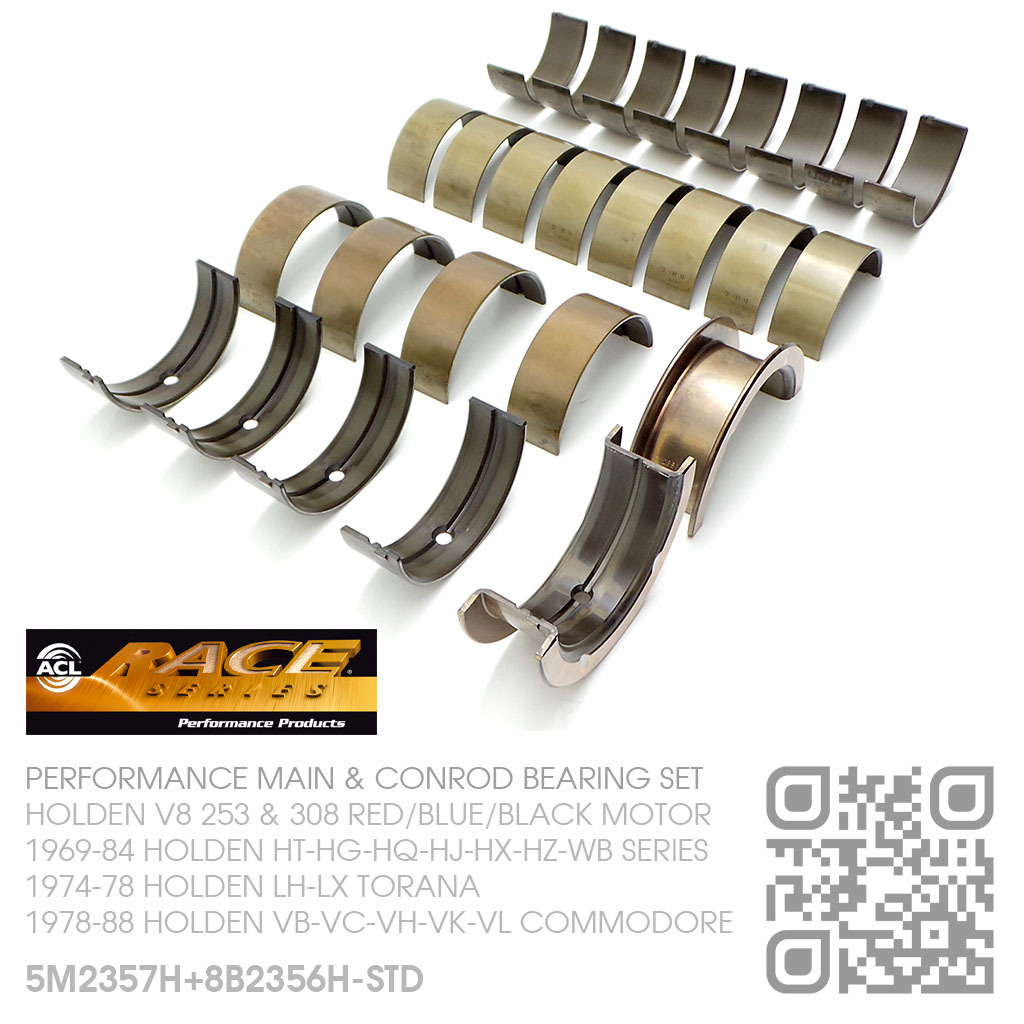

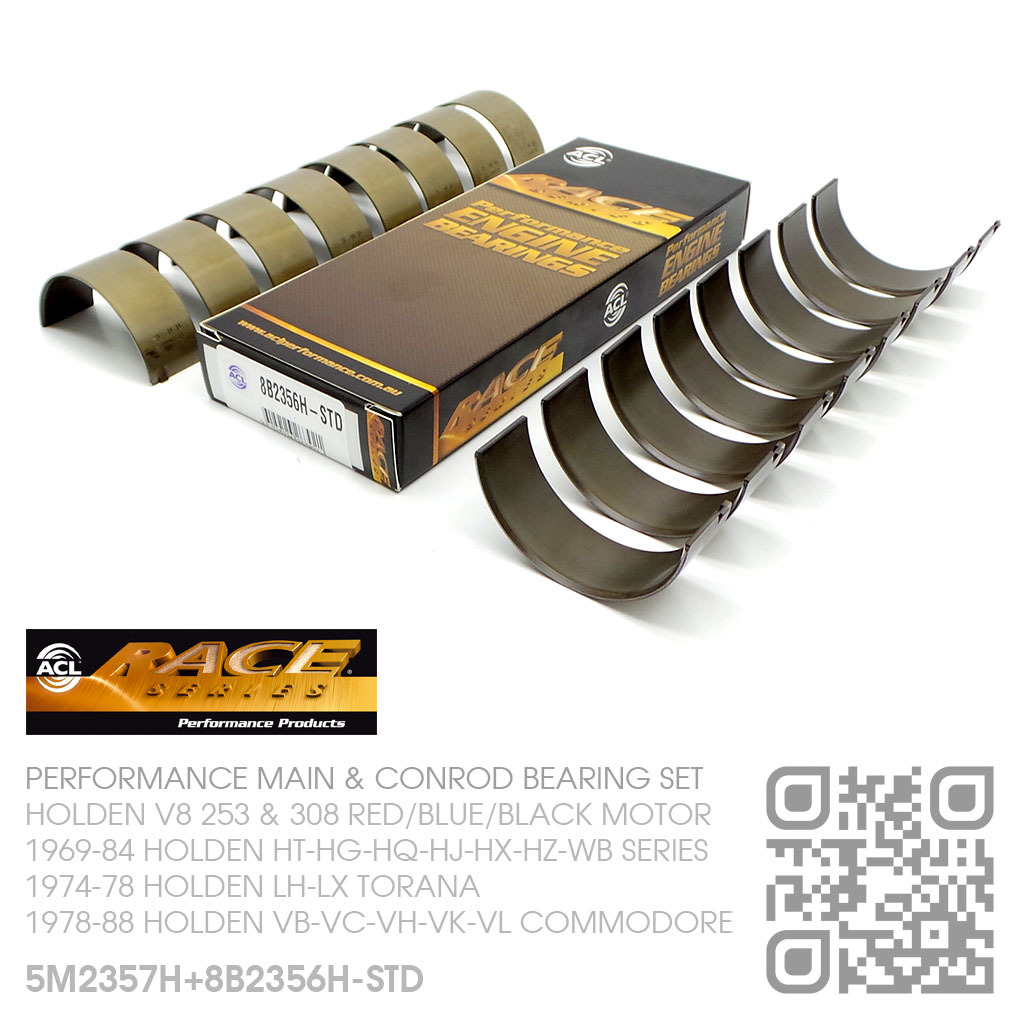

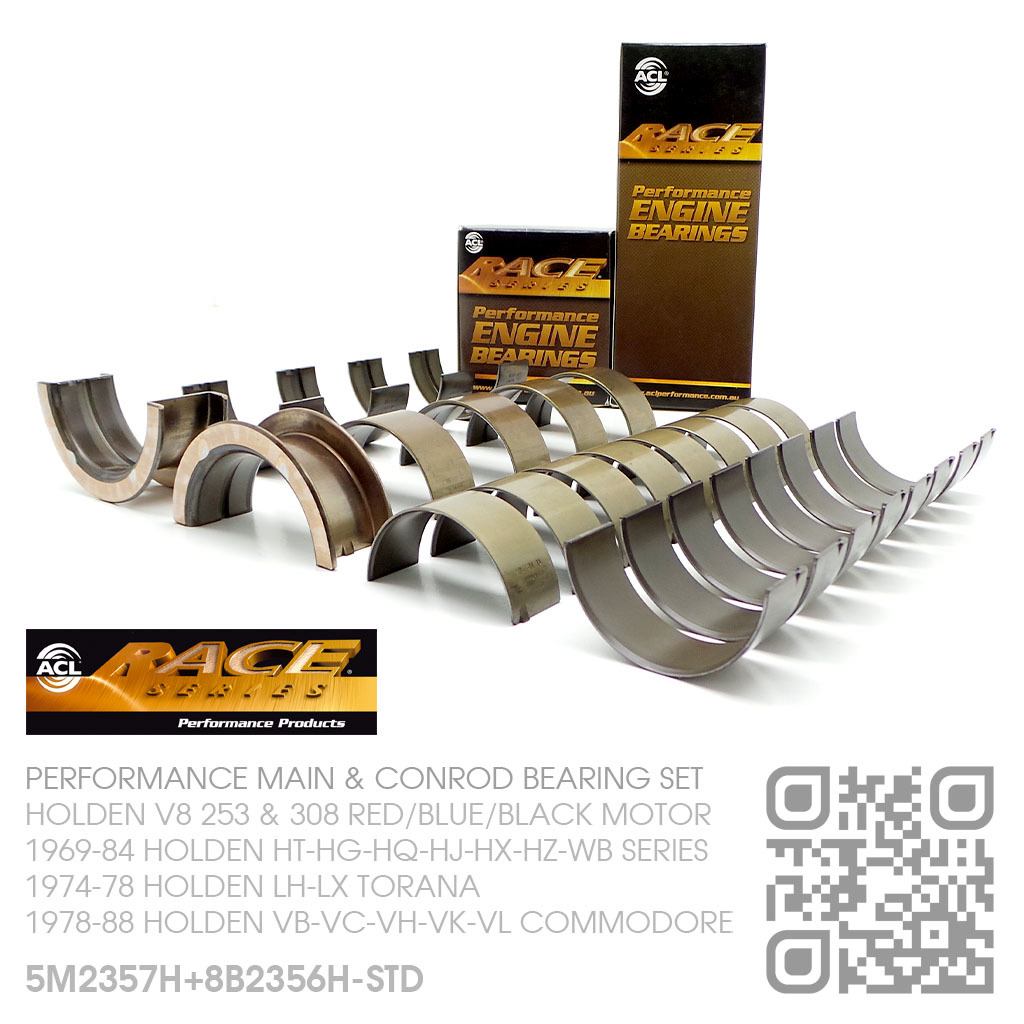

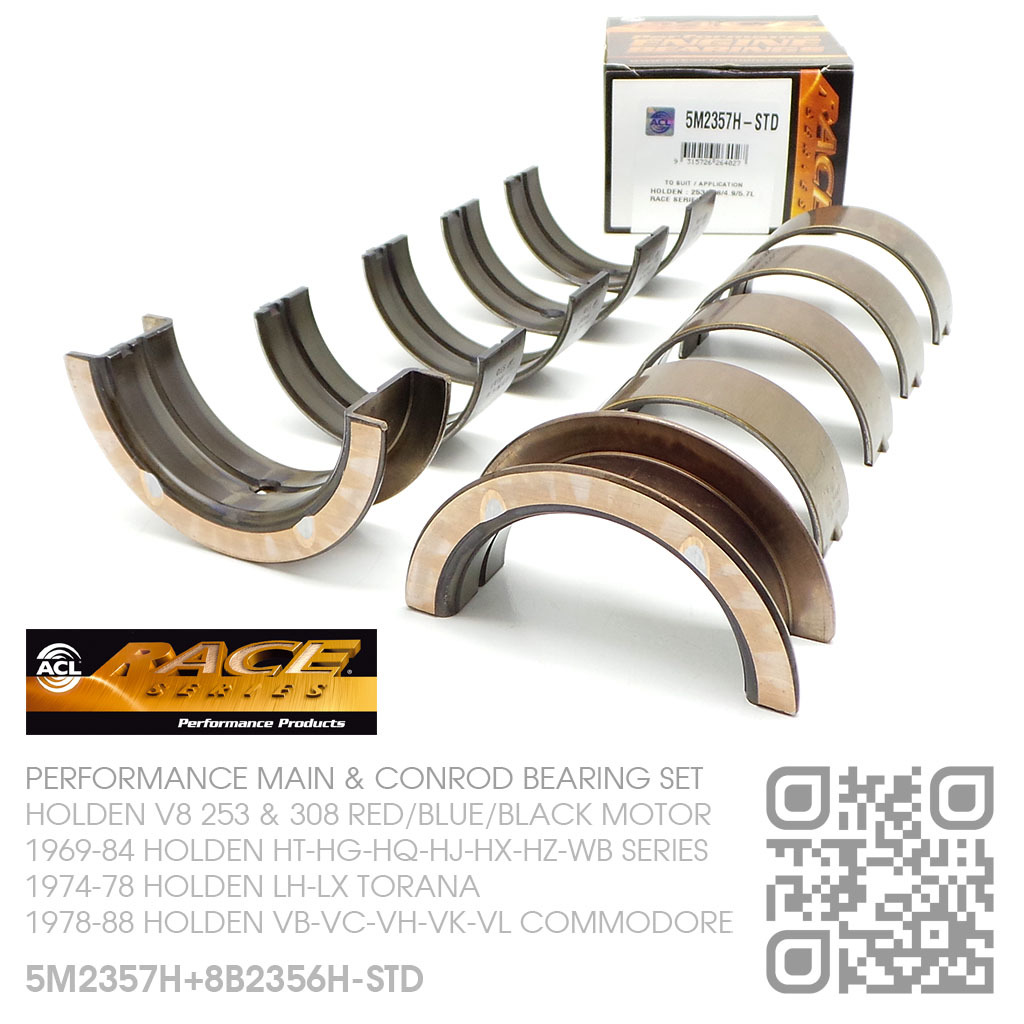

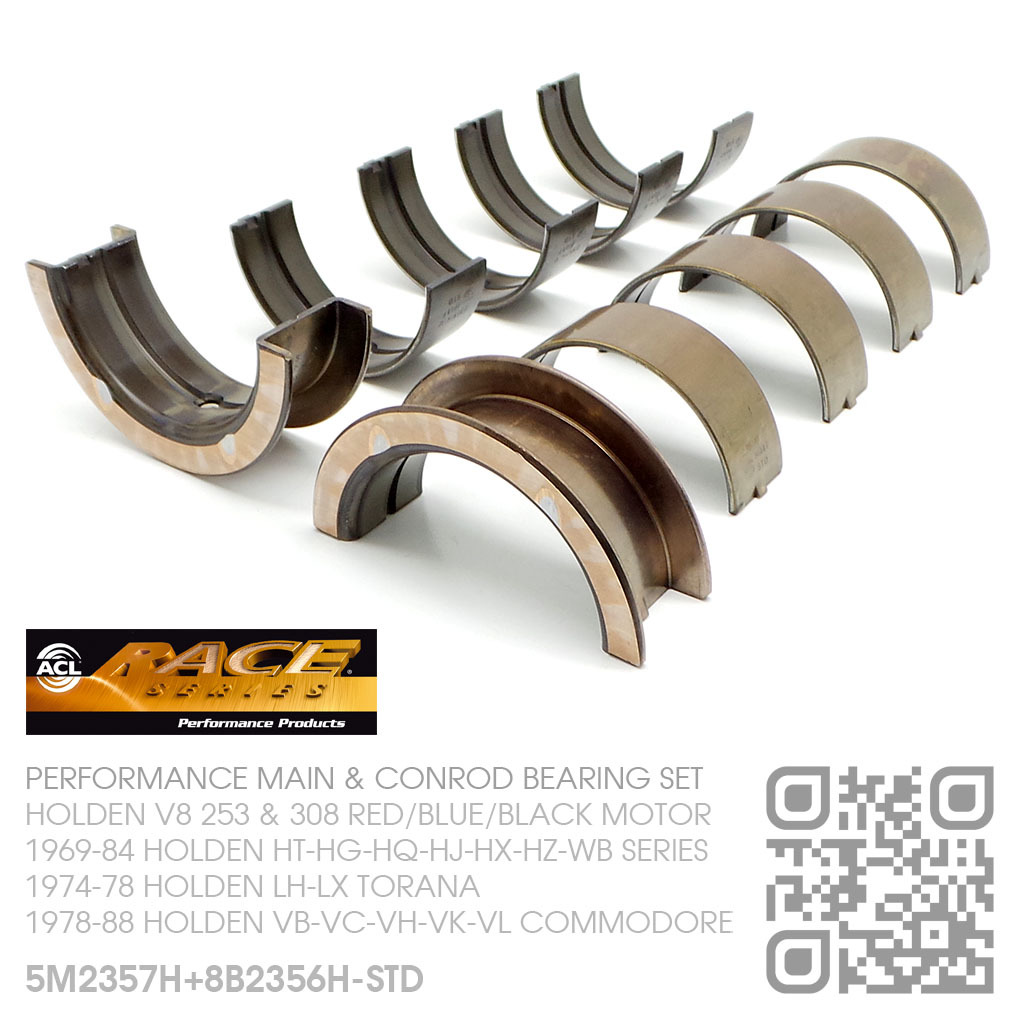

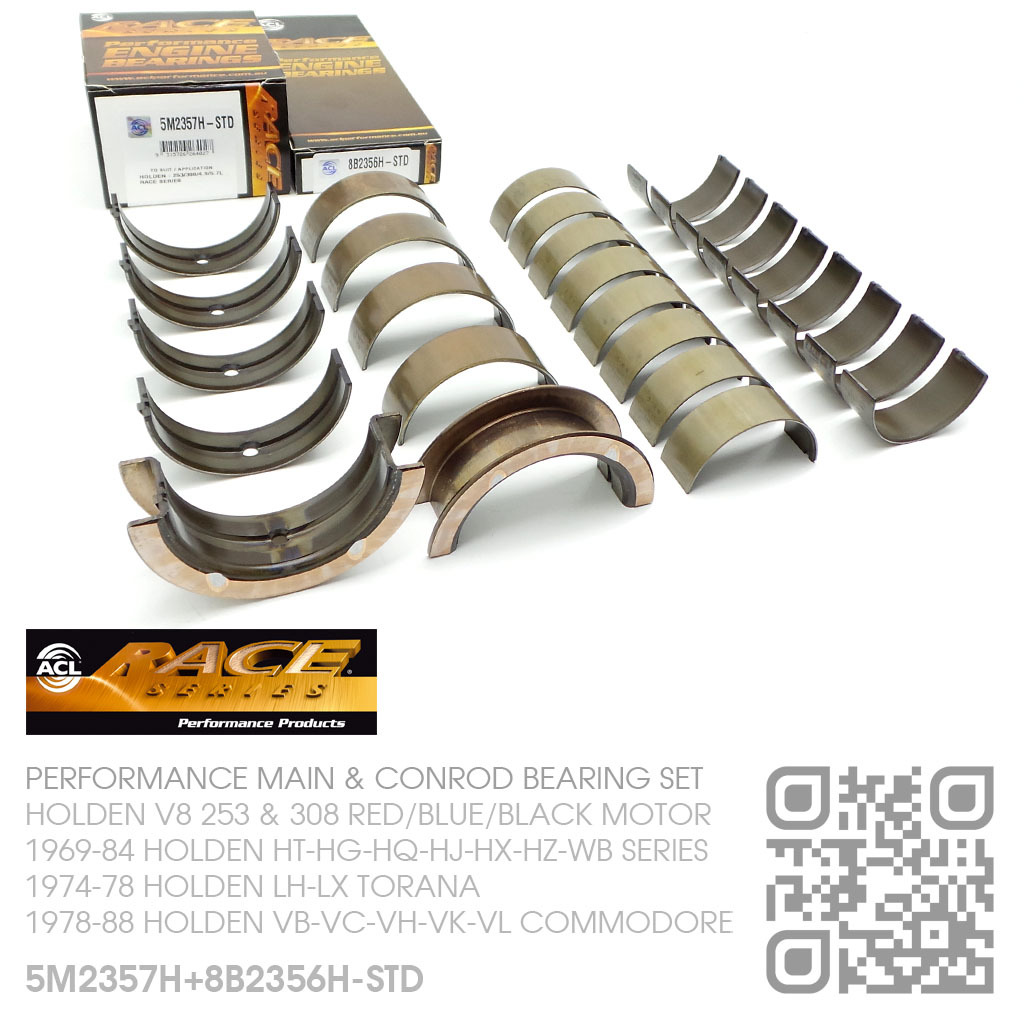

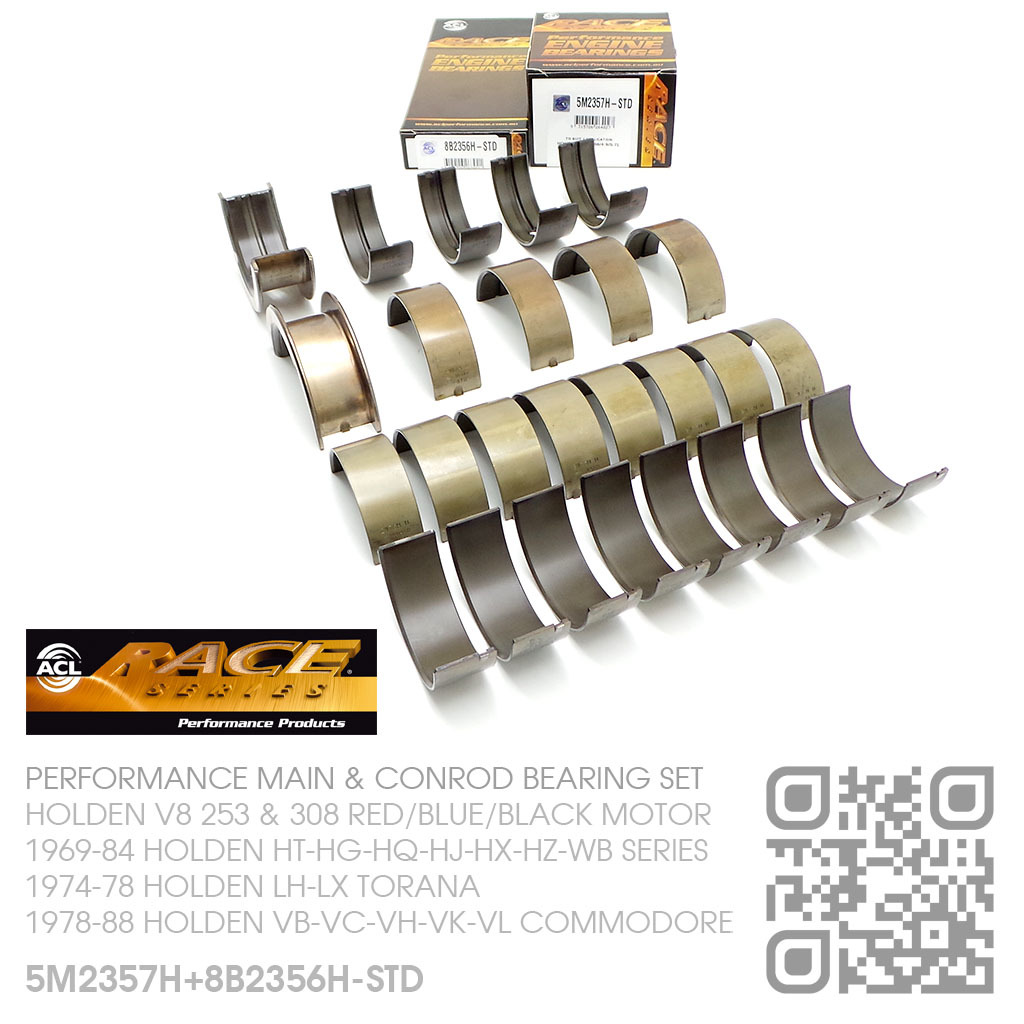

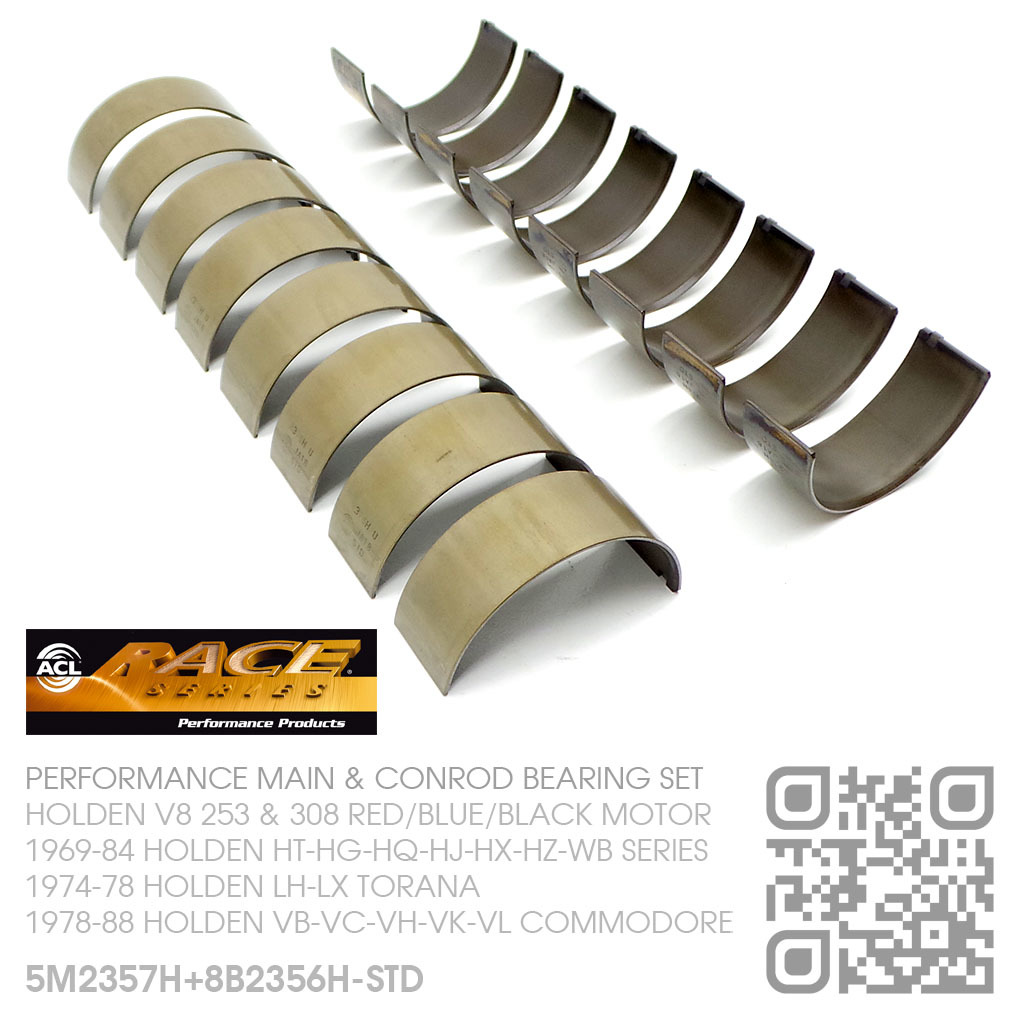

ACL RACE SERIES PERFORMANCE MAIN & CONROD BEARING SET STANDARD SIZE [HOLDEN V8 253 4.2L & 308 5.0L RED/BLUE/BLACK MOTOR]

1969-88 HOLDEN [HT-WB, LH-LX TORANA & VB-VL COMMODORE]

$218.00
In Stock


Calculate Shipping



Free shipping - $0.00

ACL RACE PERFORMANCE MAIN & CONROD BEARING SET
STANDARD SIZE
HOLDEN V8 253 4.2L & 308 5.0L RED/BLUE/BLACK MOTOR

1969-84 HOLDEN [HT-HG-HQ-HJ-HX-HZ-WB]
1974-78 HOLDEN [LH-LX TORANA]
1978-88 HOLDEN [VB-VC-VH-VK-VL COMMODORE]

Description

ACL RACE SERIES PERFORMANCE MAIN & CONROD BEARING SET
STANDARD SIZE
HOLDEN V8 253 4.2L & 308 5.0L RED & BLUE MOTOR
HOLDEN V8 304 & 308 5.0L BLACK MOTOR

05/1969-1984 HOLDEN [HT-HG-HQ-HJ-HX-HZ-WB SERIES]
03/1974-03/1978 HOLDEN [LH-LX TORANA]
10/1978-08/1988 HOLDEN [VB-VC-VH-VK-VL COMMODORE]

High performance driving demands that you use the best parts. So rely on ACL's Race Series Products to perform to the exacting durability standards you expect. They provide the dependability it takes to hold up under higher RPM conditions.

The unique combination of design, metallurgy and engineering comes together to deliver what drivers expect from high performance parts. ACL Race Series Engine Bearings are a must for your performance engine.

FEATURES:

  • High strength overlay plate with reduced thickness for improved fatigue properties
  • Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing
  • Increased crush for improved bearing retention
  • Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing
  • Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films
  • 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings
  • Tight consistent wall tolerances to help you maintain consistent clearances
  • Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts

MAIN BEARING SPECIFICATIONS:

POSITION 1,2,3,4
Standard Shaft Diameter: 2.3978"/2.3988" (60.904mm/60.930mm)
Maximum Wall: 0.0954" (2.423mm)
Housing Bore: 2.5905"/2.5916" (65.800mm/65.827mm)
Max Length: 0.8950" (22.730mm)

POSITION 5 (REAR with THRUST)
Standard Shaft Diameter: 2.3978"/2.3988" (60.904mm/60.930mm)
Maximum Wall: 0.0954" (2.423mm)
Housing Bore: 2.5905"/2.5916" (65.800mm/65.827mm)
Max Length 1.0910" (27.710mm)

Material: RACE SERIES (TRI-METAL)

CONROD BEARING SPECIFICATIONS:
Min Standard Shaft Size: 2.1240"/ 53.950mm
Max Standard Shaft Size: 2.1250" / 53.975mm
Min Standard Tunnel Size: 2.2497" / 57.142mm
Max Standard Tunnel Size: 2.2504" / 57.160mm
Max Wall At Crown: 0.0619" / 1.572mm
Max Overall Length: 0.7780" / 19.750mm
Wall Size Tolerance: 0.0003" / 0.0008mm
Material: F781 (TRI-METAL)
Series: ACL RACE

The Main and Conrod Bearing Sets are manufactured in Tasmania (Australia) by Leaders in Bearing technologies ACL Bearing Company. ACL is Australia's premier manufacturer of precision engine bearings and was a Original Equipment Manufacturer to Holden.

REPLACES HOLDEN PART# 2806368, 2806375 & 2806399

SPECIAL NOTE:
CRANKSHAFT & CONNECTING ROD JOURNAL IS STANDARD SIZE

MADE IN AUSTRALIA


HOLDEN V8 RED MOTOR

L31 HOLDEN V8 308 5.0L RED MOTOR
05/1969-04/1980 HOLDEN [HT-HG-HQ-HJ-HX-HZ SERIES]
10/1978-03/1980 HOLDEN [VB COMMODORE]

L32 HOLDEN V8 253 4.2L RED MOTOR (HIGH COMP)
05/1969-04/1980 HOLDEN [HT-HG-HQ-HJ-HX-HZ SERIES]

L33 HOLDEN V8 253 4.2L RED MOTOR (LOW COMP)
05/1969-07/1976 HOLDEN [HT-HG-HQ-HJ SERIES]

L36 HOLDEN V8 253 4.2L RED MOTOR
10/1978-03/1980 HOLDEN [VB COMMODORE]

HOLDEN V8 BLUE MOTOR

L31 HOLDEN V8 308 5.0L BLUE MOTOR
03/1980-02/1984 HOLDEN [VC-VH COMMODORE]
04/1980-1984 HOLDEN [WB STATESMAN]

L36 HOLDEN V8 253 4.2L BLUE MOTOR
03/1980-02/1984 HOLDEN [VC-VH COMMODORE]
04/1980-1984 HOLDEN [WB COMMERCIAL]

HOLDEN V8 BLACK MOTOR

L31 HOLDEN V8 308 5.0L BLACK MOTOR
02/1984-08/1984 HOLDEN [VK COMMODORE]

LV2 HOLDEN V8 304 5.0L BLACK MOTOR
09/1984-08/1988 HOLDEN [VK-VL COMMODORE]


Warranty

Features

Specifications

SKU 5M2357H-8B2356H-STD-HV8
Model # 5M2357H-STD & 8B2356H-STD
Brand ACL
Shipping Weight 1.0000kg
