SKU: 5C5146C-STD-LB9

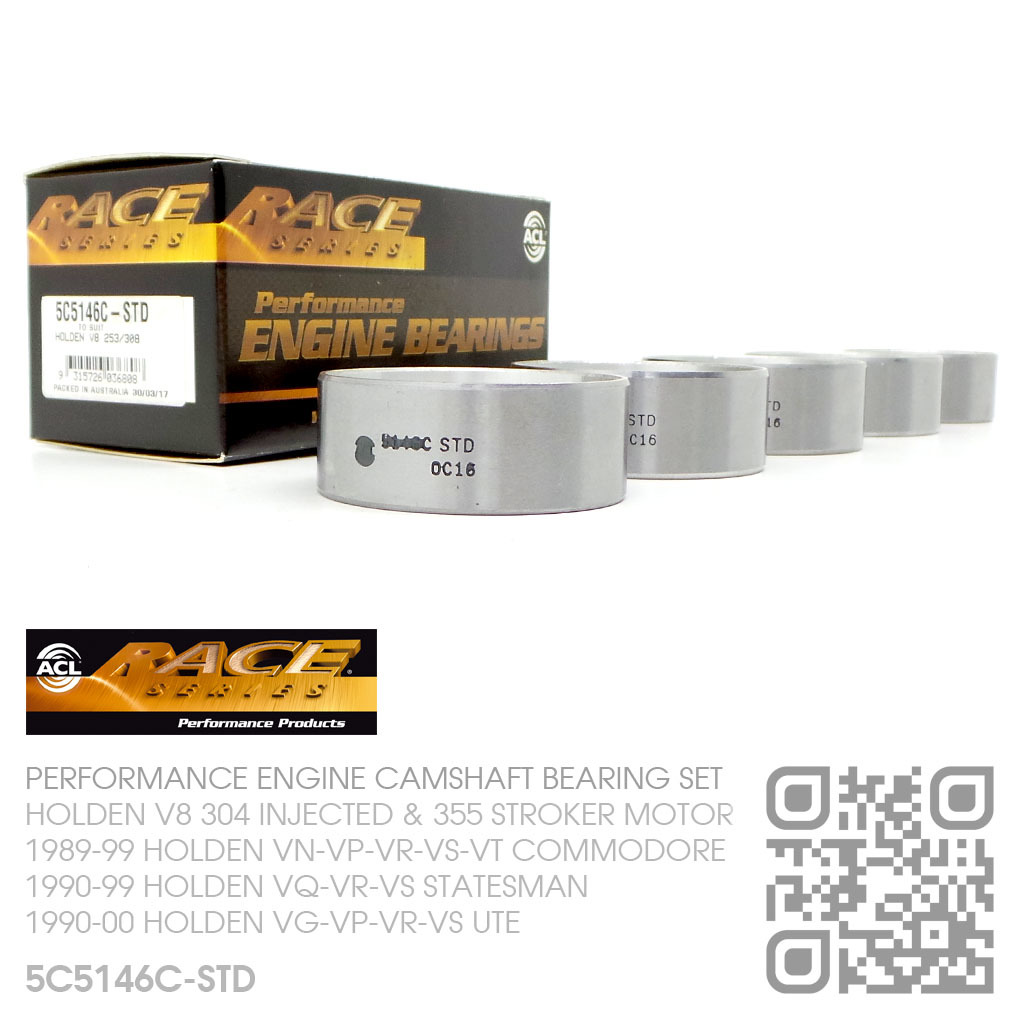

ACL RACE SERIES PERFORMANCE CAMSHAFT BEARING SET STANDARD SIZE [HOLDEN V8 304 INJECTED 5.0L & 355 STROKER 5.7L MOTOR]

1989-00 HOLDEN [VN-VP-VR-VS-VT COMMODORE]

$84.00
In Stock


Calculate Shipping



Free shipping - $0.00

ACL RACE PERFORMANCE CAMSHAFT BEARING SET
STANDARD SIZE
HOLDEN V8 304 INJECTED 5.0L & 355 STROKER 5.7L MOTOR

1989-99 HOLDEN [VN-VP-VR-VS-VT COMMODORE]
1990-99 HOLDEN [VQ-VR-VS STATESMAN]
1990-00 HOLDEN [VG-VP-VR-VS UTE]

Description

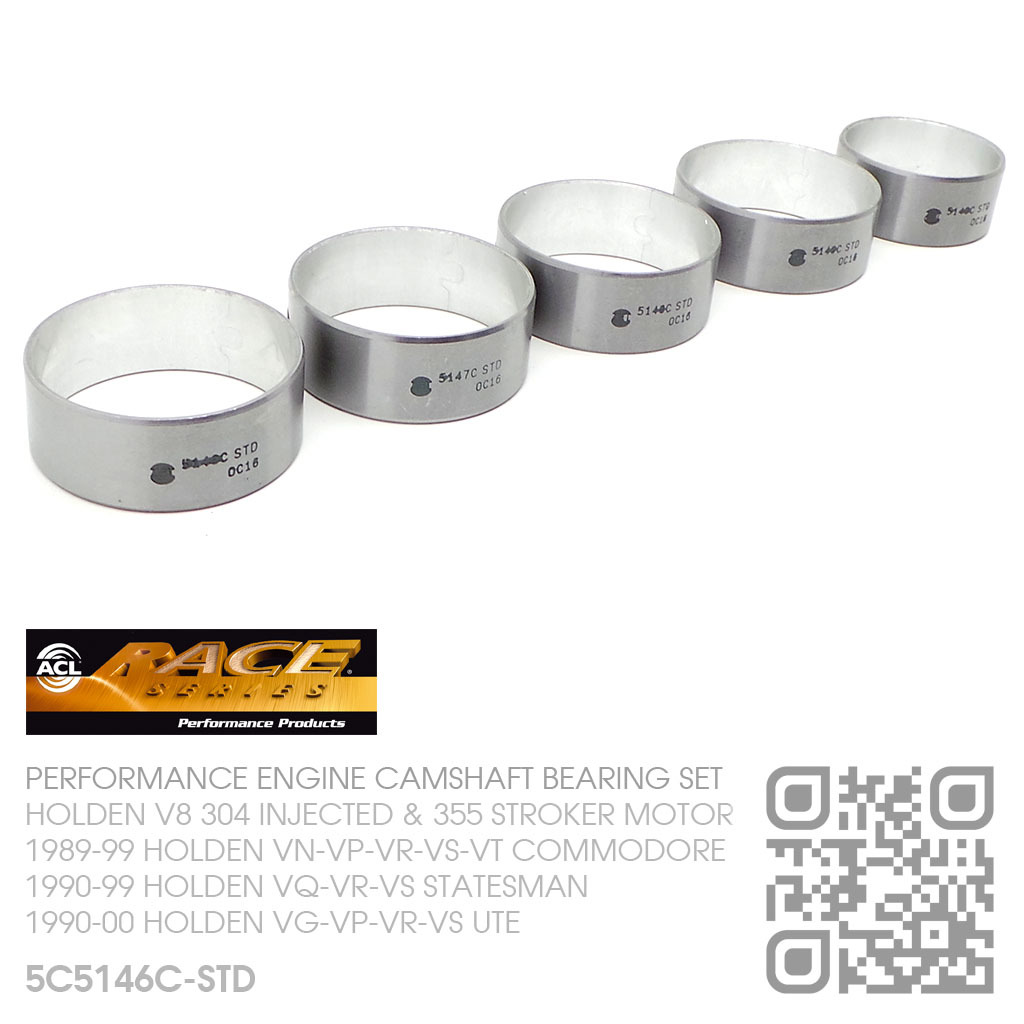

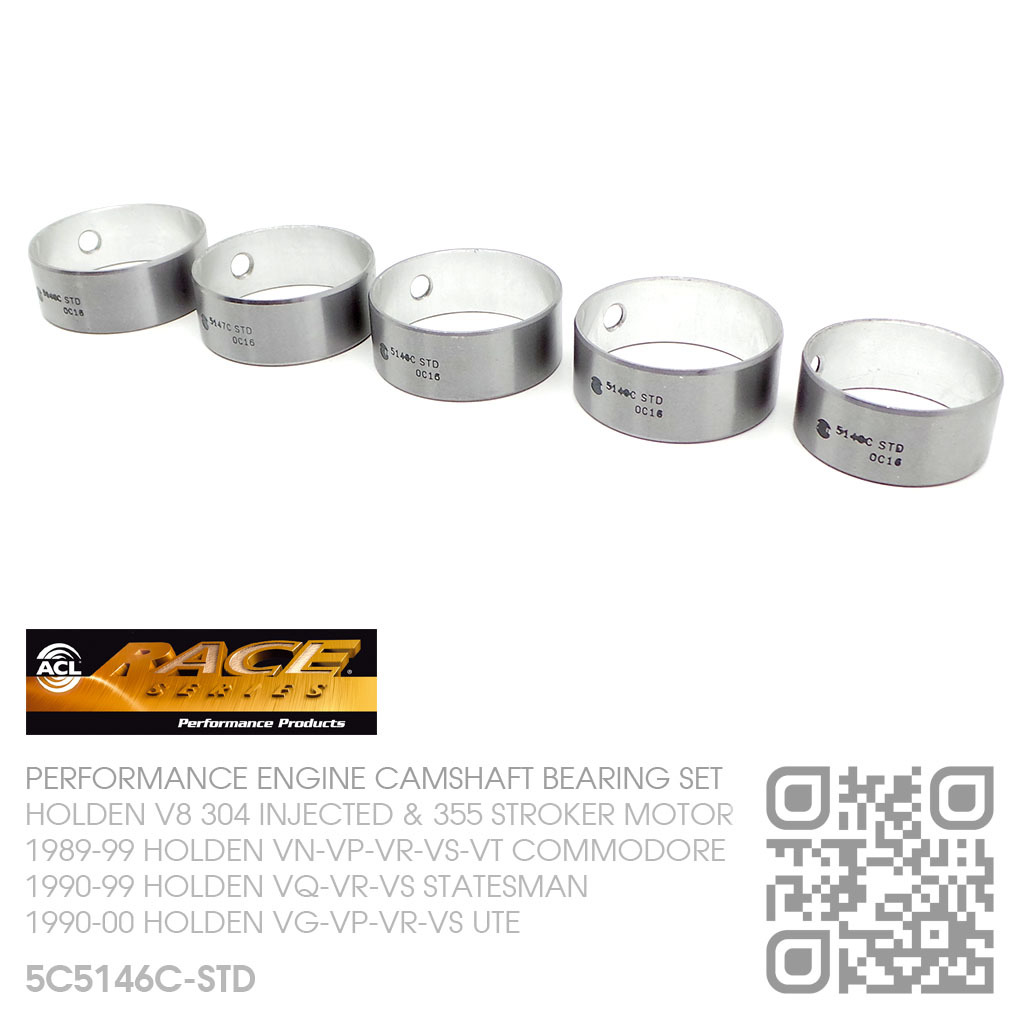

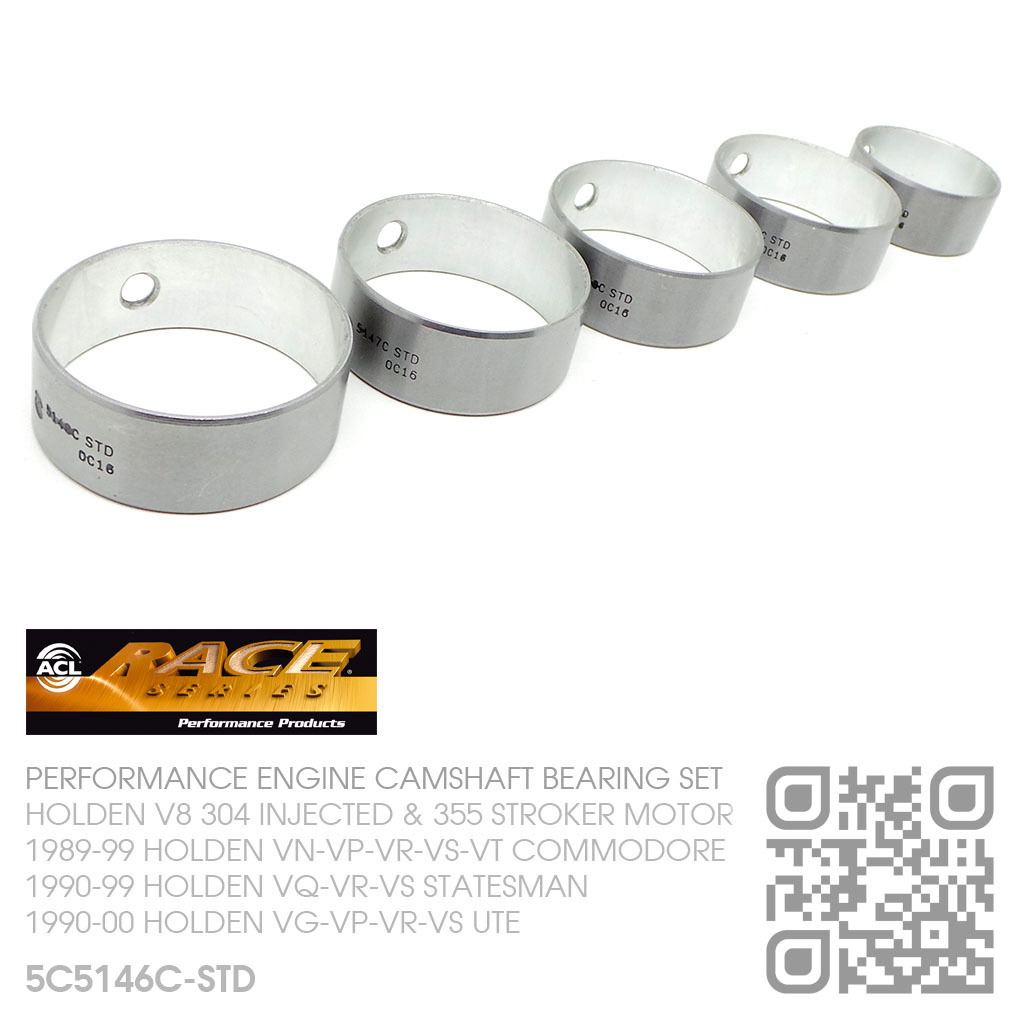

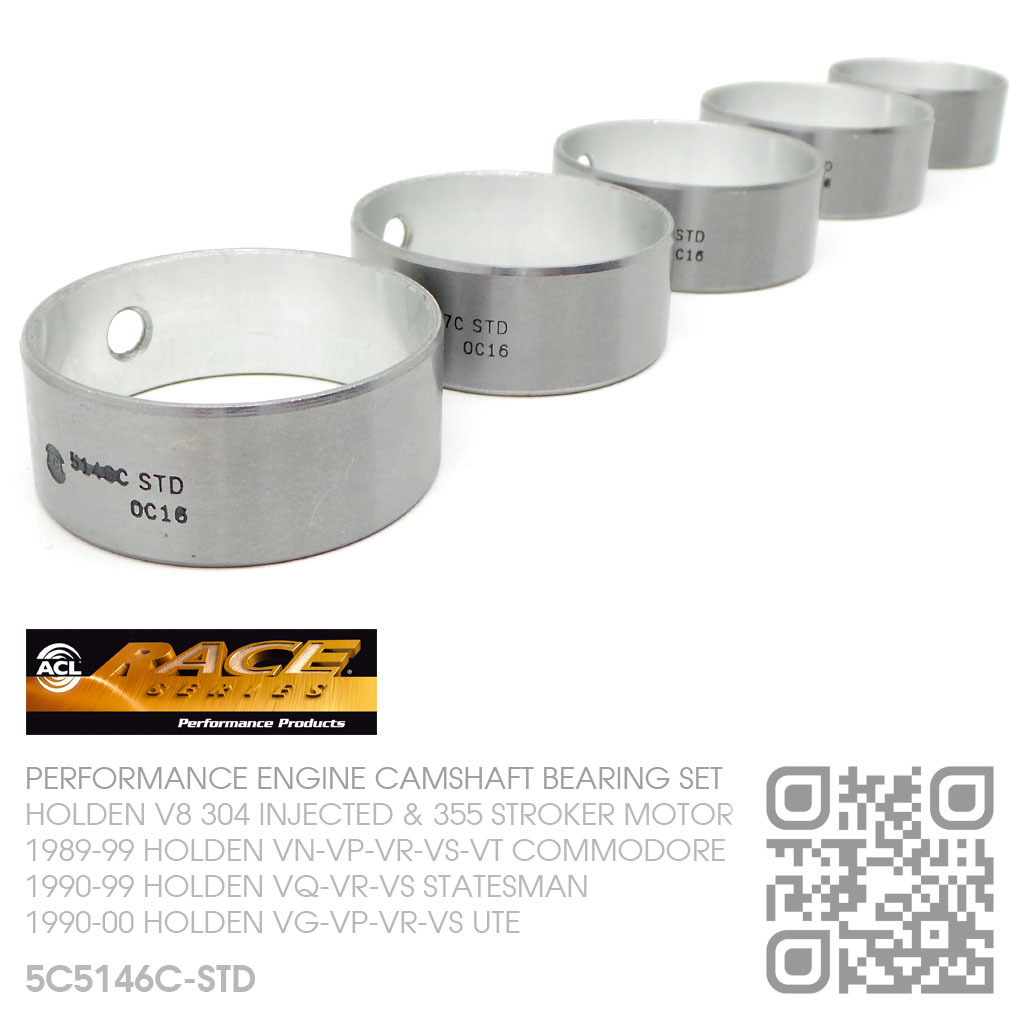

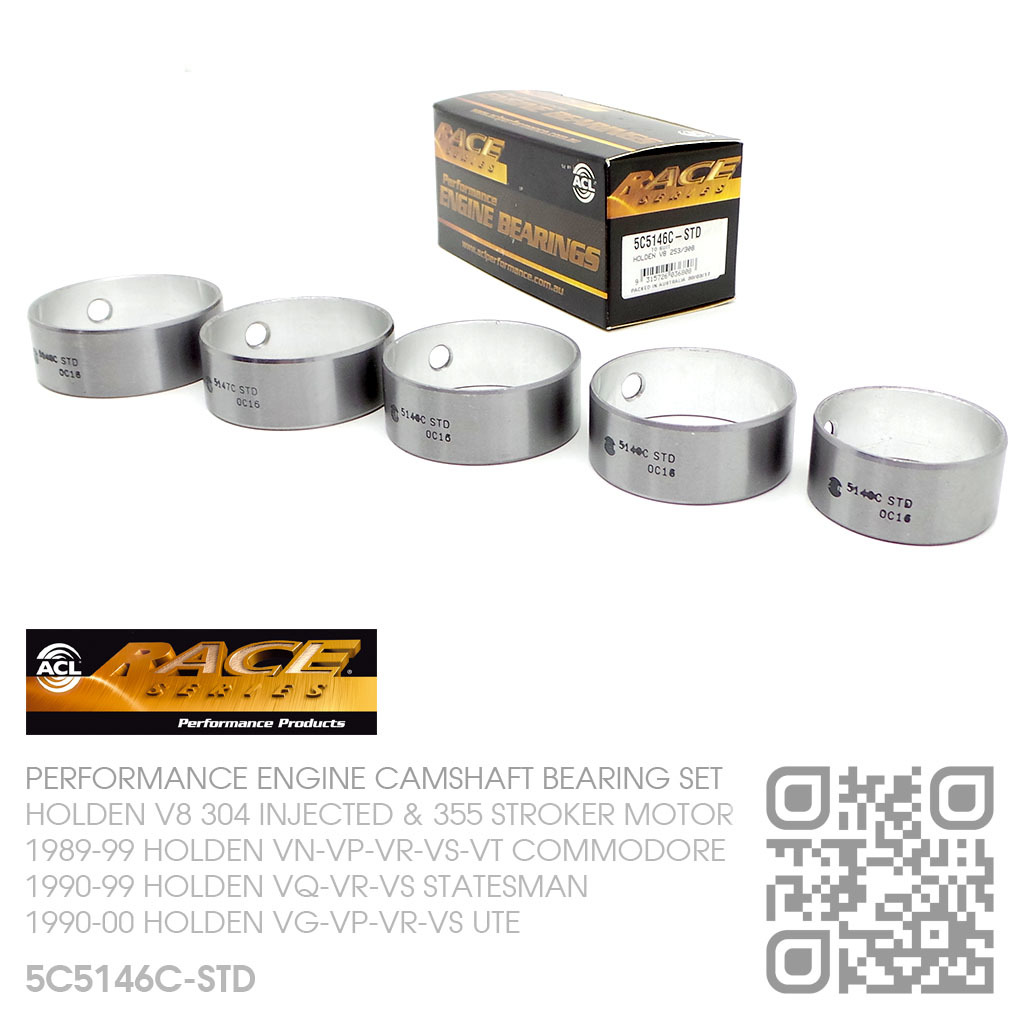

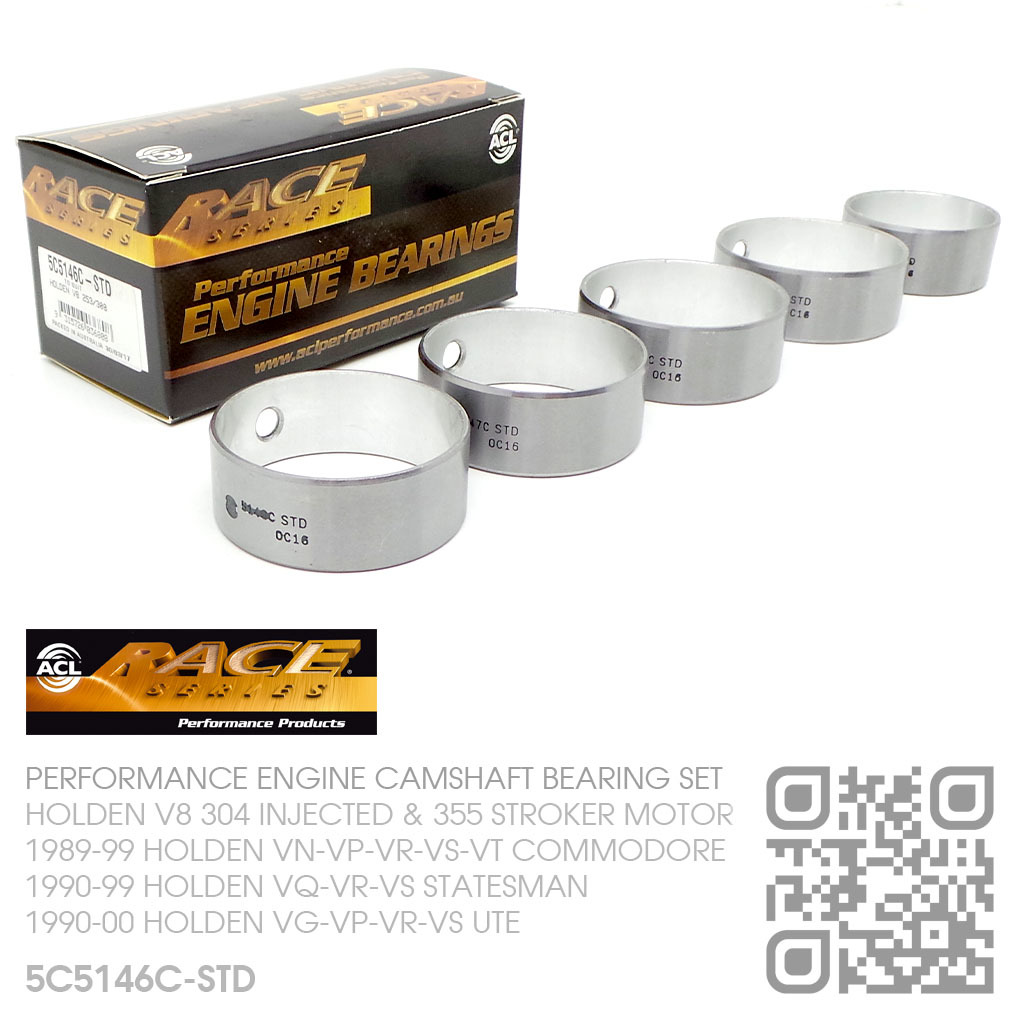

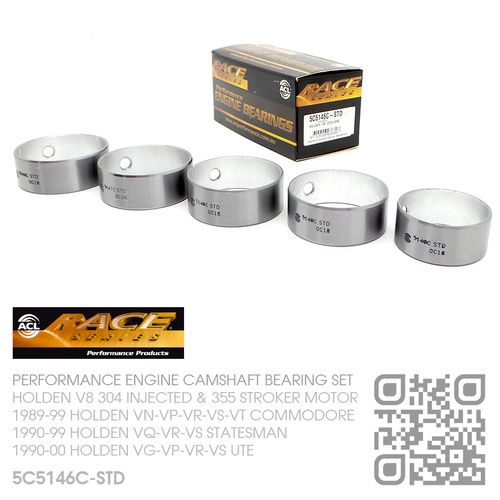

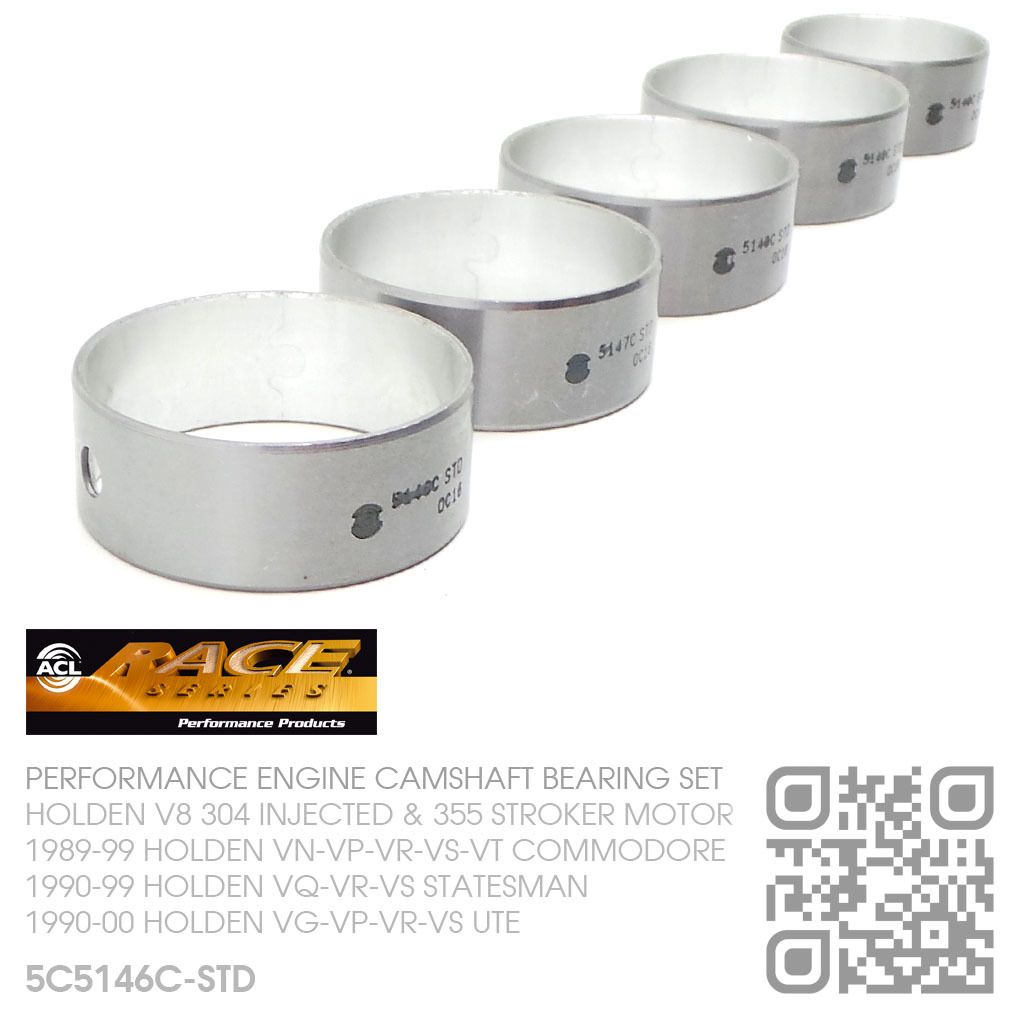

ACL RACE SERIES PERFORMANCE CAMSHAFT BEARING SET
STANDARD SIZE
LB9 HOLDEN V8 304 INJECTED 5.0L MOTOR
L98 HOLDEN V8 355 STROKER 5.7L MOTOR (348ci)

03/1989-1999 HOLDEN [VN-VP-VR-VS-VT COMMODORE]
03/1990-1999 HOLDEN [VQ-VR-VS STATESMAN/CAPRICE]
09/1990-2000 HOLDEN [VG-VP-VR-VS UTE]

High performance driving demands that you use the best parts. So rely on ACL's Race Series Products to perform to the exacting durability standards you expect. They provide the dependability it takes to hold up under higher RPM conditions.

The unique combination of design, metallurgy and engineering comes together to deliver what drivers expect from high performance parts. ACL Race Series Engine Bearings are a must for your performance engine.

SPECIFICATIONS:

CAMSHAFT BEARING #5149C
Min Std Shaft Size: 1.8682" / 47.452mm
Max Std Shaft Size: 1.8692" / 47.478mm
Min Std Tunnel Size:1.9990" / 50.775mm
Max Std Tunnel Size: 2.0010" / 50.825mm
Max Wall At Crown: 0.0645" / 1.638mm
Max Overall Length: 0.7898" / 20.06mm
Min Vertical Oil Clearance: 0.0008" / 0.021mm
Max Vertical Oil Clearance: 0.0048" / 0.121mm

CAMSHAFT BEARING #5146C
Min Std Shaft Size: 1.8882" / 47.96mm
Max Std Shaft Size: 1.8892" / 47.986mm
Min Std Tunnel Size: 2.0290" / 51.537mm
Max Std Tunnel Size: 2.0310" / 51.587mm
Max Wall At Crown: 0.0695" / 1.765mm
Max Overall Length: 0.7898" / 20.06mm
Min Vertical Oil Clearance: 0.0008" / 0.021mm
Max Vertical Oil Clearance: 0.0048" / 0.121mm

CAMSHAFT BEARING #5147C
Min Std Shaft Size: 1.8882" / 47.96mm
Max Std Shaft Size: 1.8892" / 47.986mm
Min Std Tunnel Size: 2.0190" / 51.283mm
Max Std Tunnel Size: 2.0210" / 51.333mm
Max Wall At Crown: 0.0645" / 1.638mm
Max Overall Length: 0.7898" / 20.06mm
Min Vertical Oil Clearance: 0.0008" / 0.021mm
Max Vertical Oil Clearance: 0.0048" / 0.121mm

CAMSHAFT BEARING #5148C
Min Std Shaft Size: 1.8682" / 47.452mm
Max Std Shaft Size: 1.8692" / 47.478mm
Min Std Tunnel Size: 2.0090" / 51.029mm
Max Std Tunnel Size: 2.0110" / 51.079mm
Max Wall At Crown: 0.0695" / 1.765mm
Max Overall Length: 0.7898" / 20.06mm
Min Vertical Oil Clearance: 0.0008" / 0.021mm
Max Vertical Oil Clearance: 0.0048" / 0.121mm

CAMSHAFT BEARING #5140C
Min Std Shaft Size: 1.5790" / 40.107mm
Max Std Shaft Size: 1.5800" / 40.132mm
Min Std Tunnel Size: 1.7098" / 43.429mm
Max Std Tunnel Size: 1.7118in / 43.48mm
Max Wall At Crown: 0.0645in / 1.638mm
Max Overall Length: 0.7898in / 20.06mm
Min Vertical Oil Clearance: 0.0008in / 0.021mm
Max Vertical Oil Clearance: 0.0048in / 0.121mm

Material: F830 RACE SERIES (TRI-METAL)

The Camshaft Bearing Sets are manufactured in Tasmania (Australia) by Leaders in Bearing technologies ACL Bearing Company. ACL is Australia's premier manufacturer of precision engine bearings and was a Original Equipment Manufacturer to Holden.

REPLACES HOLDEN PART# 2811061

SPECIAL NOTE:
CAMSHAFT IS STANDARD SIZE

MADE IN AUSTRALIA


HOLDEN V8 INJECTED MOTOR

LB9 HOLDEN V8 304 INJECTED 5.0L MOTOR
07/1988-1988 HOLDEN [VL COMMODORE SS GROUP A]
03/1989-05/1999 HOLDEN [VN-VP-VR-VS-VT COMMODORE]
03/1990-04/1999 HOLDEN [VQ-VR-VS STATESMAN]
09/1990-2000 HOLDEN [VG-VP-VR-VS UTE]

L98 HOLDEN V8 355 STROKER 5.7L MOTOR (348CI)
05/1994-05/1999 HSV [VR-VS-VT GTS/SENATOR & LIMITED EDITIONS]

Warranty

Features

Specifications

SKU 5C5146C-STD-LB9
Model # 5C5146C-STD
Barcode # 9315726036808
Brand ACL
Shipping Weight 0.6000kg
