SKU: JP5701

JP PERFORMANCE TIMING GEAR DRIVE SET [HOLDEN V8 RED/BLUE/BLACK/INJECTED MOTOR]

1969-00 HOLDEN [HT-WB, LH-LX TORANA & VB-VT COMMODORE]

$606.50
In Stock


Calculate Shipping



Free shipping - $0.00

JP PERFORMANCE TIMING GEAR DRIVE SET
HOLDEN V8 253 4.2L & 308 5.0L RED/BLUE MOTOR
HOLDEN V8 304 & 308 5.0L BLACK MOTOR
HOLDEN V8 304 INJECTED 5.0L MOTOR
HOLDEN V8 355 STROKER 5.7L MOTOR

Description

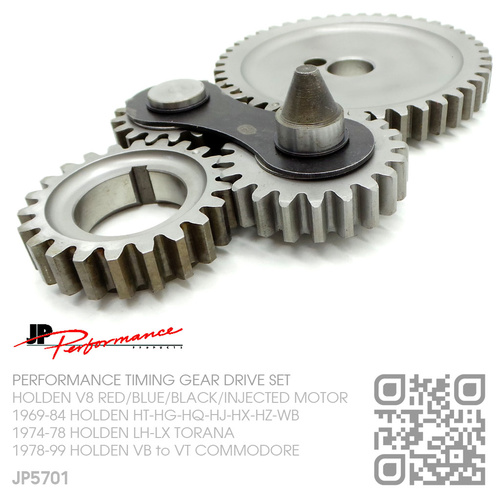

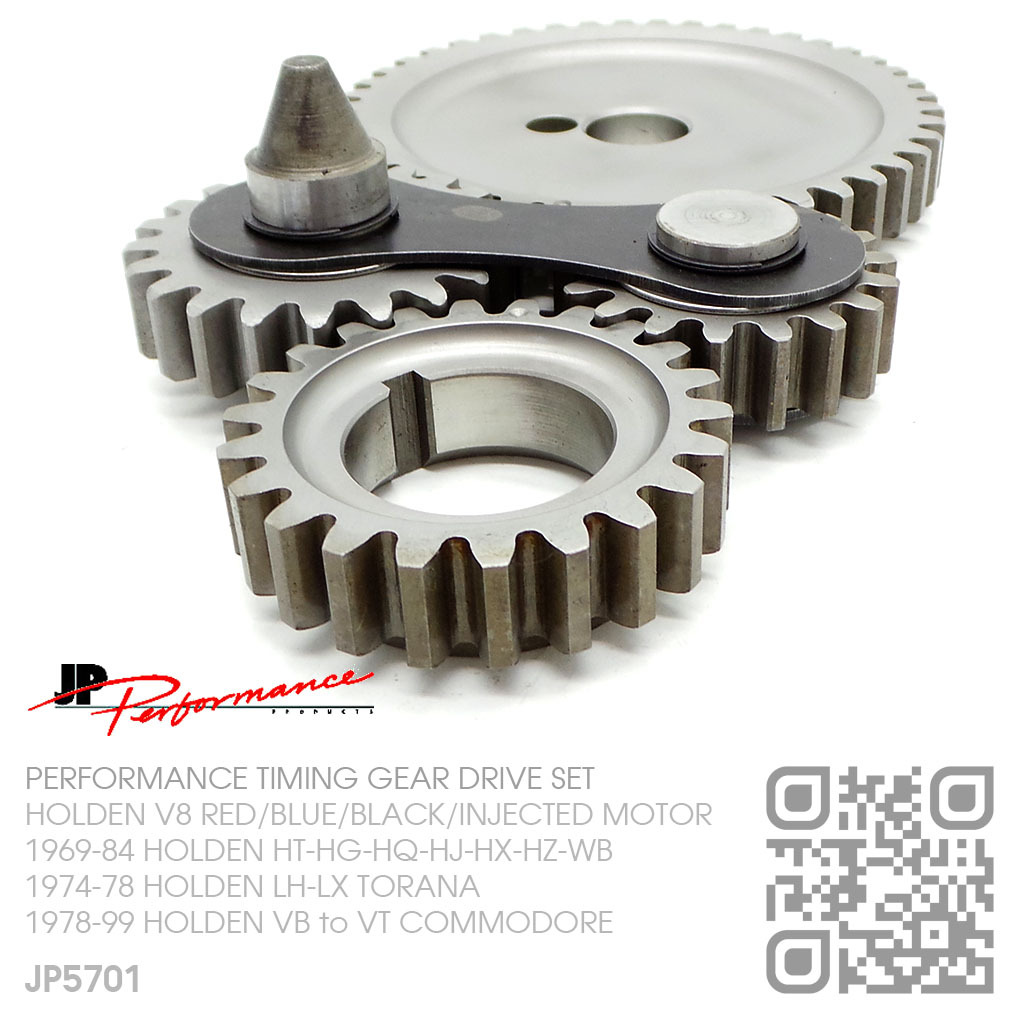

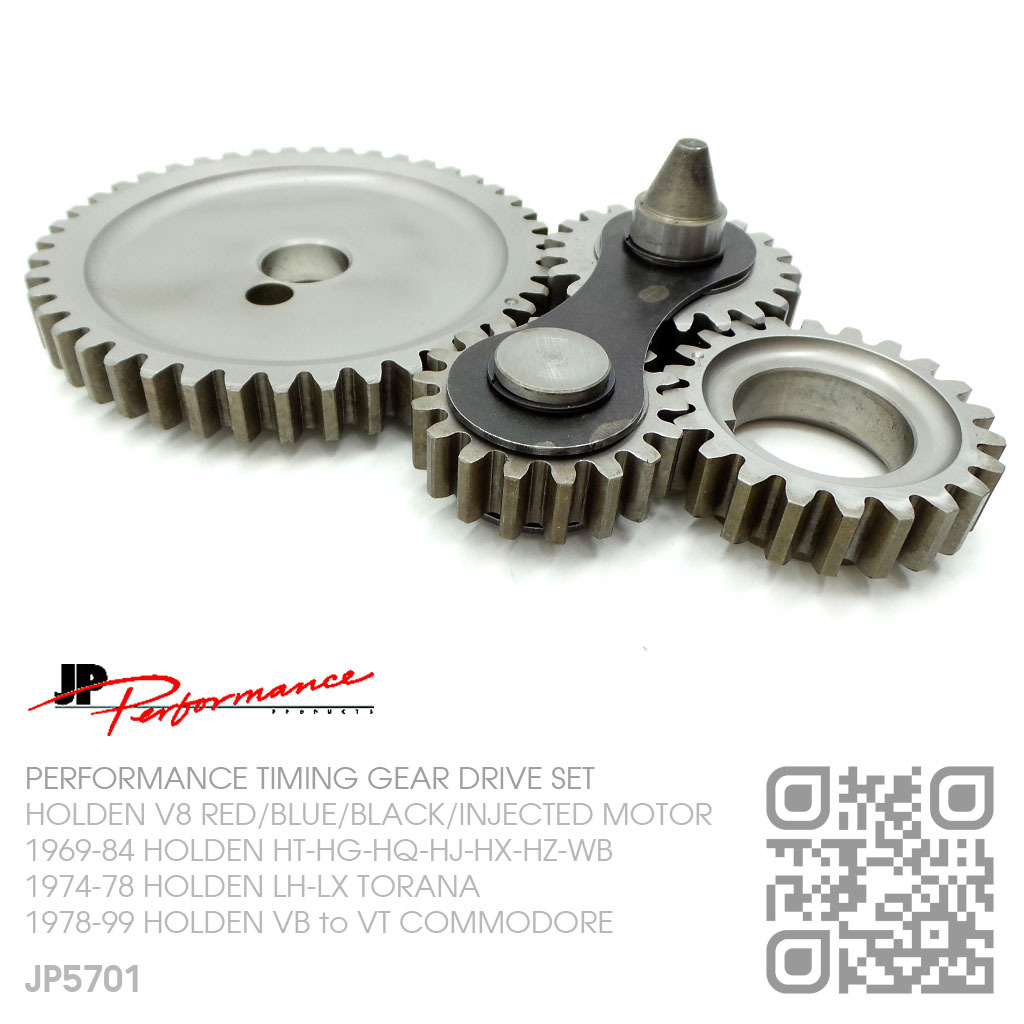

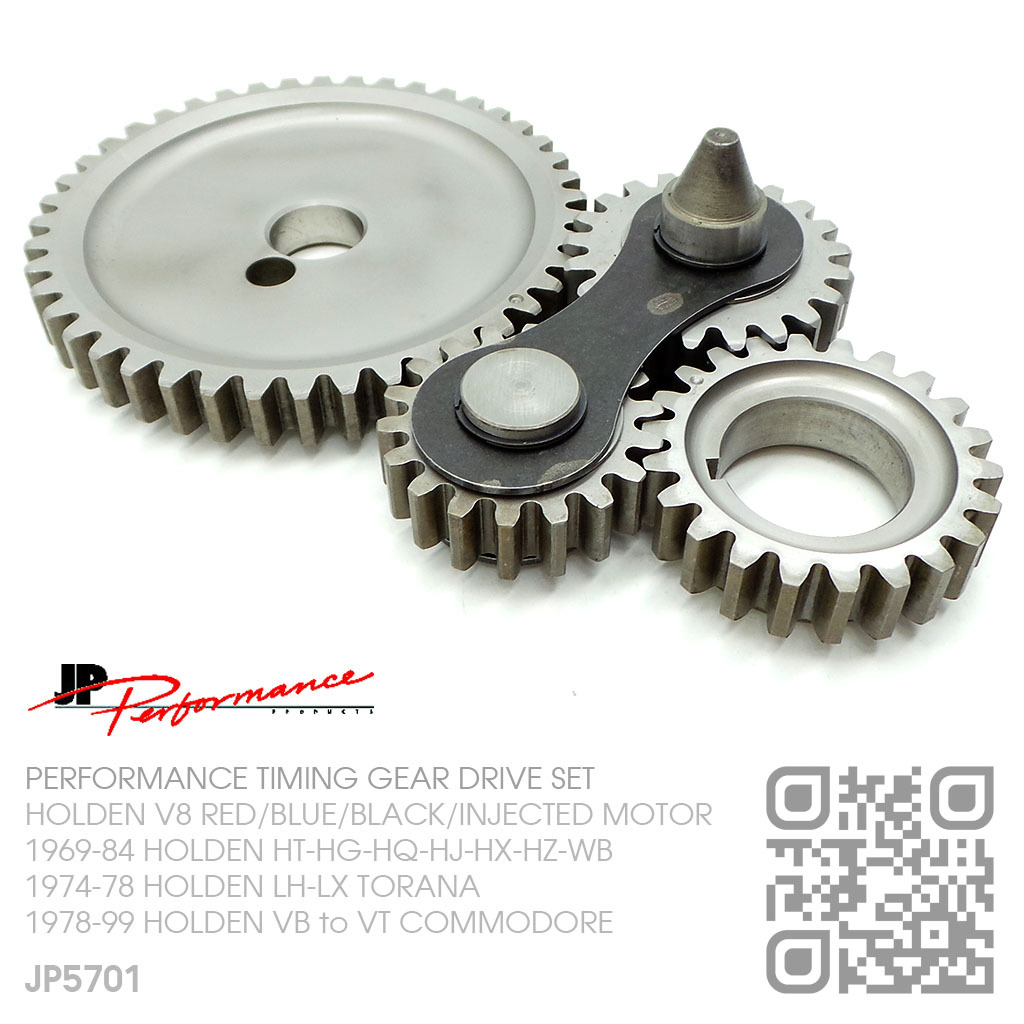

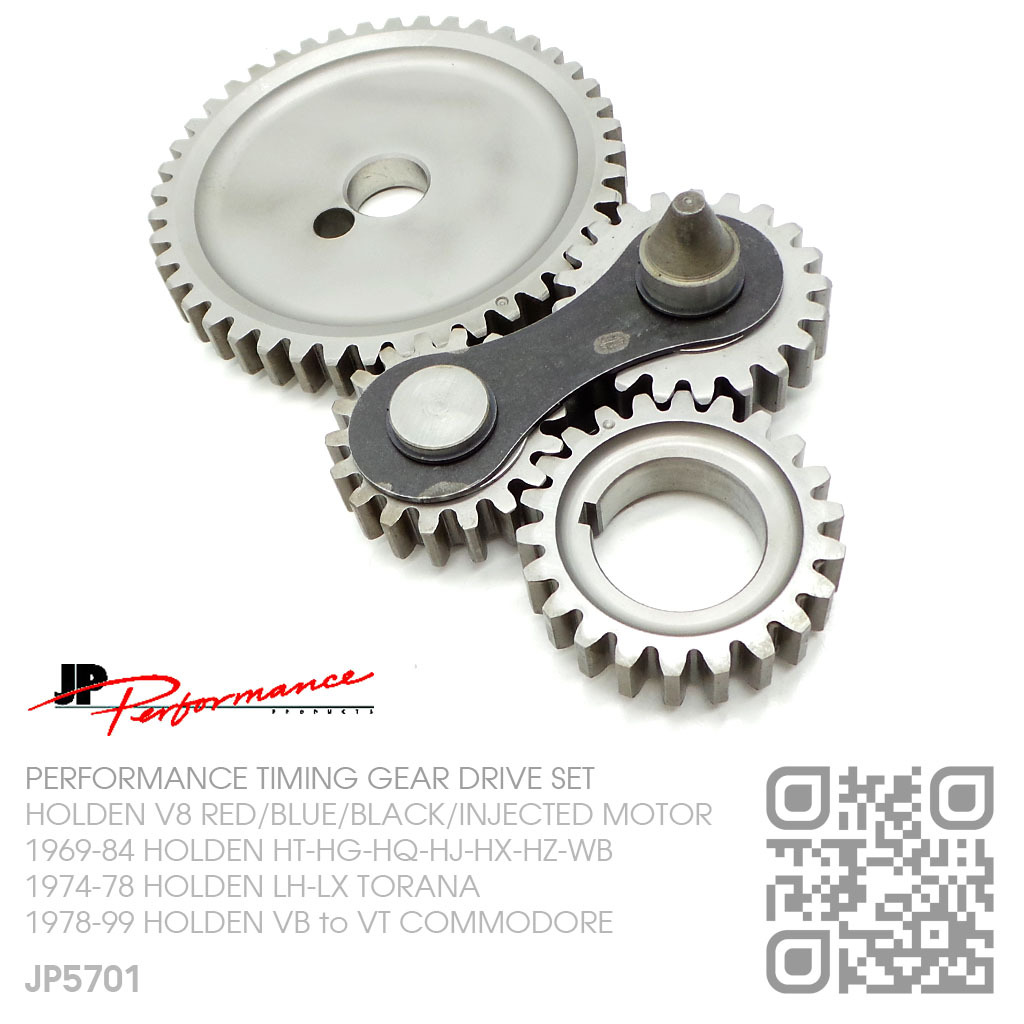

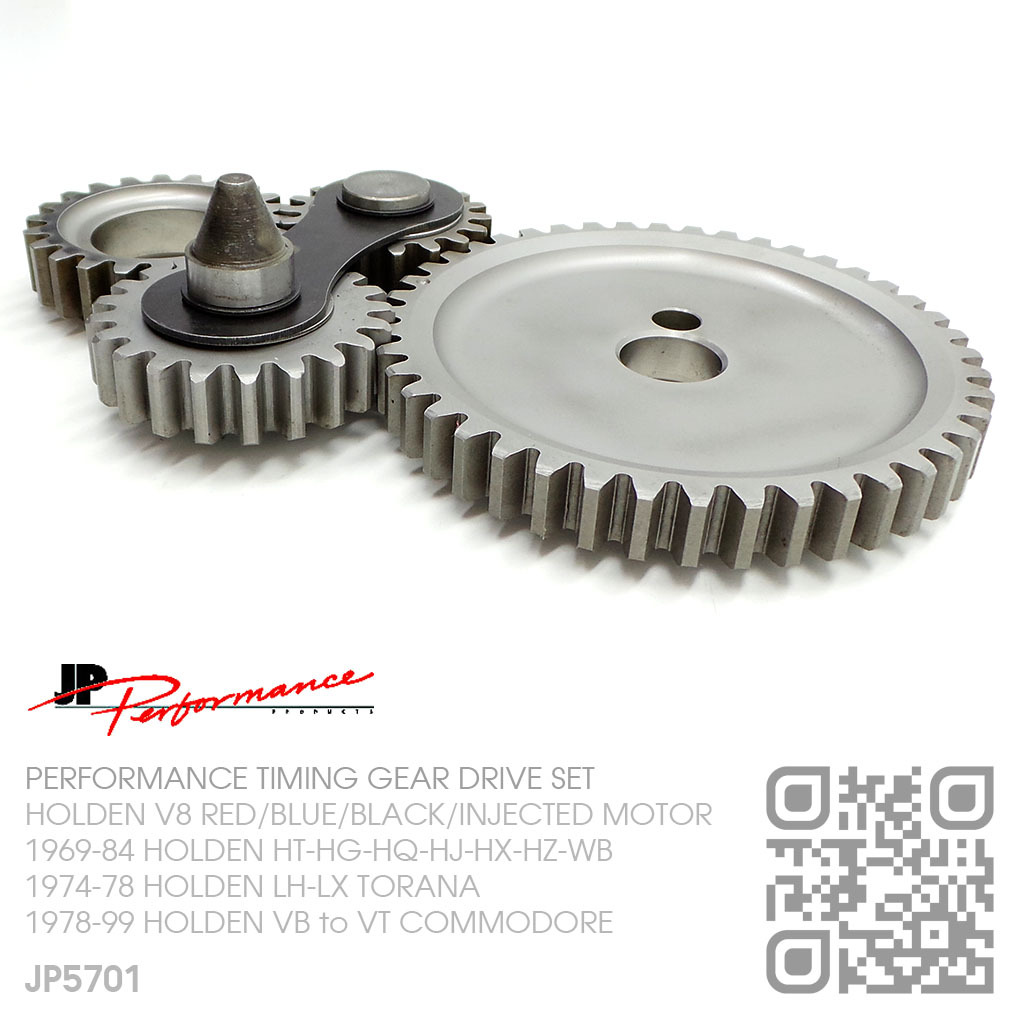

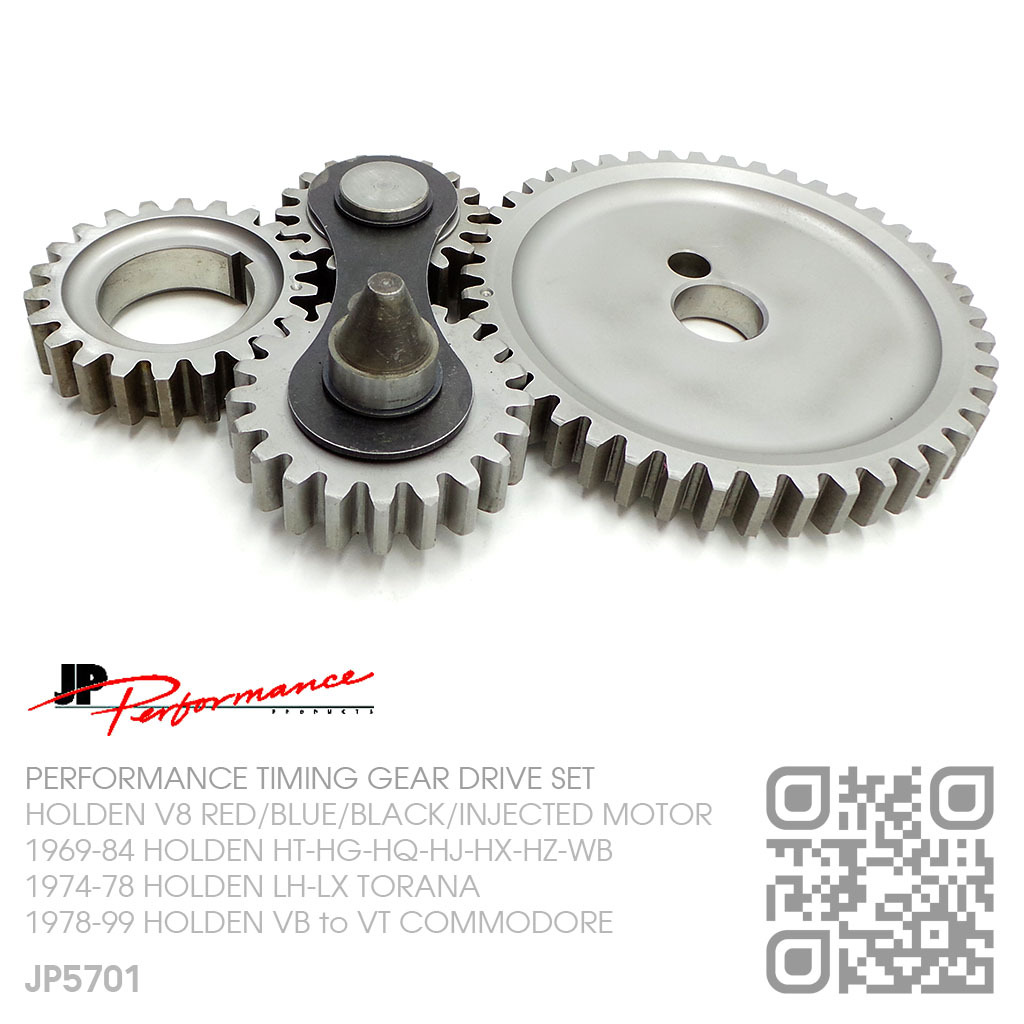

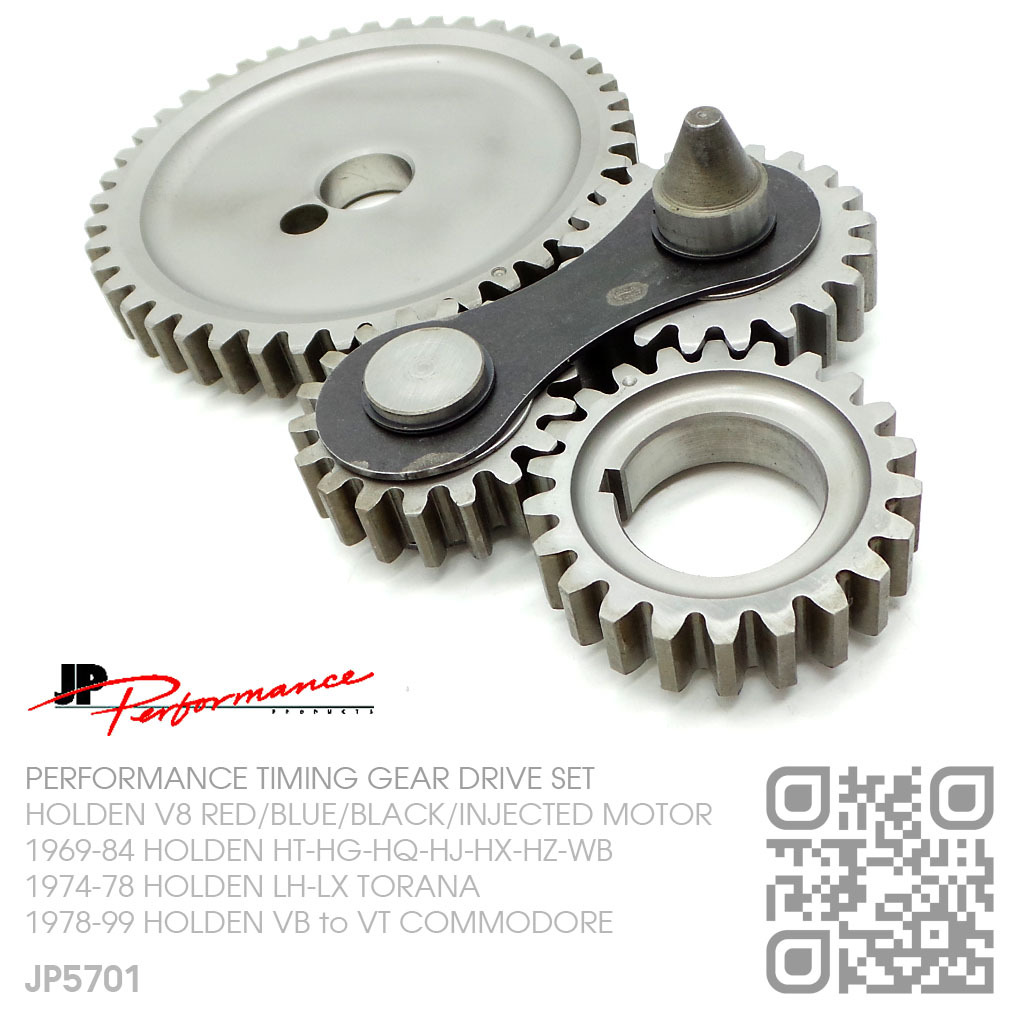

JP PERFORMANCE DUAL IDLER TIMING GEAR DRIVE SET
HOLDEN V8 253 4.2L & 308 5.0L RED/BLUE MOTOR
HOLDEN V8 304 & 308 5.0L BLACK MOTOR
HOLDEN V8 304 5.0L INJECTED MOTOR
HOLDEN V8 355 5.7L STROKER MOTOR (348ci)

HOLDEN V8 RED/BLUE/BLACK MOTOR
05/1969-1984 HOLDEN [HT-HG-HQ-HJ-HX-HZ-WB SERIES]
03/1974-03/1978 HOLDEN [LH-LX TORANA]
10/1978-08/1988 HOLDEN [VB-VC-VH-VK-VL COMMODORE]

HOLDEN V8 INJECTED MOTOR
03/1989-1999 HOLDEN [VN-VP-VR-VS-VT COMMODORE]
03/1990-1999 HOLDEN [VQ-VR-VS STATESMAN/CAPRICE]
09/1990-2000 HOLDEN [VG-VP-VR-VS UTE]

JP Performance Gear Drives are by far some of the most superior gear drives available today. Manufactured from billet steel and CNC turned for greater accuracy these gear drives will suit street and racing applications.

FEATURES:

  • "A" Grade Drawn Cup Needle Roller Bearings rated to speed of 12000rpm and dynamic load rating of 8.6kN (1935 lbf)
  • Case hardened gears to ensure longer life under harsh conditions
  • Thrust washers rated to 16000rpm and dynamic load capacity of 7.2kN (1620 lbf). Precision laser cut idler plates
  • Case hardened and ground idler shafts to improve bearing life
  • Shot peened gears to relieve stress
  • Shaved gears for more accurate gear mesh
  • CNC machined for greatest accuracy

SPECIFICATIONS:
Number of Keyways: 1
Number of Teeth Cam Sprockets: 44
Number of Teeth Crank Sprockets: 22

JP Engineering Products is Australian manufacturing company and has over 25 years of experience in producing performance and standard replacement parts.

MADE IN AUSTRALIA


HOLDEN V8 RED MOTOR

L31 HOLDEN V8 308 5.0L RED MOTOR
05/1969-04/1980 HOLDEN [HT-HG-HQ-HJ-HX-HZ SERIES]
03/1974-03/1978 HOLDEN [LH-LX TORANA]
10/1978-03/1980 HOLDEN [VB COMMODORE]

L32 HOLDEN V8 253 4.2L RED MOTOR (HIGH COMP)
05/1969-04/1980 HOLDEN [HT-HG-HQ-HJ-HX-HZ SERIES]
03/1974-03/1978 HOLDEN [LH-LX TORANA]

L33 HOLDEN V8 253 4.2L RED MOTOR (LOW COMP)
05/1969-07/1976 HOLDEN [HT-HG-HQ-HJ SERIES]

L36 HOLDEN V8 253 4.2L RED MOTOR
10/1978-03/1980 HOLDEN [VB COMMODORE]

HOLDEN V8 BLUE MOTOR

L31 HOLDEN V8 308 5.0L BLUE MOTOR
03/1980-02/1984 HOLDEN [VC-VH COMMODORE]
04/1980-1984 HOLDEN [WB STATESMAN]

L36 HOLDEN V8 253 4.2L BLUE MOTOR
03/1980-02/1984 HOLDEN [VC-VH COMMODORE]
04/1980-1984 HOLDEN [WB COMMERCIAL]

HOLDEN V8 BLACK MOTOR

L31 HOLDEN V8 308 5.0L BLACK MOTOR
02/1984-08/1984 HOLDEN [VK COMMODORE]

LV2 HOLDEN V8 304 5.0L BLACK MOTOR
09/1984-08/1988 HOLDEN [VK-VL COMMODORE]

HOLDEN V8 INJECTED MOTOR

LB9 HOLDEN V8 304 INJECTED 5.0L MOTOR
07/1988-1988 HOLDEN [VL COMMODORE SS GROUP A]
03/1989-05/1999 HOLDEN [VN-VP-VR-VS-VT COMMODORE]
03/1990-04/1999 HOLDEN [VQ-VR-VS STATESMAN]
09/1990-2000 HOLDEN [VG-VP-VR-VS UTE]

L98 HOLDEN V8 355 STROKER 5.7L MOTOR (348ci)
05/1994-05/1999 HSV [VR-VS-VT GTS/SENATOR & LIMITED EDITIONS]

Warranty

Features

Specifications

SKU JP5701
Model # JP5701
Barcode # 9320606159713
Brand JP Performance Products
Shipping Weight 1.7000kg
