SKU: 4C5116-STD

ACL CAMSHAFT BEARING SET STANDARD SIZE [HOLDEN 6-CYL RED/BLUE/BLACK MOTOR]

1963-86 HOLDEN [EH-WB, LC-UC TORANA & VB-VK COMMODORE]

$32.50
In Stock


Calculate Shipping



Free shipping - $0.00

ACL CAMSHAFT BEARING SET
STANDARD SIZE
HOLDEN 6 CYLINDER RED/BLUE/BLACK MOTOR

1963-84 HOLDEN [EH-HD-HR-HK-HT-HG-HQ-HJ-HX-HZ-WB]
1969-79 HOLDEN [LC-LJ-L-LX-UC TORANA]
1978-86 HOLDEN [VB-VC-VH-VK COMMODORE]

Description

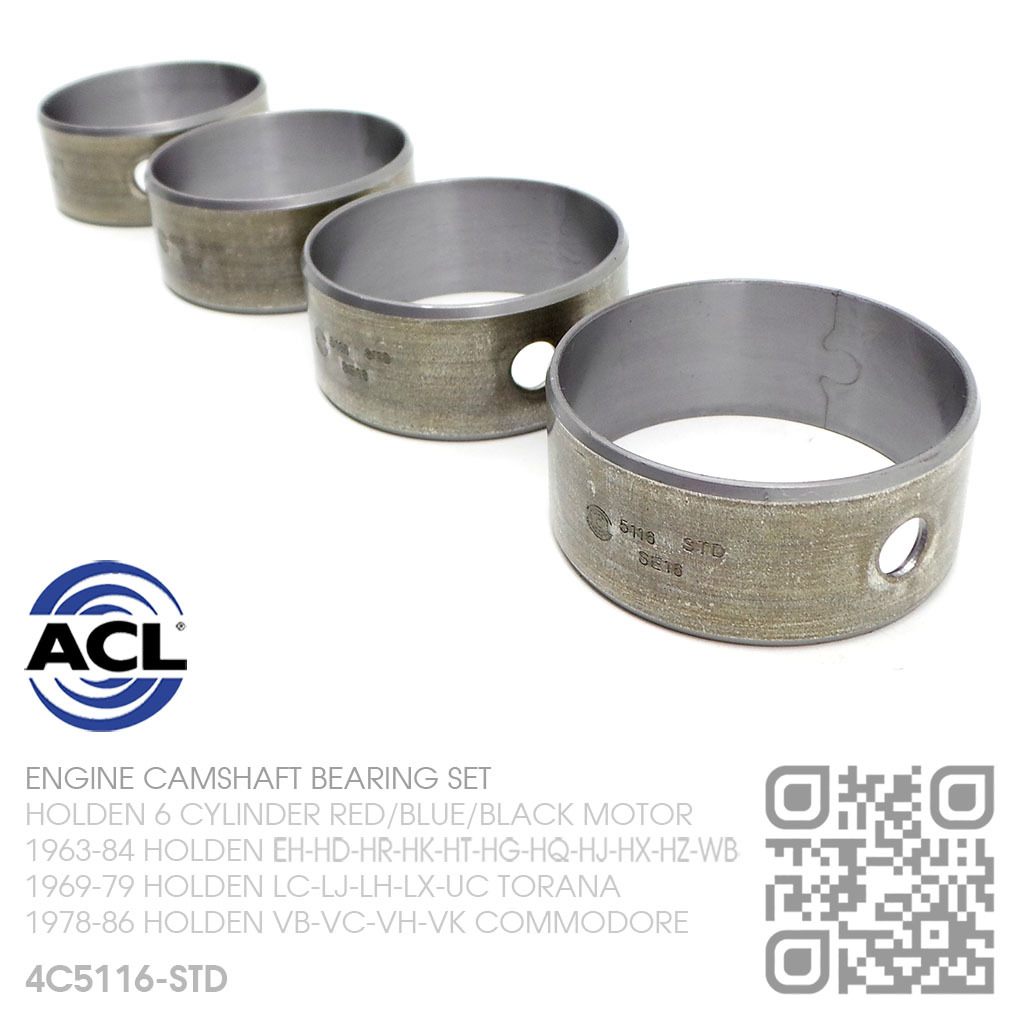

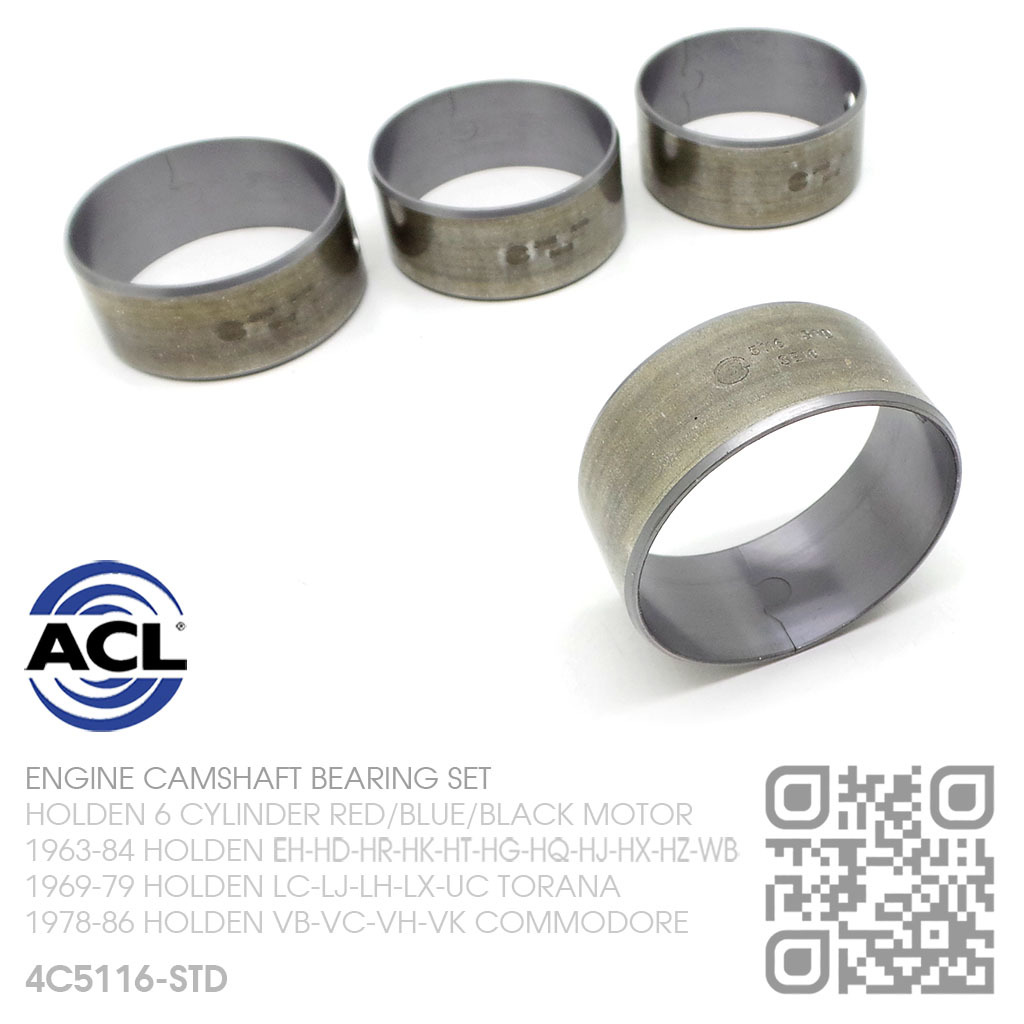

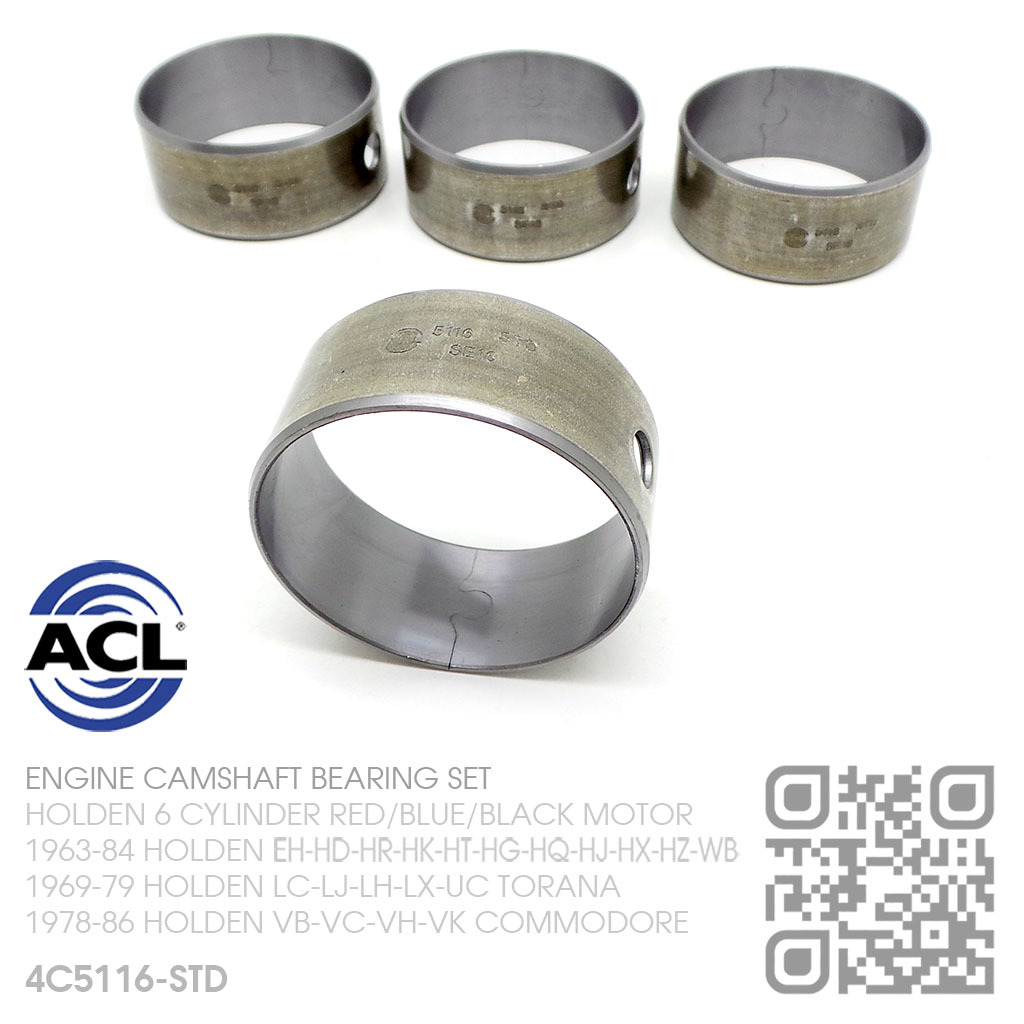

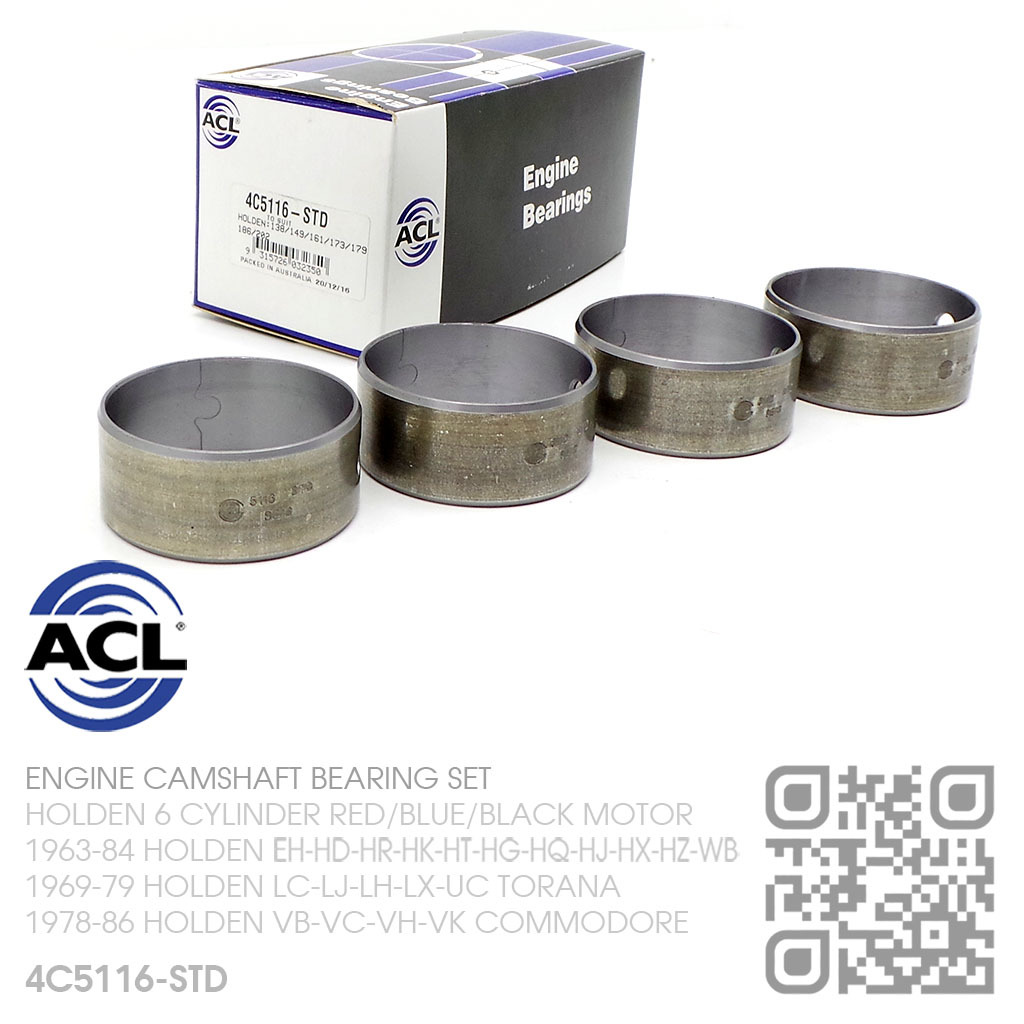

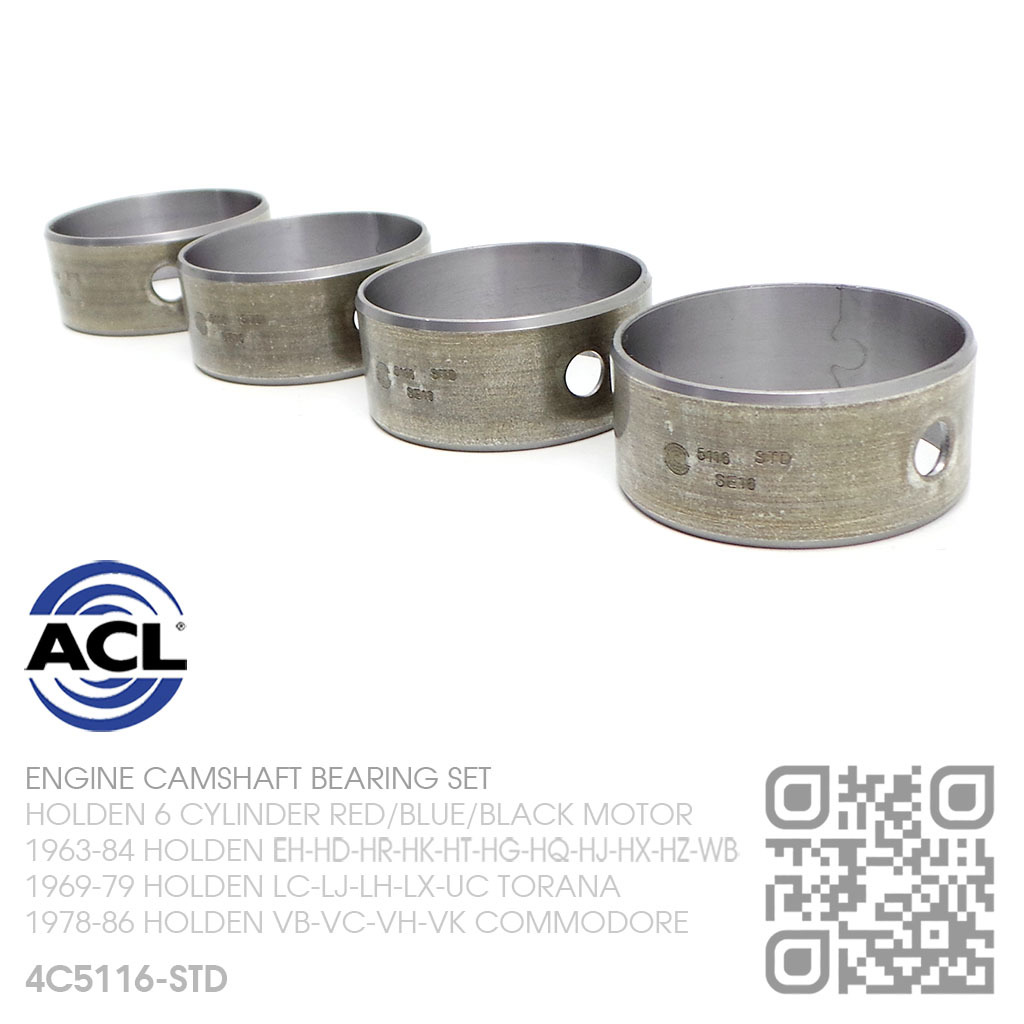

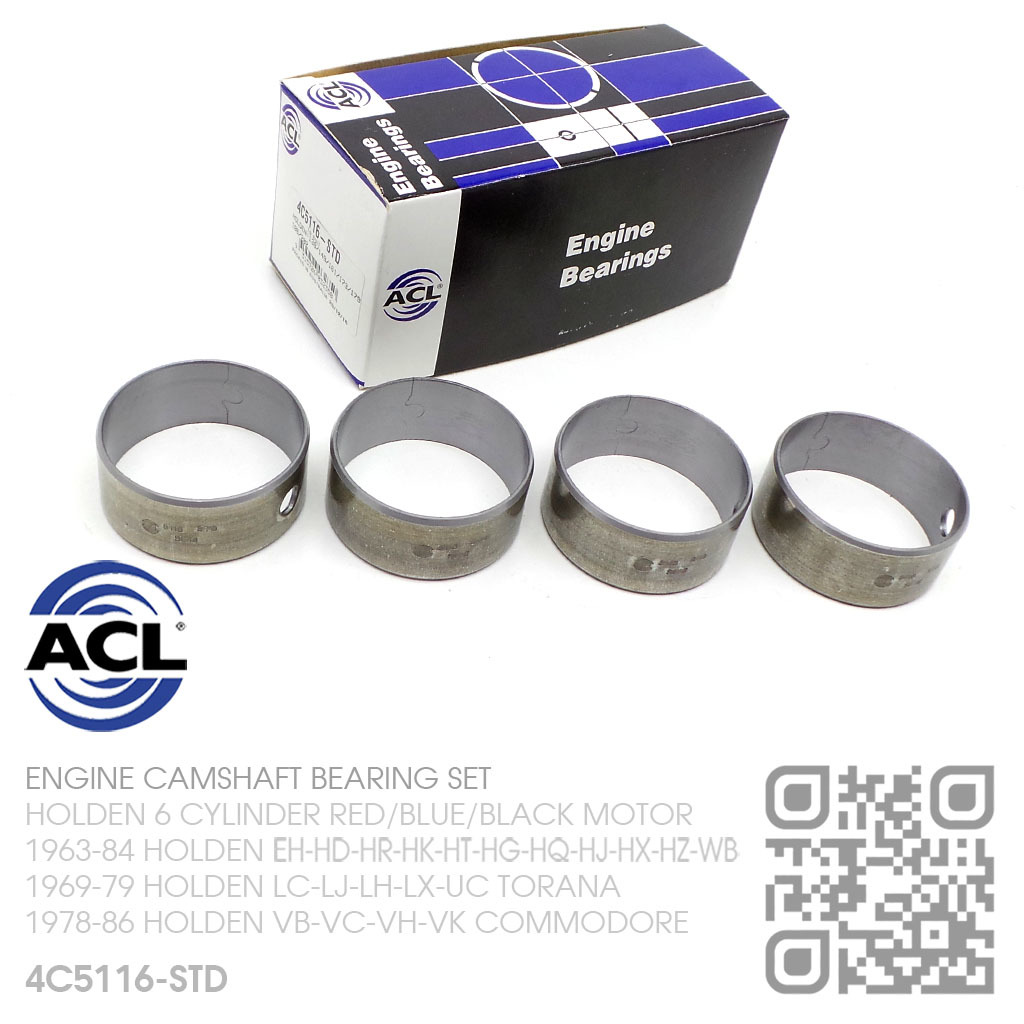

ACL CAMSHAFT BEARING SET
STANDARD SIZE
HOLDEN 6 CYLINDER RED/BLUE/BLACK MOTOR

08/1963-1971 HOLDEN [EH-HD-HR-HK-HT-HG SERIES]
07/1971-1984 HOLDEN [HQ-HJ-HX-HZ-WB SERIES]
10/1969-1979 HOLDEN [LC-LJ-L-LX-UC TORANA]
10/1978-1986 HOLDEN [VB-VC-VH-VK COMMODORE]

Camshaft Bearings support the camshaft and provide its rotation. It is good practice to replace old tired and worn units as a important step of your engine rebuild, especially if the engine block has been acid dipped for cleaning, caustics attack the Whitemetal and in more times than not, damage may be caused to the bearings during this process.

SPECIFICATIONS:
Min Standard Shaft Size: 1.7655in / 44.844mm
Max Standard Shaft Size: 1.7660in / 44.856mm
Min Standard Tunnel Size: 1.8958in / 48.153mm
Max Standard Tunnel Size: 1.8978in / 48.204mm
Max Wall At Crown: 0.0644in / 1.636mm
Max Overall Length: 0.8299in / 21.08mm
Semi-finished: YES
Min Vertical Oil Clearance: 0.0010in / 0.025mm
Max Vertical Oil Clearance: 0.0045in / 0.114mm
Material: F23
Set Quantity: 4

The Camshaft Bearing Sets are manufactured in Tasmania (Australia) by Leaders in Bearing technologies ACL Bearing Company. ACL is Australia's premier manufacturer of precision engine bearings and has been a Original Equipment Manufacturer to Holden.

REPLACES HOLDEN PART# 7423616

SPECIAL NOTE:
CAMSHAFT IS STANDARD SIZE

MADE IN AUSTRALIA


138ci 2250 (2262cc) RED
10/1969-1973 HOLDEN [LC-LJ TORANA]

149ci (2442cc) RED
08/1963-1966 HOLDEN [EH-HD SERIES]

161ci 2600 (2638cc) RED
04/1966-1971 HOLDEN [HR-HK-HT-HG SERIES]
10/1969-1971 HOLDEN [LC TORANA & GTR]

173ci 2850 (2838cc) 2.85L RED/BLUE
07/1971-1971 HOLDEN [HG UTE/VAN]
07/1971-1980 HOLDEN [HQ-HJ-HX-HZ SERIES]
07/1971-1979 HOLDEN [LC-LJ-LH-LX-UC TORANA]
10/1978-1984 HOLDEN [VB-VC-VH COMMODORE]

179ci (2934cc) RED
08/1963-1966 HOLDEN [EH-HD SERIES]

186ci (3048cc) RED
04/1966-1971 HOLDEN [HR-HK-HT-HG SERIES]
08/1970-1972 HOLDEN [LC TORANA GTR-XU1]

202ci 3300 (3298cc) 3.3L RED/BLUE/BLACK
07/1971-1971 HOLDEN [HG UTE/VAN]
07/1971-1984 HOLDEN [HQ-HJ-HX-HZ-WB SERIES]
02/1972-1979 HOLDEN [LJ-LH-LX-UC TORANA]
10/1978-1986 HOLDEN [VB-VC-VH-VK COMMODORE]

Warranty

Features

Specifications

Min Standard Shaft Size: 1.7655in / 44.844mm
Max Standard Shaft Size: 1.7660in / 44.856mm
Min Standard Tunnel Size: 1.8958in / 48.153mm
Max Standard Tunnel Size: 1.8978in / 48.204mm
Max Wall At Crown: 0.0644in / 1.636mm
Max Overall Length: 0.8299in / 21.08mm
Semi-finished: YES
Min Vertical Oil Clearance: 0.0010in / 0.025mm
Max Vertical Oil Clearance: 0.0045in / 0.114mm
Material: F23
Set Quantity: 4

SKU 4C5116-STD
Model # 4C5116-STD
Barcode # 9315726032350
Brand ACL
Shipping Weight 0.2000kg
