SKU: 02-1001-SBC

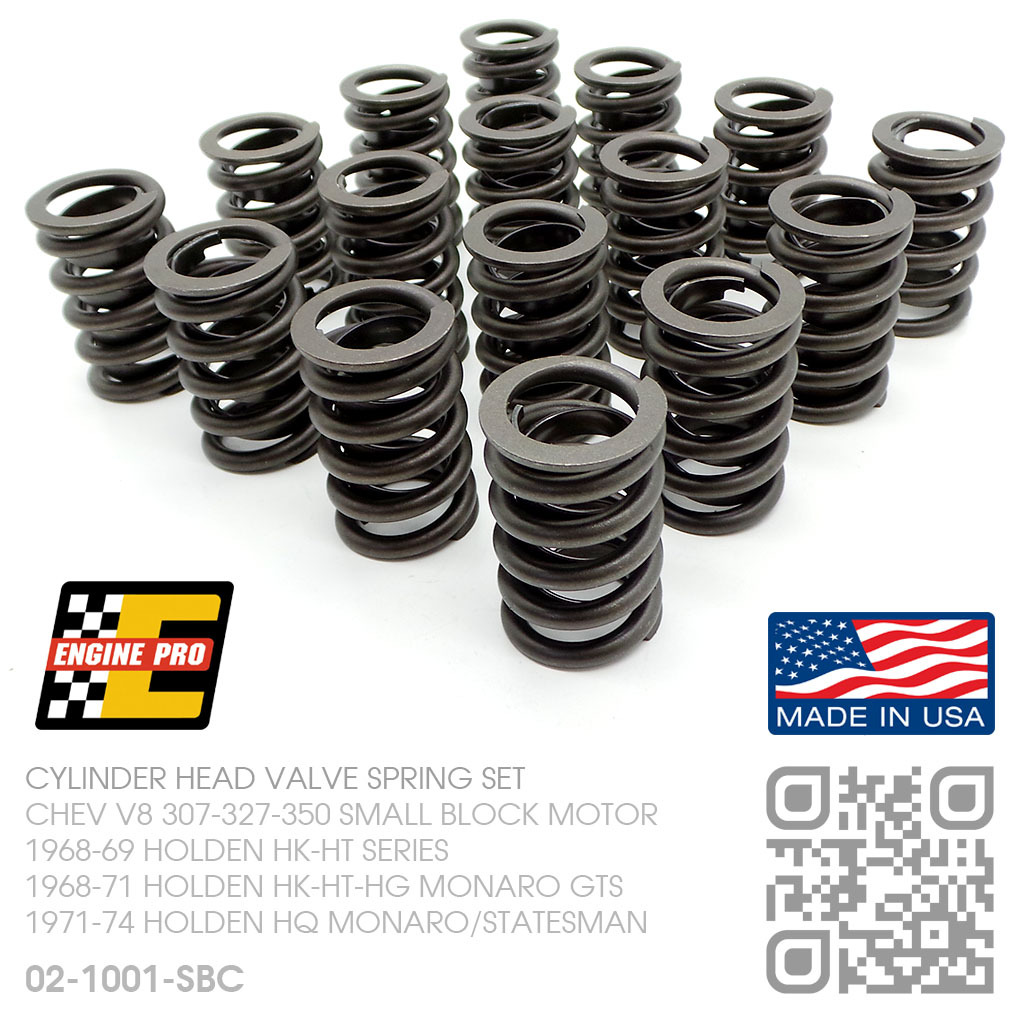

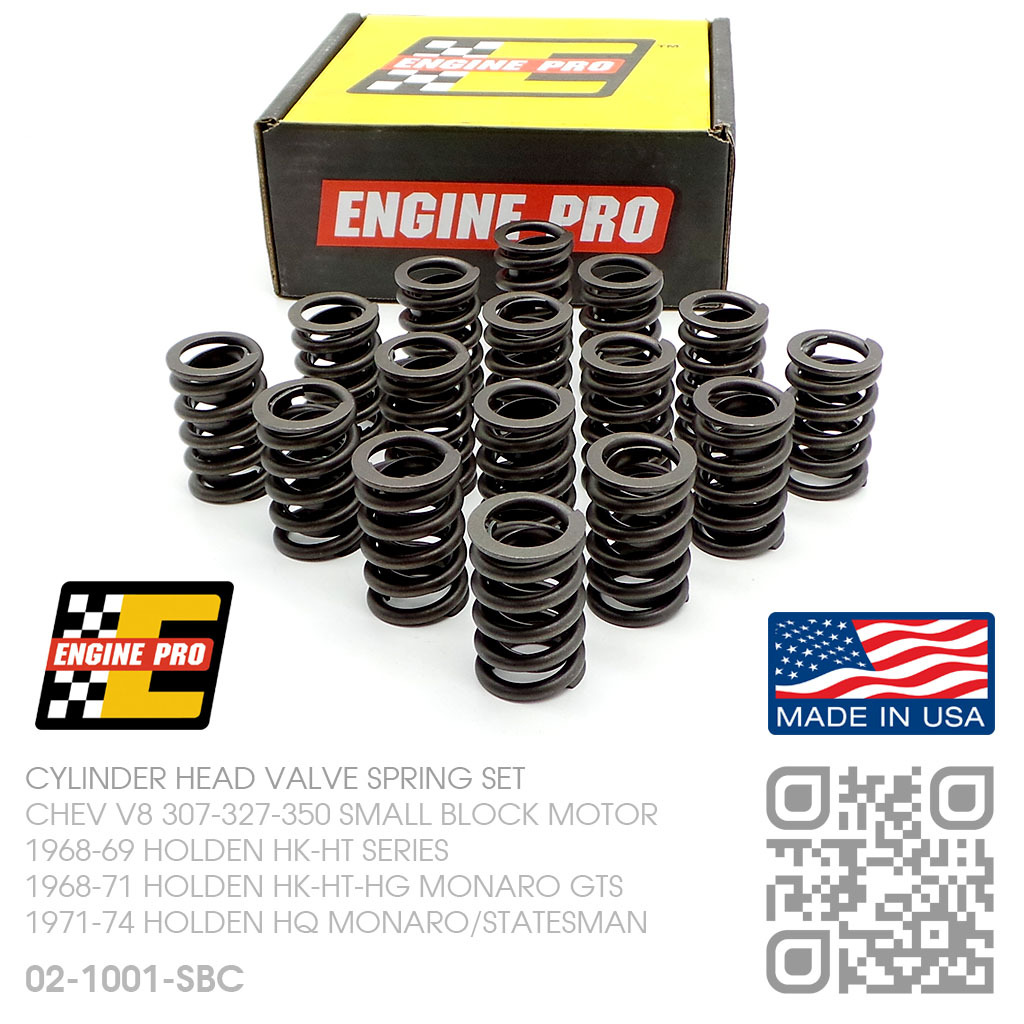

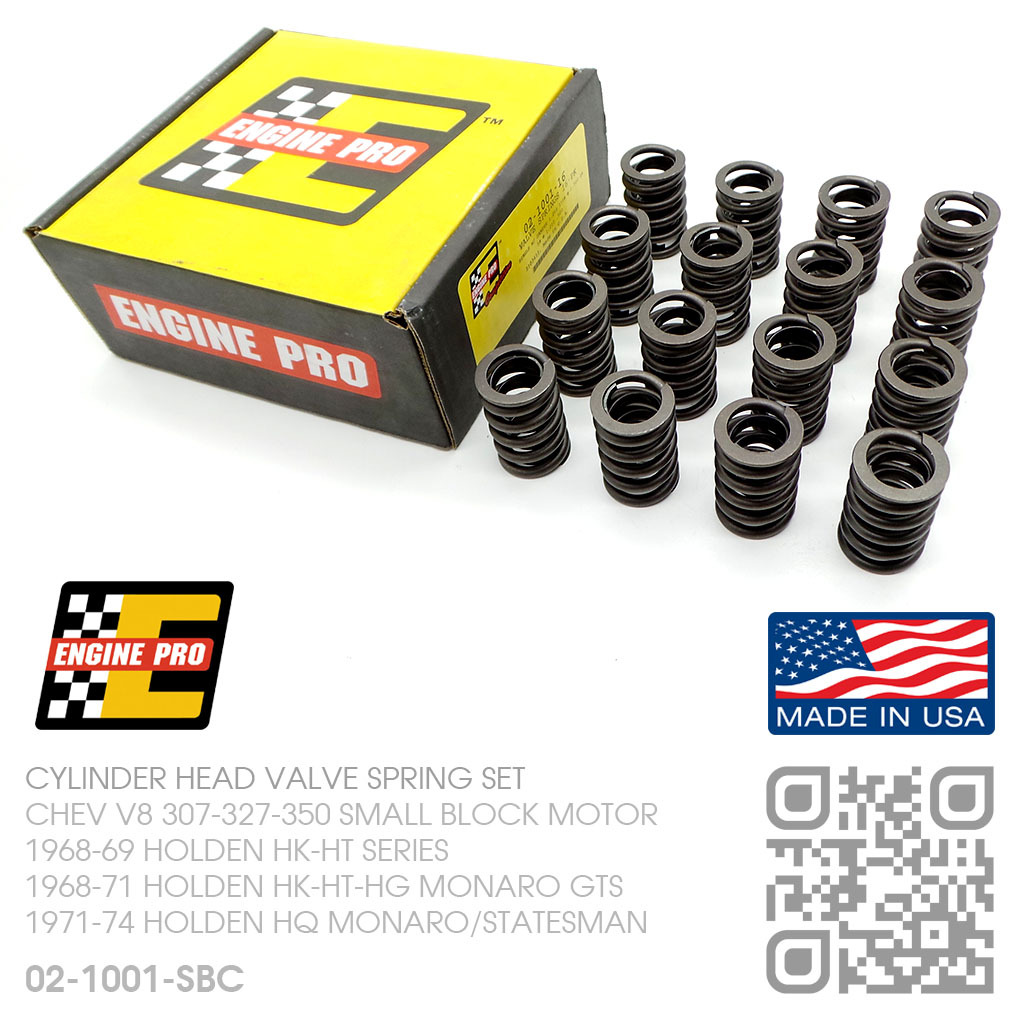

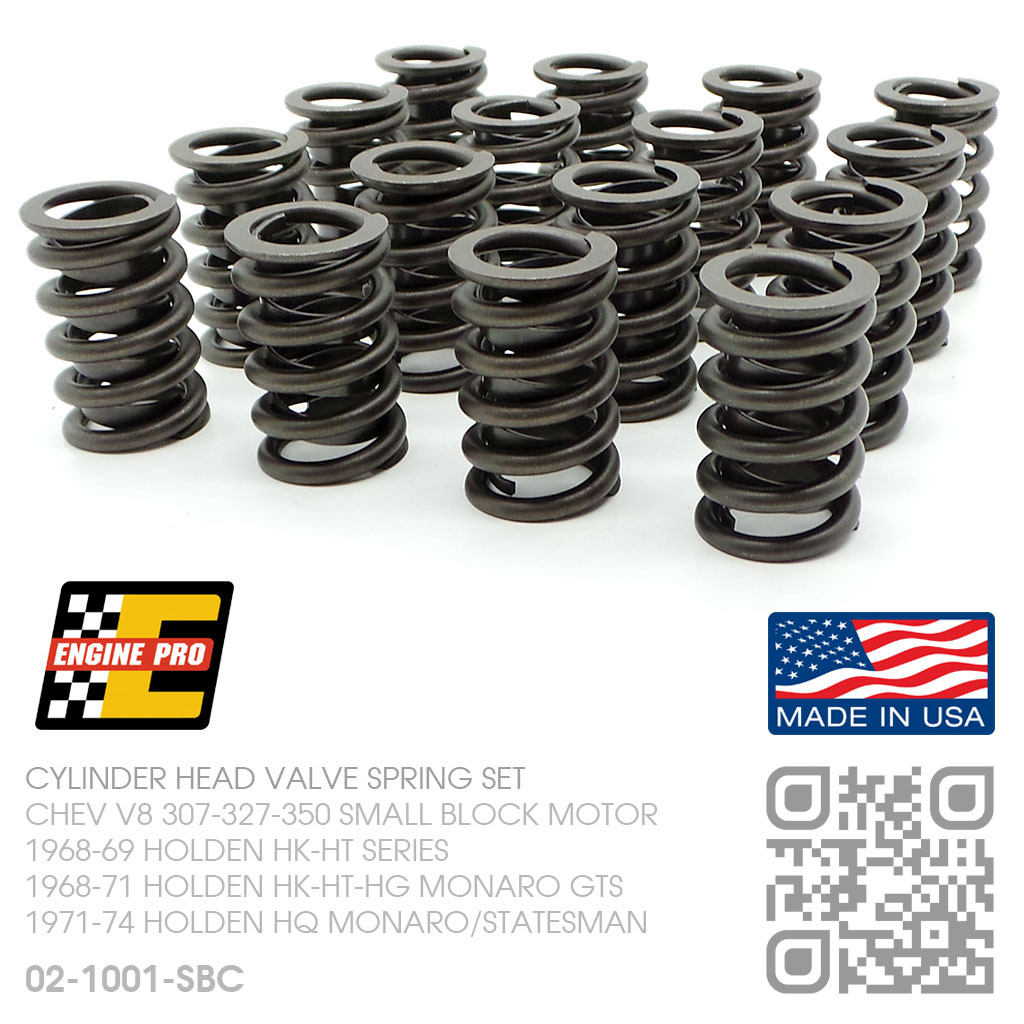

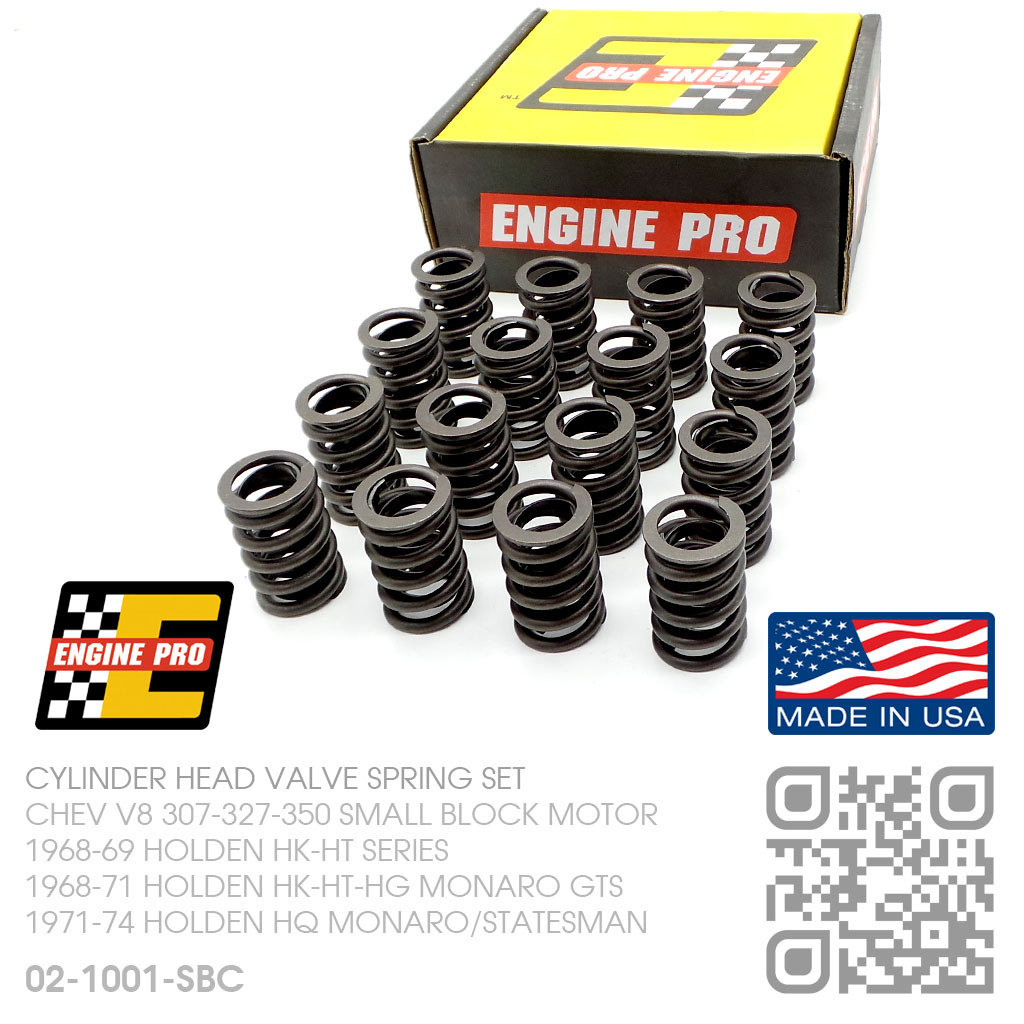

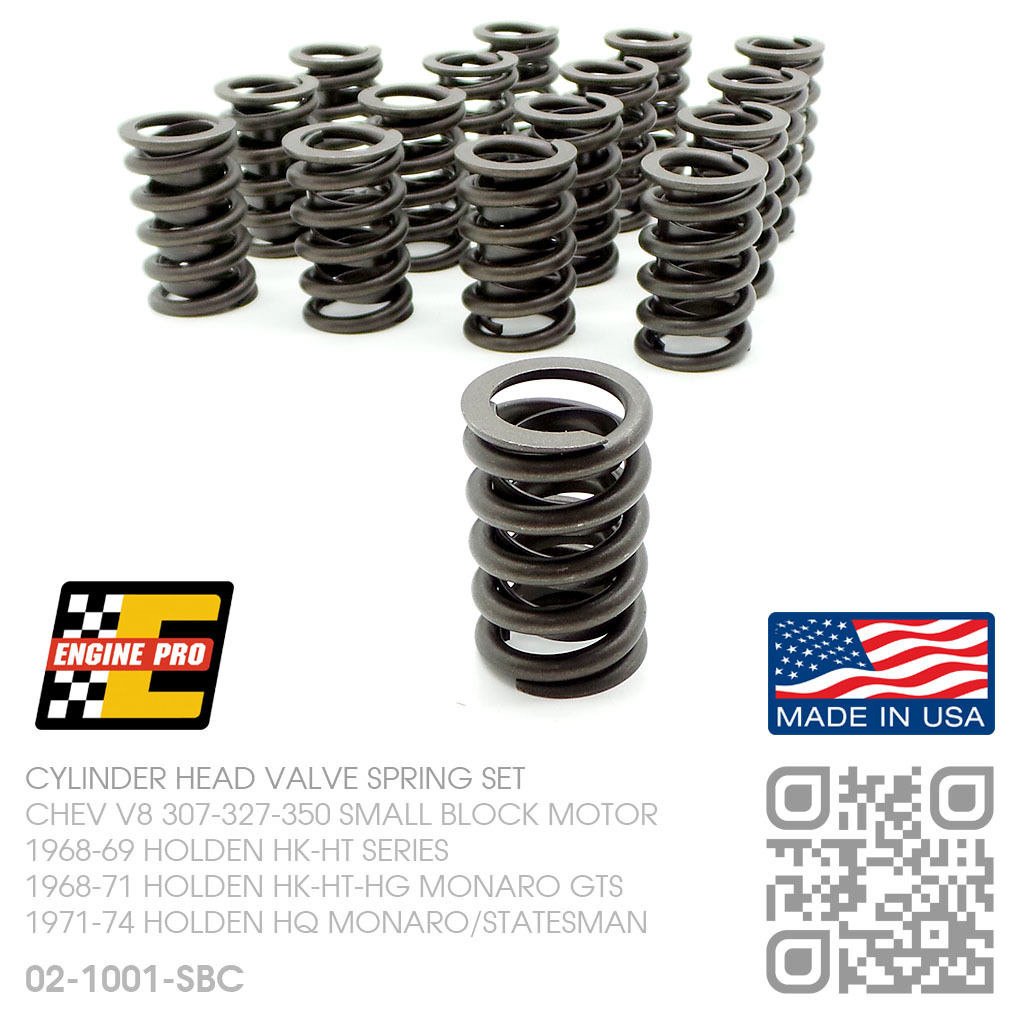

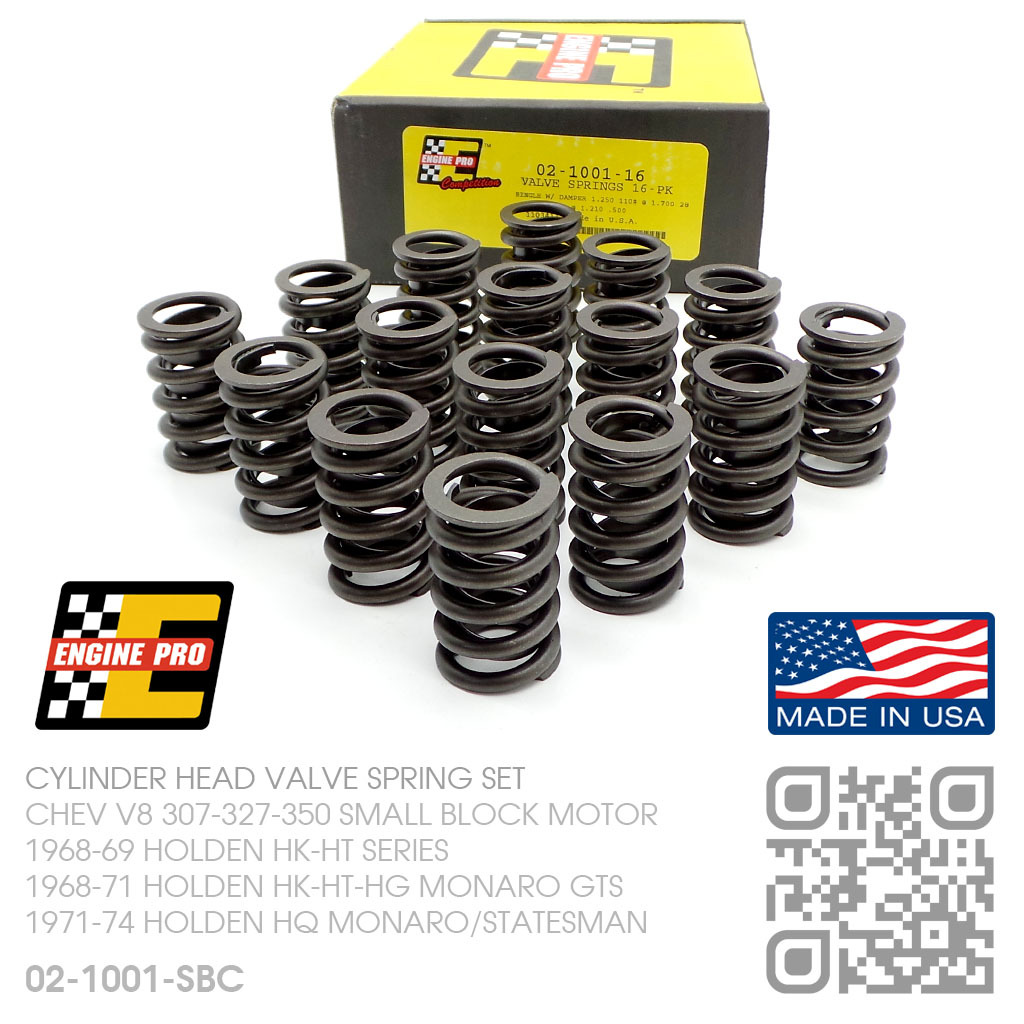

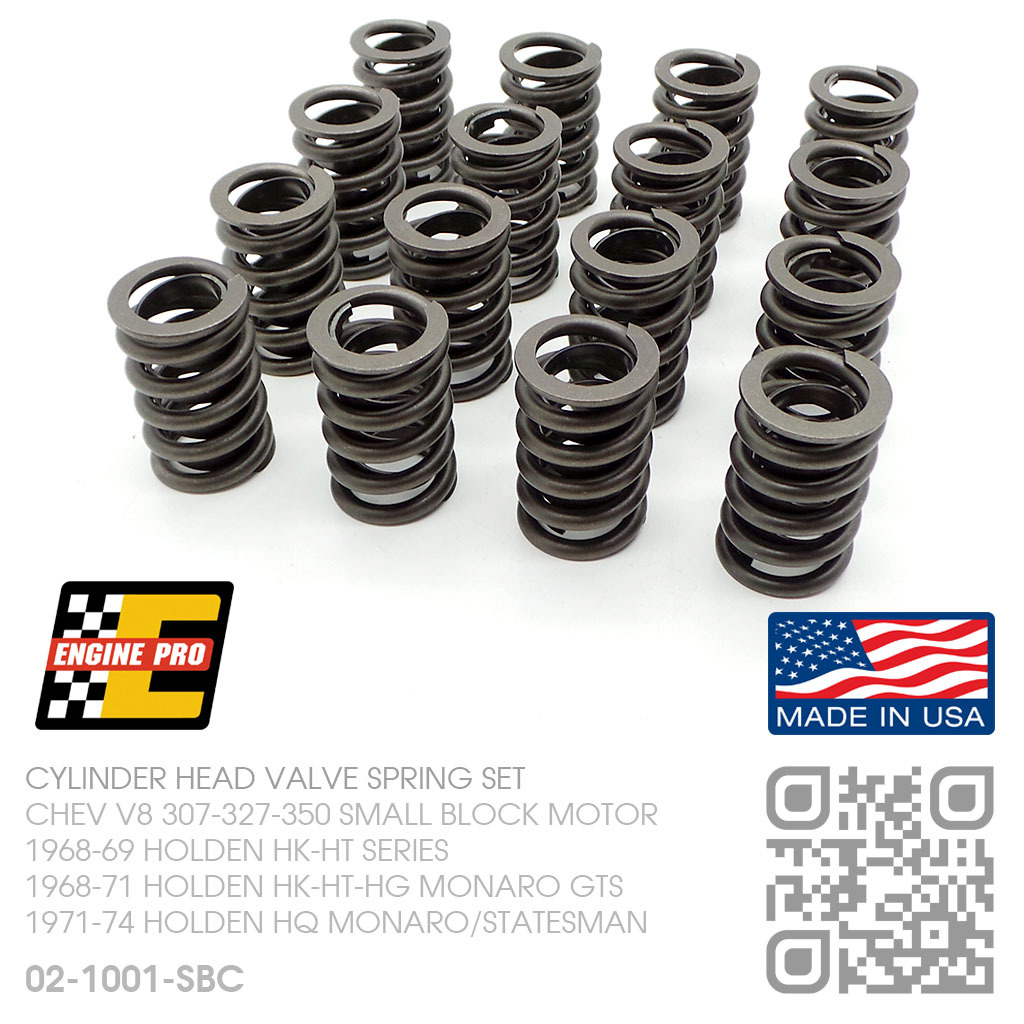

ENGINE PRO PERFORMANCE SINGLE VALVE SPRING SET [CHEV V8 307-327-350 SMALL BLOCK MOTOR]

1968-74 HOLDEN [HK-HT SERIES & HK-HT-HG-HQ MONARO GTS]

$123.50
In Stock


Calculate Shipping



Free shipping - $0.00

ENGINE PRO PERFORMANCE SINGLE VALVE SPRING SET
CHEV V8 307-327-350 SMALL BLOCK MOTOR

1968-69 HOLDEN [HK-HT SERIES]
1968-69 HOLDEN [HK MONARO GTS 327]
1969-74 HOLDEN [HT-HG-HQ MONARO GTS 350]
1971-74 HOLDEN [HQ MONARO LS & STATESMAN]

Description

ENGINE PRO PERFORMANCE SINGLE VALVE SPRING SET
404lb/in VALVE SPRING RATE
CHEV V8 307-327-350 SMALL BLOCK MOTOR

01/1968-1969 HOLDEN [HK-HT SERIES]
08/1968-1969 HOLDEN [HK MONARO GTS 327]
05/1969-1974 HOLDEN [HT-HG-HQ MONARO GTS 350]
07/1971-1974 HOLDEN [HQ MONARO LS & STATESMAN]

Every Engine Pro performance valve spring goes through a multiple shotpeening process for maximum durability and stress relief. The chrome silicon alloy valves spring goes through a "Heat Set" process and special heat treatment are used to extend spring life and minimise load loss.

SPECIFICATIONS:
Outside Diameter: 1.253"
Inside Diameter: 0.870"
Closed Height: 1.700"
Closed Load: 124lb/in
Open Height: 1.210"
Open Load: 322lb/in
Coil Bind: 1.160"
Max Lift: 0.490"
Spring Rate: 404lb/in
Spring Type: SINGLE VALVE SPRING WITH DAMPER
Material: CHROME SILICON ALLOY
Set Quantity: 16

Since 1989, American Based Engine Pro has been manufacturing performance engine parts as is now one of the leading distrubutors to the performance engine building industry.

MADE IN USA


CHEV V8 TYPE 1 SMALL BLOCK MOTOR (SBC)

307ci (307)
01/1968-10/1969 HOLDEN [HK-HT SERIES]

327ci (327)
08/1968-12/1968 HOLDEN [HK MONARO GTS 327]

CHEV V8 TYPE 2 SMALL BLOCK MOTOR (SBC)

327ci (327)
01/1969-05/1969 HOLDEN [HK MONARO GTS 327]

350ci (350)
05/1969-10/1974 HOLDEN [HT-HG-HQ MONARO GTS 350]
07/1971-10/1974 HOLDEN [HQ MONARO LS & STATESMAN]

Warranty

Features

Specifications

SKU 02-1001-SBC
Model # 02-1001-16
Barcode # 846163003683
Brand Engine Pro
Shipping Weight 1.5000kg
Shipping Width 0.320m
Shipping Height 0.060m
Shipping Length 0.090m
Shipping Cubic 0.001728000m3
