SKU: VSS-SBC-CC

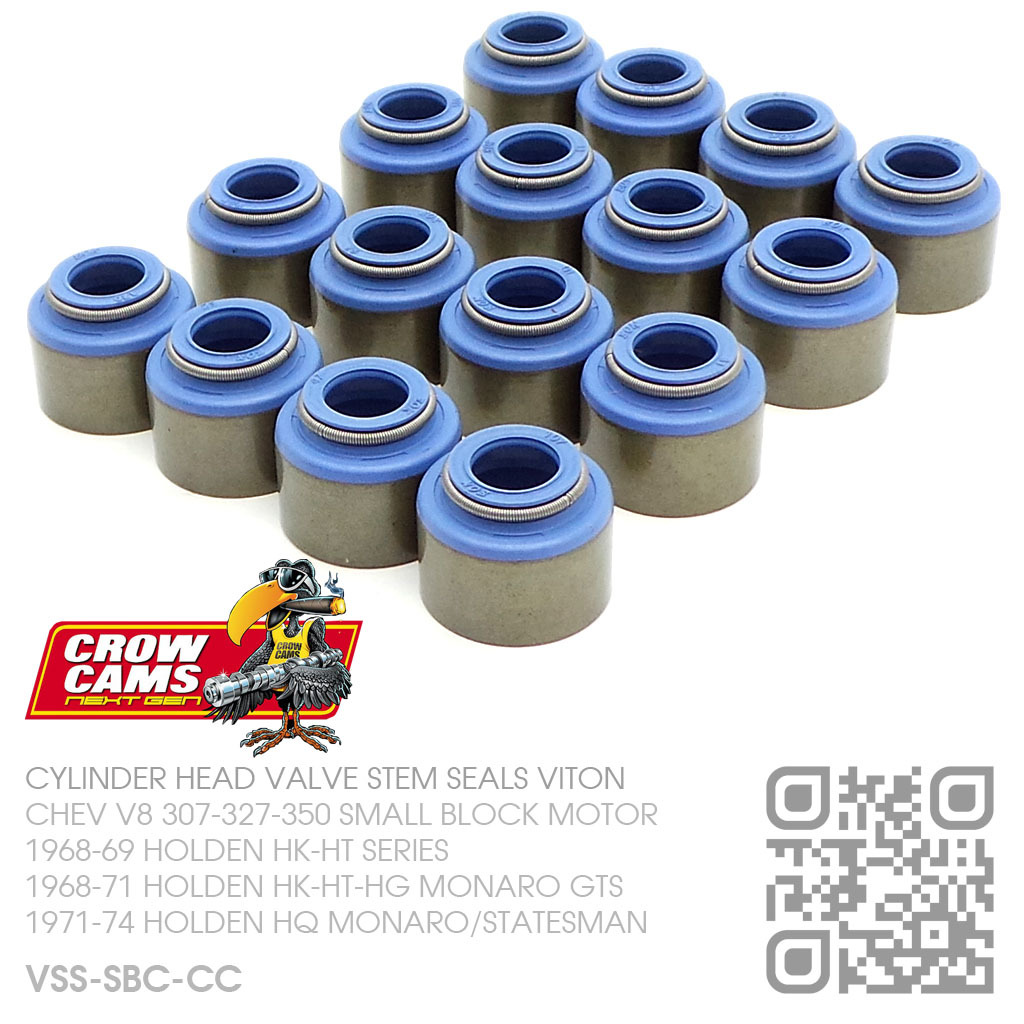

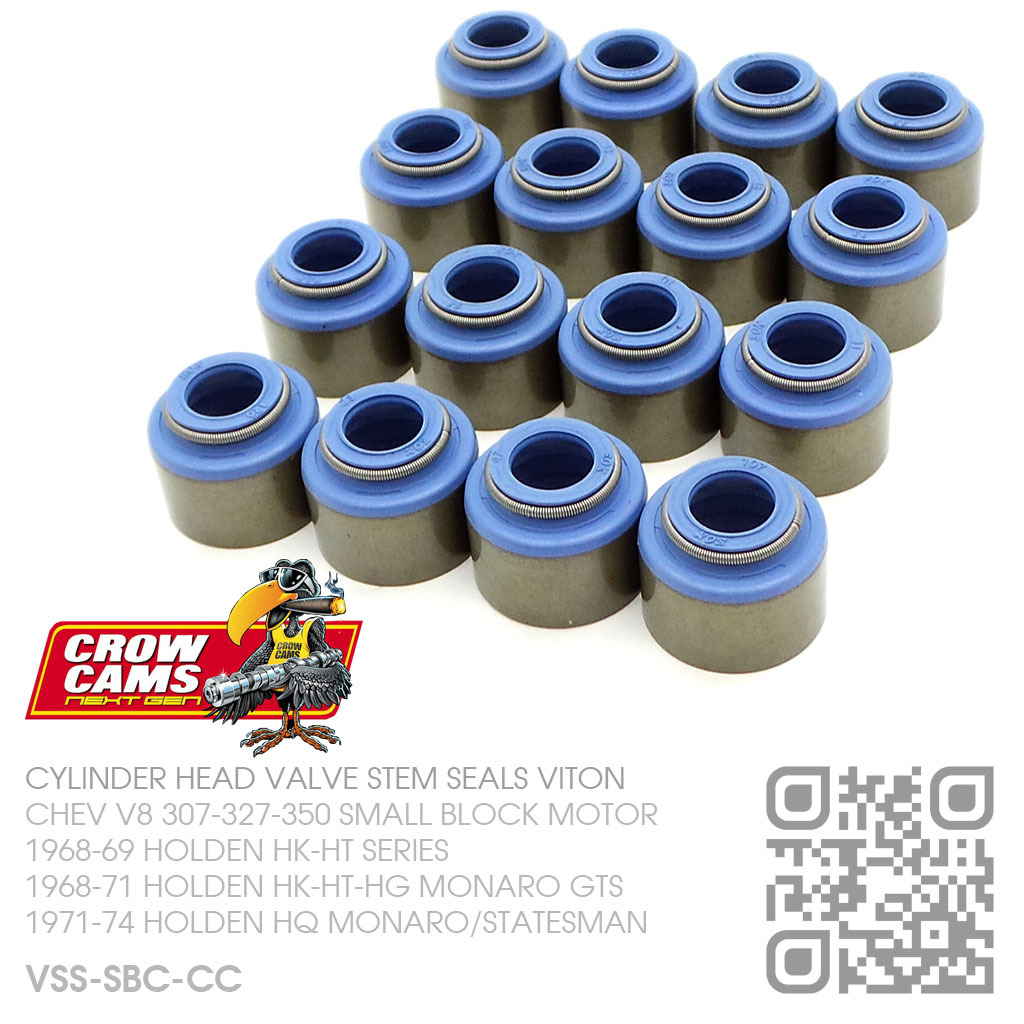

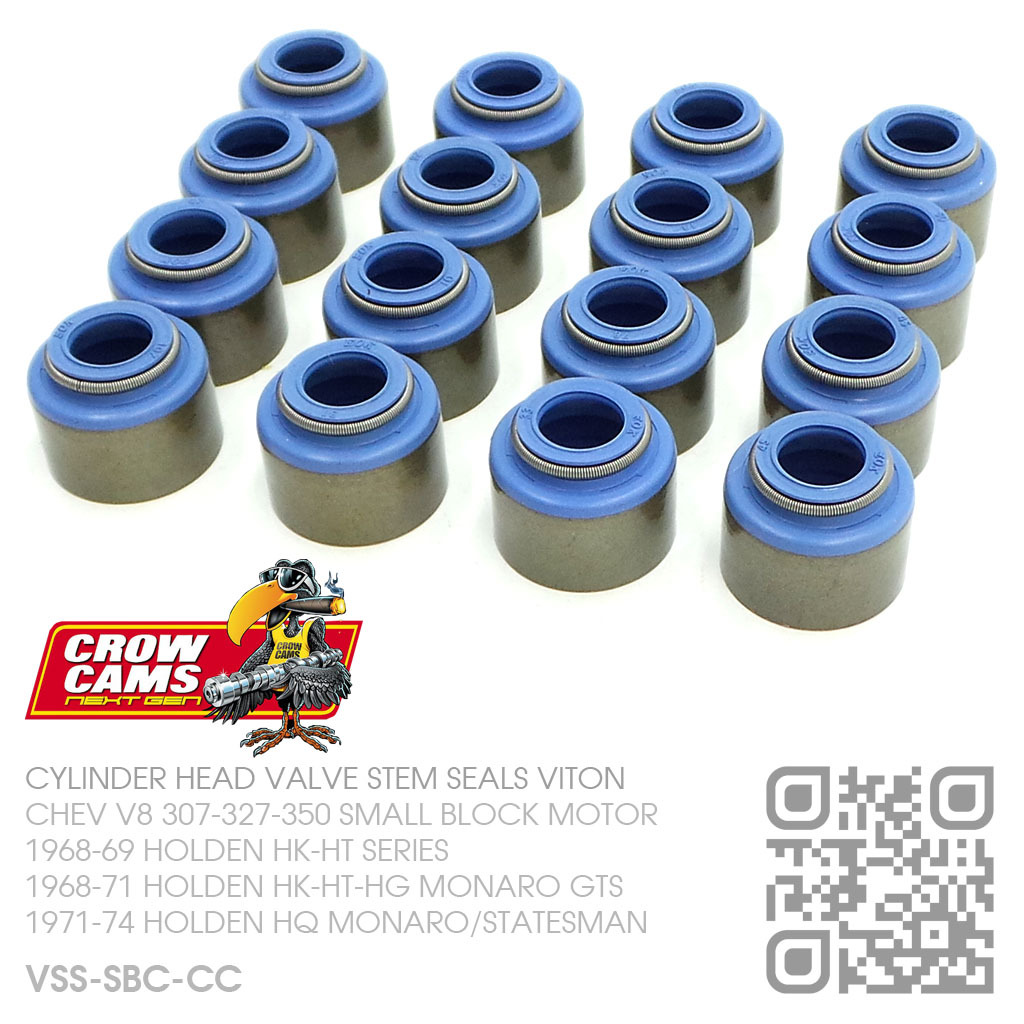

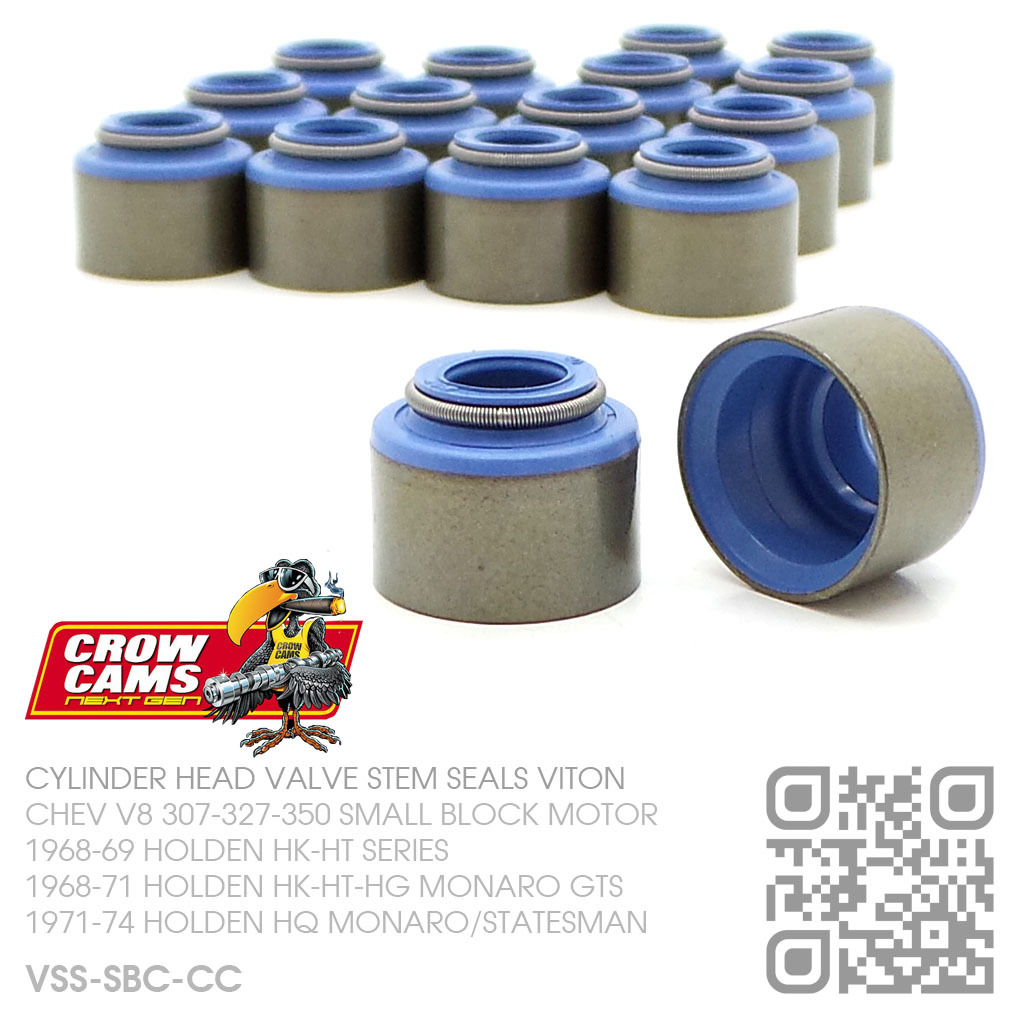

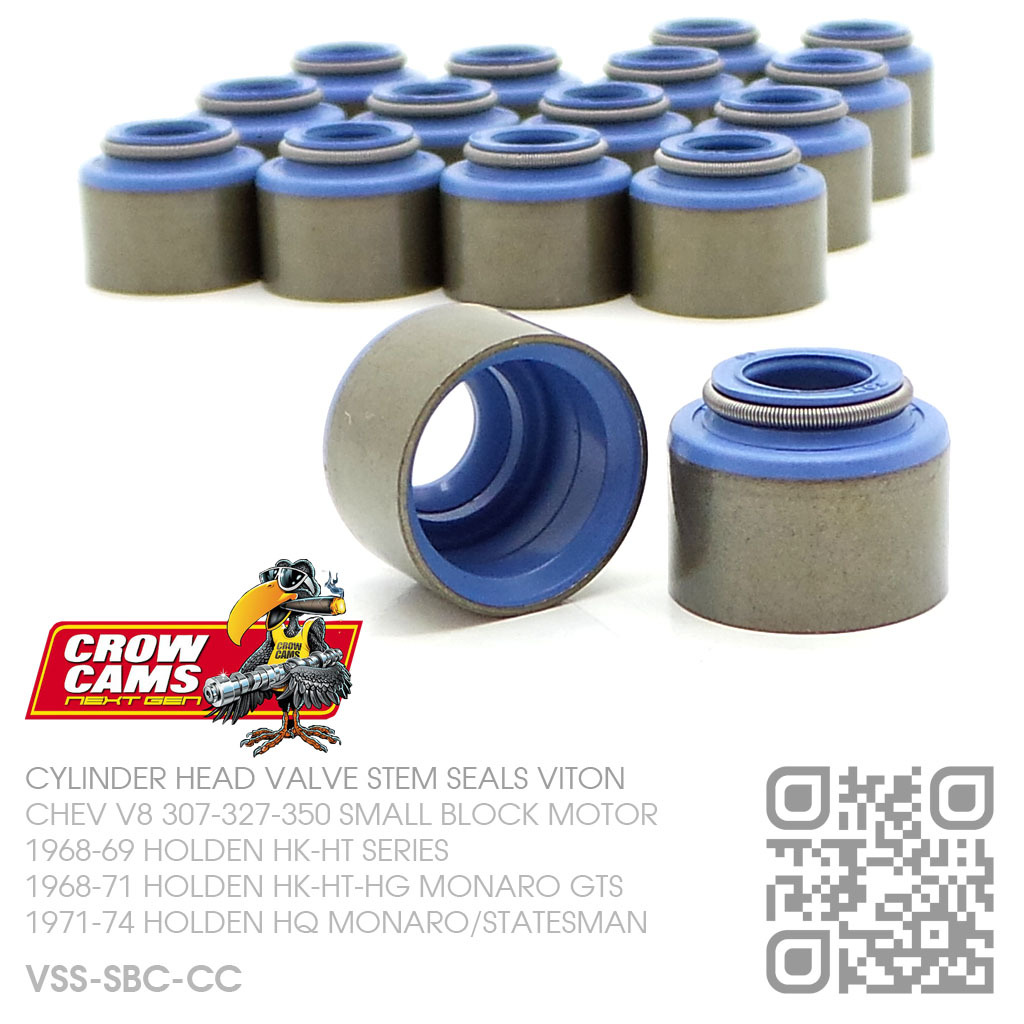

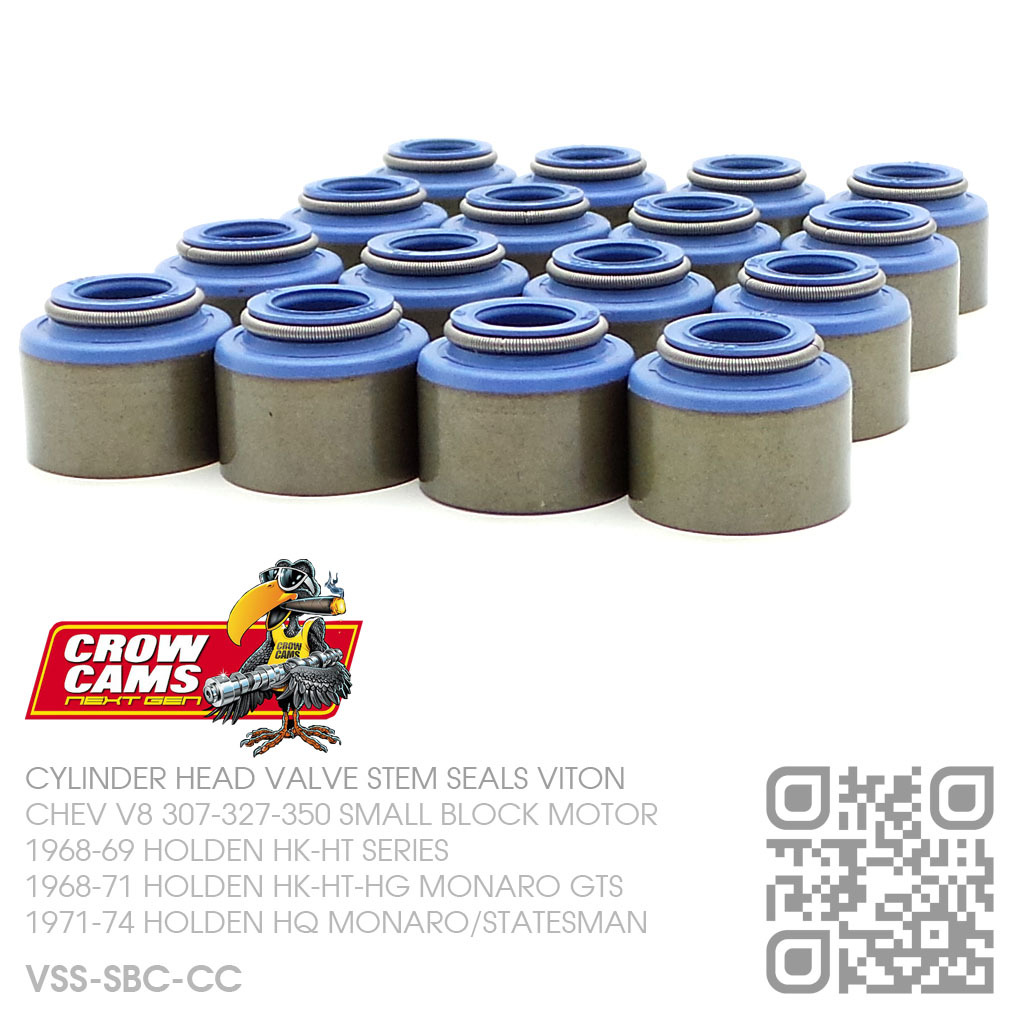

CROW CAMS PERFORMANCE VITON VALVE STEM SEALS [CHEV V8 307-327-350 SMALL BLOCK MOTOR]

1968-74 HOLDEN [HK-HT SERIES & HK-HT-HG-HQ MONARO GTS]

$68.50
In Stock


Calculate Shipping



Free shipping - $0.00

CROW CAMS PERFORMANCE VITON VALVE STEM SEALS
CHEV V8 307-327-350 SMALL BLOCK MOTOR

1968-69 HOLDEN [HK-HT SERIES]
1968-69 HOLDEN [HK MONARO GTS 327]
1969-74 HOLDEN [HT-HG-HQ MONARO GTS 350]
1971-74 HOLDEN [HQ MONARO LS & STATES

Description

CROW CAMS NEXT GEN PERFORMANCE VITON VALVE STEM SEALS
CHEV V8 307-327-350 SMALL BLOCK MOTOR

01/1968-1969 HOLDEN [HK-HT SERIES]
08/1968-1969 HOLDEN [HK MONARO GTS 327]
05/1969-1974 HOLDEN [HT-HG-HQ MONARO GTS 350]
07/1971-1974 HOLDEN [HQ MONARO LS & STATESMAN]

Valve stem seals play a critical role in controlling valve lubrication as well as oil consumption. Seal longevity is another issue that should be considered when choosing replacement valve stem seals.

The material from which the seals are made must be capable of withstanding the harsh operating environment inside the engine for an extended period of time.

High operating temperatures cause lower grade materials such as nitrile to harden and become brittle over time. Eventually, this can lead to cracking, loss of oil control and seal failure. When a valve stem seal loses it's ability to control the amount of oil that enters the guide, it can cause a variety of problems.

Viton is a technology which comes from the Aerospace Industry and is the latest innovation in Valve Stem Seals.

SPECIFICATIONS:
Valve Stem Diameter: 0.343" (11/32")
Valve Guide Diameter: 0.531˝(17/32")
Unloaded Seal Diameter: 0.675"
Unloaded Seal Height: 0.527"
Material: VITON
Construction: METAL GLAD WITH RUBBER INSERT & G/SPRING
Set Quantity: 16

For more than 30 years, Crow Cams in Australia, have developed valve train products.

SPECIAL NOTE:
CYLINDER HEAD VALVE GUIDE WILL REQUIRE MACHINING TO FIT THIS PRODUCT


CHEV V8 TYPE 1 SMALL BLOCK MOTOR (SBC)

307ci (307)
01/1968-10/1969 HOLDEN [HK-HT SERIES]

327ci (327)
08/1968-12/1968 HOLDEN [HK MONARO GTS 327]

CHEV V8 TYPE 2 SMALL BLOCK MOTOR (SBC)

327ci (327)
01/1969-05/1969 HOLDEN [HK MONARO GTS 327]

350ci (350)
05/1969-10/1974 HOLDEN [HT-HG-HQ MONARO GTS 350]
07/1971-10/1974 HOLDEN [HQ MONARO LS & STATESMAN]

Warranty

Features

Specifications

Valve Stem Diameter: 0.343" (11/32")
Valve Guide Diameter: 0.531˝
Unloaded Seal Diameter: 0.675"
Unloaded Seal Height: 0.527"
Material: FLUROVITON
Construction: METAL GLAD WITH RUBBER INSERT & G/SPRING
Set Quantity: 12

SKU VSS-SBC-CC
Model # VSV530 x 16 or VSV530-16
Barcode # 9319424530163
Brand Crow Cams
Shipping Weight 0.1000kg
