SKU: VSS-HO6-CC

CROW CAMS PERFORMANCE VITON VALVE STEM SEALS [HOLDEN 6-CYL RED/BLUE/BLACK MOTOR]

1963-86 HOLDEN [EH-WB, LC-UC TORANA & VB-VK COMMODORE]

$51.50
In Stock


Calculate Shipping



Free shipping - $0.00

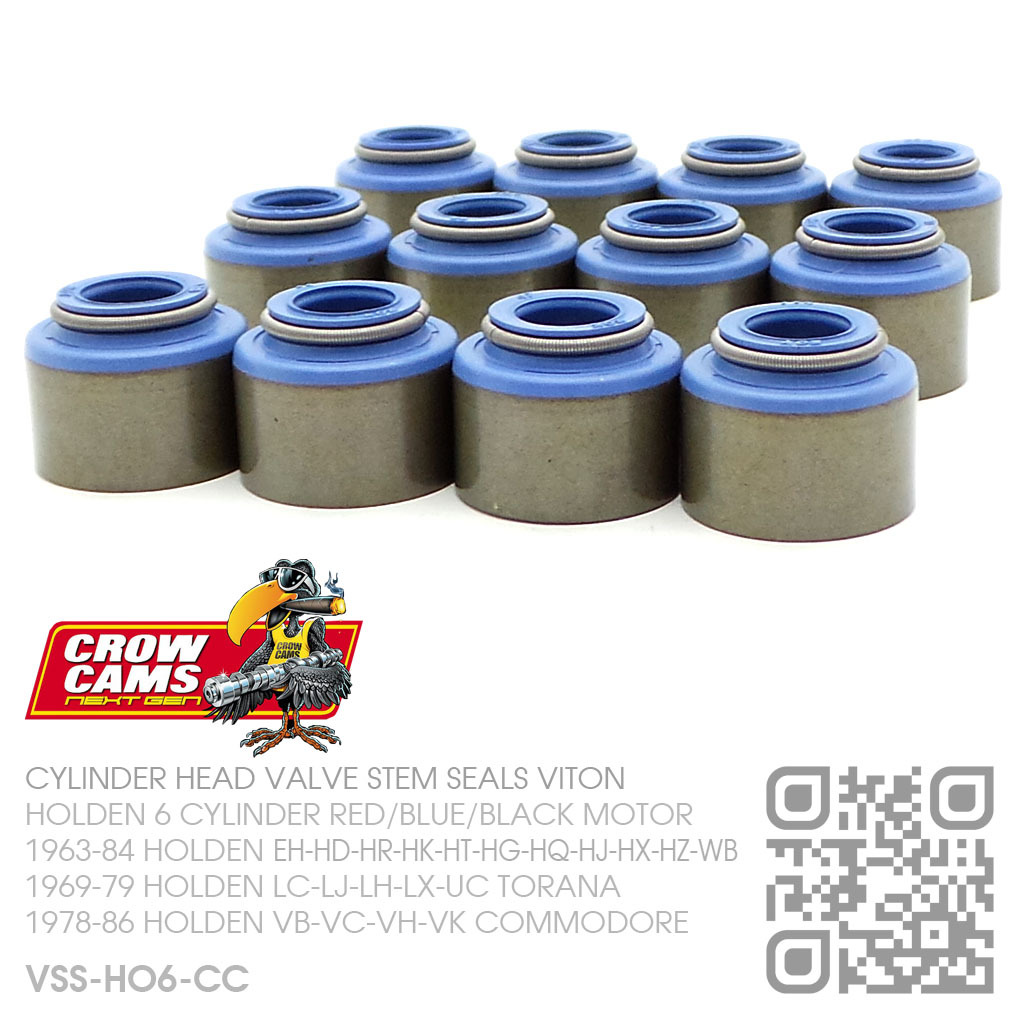

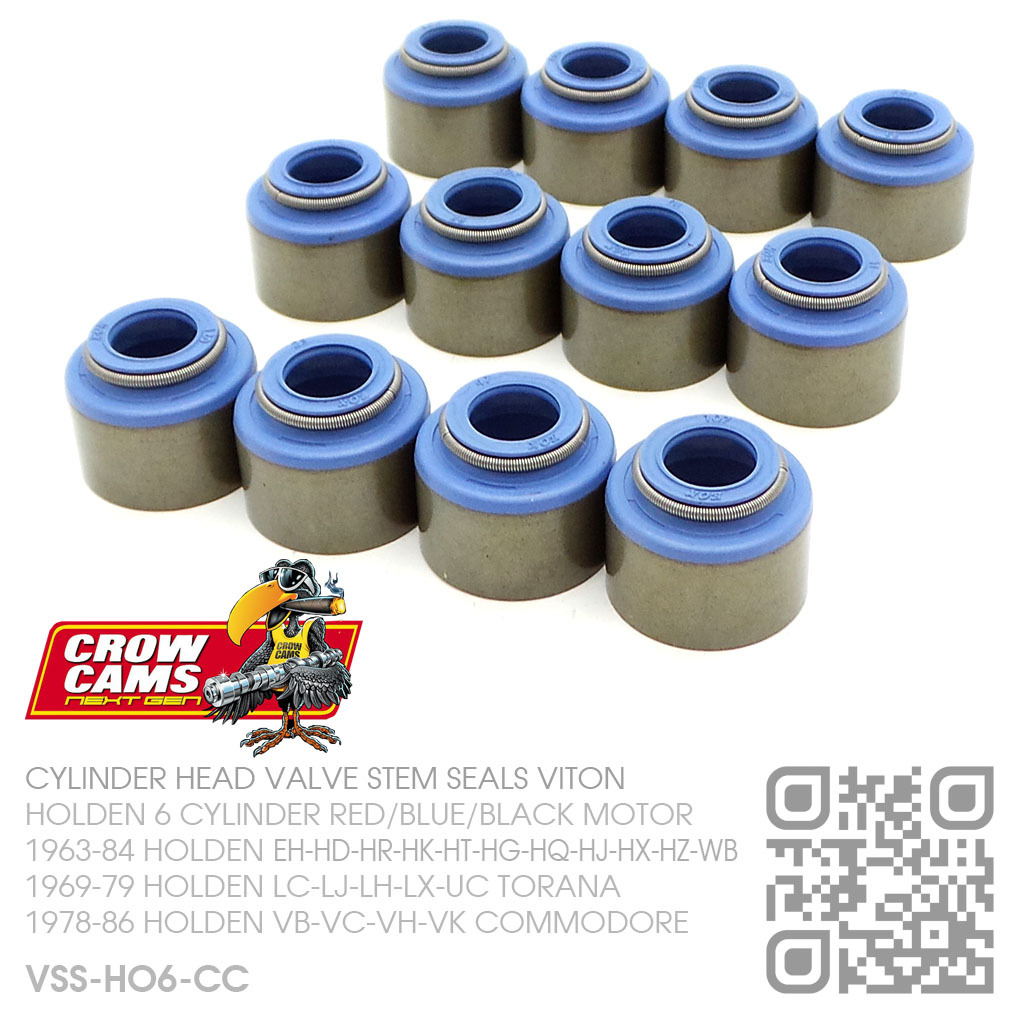

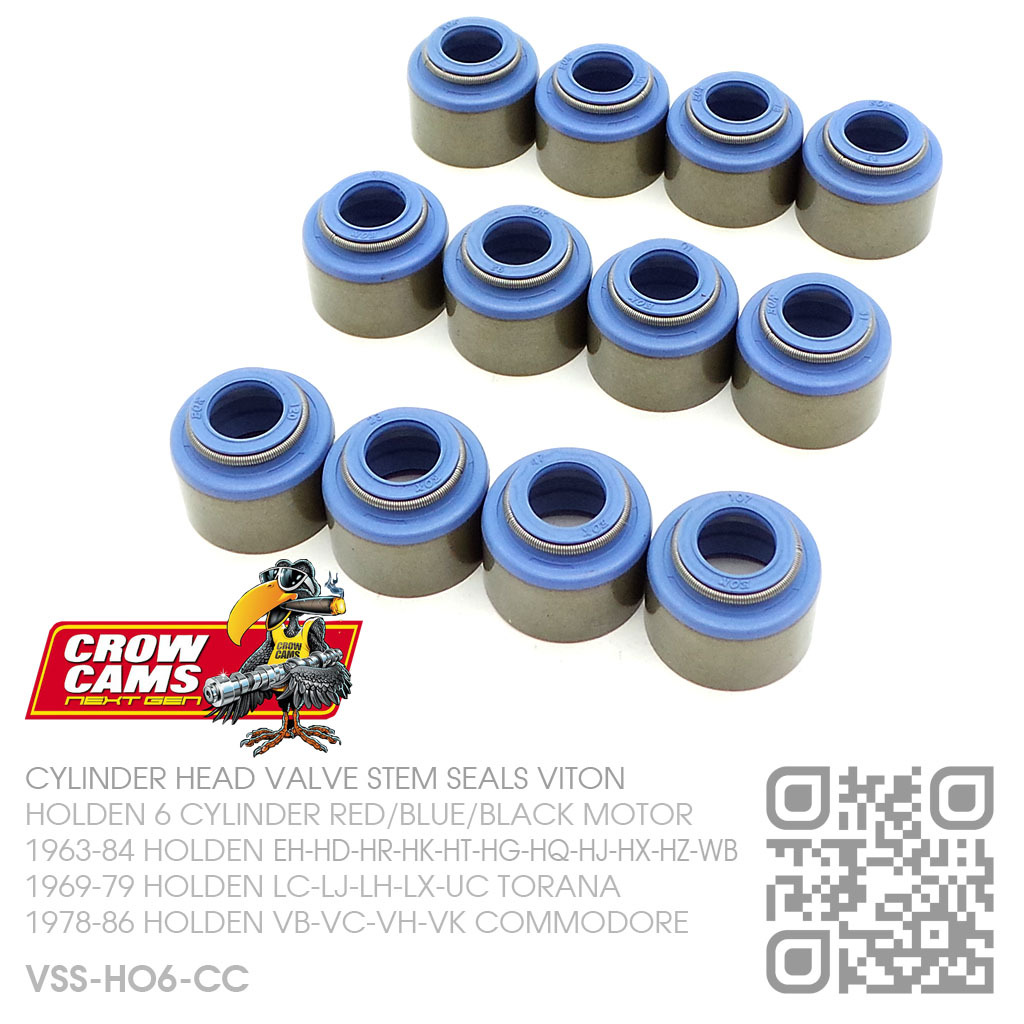

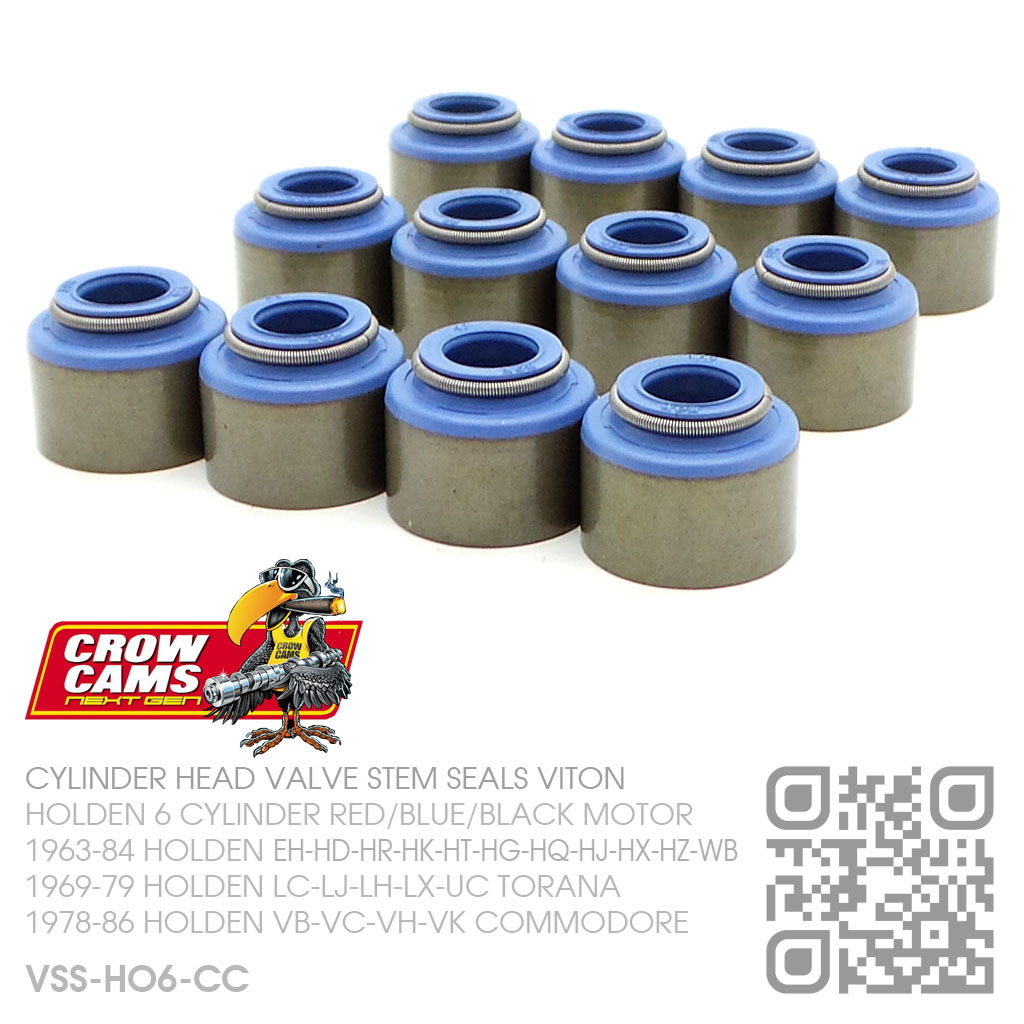

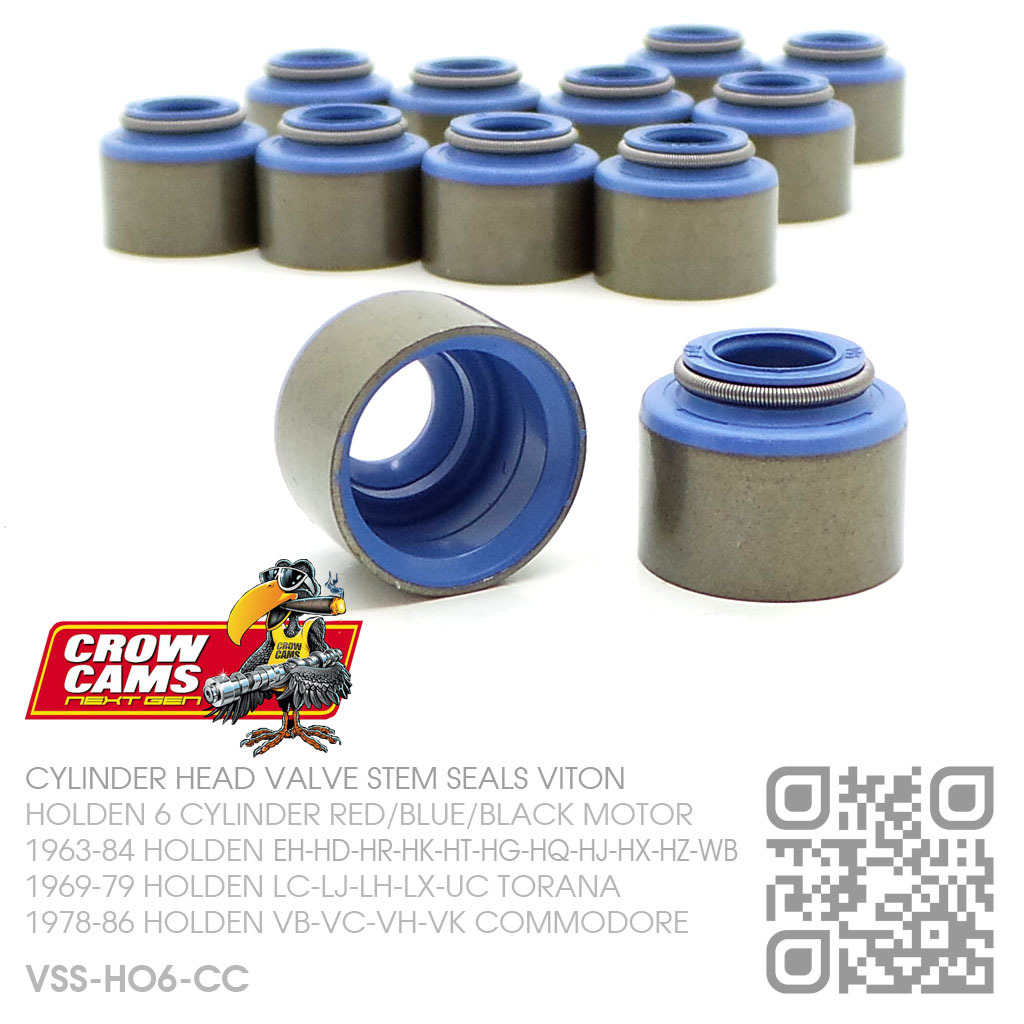

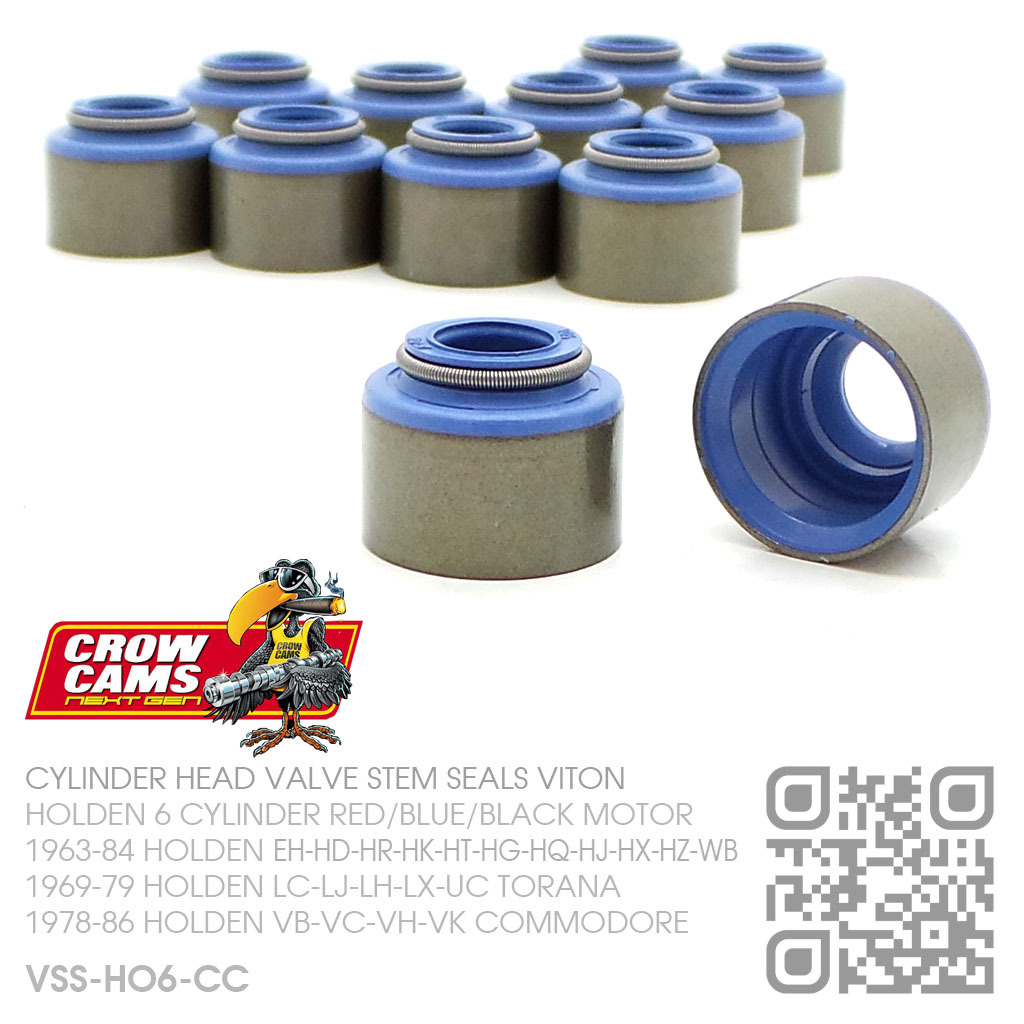

CROW CAMS PERFORMANCE VITON VALVE STEM SEALS
HOLDEN 6 CYLINDER RED/BLUE/BLACK MOTOR

1963-84 HOLDEN [EH-HD-HR-HK-HT-HG-HQ-HJ-HX-HZ-WB]
1969-79 HOLDEN [LC-LJ-LH-LX-UC TORANA]
1978-86 HOLDEN [VB-VC-VH-VK COMMODORE]

Description

CROW CAMS NEXT GEN PERFORMANCE VITON VALVE STEM SEALS
HOLDEN 6 CYLINDER RED/BLUE/BLACK MOTOR

08/1963-1971 HOLDEN [EH-HD-HR-HK-HT-HG SERIES]
07/1971-1984 HOLDEN [HQ-HJ-HX-HZ-WB SERIES]
10/1969-1979 HOLDEN [LC-LJ-LH-LX-UC TORANA]
10/1978-1986 HOLDEN [VB-VC-VH-VK COMMODORE]

Valve stem seals play a critical role in controlling valve lubrication as well as oil consumption. Seal longevity is another issue that should be considered when choosing replacement valve stem seals.

The material from which the seals are made must be capable of withstanding the harsh operating environment inside the engine for an extended period of time.

High operating temperatures cause lower grade materials such as nitrile to harden and become brittle over time. Eventually, this can lead to cracking, loss of oil control and seal failure. When a valve stem seal loses it's ability to control the amount of oil that enters the guide, it can cause a variety of problems.

Viton is a technology which comes from the Aerospace Industry and is the latest innovation in Valve Stem Seals.

SPECIFICATIONS:
Valve Stem Diameter: 0.343" (11/32")
Valve Guide Diameter: 0.531˝(17/32")
Unloaded Seal Diameter: 0.675"
Unloaded Seal Height: 0.527"
Material: VITON
Construction: METAL GLAD WITH RUBBER INSERT & G/SPRING
Set Quantity: 12

For more than 30 years, Crow Cams in Australia, have developed valve train products.

SPECIAL NOTE:
CYLINDER HEAD VALVE GUIDE WILL REQUIRE MACHINING TO FIT THIS PRODUCT

MADE IN USA


138ci 2250 (2262cc) RED
10/1969-1973 HOLDEN [LC-LJ TORANA]

149ci (2442cc) RED
08/1963-1966 HOLDEN [EH-HD SERIES]

161ci 2600 (2638cc) RED
04/1966-1971 HOLDEN [HR-HK-HT-HG SERIES]
10/1969-1971 HOLDEN [LC TORANA & GTR]

173ci 2850 (2838cc) 2.85L RED/BLUE
07/1971-1971 HOLDEN [HG UTE/VAN]
07/1971-1980 HOLDEN [HQ-HJ-HX-HZ SERIES]
07/1971-1979 HOLDEN [LC-LJ-LH-LX-UC TORANA]
10/1978-1984 HOLDEN [VB-VC-VH COMMODORE]

179ci (2934cc) RED
08/1963-1966 HOLDEN [EH-HD SERIES]

186ci (3048cc) RED
04/1966-1971 HOLDEN [HR-HK-HT-HG SERIES]
08/1970-1972 HOLDEN [LC TORANA GTR-XU1]

202ci 3300 (3298cc) 3.3L RED/BLUE/BLACK
07/1971-1971 HOLDEN [HG UTE/VAN]
07/1971-1984 HOLDEN [HQ-HJ-HX-HZ-WB SERIES]
02/1972-1979 HOLDEN [LJ-LH-LX-UC TORANA]
10/1978-1986 HOLDEN [VB-VC-VH-VK COMMODORE]

Warranty

Features

Specifications

Valve Stem Diameter: 0.343" (11/32")
Valve Guide Diameter: 0.531˝
Unloaded Seal Diameter: 0.675"
Unloaded Seal Height: 0.527"
Material: FLUROVITON
Construction: METAL GLAD WITH RUBBER INSERT & G/SPRING
Set Quantity: 12

SKU VSS-HO6-CC
Model # VSV530 x 12 or VSV530-12
Barcode # 9319424530125
Brand Crow Cams
Shipping Weight 0.1000kg
