SKU: 8MKRY5701-020

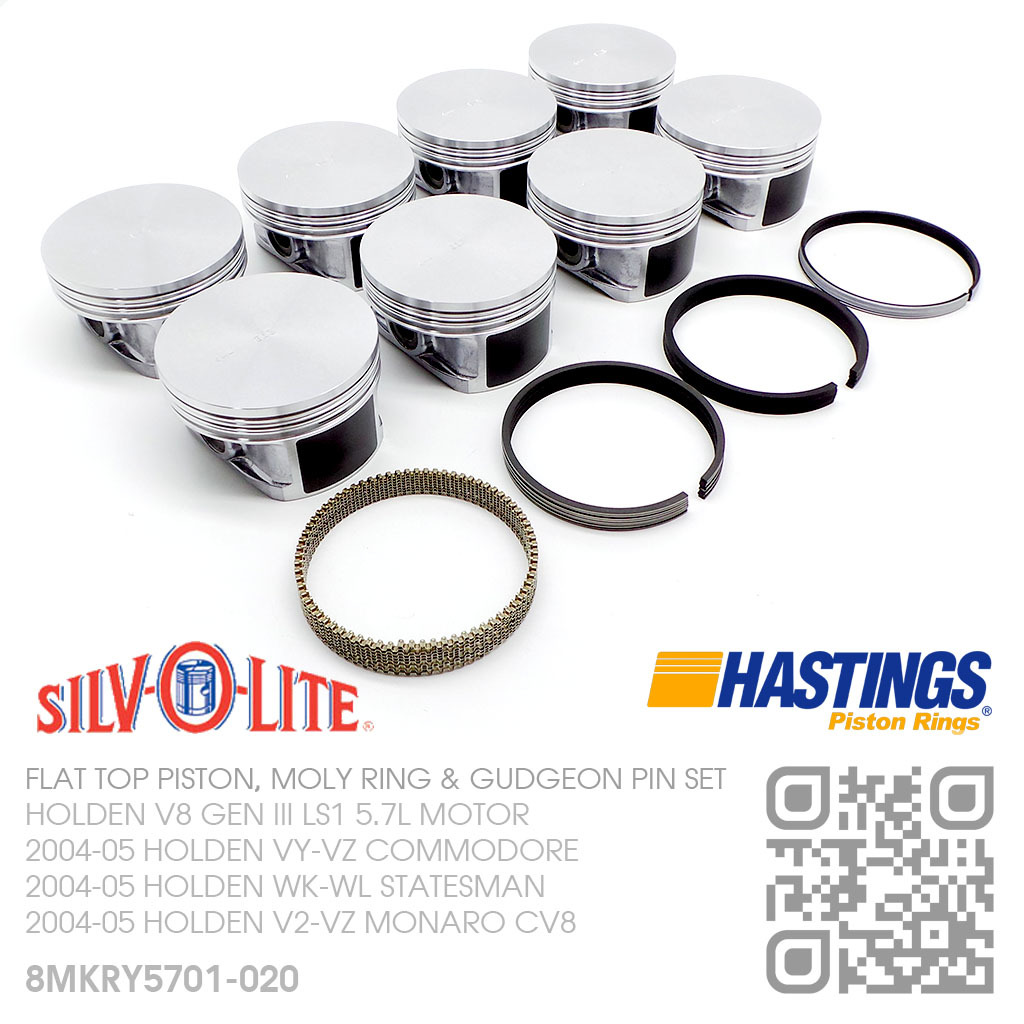

SILVOLITE LS1+0.020" FLAT TOP PISTONS & HASTINGS MOLY RINGS [HOLDEN V8 GEN III LS1 5.7L MOTOR]

2004-05 HOLDEN [VY-VZ COMMODORE WK-WL STATESMAN]

$1,013.50
In Stock


Calculate Shipping

+020" SILVOLITE PERFORMANCE FLAT TOP PISTONS
FLOATING PIN & HASTINGS MOLY RINGS
HOLDEN V8 GEN III LS1 5.7L MOTOR

2004-05 HOLDEN [VY-VZ COMMODORE/UTE]
2004-05 HOLDEN [WK-WL STATESMAN/CAPRICE]
2004-05 HOLDEN [V2-VZ MONARO CV8]

Description

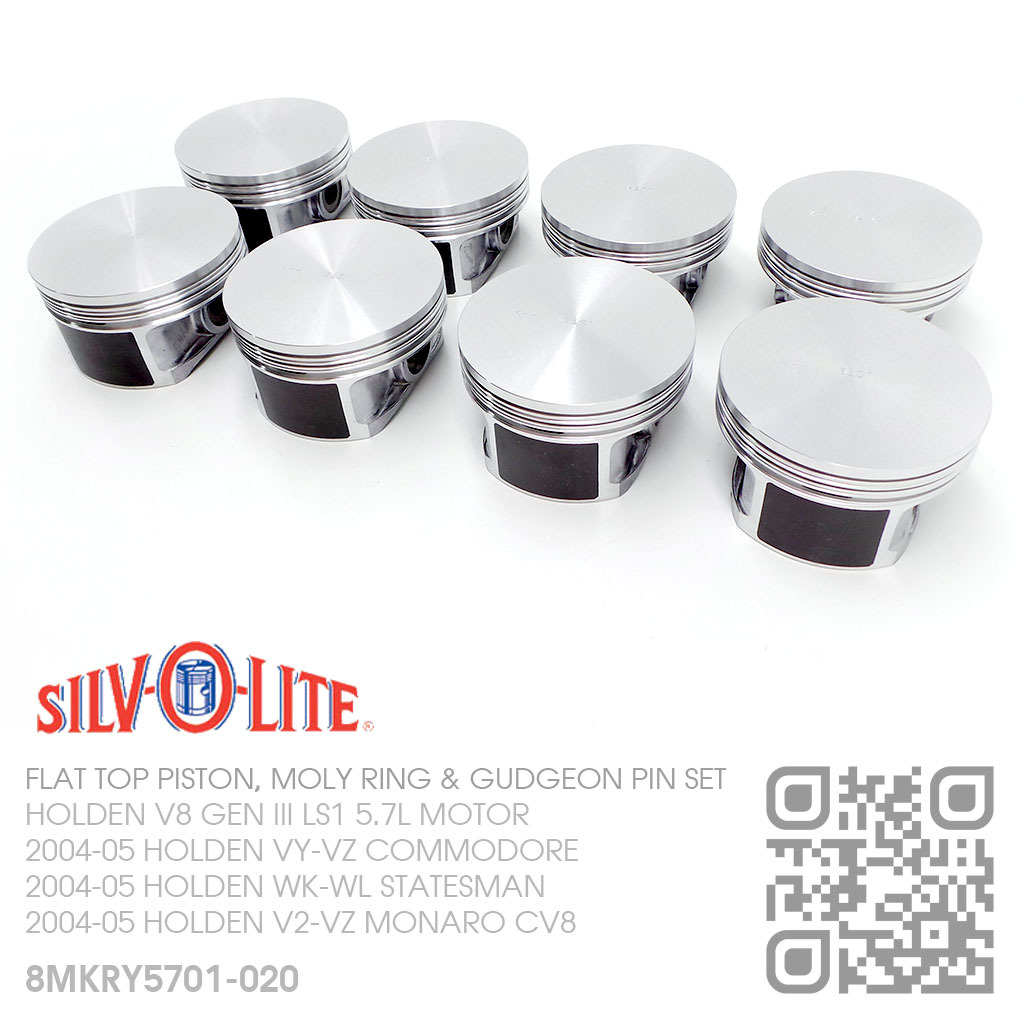

+0.020" SILVOLITE PERFORMANCE FLAT TOP PISTONS
FULL FLOATING PIN WITH COATED SKIRT &
HASTINGS MOLY RING SET
HOLDEN V8 GEN III LS1 5.7L MOTOR
FROM ENGINE# 040340742

2004-2005 HOLDEN [VY-VZ COMMODORE]
2004-2005 HOLDEN [WK-WL STATESMAN/CAPRICE]
2004-2005 HOLDEN [VY-VZ UTE]
2004-2005 HOLDEN [V2-VZ MONARO CV8]

The High Performance Flat Top Pistons, Moly Piston Rings and Gudgeon Pins are made to the highest standard and exceed original manufacturers specifications for longevity, smooth operation and maximum performance.

The pistons are manufactured by Silvolite, which had being making pistons since 1922. The moly piston rings are manufactured in the United States of America by Hastings leaders in Piston Ring technologies and have been in business for over a hundred years.

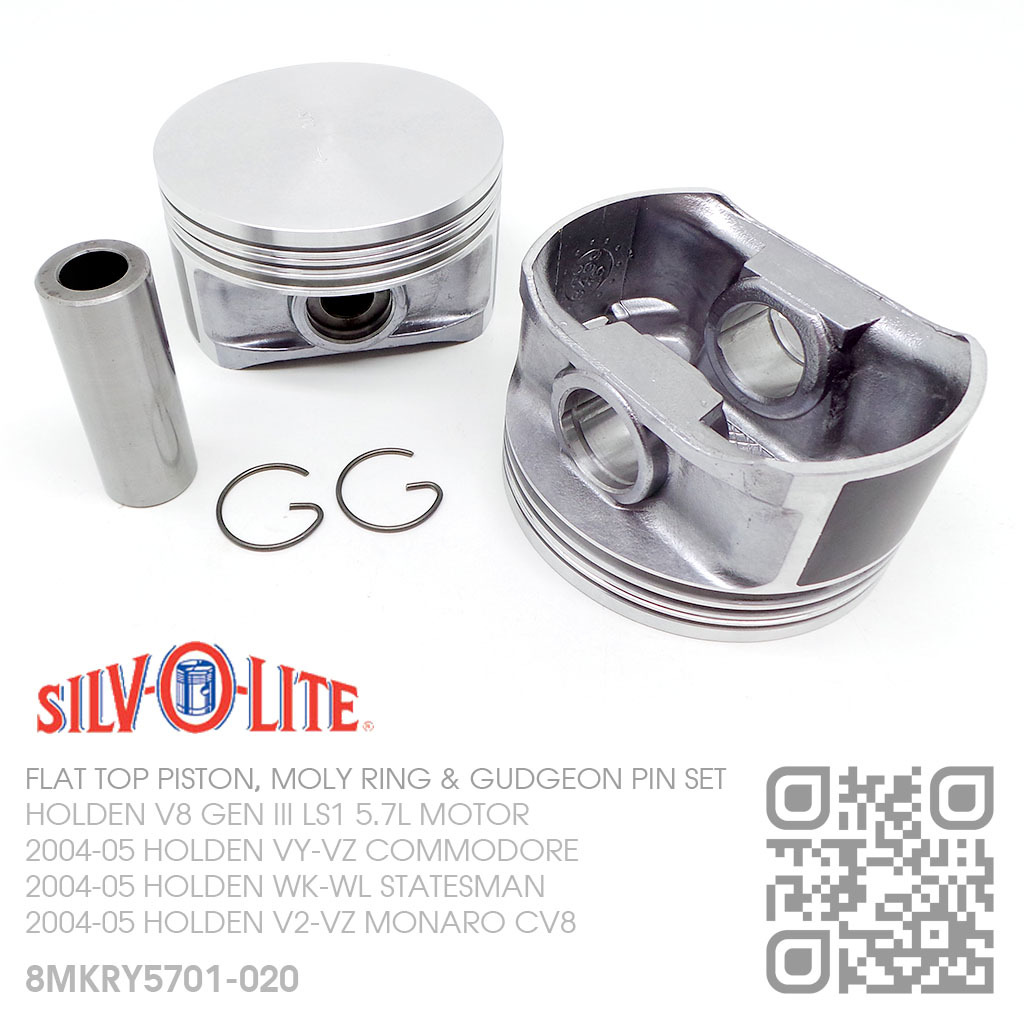

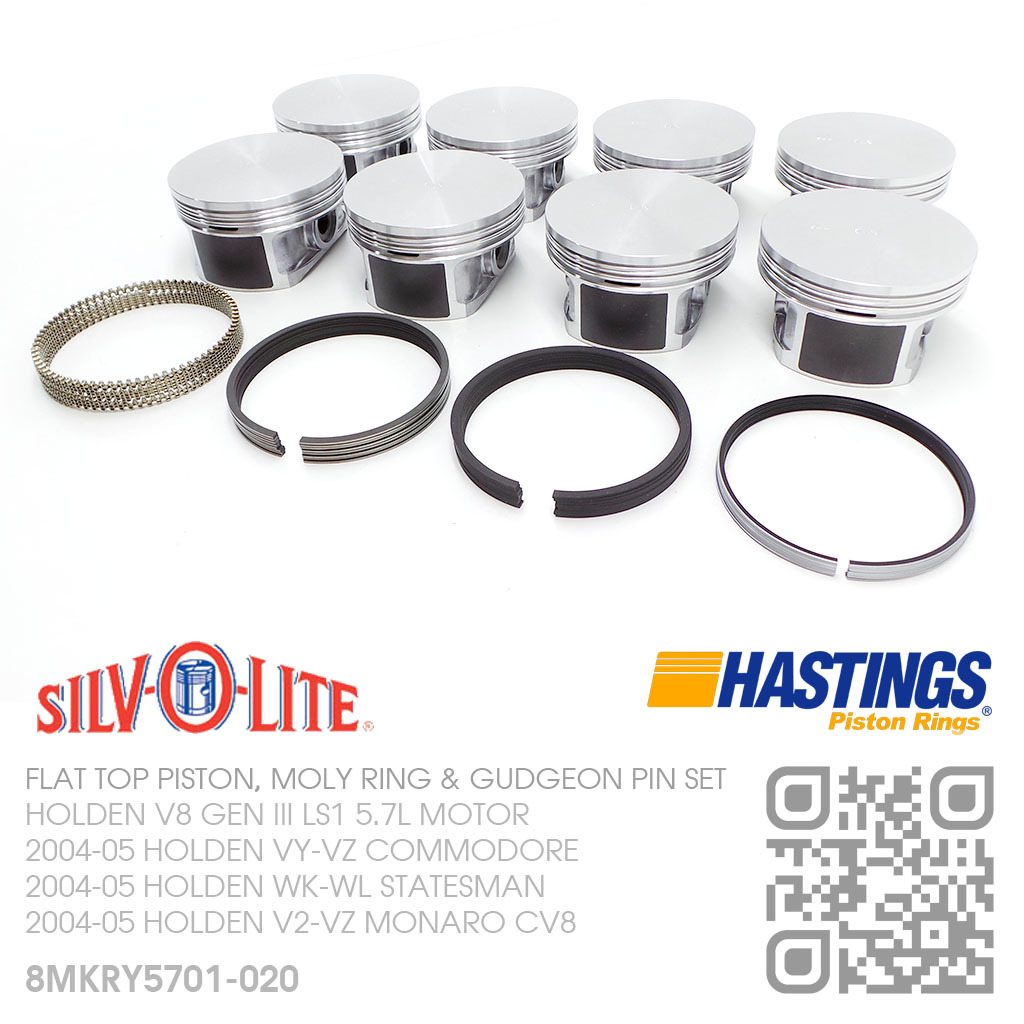

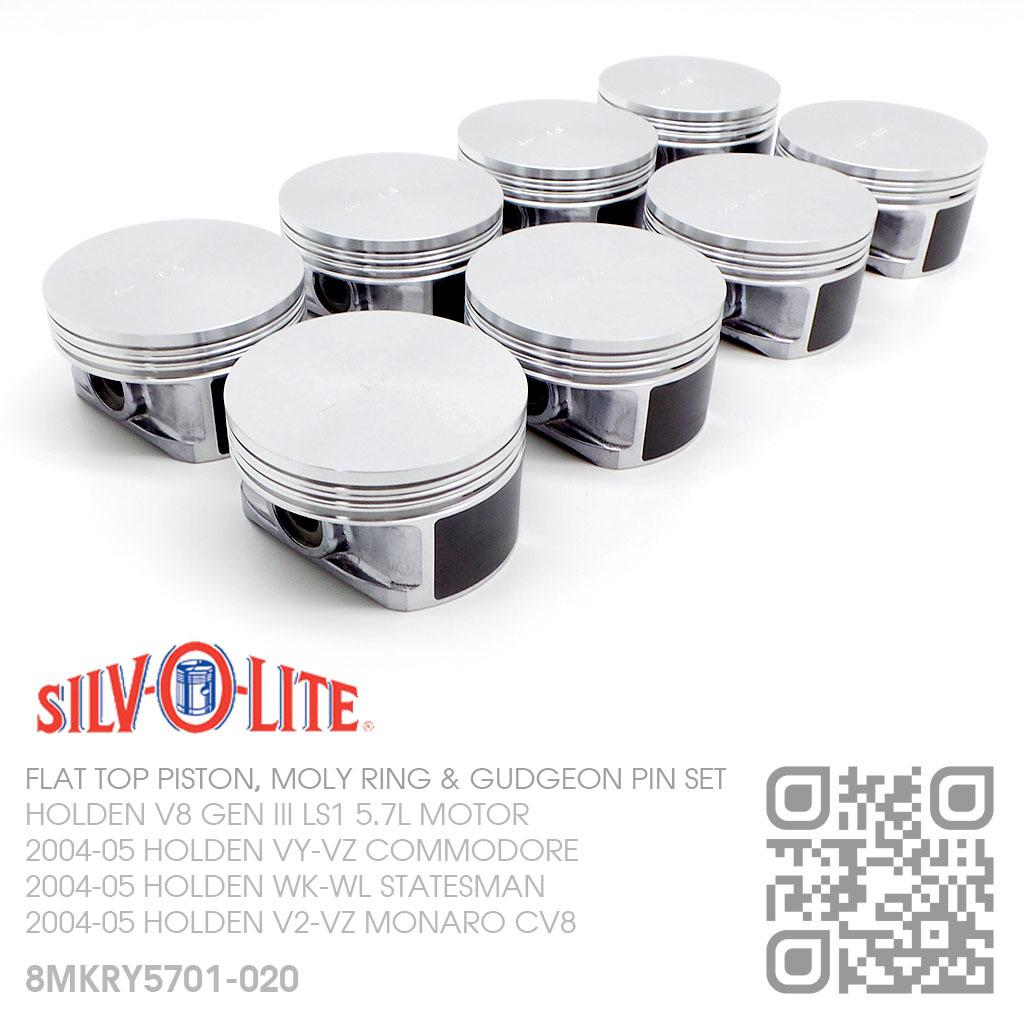

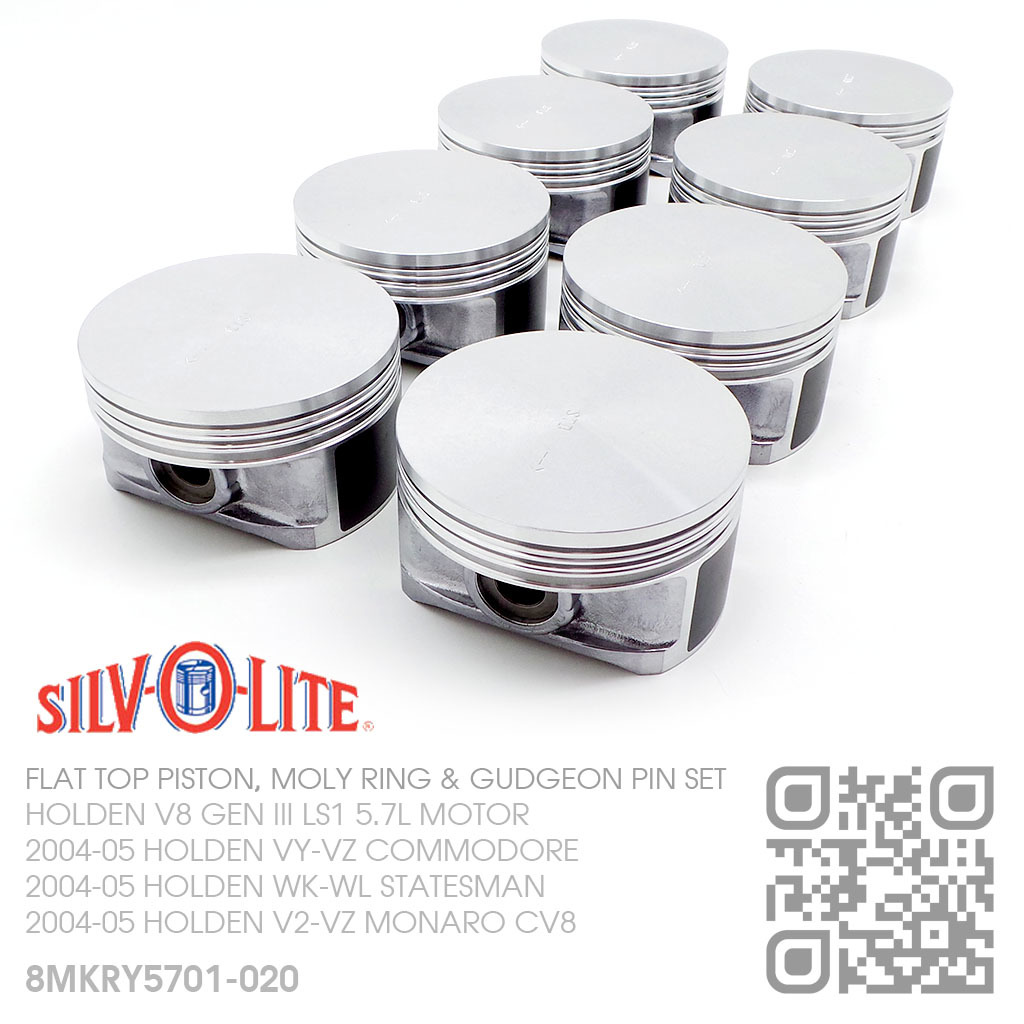

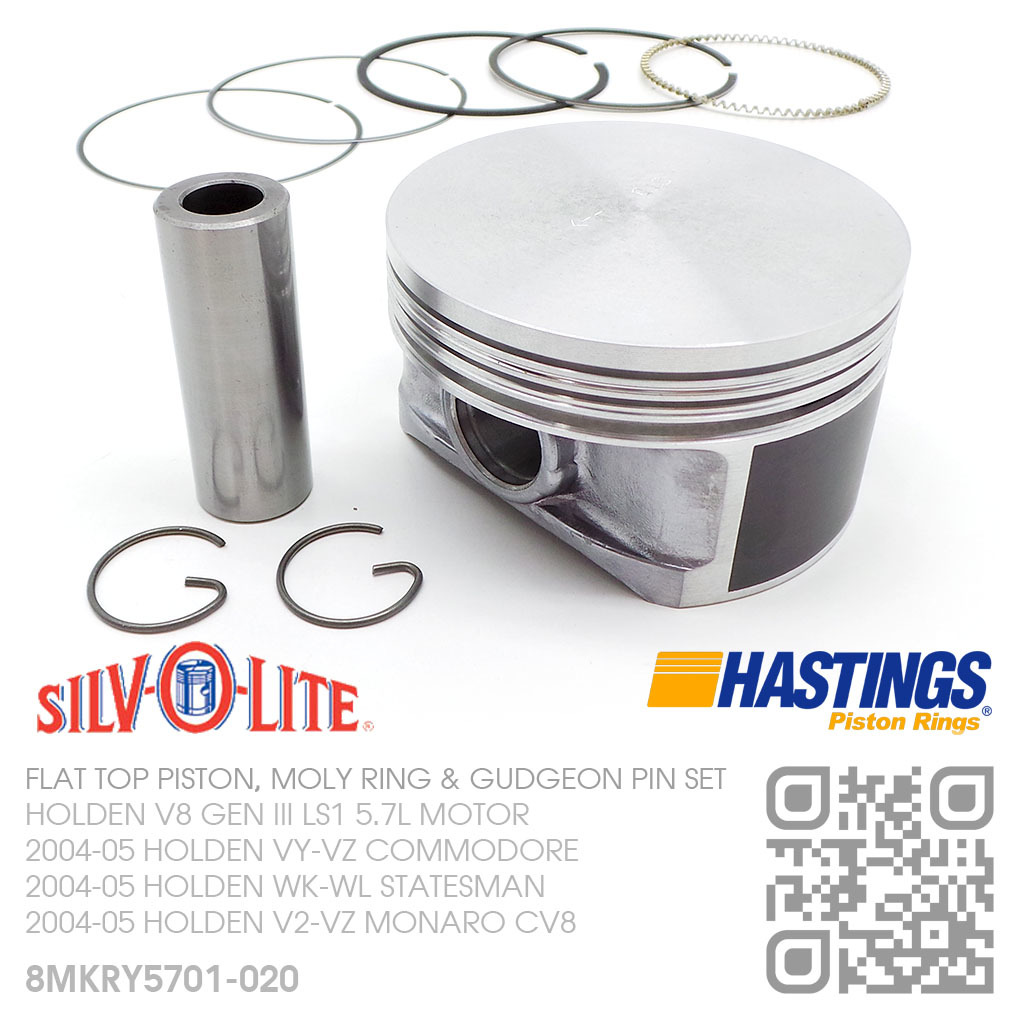

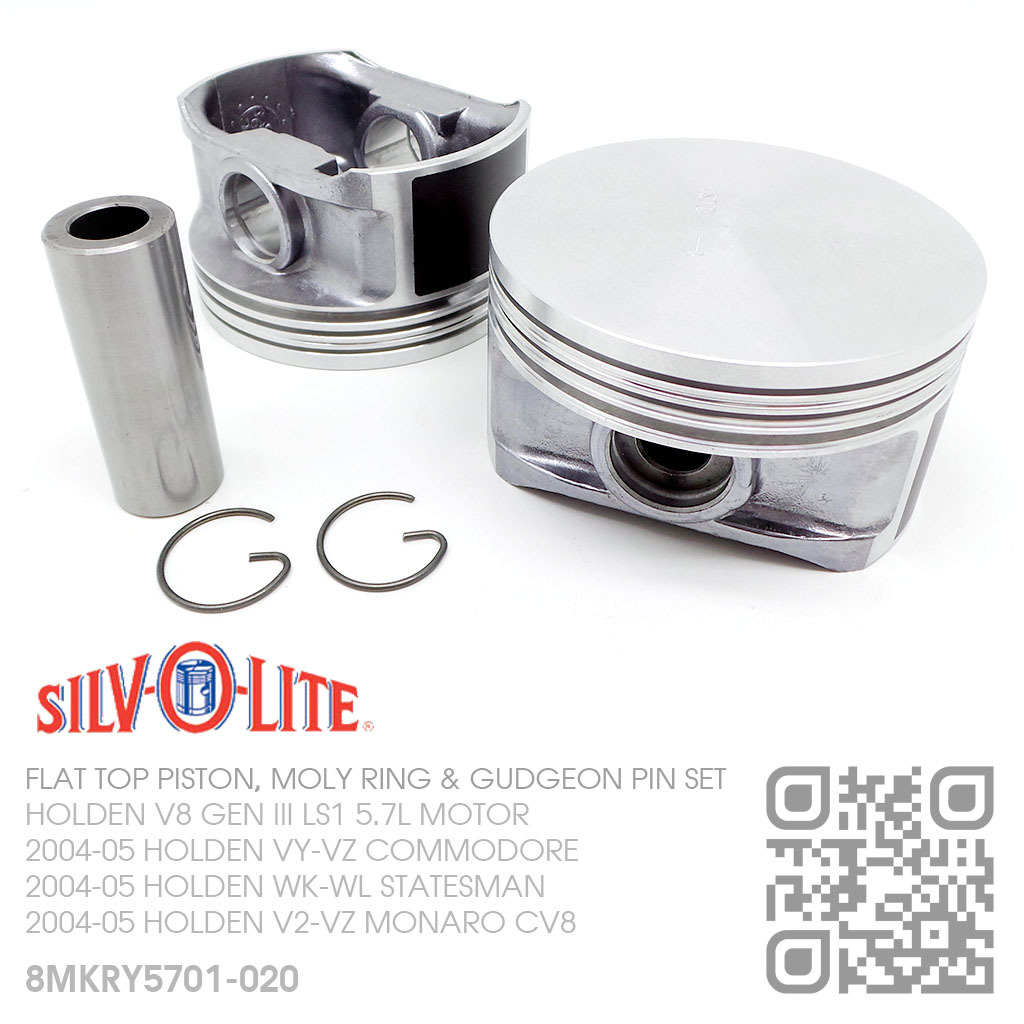

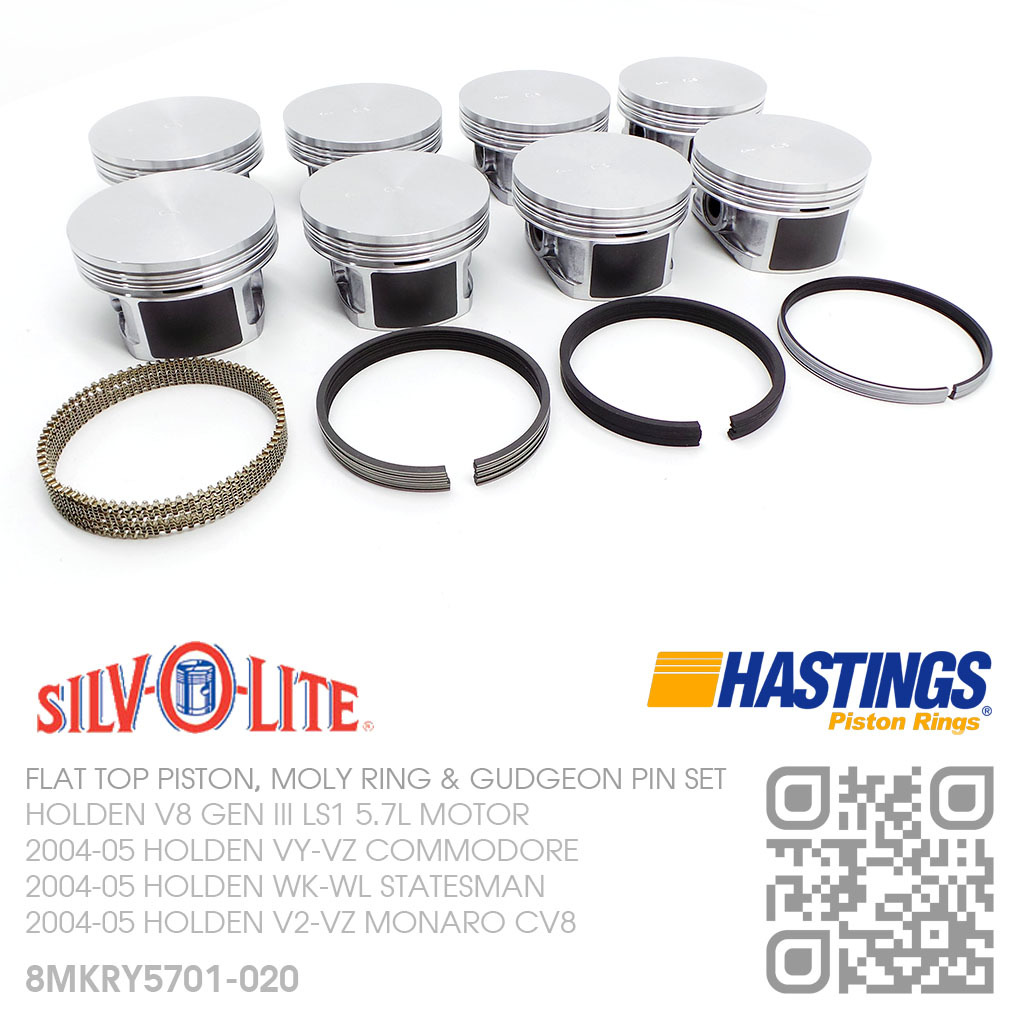

INCLUDES:

  • SILVOLITE FLAT TOP PISTON WITH COATED SKIT (8)

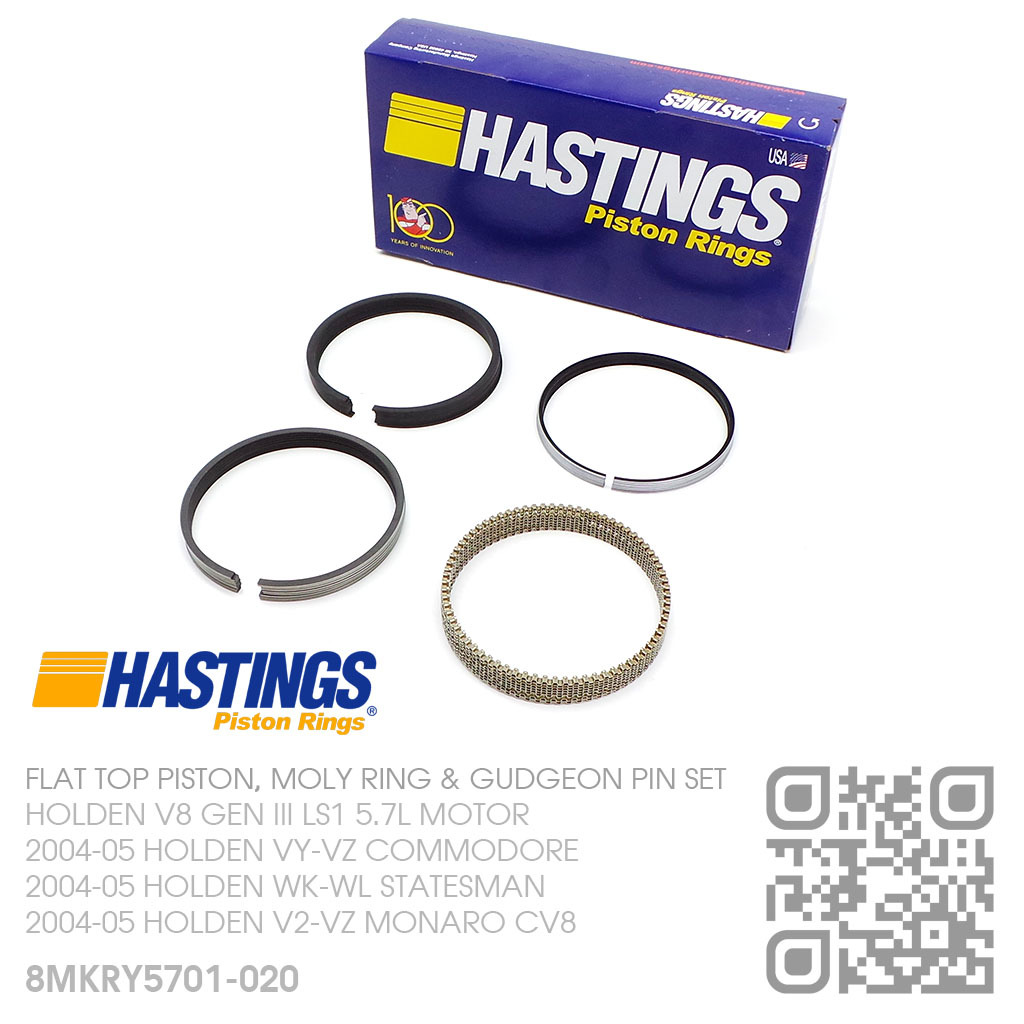

  • HASTINGS MOLY PISTON RING (SET)
  • SILVOLITE FULL FLOATING GUDGEON PIN (8)
  • SILVOLITE GUDGEON PIN RETAINER (16)

SPECIFICATIONS:
Bore Size: 99.00mm / 3.898"
Size: +0.50mm / .020"
Head Type: FLAT TOP WITH COATED SKIRT
Piston Type: CAST HYPEREUTECTIC
Length: 55.88mm
Compression Height: 33.78mm
Pin Size: 23.95mm x 65.02mm
Pin Type: FULL FLOATING
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm

REPLACES HOLDEN PART# 89017581 (STD SIZE)

SPECIAL NOTE:
NOT SUITABLE FOR HOLDEN V8 GEN III LS1 5.7L MOTORS UPTO ENGINE# 040340741

MADE IN USA & MEXICO

Warranty

Features

Specifications

SKU 8MKRY5701-020
Model # 8MKRY5701-020
Brand Silvolite & Hastings
Shipping Weight 5.8000kg
Shipping Width 0.460m
Shipping Height 0.150m
Shipping Length 0.230m
Shipping Cubic 0.015870000m3
