SKU: 8B663H-020-LS1

ACL RACE SERIES PERFORMANCE CONROD BEARINGS SET -0.020" UNDERSIZE [HOLDEN V8 GEN III LS1 5.7L MOTOR]

1999-05 HOLDEN [VTII-VX-VY-VZ COMMODORE]

$122.50
In Stock


Calculate Shipping



Free shipping - $0.00

ACL RACE PERFORMANCE CONROD BEARING SET
-0.020" UNDERSIZE
HOLDEN V8 GEN III LS1 5.7L MOTOR

1999-05 HOLDEN [VTII-VX-VY-VZ COMMODORE]
1999-05 HOLDEN [WH-WK-WL STATESMAN]
2001-05 HOLDEN [V2-VZ MONARO CV8]

Description

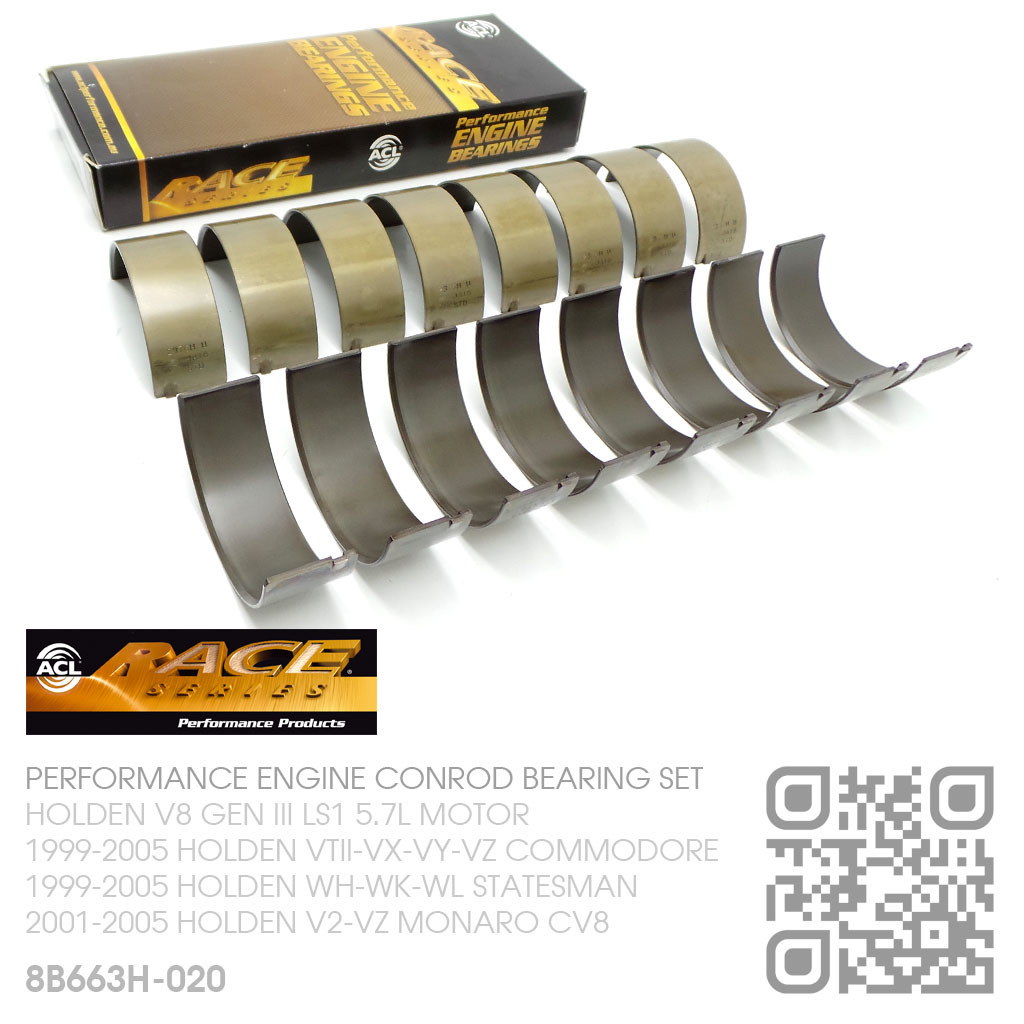

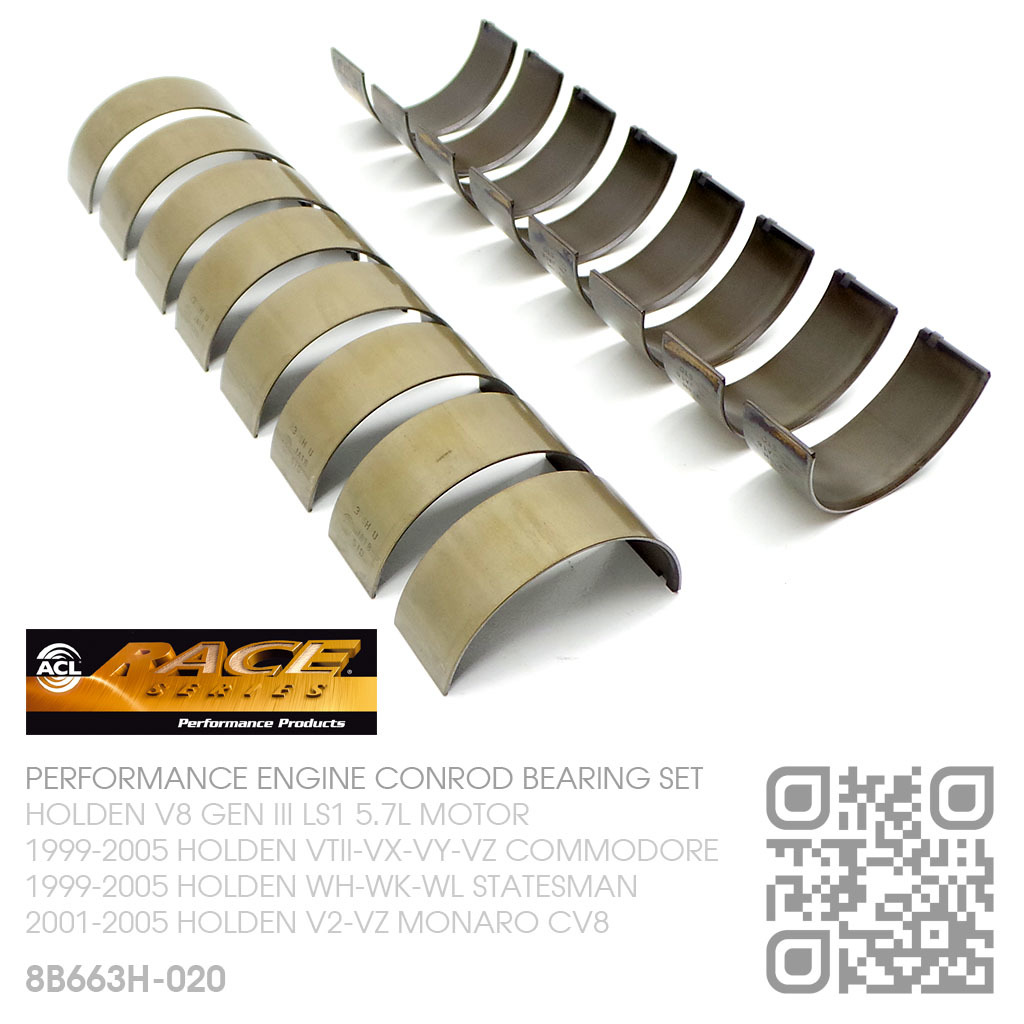

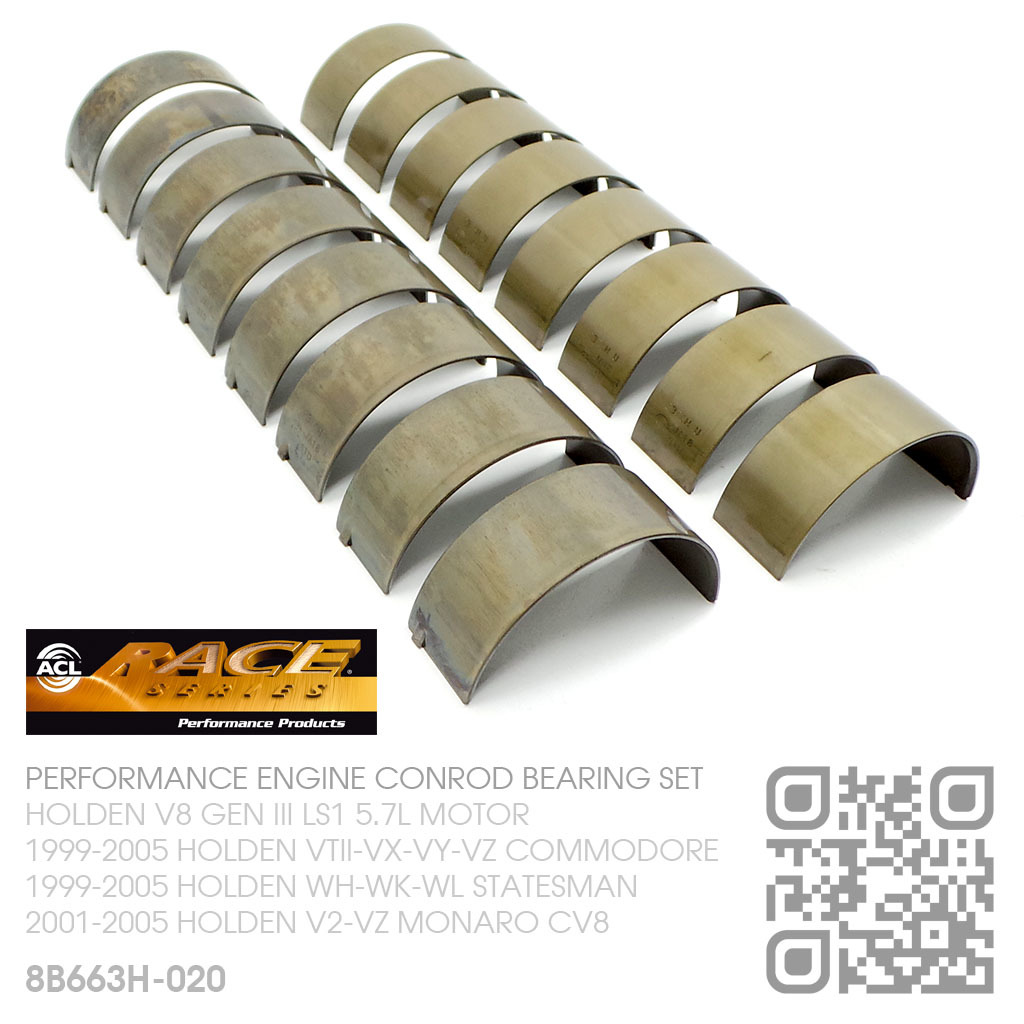

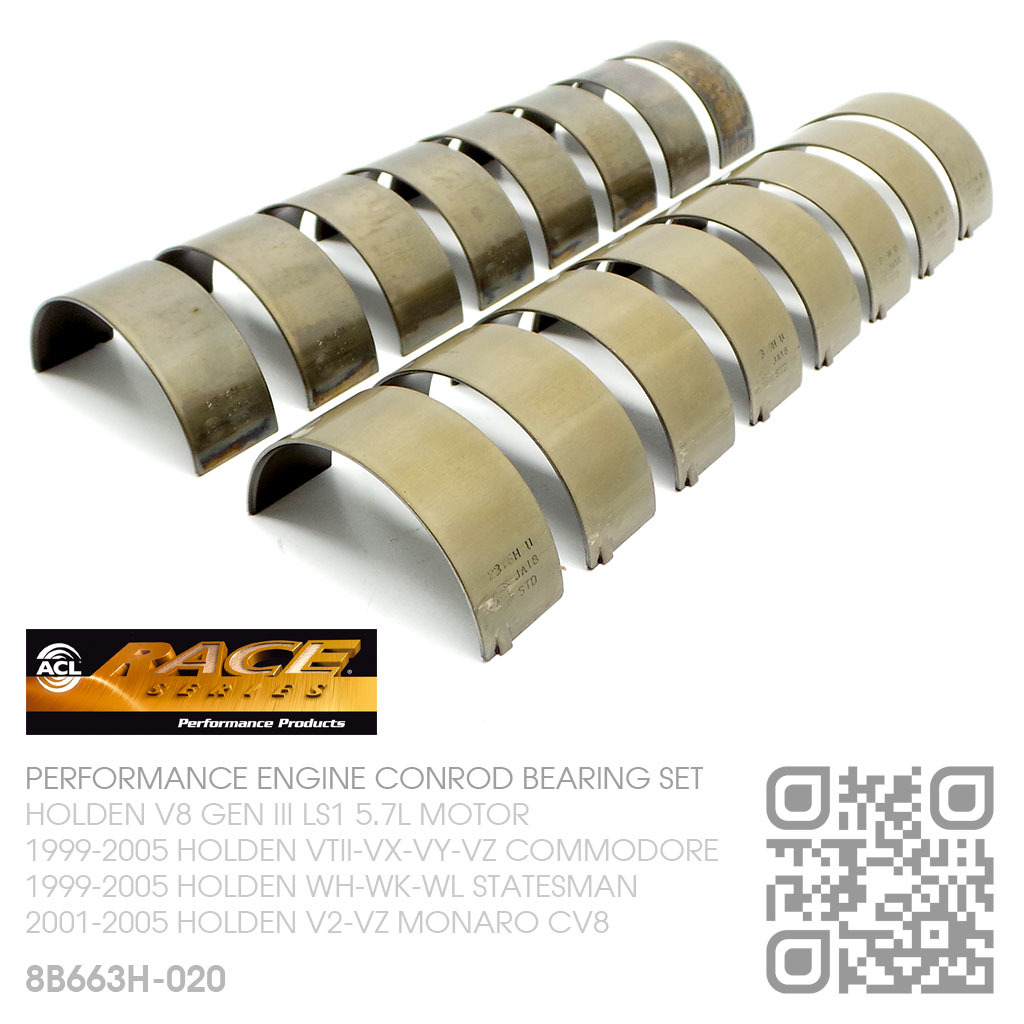

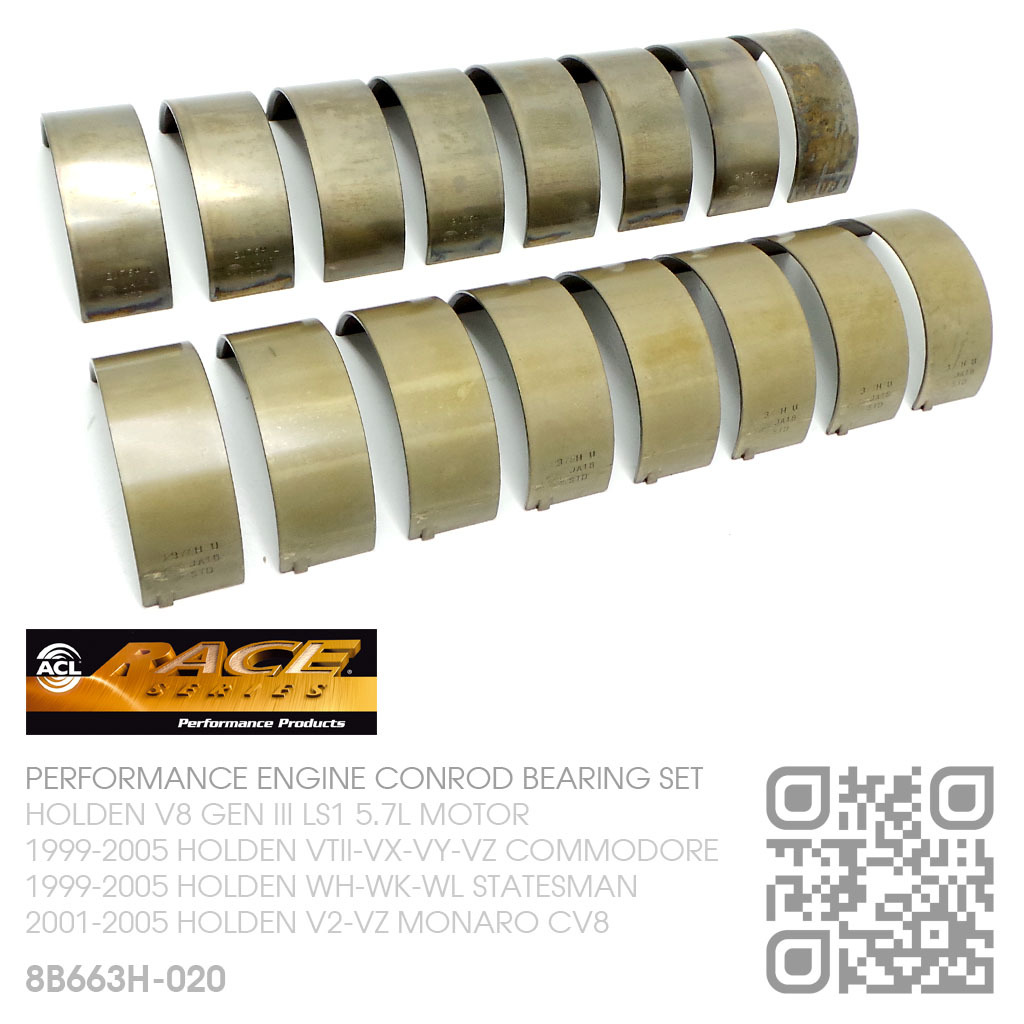

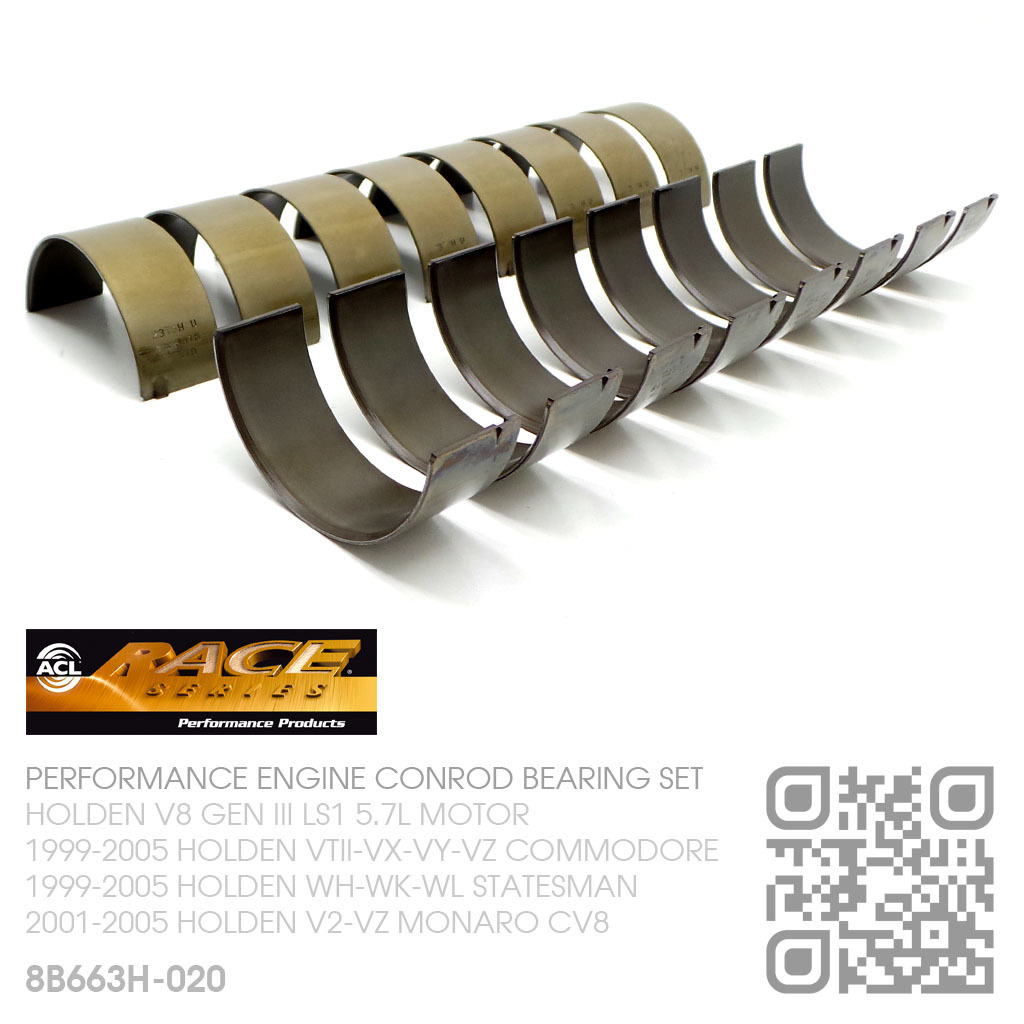

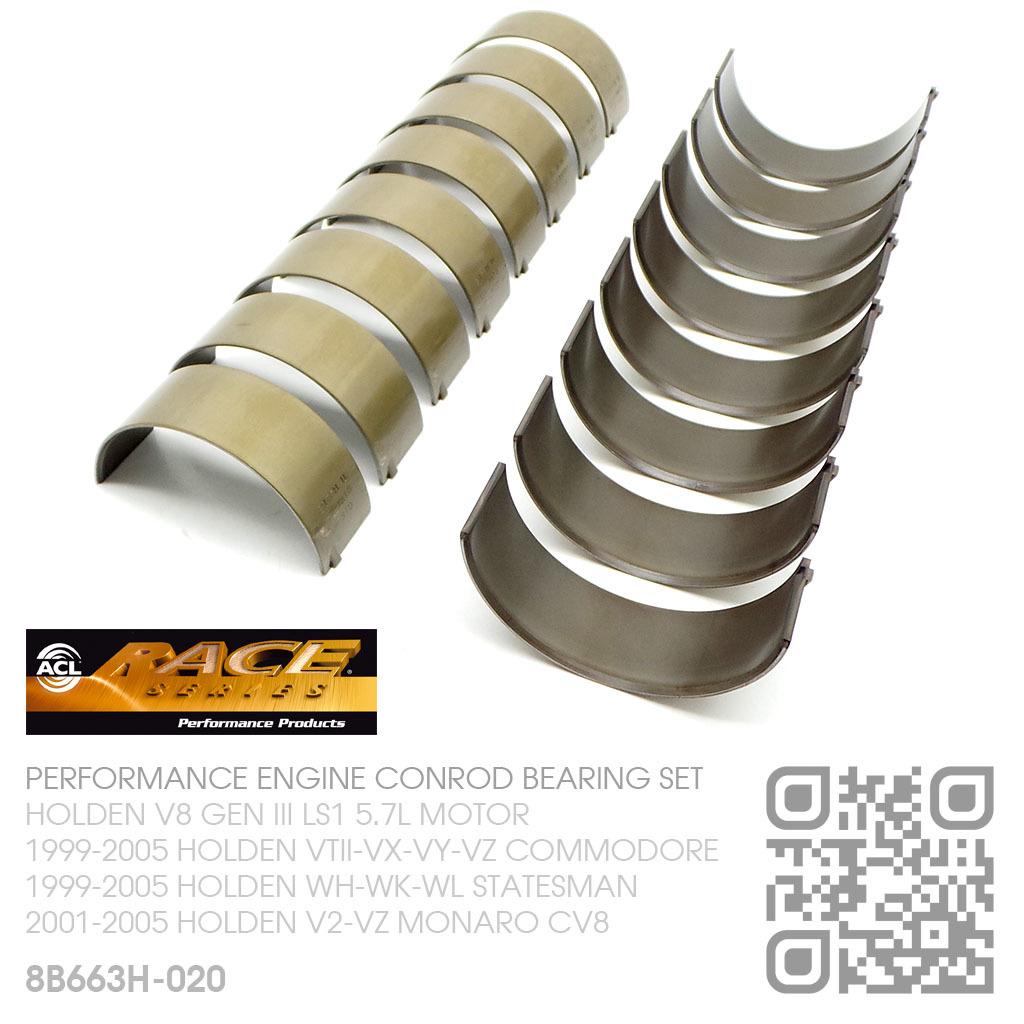

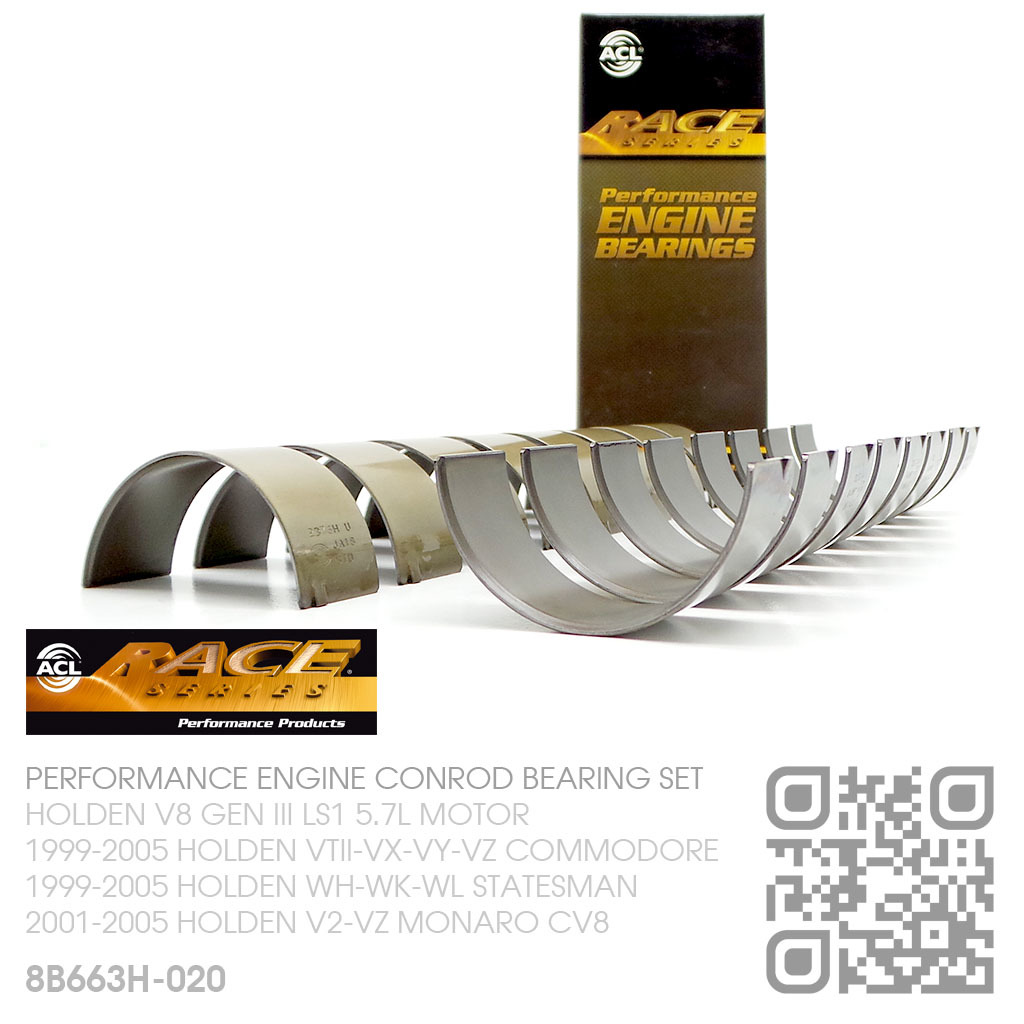

ACL RACE SERIES PERFORMANCE CONROD (BIG END) BEARING SET
-0.020" UNDERSIZE
HOLDEN V8 GEN III LS1 5.7L MOTOR

06/1999-2005 HOLDEN [VTII-VX-VY-VZ COMMODORE]
06/1999-2005 HOLDEN [WH-WK-WL STATESMAN-CAPRICE]
12/2000-2005 HOLDEN [VU-VY-VZ UTE]
10/2001-2005 HOLDEN [V2-VZ MONARO CV8]

High performance driving demands that you use the best parts. So rely on ACL's Race Series Products to perform to the exacting durability standards you expect. They provide the dependability it takes to hold up under higher RPM conditions.

The unique combination of design, metallurgy and engineering comes together to deliver what drivers expect from high performance parts. ACL Race Series Engine Bearings are a must for your performance engine.

SPECIFICATIONS:
Min Standard Shaft Size: 2.0990" / 53.315mm
Max Standard Shaft Size: 2.1000" / 53.340mm
Min Standard Tunnel Size: 2.2247" / 56.507mm
Max Standard Tunnel Size: 2.2252" / 56.520mm
Max Wall At Crown: 0.0619" / 1.572mm
Max Overall Length: 0.8370" / 21.250mm
Wall Size Tolerance: 0.0003" / 0.0008mm
Material: F781 (TRI-METAL)
Series: ACL RACE

The Conrod Bearing Sets are manufactured in Tasmania (Australia) by Leaders in Bearing technologies ACL Bearing Company. ACL is Australia's premier manufacturer of precision engine bearings and has been a Original Equipment Manufacturer to Holden.

SPECIAL NOTE:
CRANKSHAFT CONNECTING ROD JOURNAL IS -0.020" UNDERSIZE
SUITABLE FOR HOLDEN V8 GEN IV LS2 6.0L or LS3 6.2L MOTORS

MADE IN AUSTRALIA

Warranty

Features

Specifications

SKU 8B663H-020-LS1
Model # 8B663H-020
Barcode # 9315726261705
Brand ACL
Shipping Weight 0.4000kg
