SKU: 871288

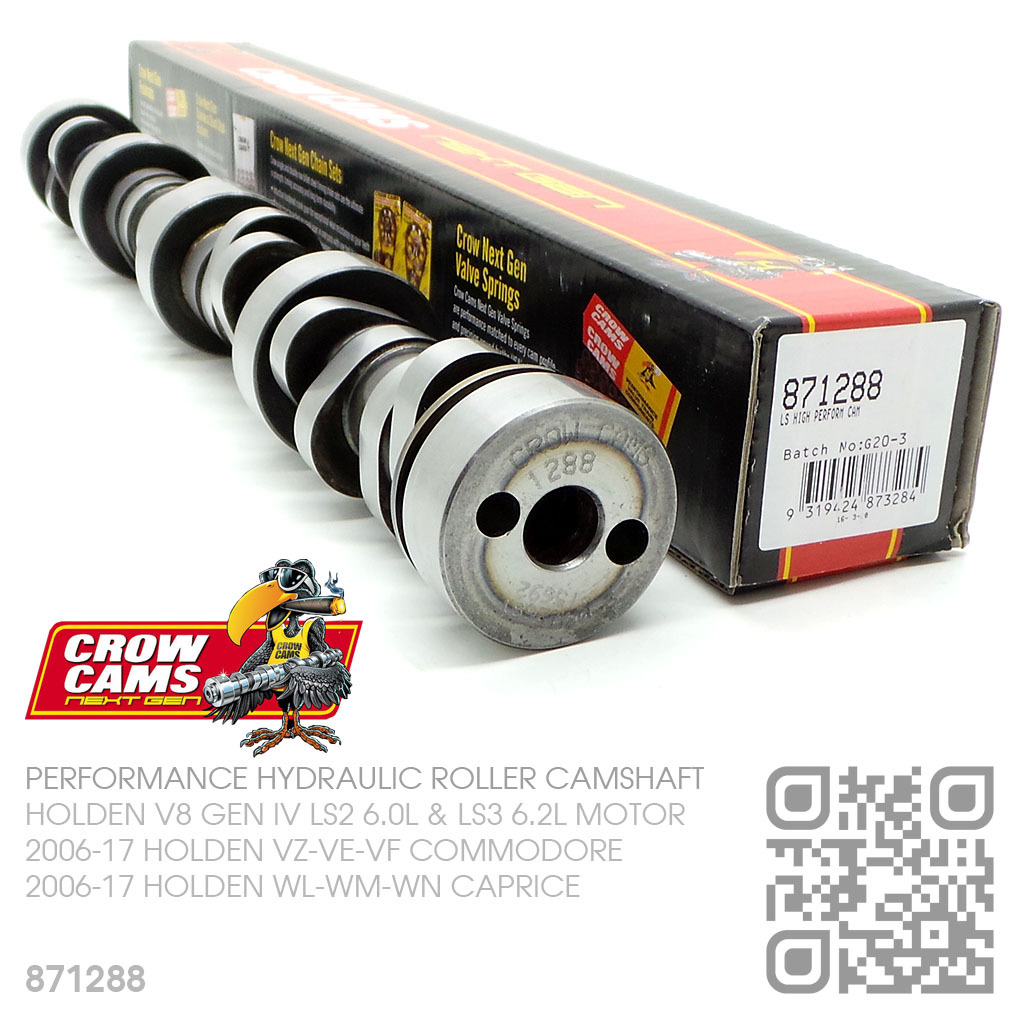

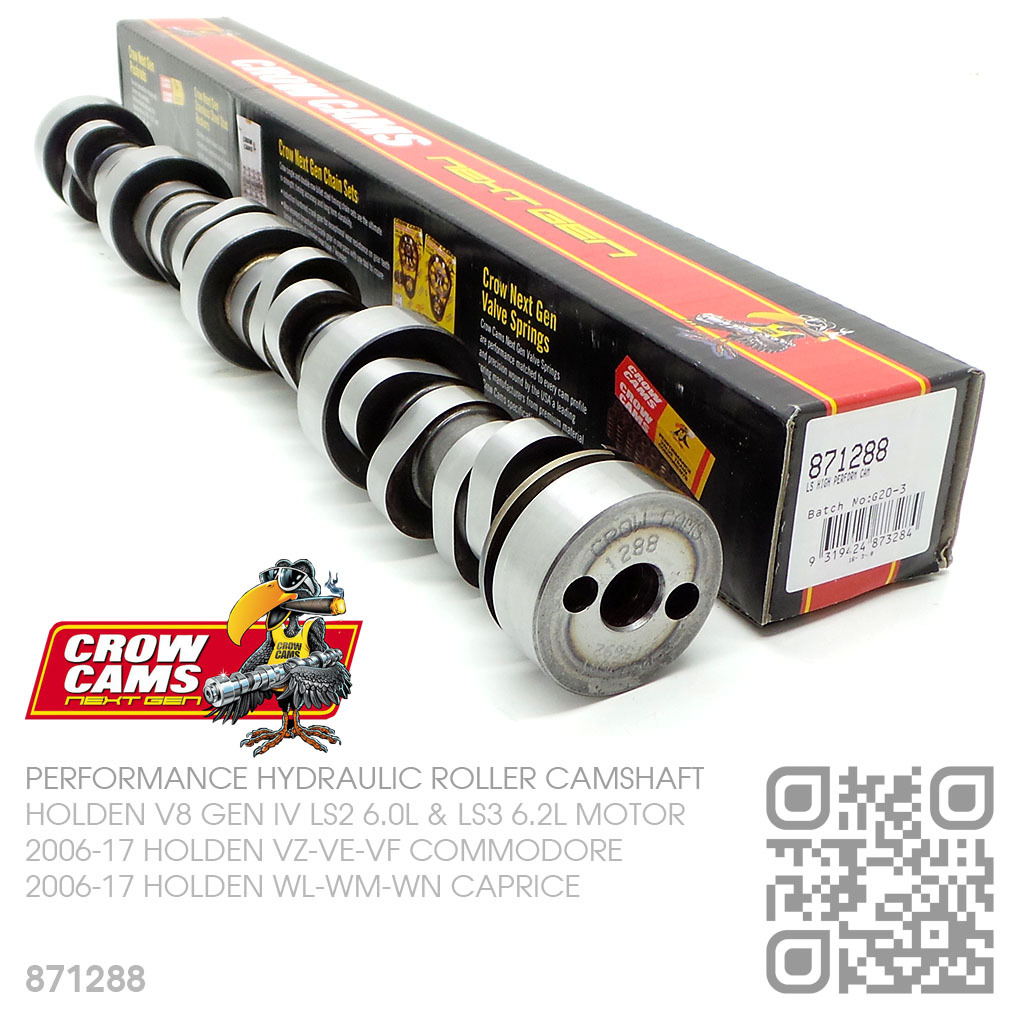

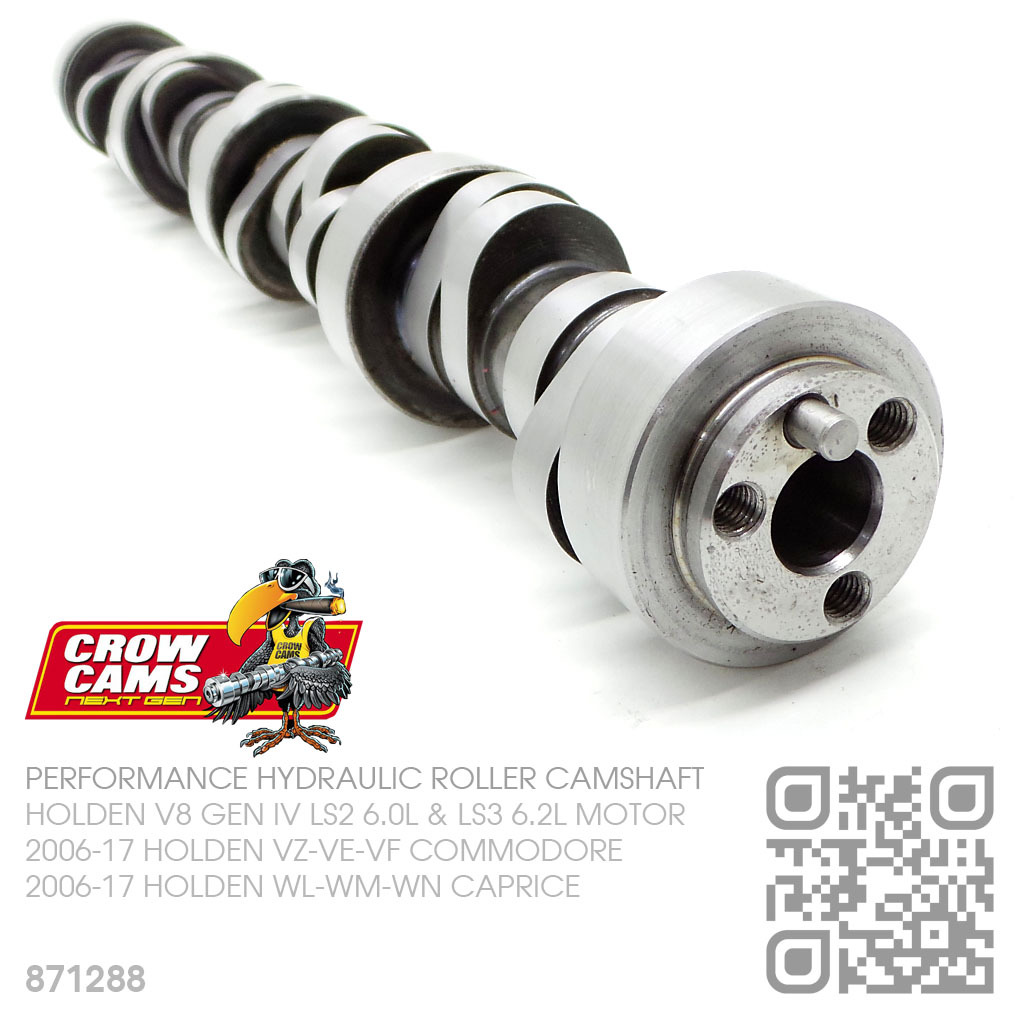

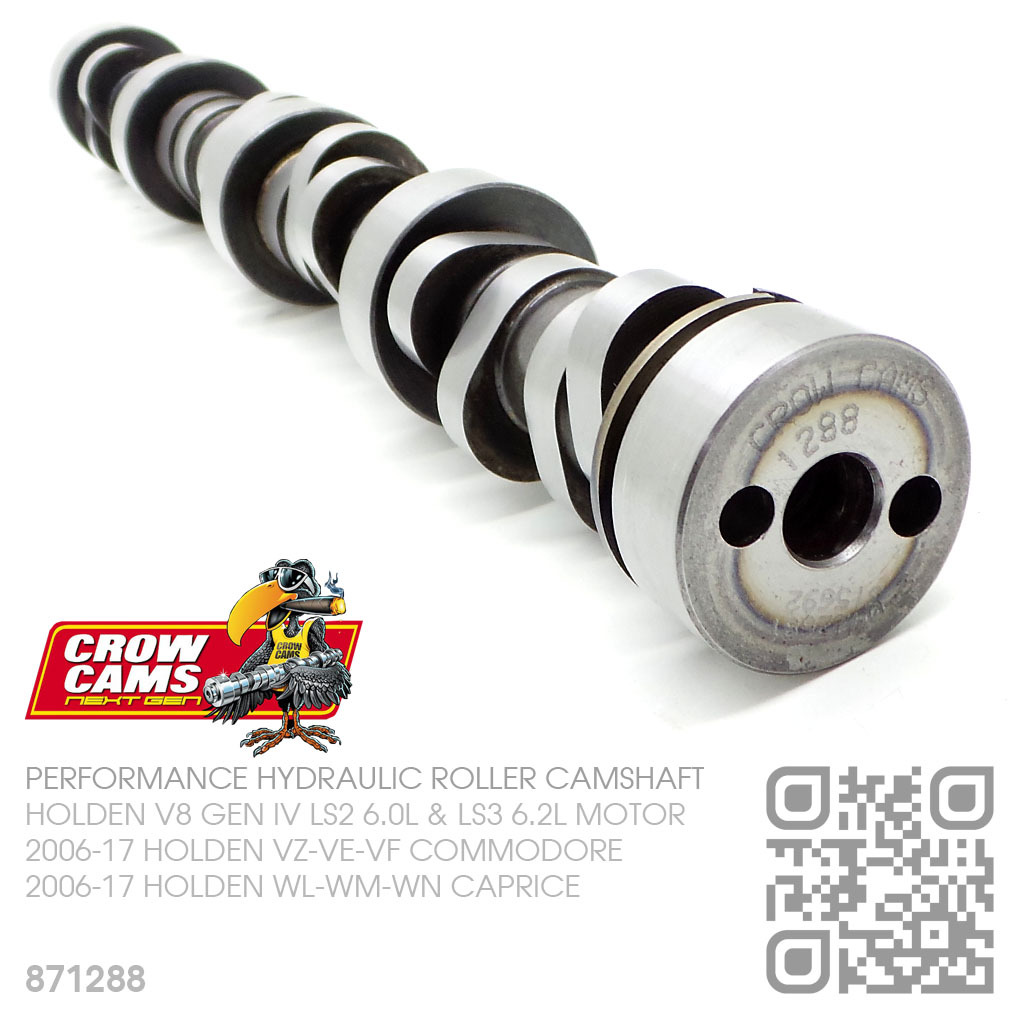

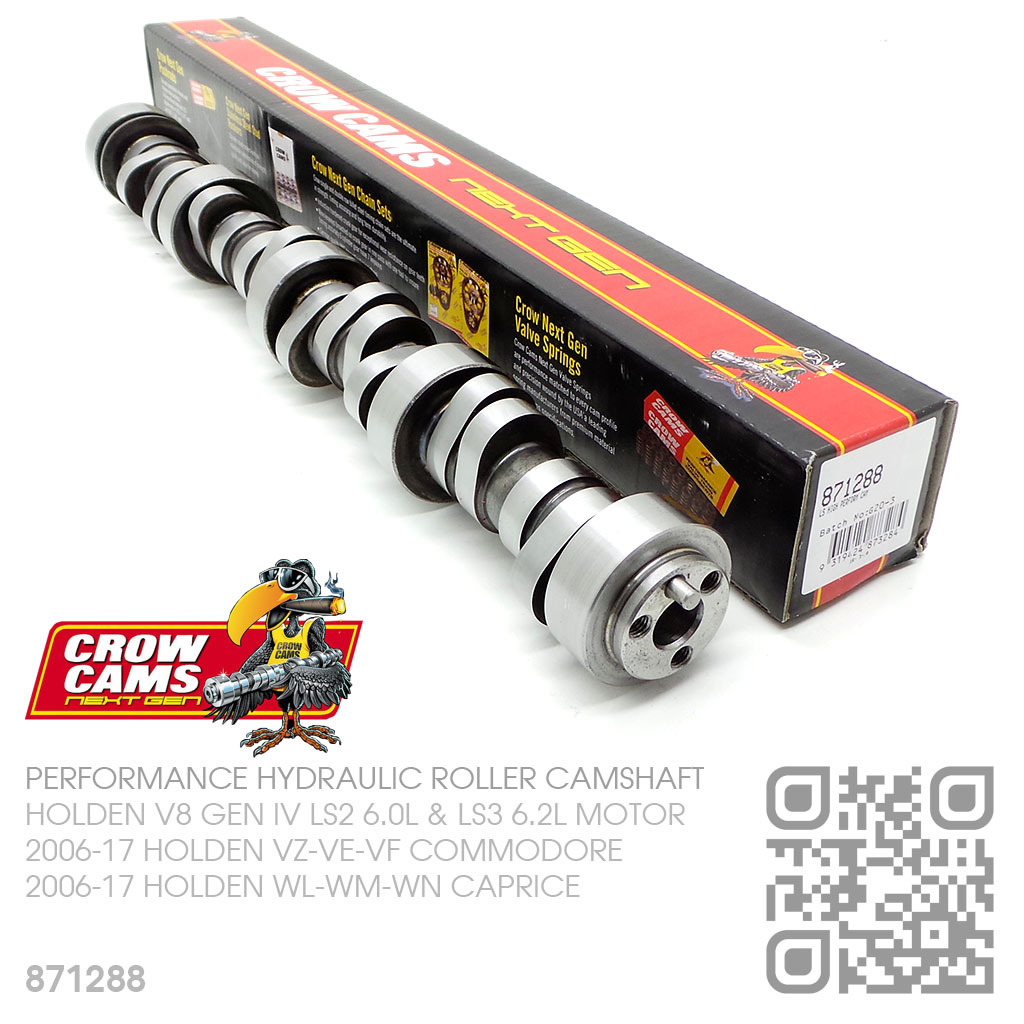

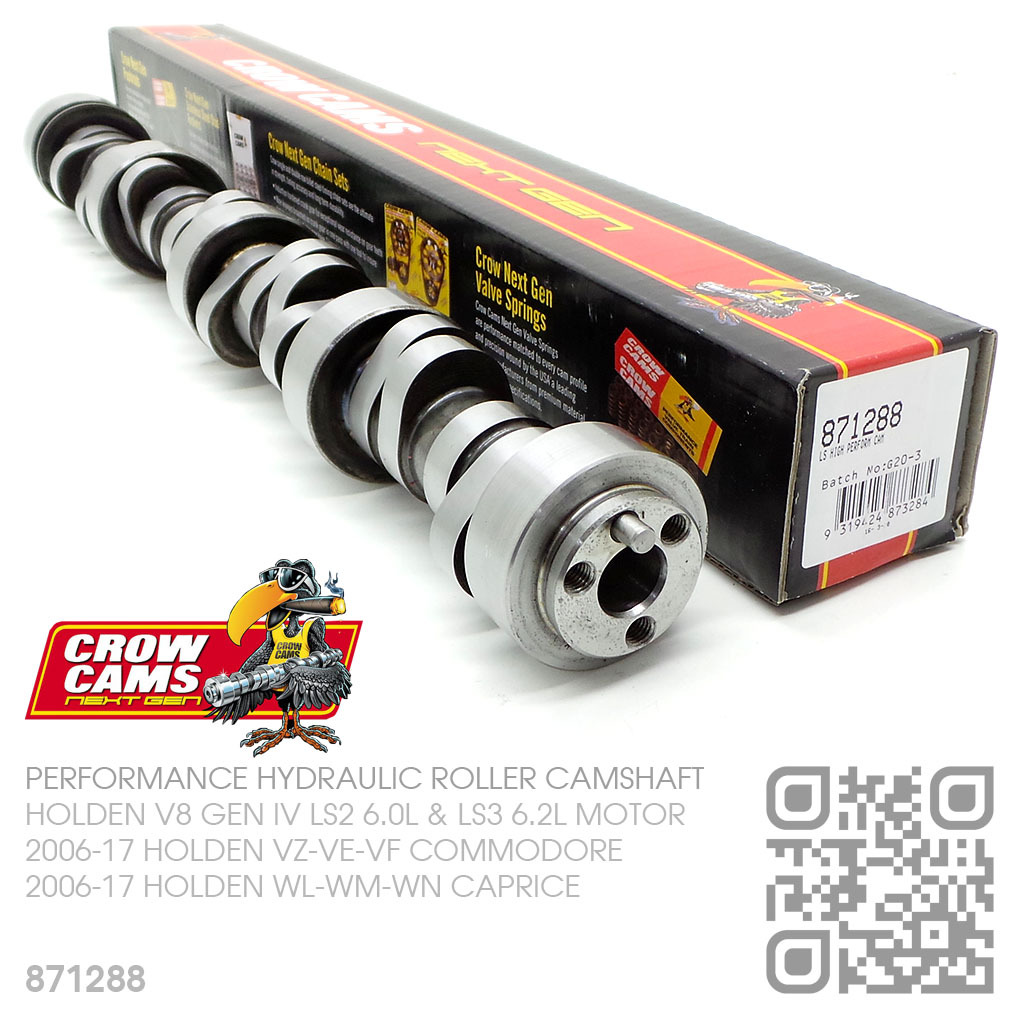

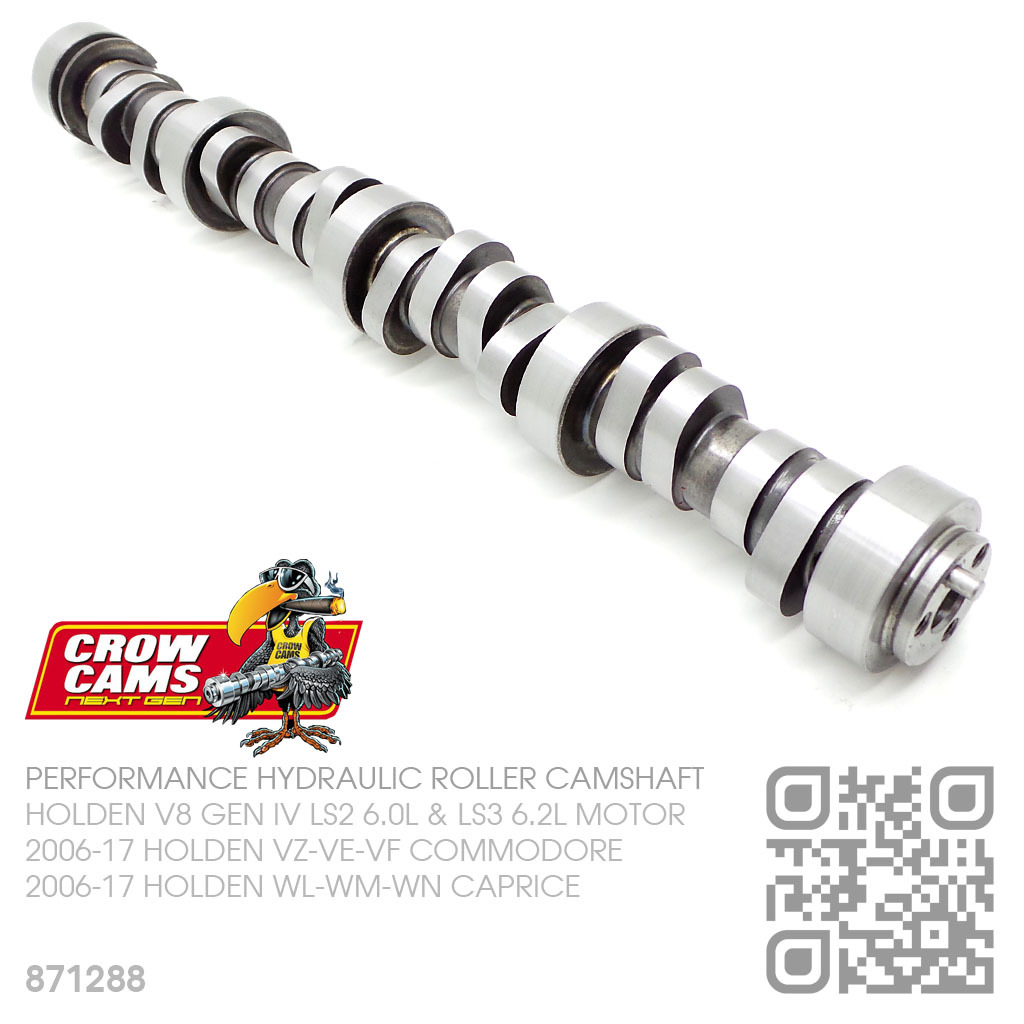

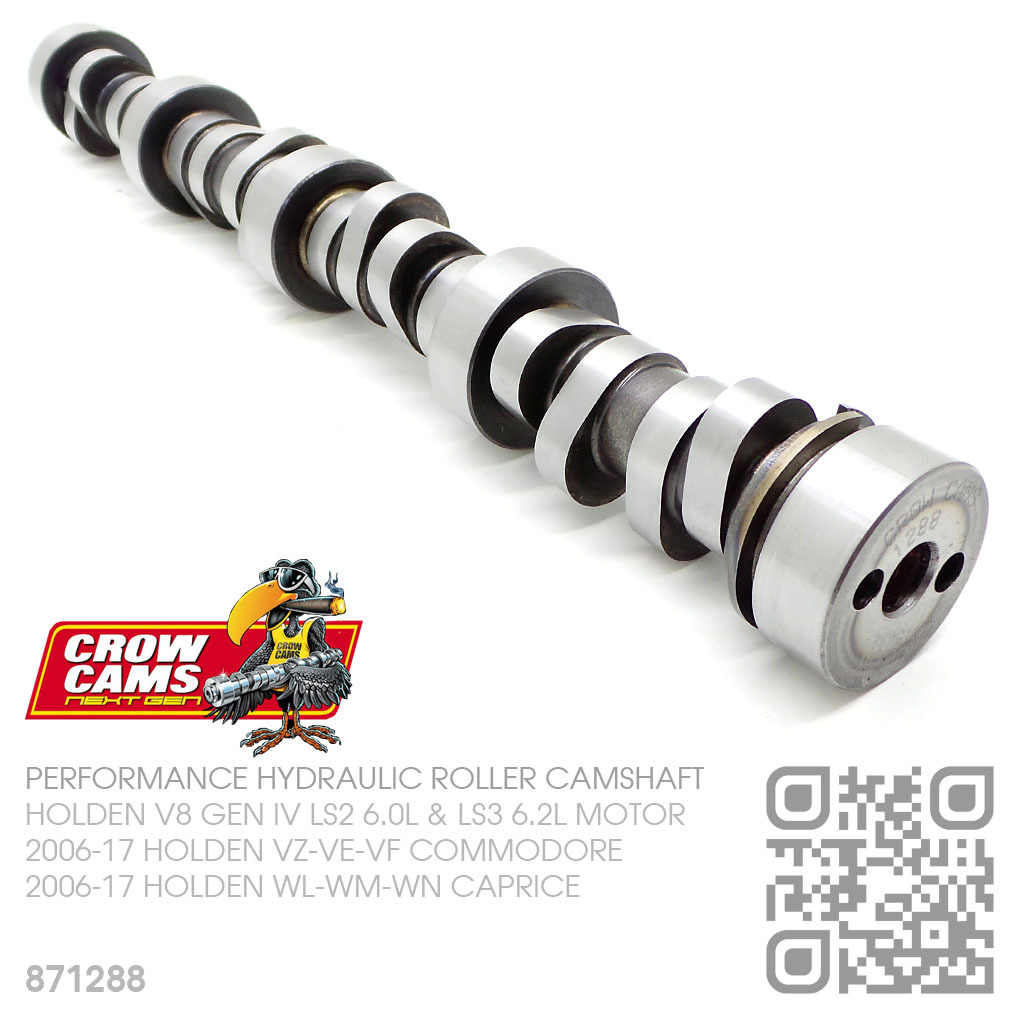

CROW CAMS 871288 PERFORMANCE BILLET HYDRAULIC ROLLER CAMSHAFT [HOLDEN V8 GEN IV LS2 6.0L & LS3 6.2L MOTOR]

2006-17 HOLDEN [VZ-VE-VF COMMODORE & WL-WM-WN CAPRICE]

$588.81
In Stock


Calculate Shipping



Free shipping - $0.00

CROW CAMS PERFORMANCE BILLET HYDRAULIC ROLLER CAMSHAFT
HOLDEN V8 GEN IV LS2 6.0L & LS3 6.2L MOTOR

2006-17 HOLDEN [VZ-VE-VF COMMODORE]
2006-17 HOLDEN [WL-WM-WN STATESMAN/CAPRICE]

Description

CROW CAMS 871288 NEXT GEN PERFORMANCE BILLET HYDRAULIC ROLLER CAMSHAFT
VALVE LIFT 0.610" INTAKE / 0.610" EXHAUST
DURATION @ .050" 234º INTAKE / 250º EXHAUST
STANDARD 1.7 ROCKER RATIO
HOLDEN V8 GEN IV LS2 6.0L & LS3 6.2L MOTOR
RECTANGULAR PORT CYLINDER HEADS

02/2006-10/2017 HOLDEN [VZ-VE-VF COMMODORE]
02/2006-10/2017 HOLDEN [VZ-VE-VF UTE]
02/2006-10/2017 HOLDEN [WL-WM-WN STATESMAN/CAPRICE]
07/2008-10/2017 HOLDEN [VE-VF SPORTWAGON]

Crow Cams' unique Next Gen cam design and CNC grinding technology is applied to a huge range of hydraulic lifter roller camshafts, for maximum torque and power in street or race applications.

Crow Cams' world class CNC grinding and inspection facilities have also been upgraded to ensure an even greater degree of grinding accuracy in terms of surface finish and cam position. These characteristics are checked on every cam on our CNC checking machines, which are regularly calibrated on our in-house Adcole camshaft coordinate measuring machine.

SPECIFICATIONS:
Camshaft Part Number: 871288
RPM Range: 2700 - 6500
Advertised Duration Intake: 287º
Advertised Duration Exhaust: 392º
Duration @.050" Intake: 234º
Duration @.050" Exhaust: 250º
Valve Lift Intake: 0.610"
Valve Lift Exhaust: 0.610"
Rocker Ratio: 1.70:1
Lobe Separation Angle: 114º

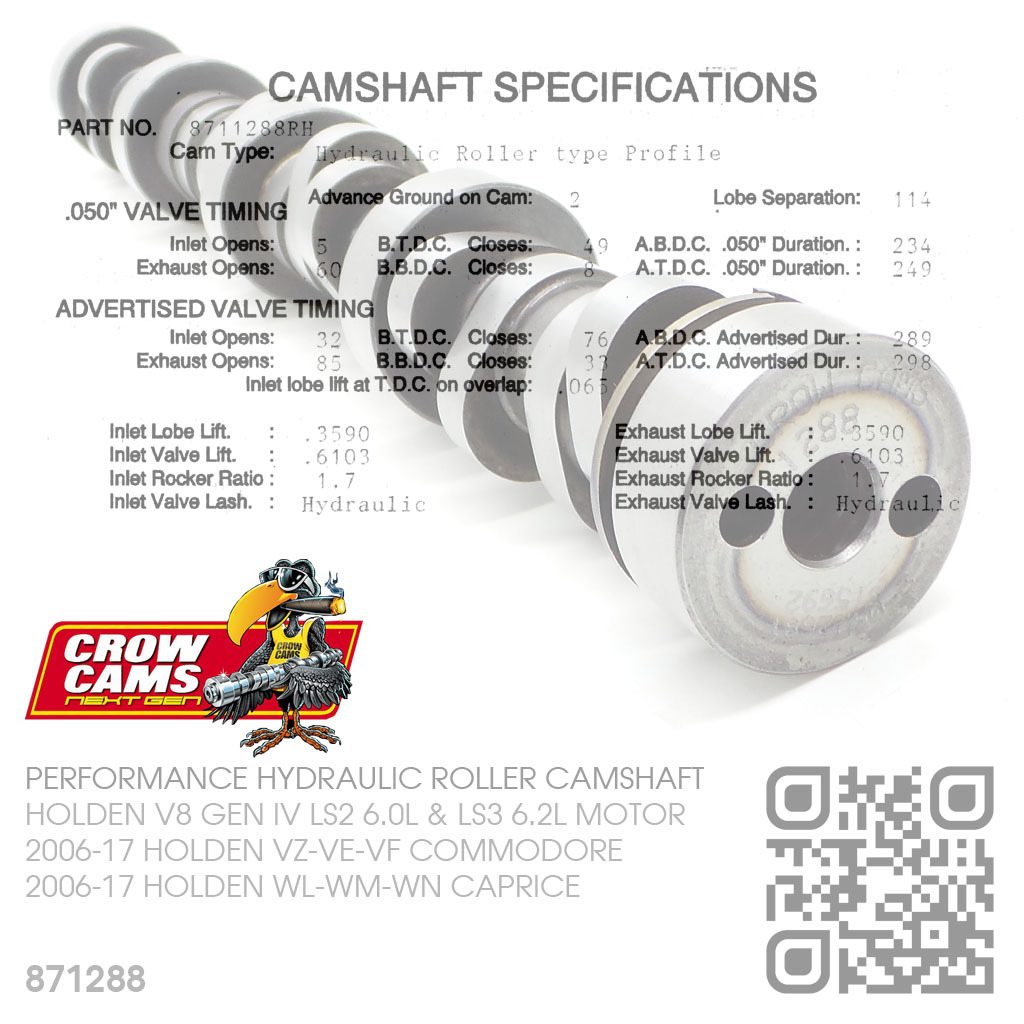

Detailed Cam Card: SEE LAST PRODUCT PHOTO
Camshaft Characteristics: TOUGH STREET CAM WITH AGGRESIVE IDLE & WIDE POWER RANGE. WORKS BEST WITH PORTED HEADS & COLD AIR INTAKE

CAMSHAFT REQUIREMENTS:
Cylinder Head Requirements: PERFORMANCE VALVE SPRINGS AND RETAINERS
Engine Requirements: NEW HYDRAULIC ROLLER LIFTERS
Exhaust Requirements: PERFORMANCE HEADERS/EXTRACTORS
ECU Requirements: RE-TUNE/CALIBRATION REQUIRED
Transmission Requirements: HIGH STALL CONVERTER REQUIRED

For more than 30 years, Crow Cams in Australia, have developed valve train products and developed unique camshafts.

SPECIAL NOTE:
ENGINE CONTROL UNIT (ECU) RE-TUNE/CALIBRATION, NEW HYDRAULIC ROLLER LIFTERS, PERFORMANCE HEADERS/EXTRACTORS, PERFORMANCE VALVE SPRINGS AND RETAINERS ARE REQUIRED TO USE THIS CAMSHAFT

IMPORTANT NOTE:
THE FIRST 20 MINUTES OF RUN-IN, IS A CRITICAL TIME IN THE LIFE OF YOUR CAMSHAFT, DURING WHICH TIME THE LIFTER FACES BED INTO THE CAMSHAFT LOBES. OIL FILTER AND OIL CHANGE AFTER RUN IN PERIOD IS HIGHLY RECOMMENDED

MADE IN AUSTRALIA & USA

Warranty

Features

Specifications

SKU 871288
Model # 871288
Barcode # 9319424873284
Brand Crow Cams
Shipping Weight 4.5000kg
Shipping Width 0.620m
Shipping Height 0.070m
Shipping Length 0.070m
Shipping Cubic 0.003038000m3
