SKU: 7M2384-030

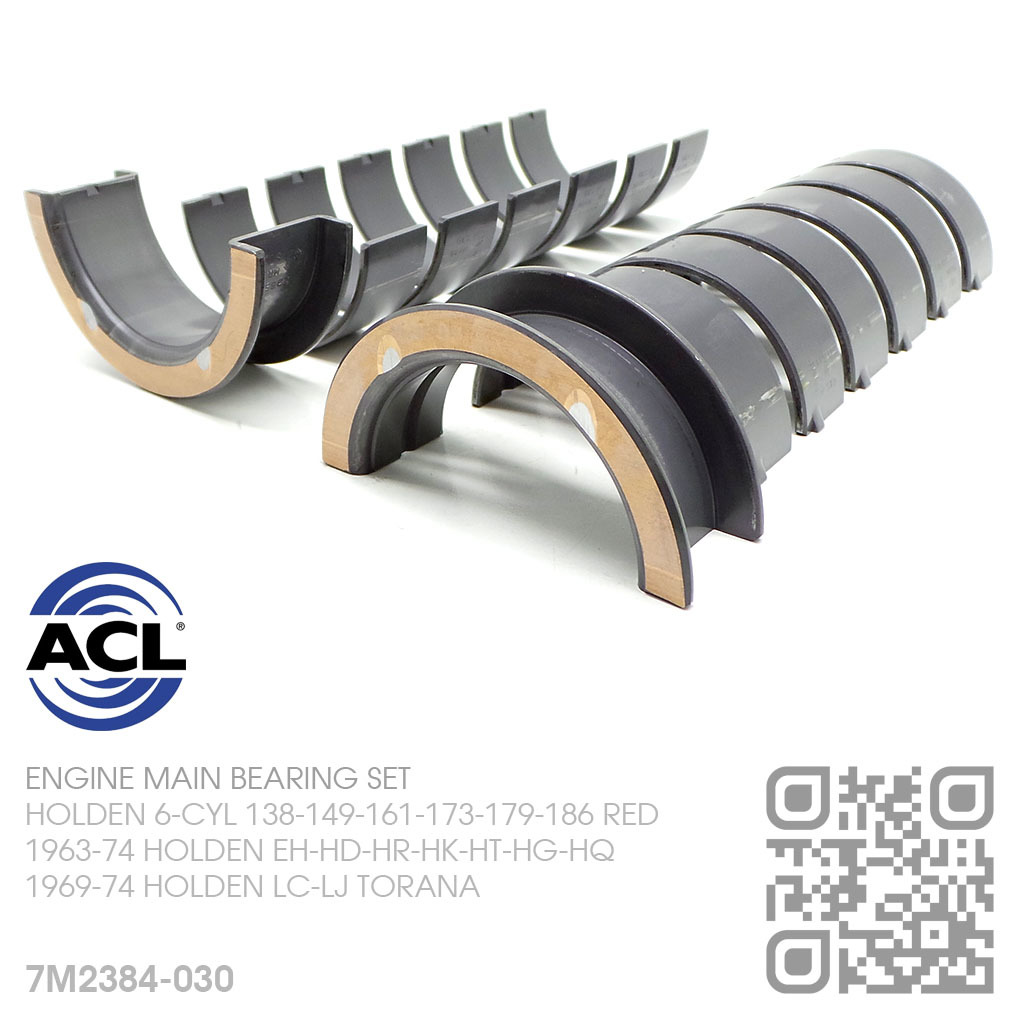

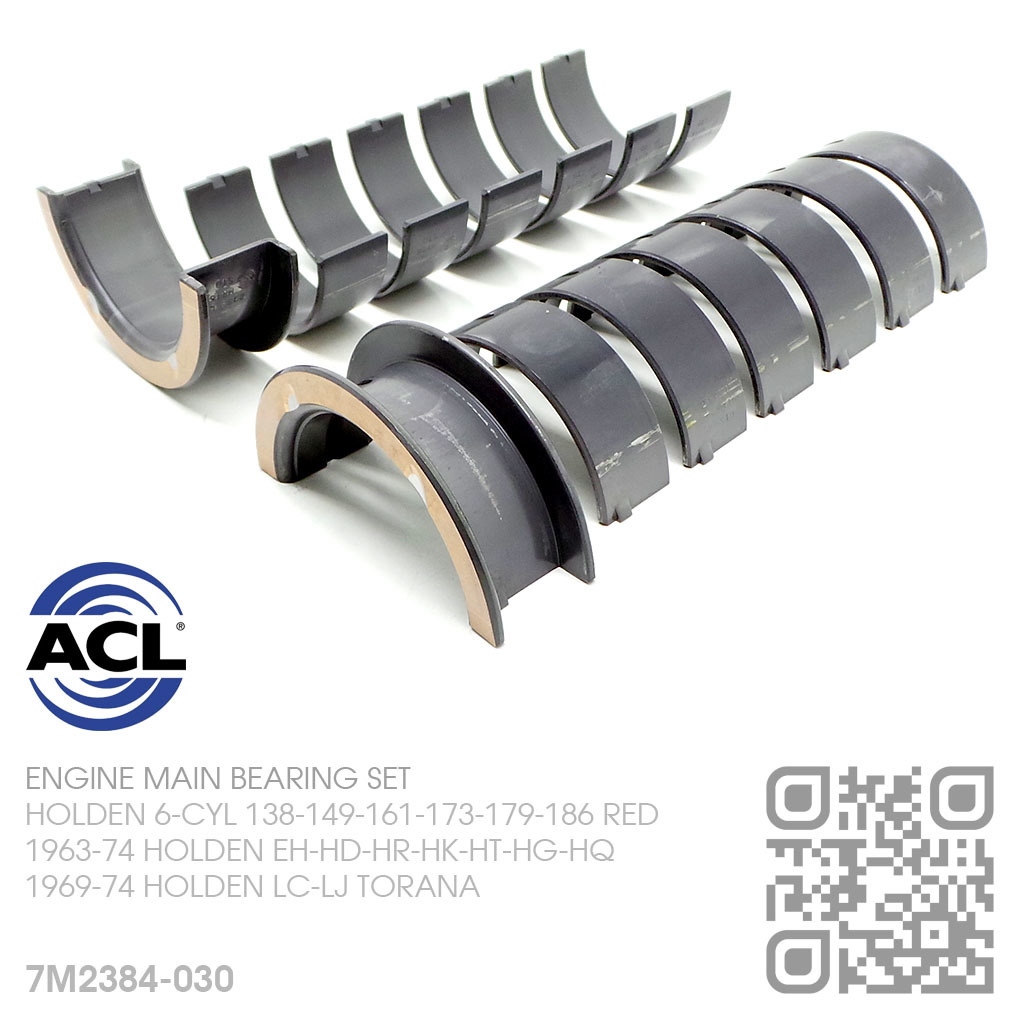

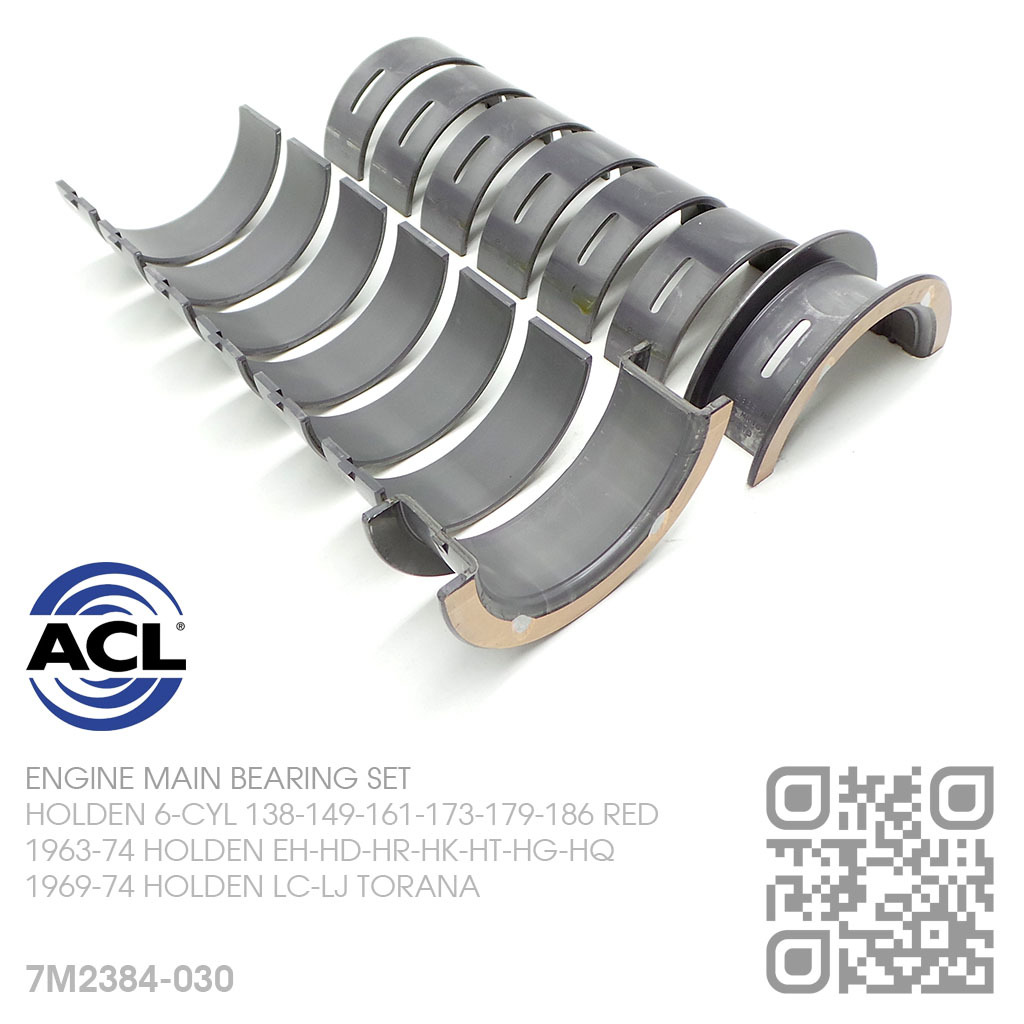

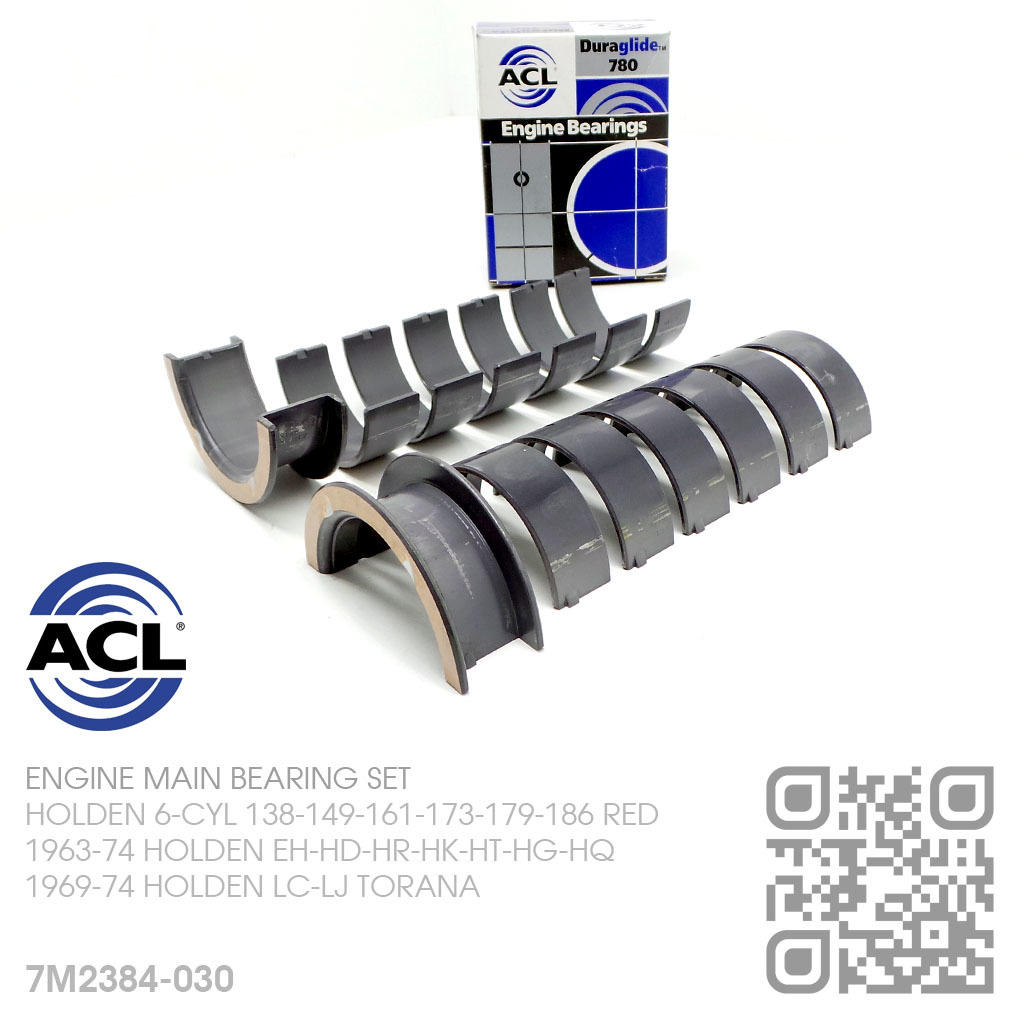

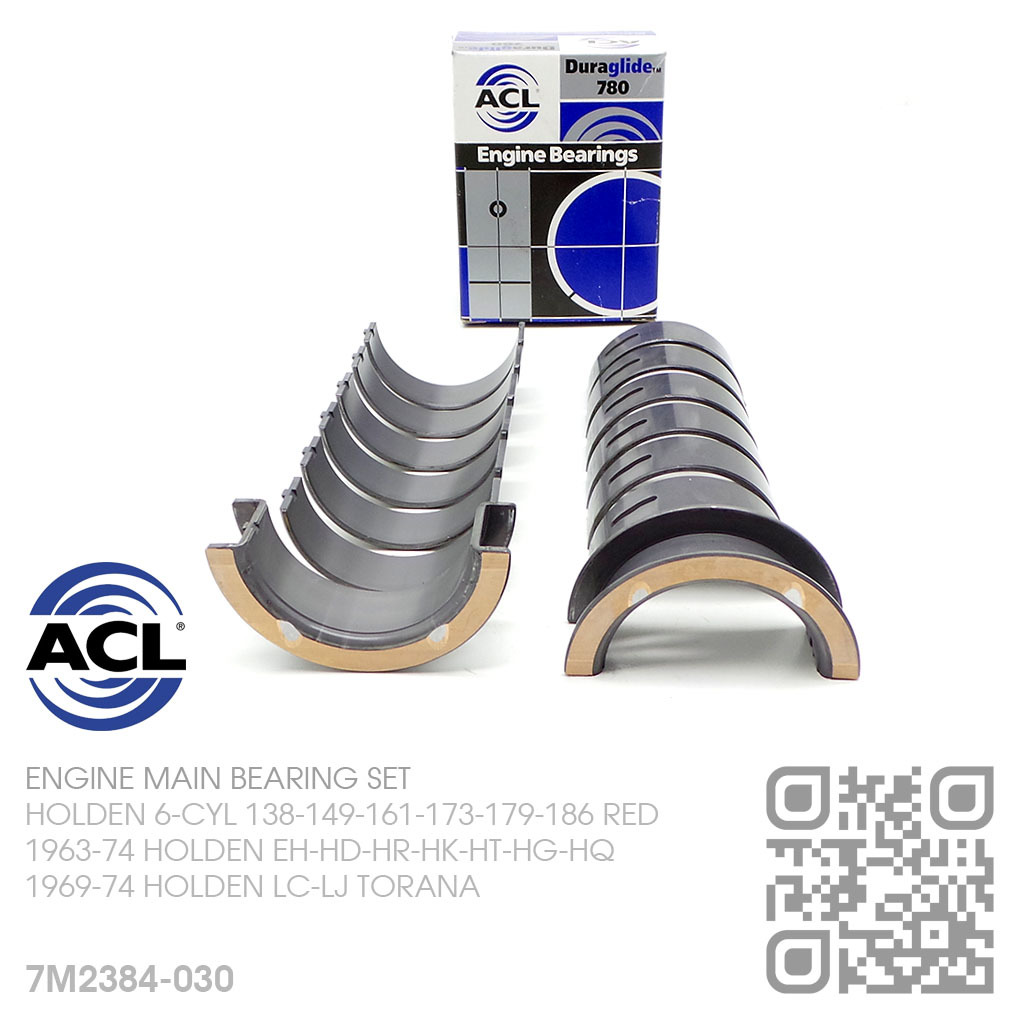

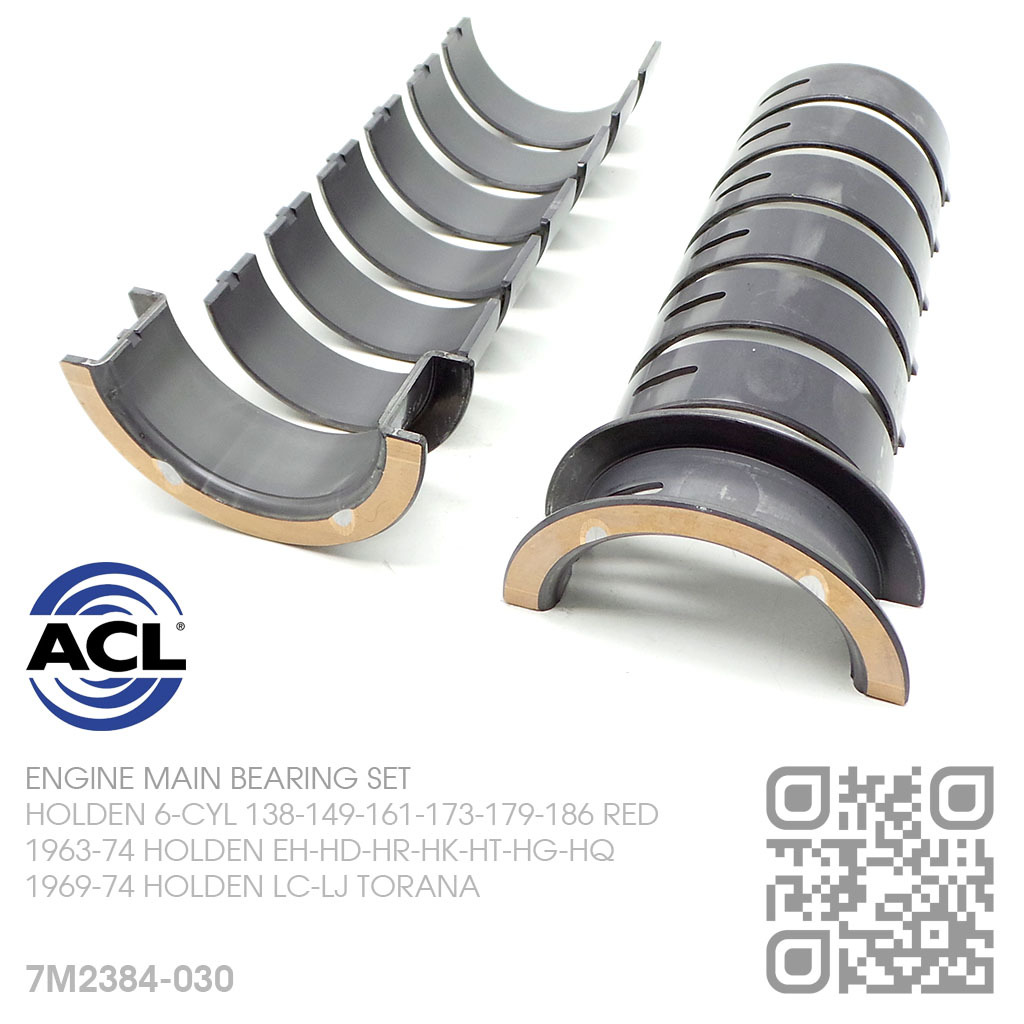

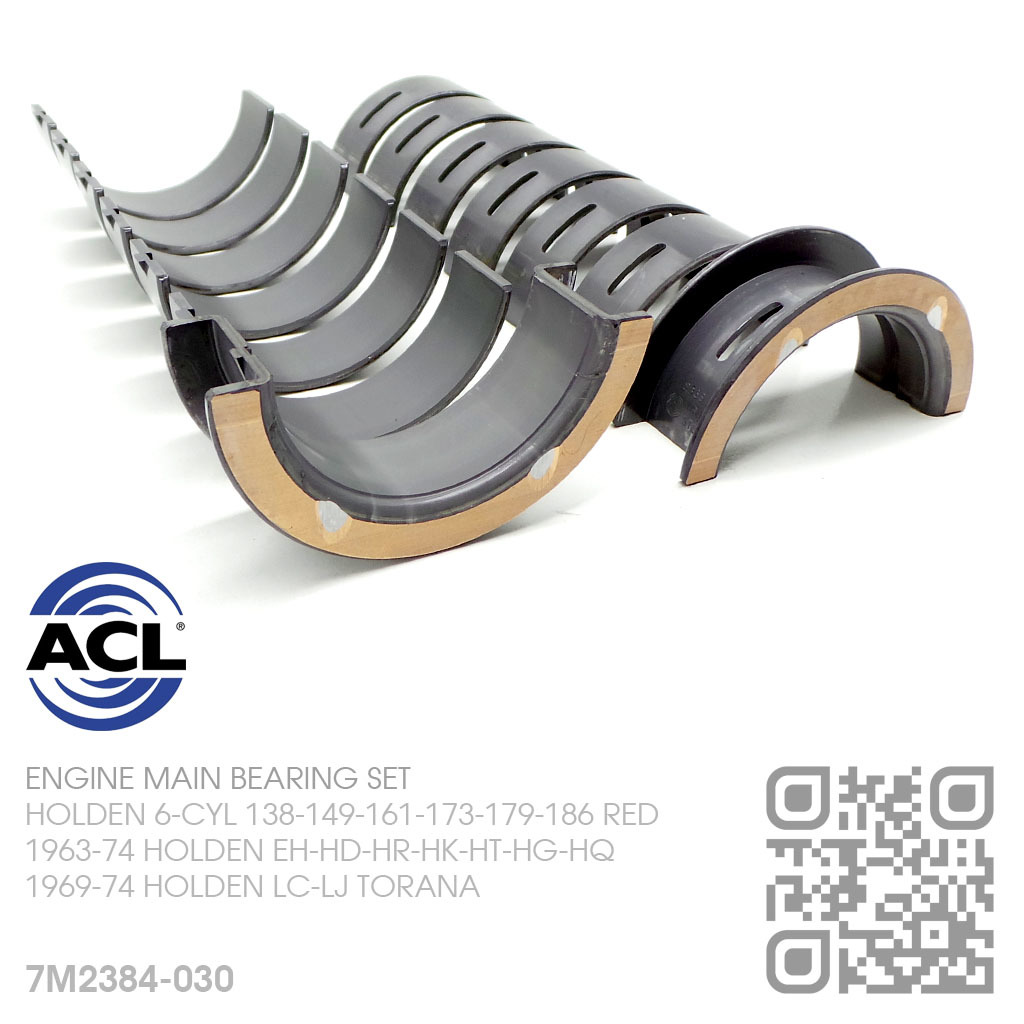

ACL DURAGLIDE MAIN BEARINGS SET -0.030" UNDERSIZE [HOLDEN 6-CYL 138-149-161-173-179-186 RED MOTOR]

1963-74 HOLDEN [EH-HD-HR-HK-HT-HG-HQ & LC-UC TORANA]

$114.50
In Stock


Calculate Shipping



Free shipping - $0.00

ACL DURAGLIDE 780 MAIN BEARING SET
-0.030" UNDERSIZE
HOLDEN 6-CYL 138-149-161-173-179-186 RED MOTOR

1963-74 HOLDEN [EH-HD-HR-HK-HT-HG-HQ SERIES]
1969-74 HOLDEN [LC-LJ TORANA]

Description

ACL DURAGLIDE 780 MAIN BEARING SET
2.198" -0.030" UNDERSIZE
HOLDEN 6-CYL 138-149-161-173-179-186 RED MOTOR

08/1963-1974 HOLDEN [EH-HD-HR-HK-HT-HG-HQ SERIES]
10/1969-1974 HOLDEN [LC-LJ TORANA]

ACL Duraglide 780 Series Bearings are made from extremely high quality multi-layered materials. A steel backing to provide supporting strength for the lining with Copper-lead (Tri-Metal). These are leaded bronze alloys, and are strong and adaptable. They provide the bearing with good fatigue strength, as well as good anti-seizure properties.

For crankshaft bearings this lining is combined with a softer electroplated lead based overlay to give the bearing better conformability and improved anti-seizure tolerance. ACL Duraglide Engine Bearings are a must for your performance or stock engine.

SPECIFICATIONS:

POSITION 1,2,3,4,5,6
Min Standard Shaft Size: 2.1978" / 55.824mm
Max Standard Shaft Size: 2.1988" / 55.849mm
Min Standard Tunnel Size: 2.3906" / 60.721mm
Max Standard Tunnel Size: 2.3916" / 60.747mm
Max Wall At Crown: 0.0955" / 2.426mm
Max Overall Length: 0.8071" / 20.5mm
Min Vertical Oil Clearance: 0.0007" / 0.019mm
Max Vertical Oil Clearance: 0.0038" / 0.097mm

POSITION 7
Min Standard Shaft Size: 2.1978" / 55.824mm
Max Standard Shaft Size: 2.1988" / 55.849mm
Min Standard Tunnel Size: 2.3906" / 60.721mm
Max Standard Tunnel Size: 2.3916" / 60.747mm
Max Wall At Crown: 0.0955" / 2.426mm
Max Overall Length: 1.0091" / 25.63mm
Min Vertical Oil Clearance: 0.0007" / 0.019mm
Max Vertical Oil Clearance : 0.0038" / 0.097mm

Material: F780 (TRI-METAL)
Series: ACL DURAGLIDE 780

The Main Bearing Sets are manufactured in Tasmania (Australia) by Leaders in Bearing technologies ACL Bearing Company. ACL is Australia's premier manufacturer of precision engine bearings and has been a Original Equipment Manufacturer to Holden.

REPLACES HOLDEN PART# 7430408

SPECIAL NOTE:
CRANKSHAFT MACHINED -0.030" UNDERSIZE

MADE IN AUSTRALIA


138ci 2250 (2262cc) RED
10/1969-1973 HOLDEN [LC-LJ TORANA]

149ci (2442cc) RED
08/1963-1966 HOLDEN [EH-HD SERIES]

161ci 2600 (2638cc) RED
04/1966-1971 HOLDEN [HR-HK-HT-HG SERIES]
10/1969-1971 HOLDEN [LC TORANA & GTR]

173ci 2850 (2838cc) 2.85L RED
07/1971-1971 HOLDEN [HG UTE/VAN]
07/1971-1974 HOLDEN [HQ SERIES]
07/1971-1974 HOLDEN [LC-LJ TORANA]

179ci (2934cc) RED
08/1963-1966 HOLDEN [EH-HD SERIES]

186ci (3048cc) RED
04/1966-1971 HOLDEN [HR-HK-HT-HG SERIES]
08/1970-1972 HOLDEN [LC TORANA GTR-XU1]

Warranty

Features

Specifications

POSITION 1,2,3,4,5,6
Min Standard Shaft Size: 2.1978" / 55.824mm
Max Standard Shaft Size: 2.1988" / 55.849mm
Min Standard Tunnel Size: 2.3906" / 60.721mm
Max Standard Tunnel Size: 2.3916" / 60.747mm
Max Wall At Crown: 0.0955" / 2.426mm
Max Overall Length: 0.8071" / 20.5mm
Min Vertical Oil Clearance: 0.0007" / 0.019mm
Max Vertical Oil Clearance: 0.0038" / 0.097mm

POSITION 7
Min Standard Shaft Size: 2.1978" / 55.824mm
Max Standard Shaft Size: 2.1988" / 55.849mm
Min Standard Tunnel Size: 2.3906" / 60.721mm
Max Standard Tunnel Size: 2.3916" / 60.747mm
Max Wall At Crown: 0.0955" / 2.426mm
Max Overall Length: 1.0091" / 25.63mm
Min Vertical Oil Clearance: 0.0007" / 0.019mm
Max Vertical Oil Clearance : 0.0038" / 0.097mm

Material: F780 (TRI-METAL)
Series: ACL DURAGLIDE 780

SKU 7M2384-030
Model # 7M2384-030
Brand ACL
Shipping Weight 0.6000kg
Shipping Width 0.100m
Shipping Height 0.130m
Shipping Length 0.070m
Shipping Cubic 0.000910000m3
