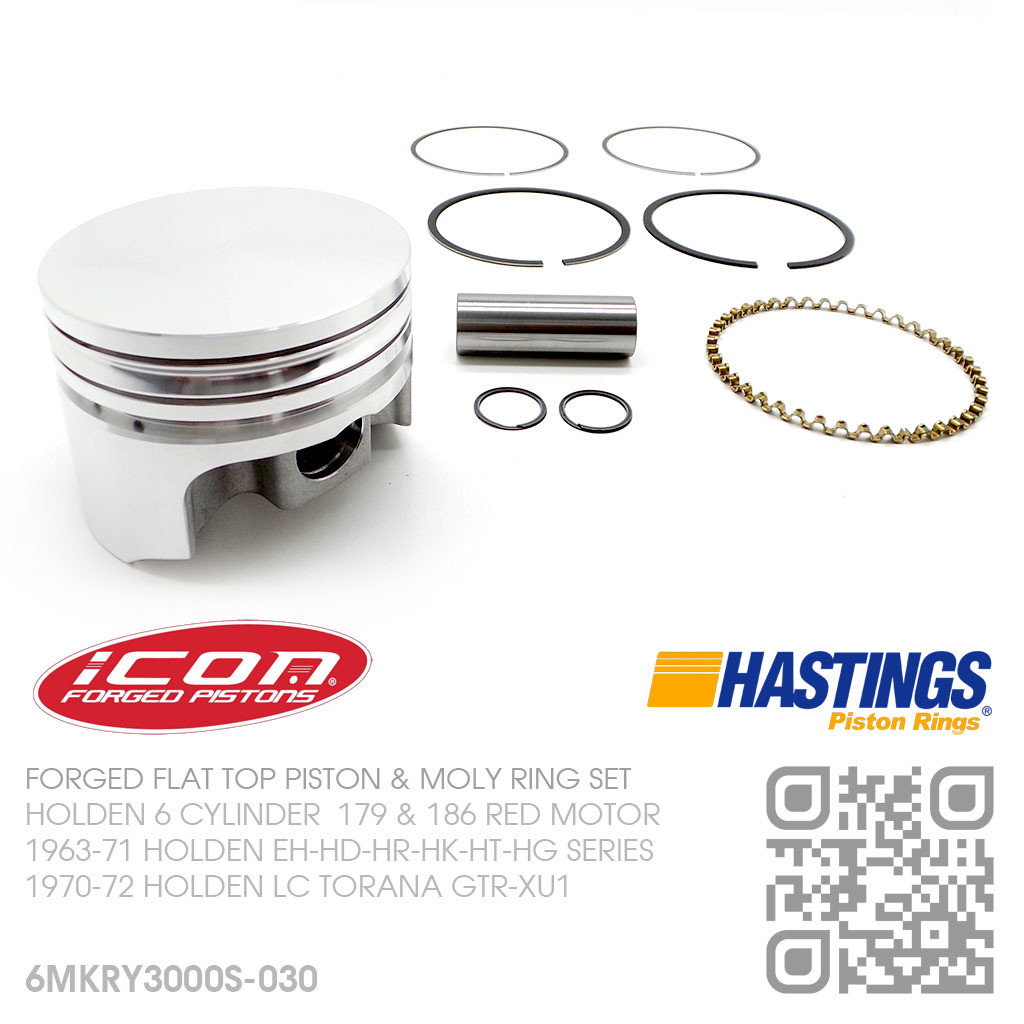

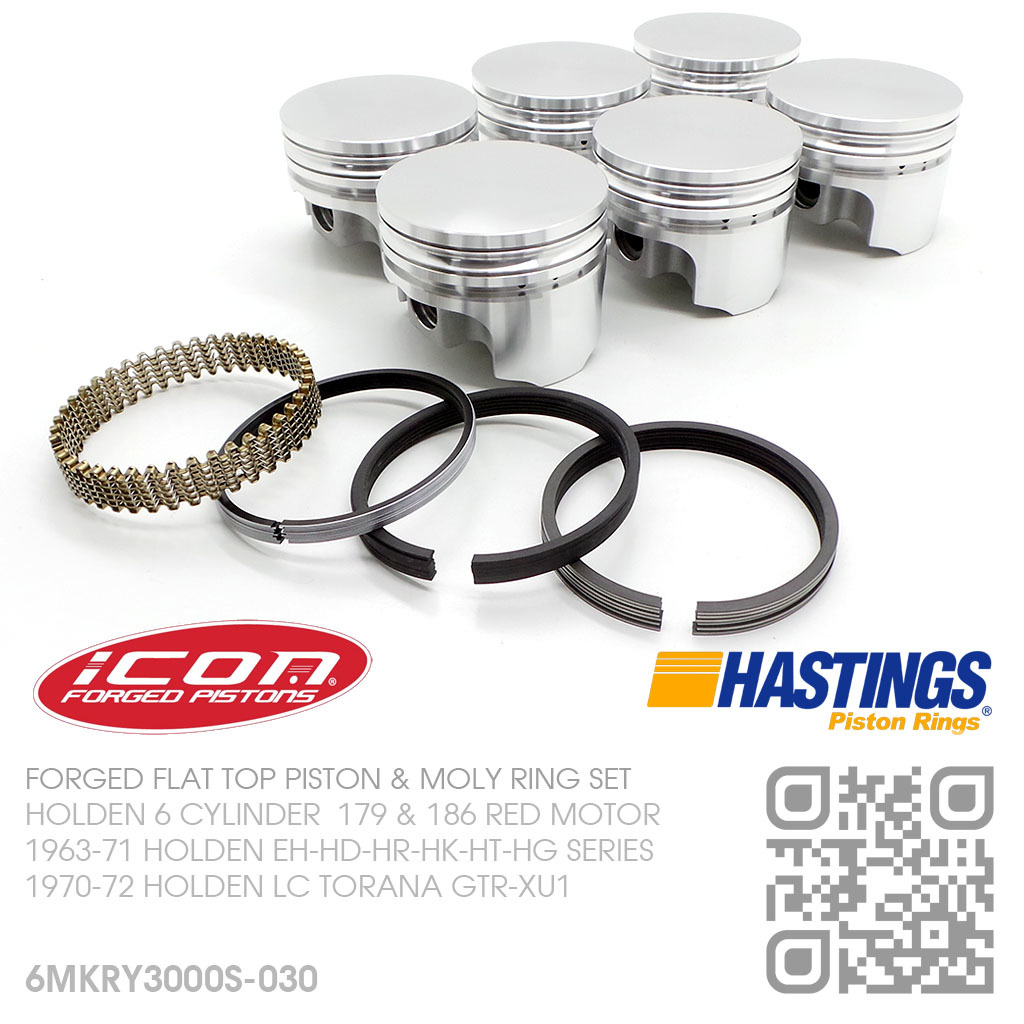

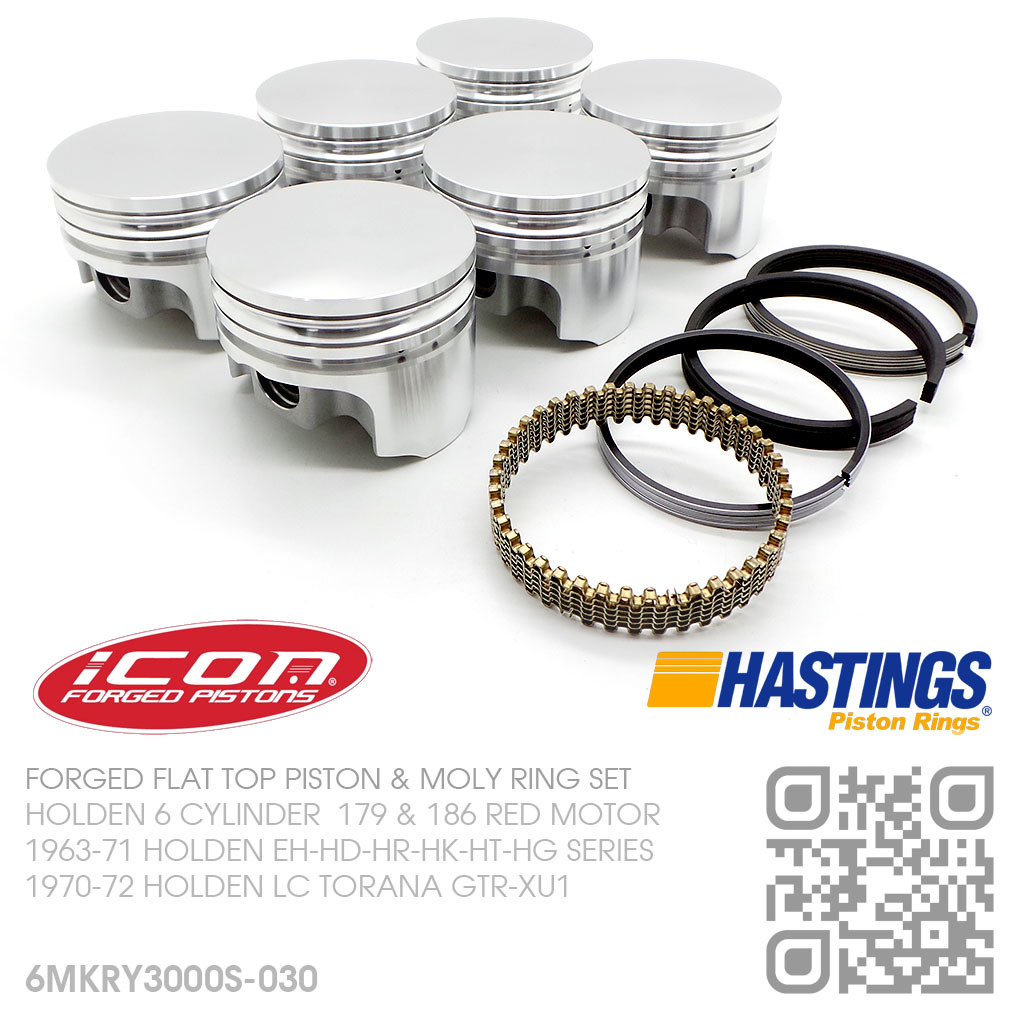

ICON 186+0.030" FORGED FLAT TOP PISTONS & HASTING MOLY RINGS [HOLDEN 6-CYL 186 RED MOTOR]
1963-71 HOLDEN [EH-HD-HR-HK-HT-HG & LC TORANA]
186+0.030" ICON HIGH PERFORMANCE FORGED 4032 ALLOY FLAT TOP PISTONS &
HASTINGS MOLY PISTON RING SET
HOLDEN 6 CYLINDER 179 & 186 RED MOTOR
08/1963-1971 HOLDEN [EH-HD-HR-HK-HT-HG SERIES]
08/1970-1972 HOLDEN [LC TORANA GTR-XU1]
The High Performance Forged Flat Top Pistons, Moly Piston Rings and Gudgeon Pins are engineered from the ground up for extreme high performance street or racing applications.

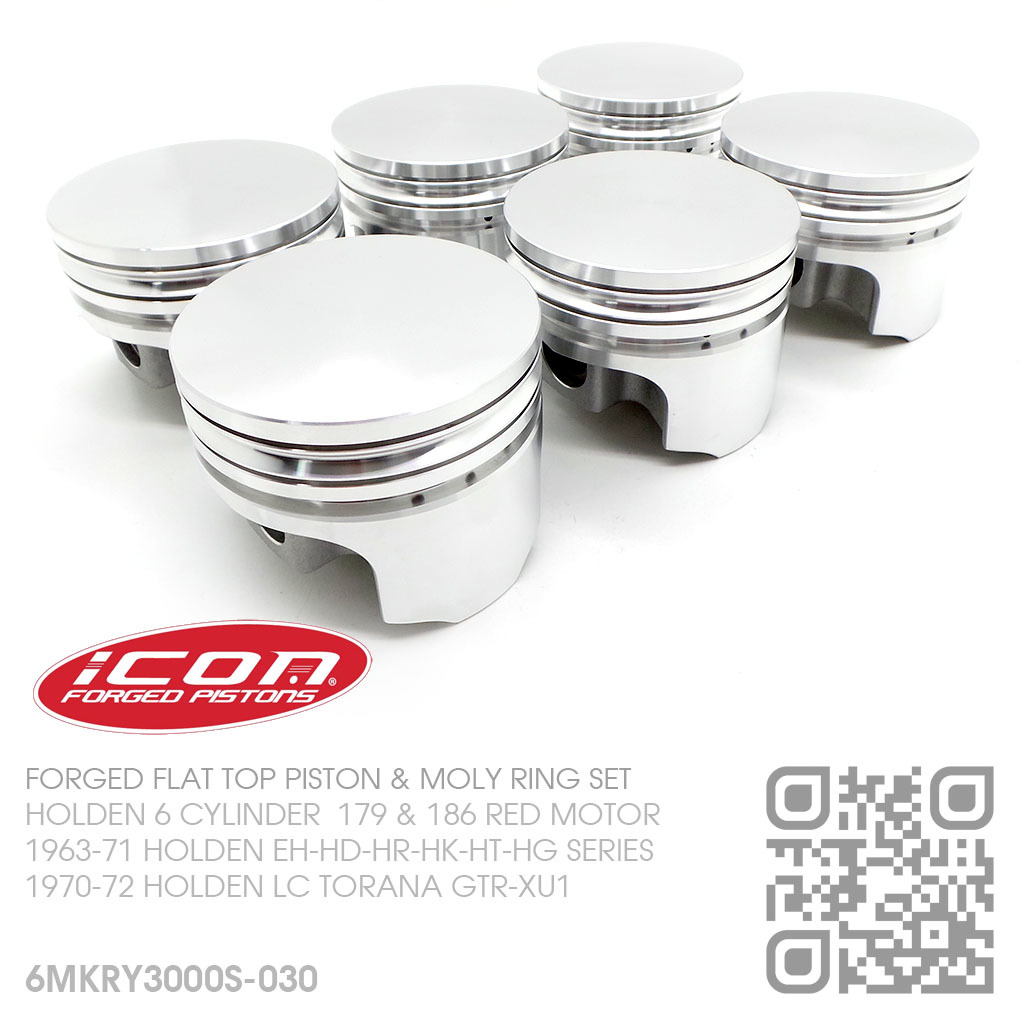

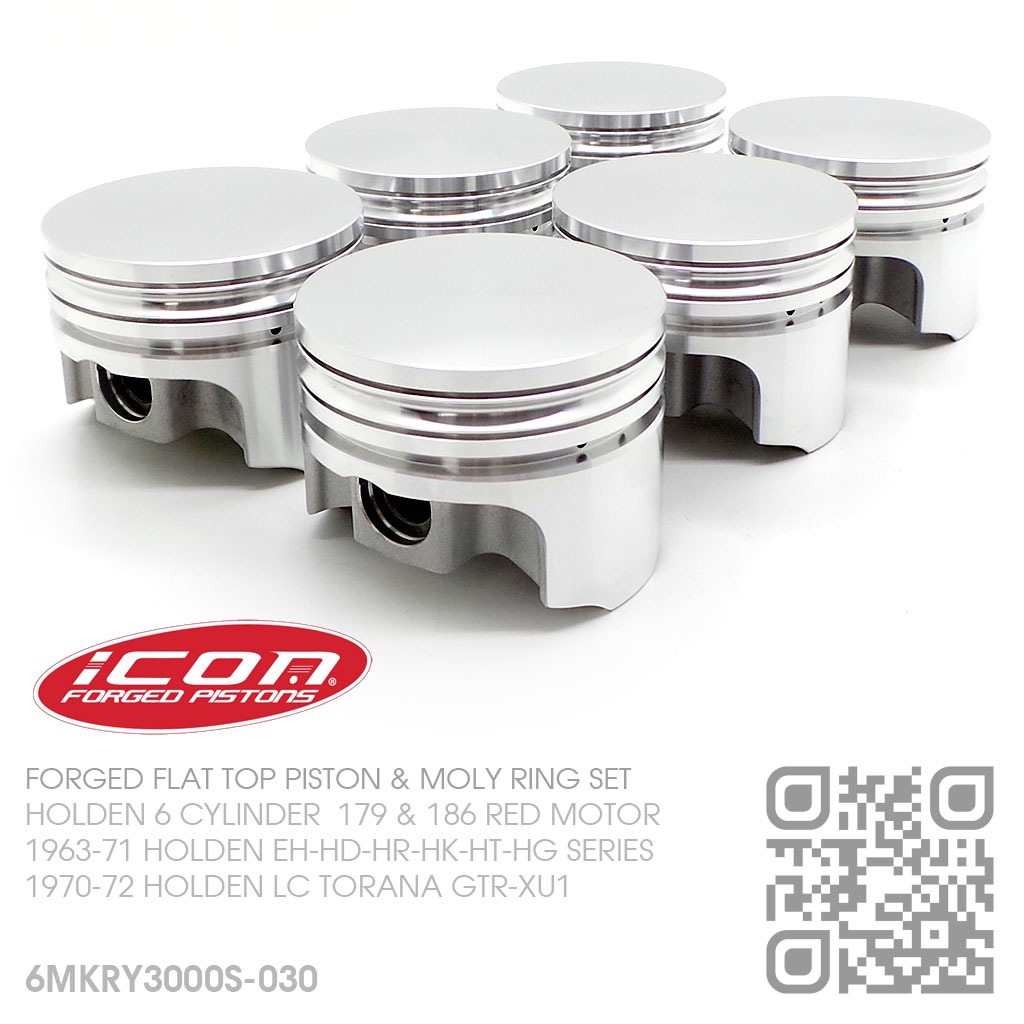

Icon Forged Pistons has put a century of piston design and experience into every Icon piston and the quality shows. Each Icon piston is forged from high-strength, heat treated, 2618 aluminium alloy. This makes Icon pistons significantly lighter than the competition, without sacrificing strength. Icon’s lightweight design allow your engine to rev quicker and get into it’s power band faster. The V-rib design promotes maximum piston cooling.

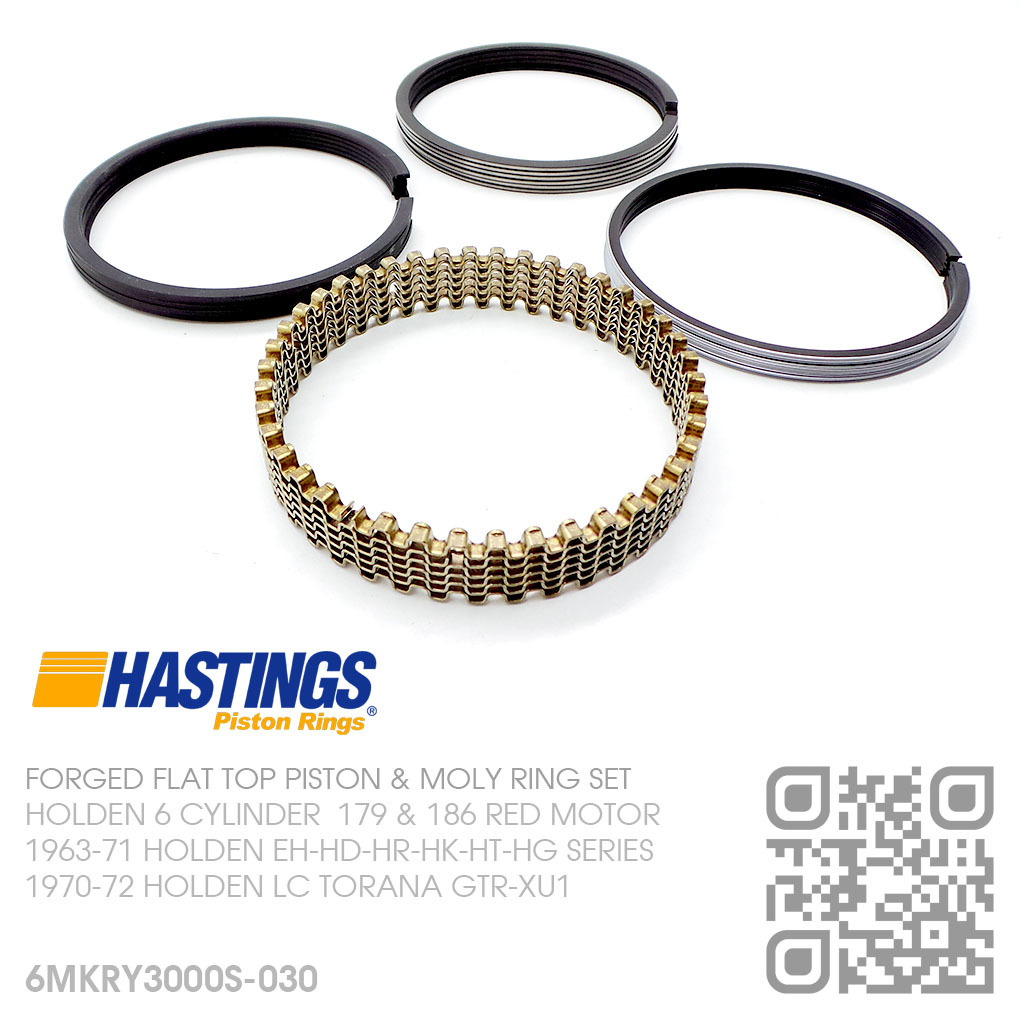

The moly piston rings are manufactured in the United States of America by Hastings leaders in Piston Ring technologies and have been in business for over a hundred years.
Bore Size: 3.625"
Size: 0.75mm / .030"

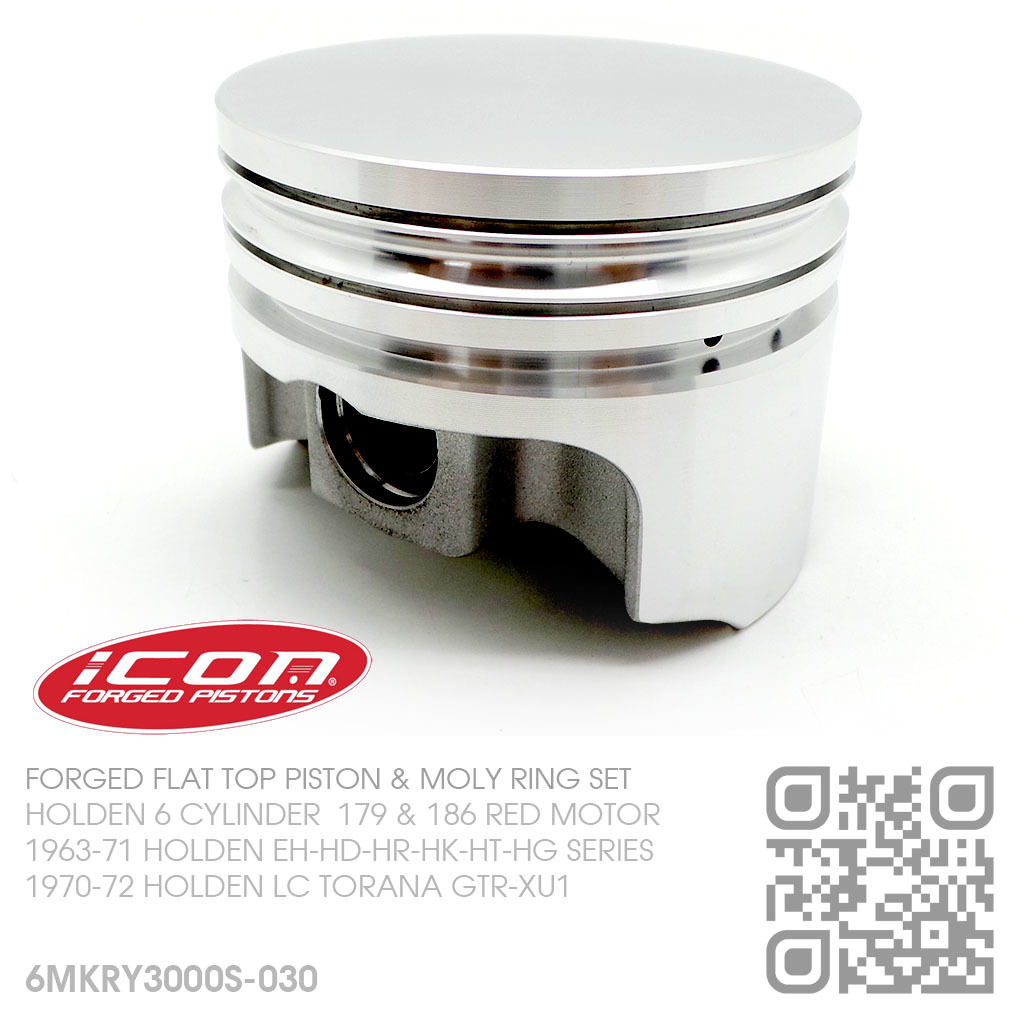

Head Type: FLAT TOP FORGED
Piston Type: FORGED 4032 ALLOY
Con Rod Length: 5.250"
Compression Height: 1.780"

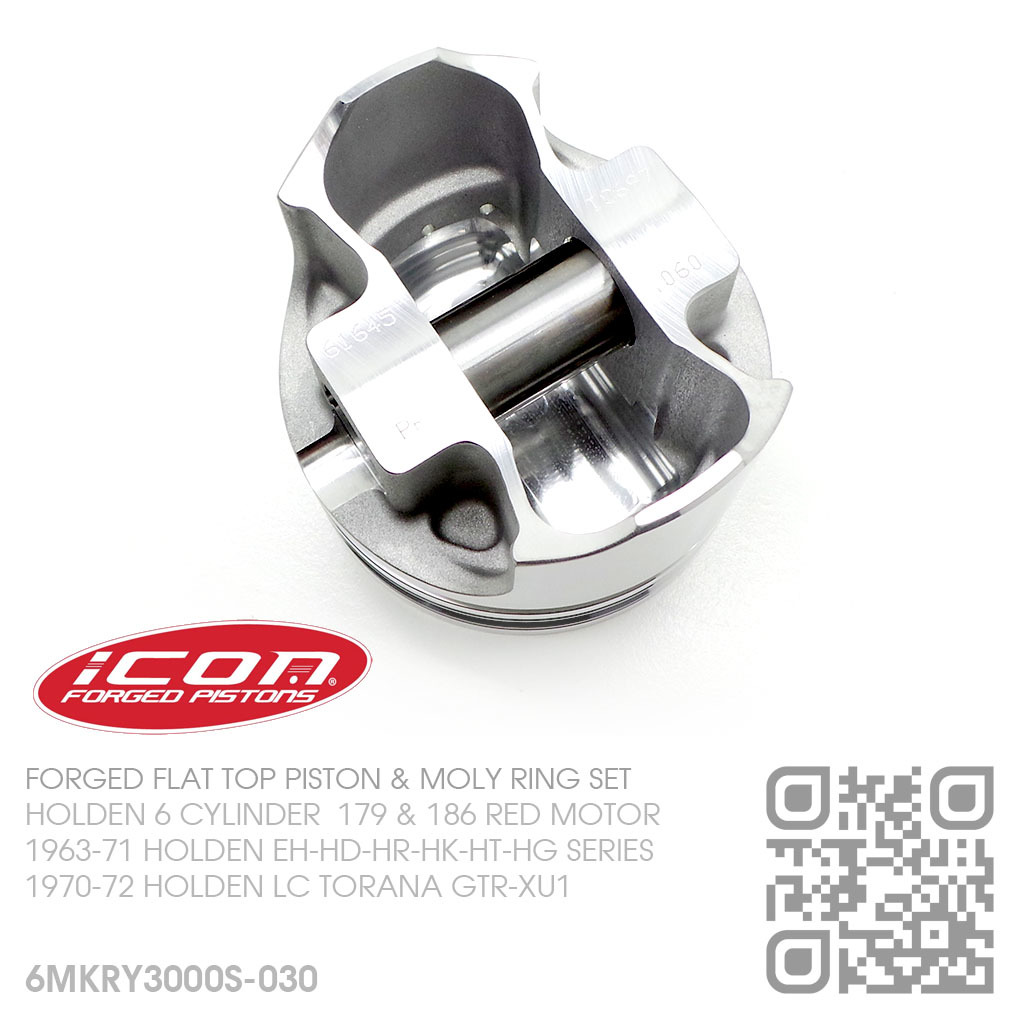

Pin Size: .866" x 2.600"
Pin Type: PRESS & FULL FLOATING
Weight: 500/116 Grams
Top Ring Width: 1/16"
2nd Ring Width: 1/16"
Oil Ring Width: 3/16"
MADE IN USA & MEXICO
|179ci (2934cc) RED|
|08/1963-1966 HOLDEN [EH-HD SERIES]|
|186ci (3048cc) RED|
|04/1966-1971 HOLDEN [HR-HK-HT-HG]|
|08/1970-1972 HOLDEN [LC TORANA GTR-XU1]|
|Brand||iCON & Hastings|
