SKU: 4770

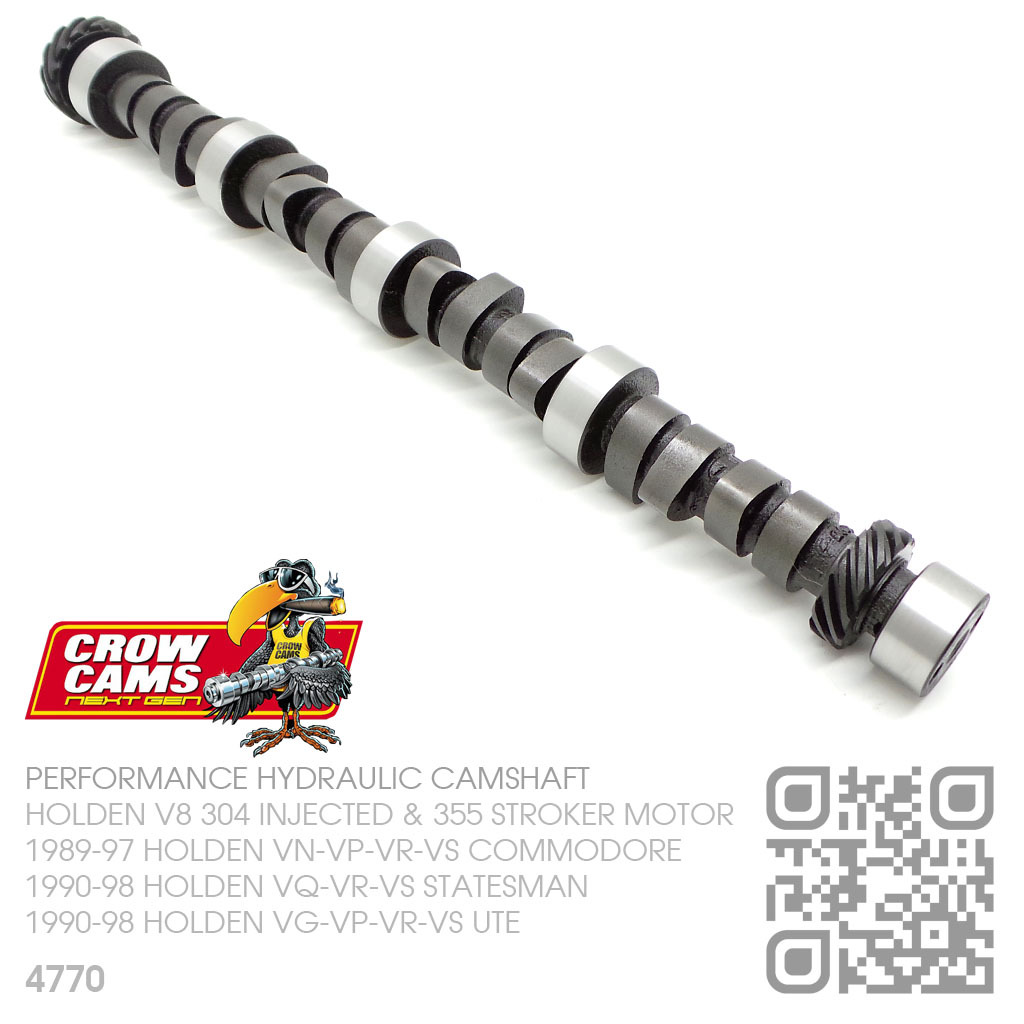

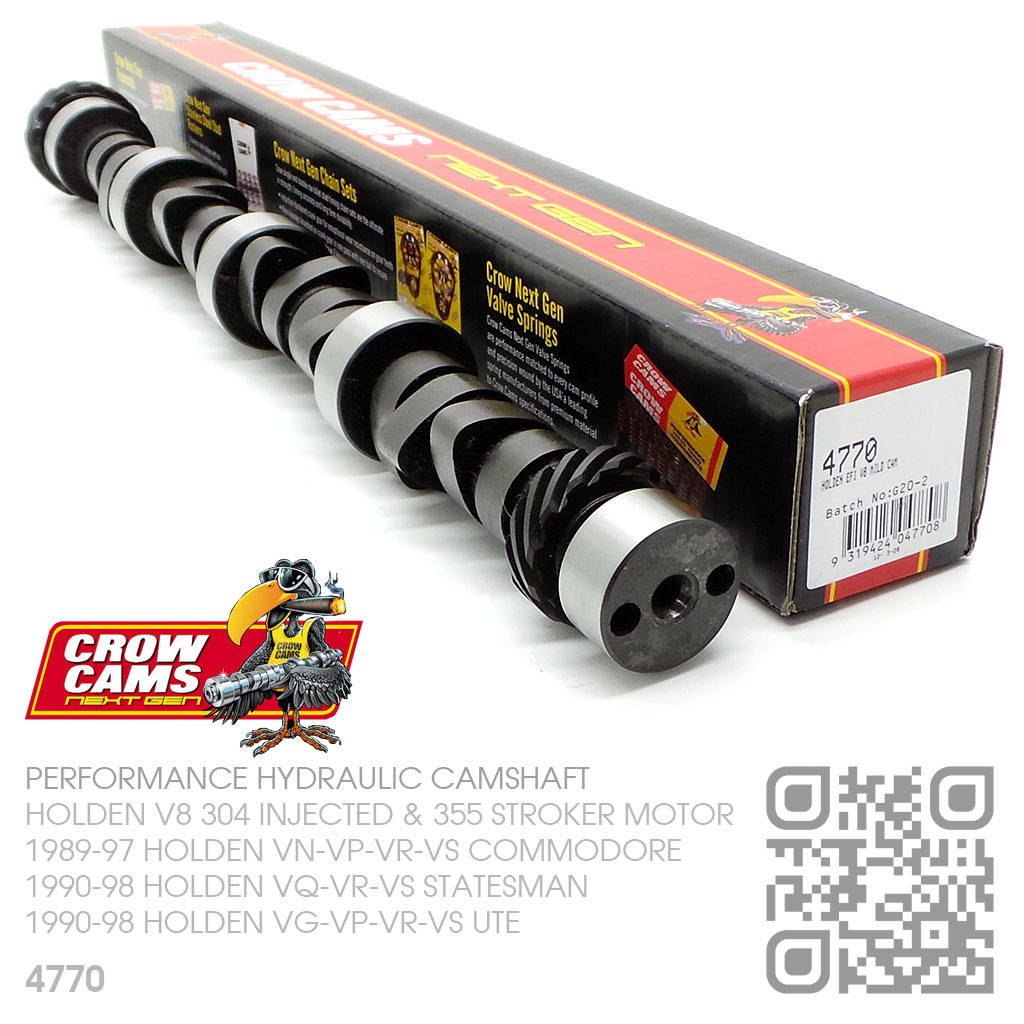

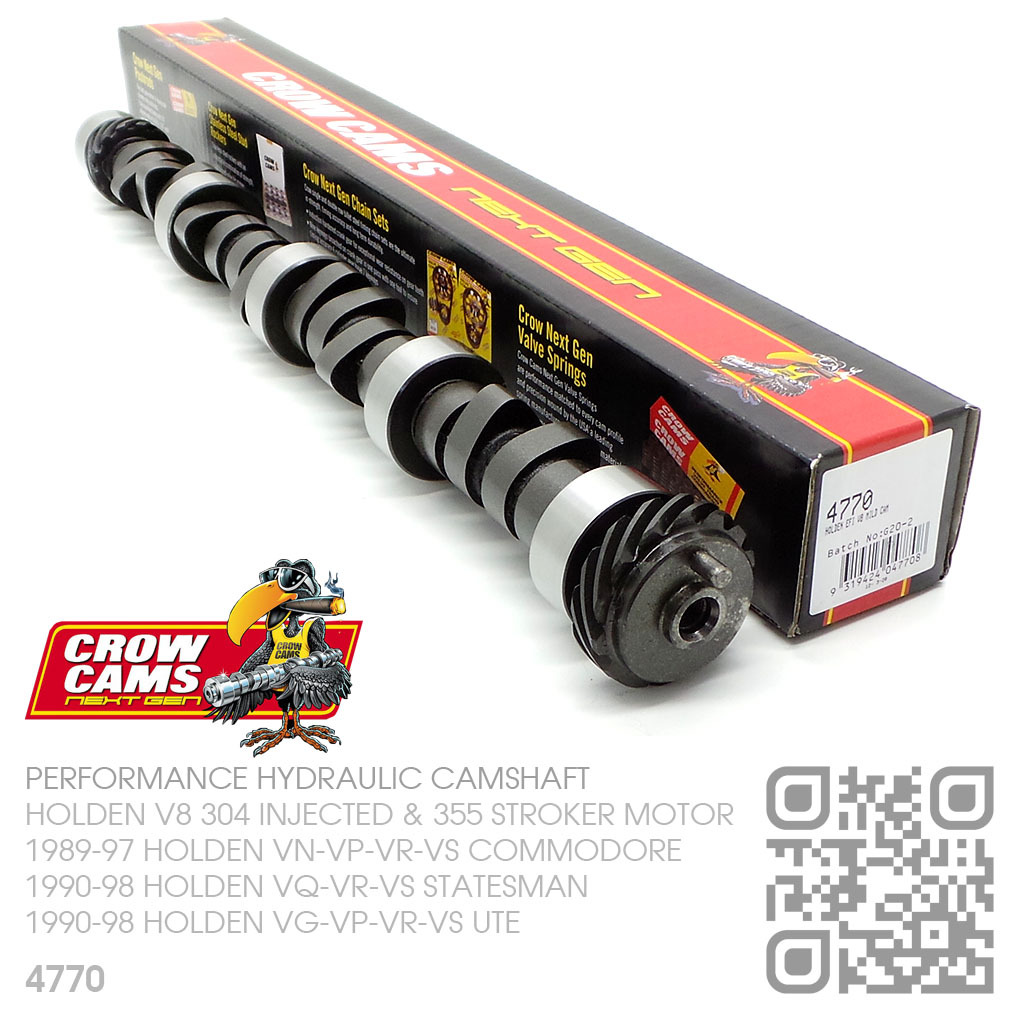

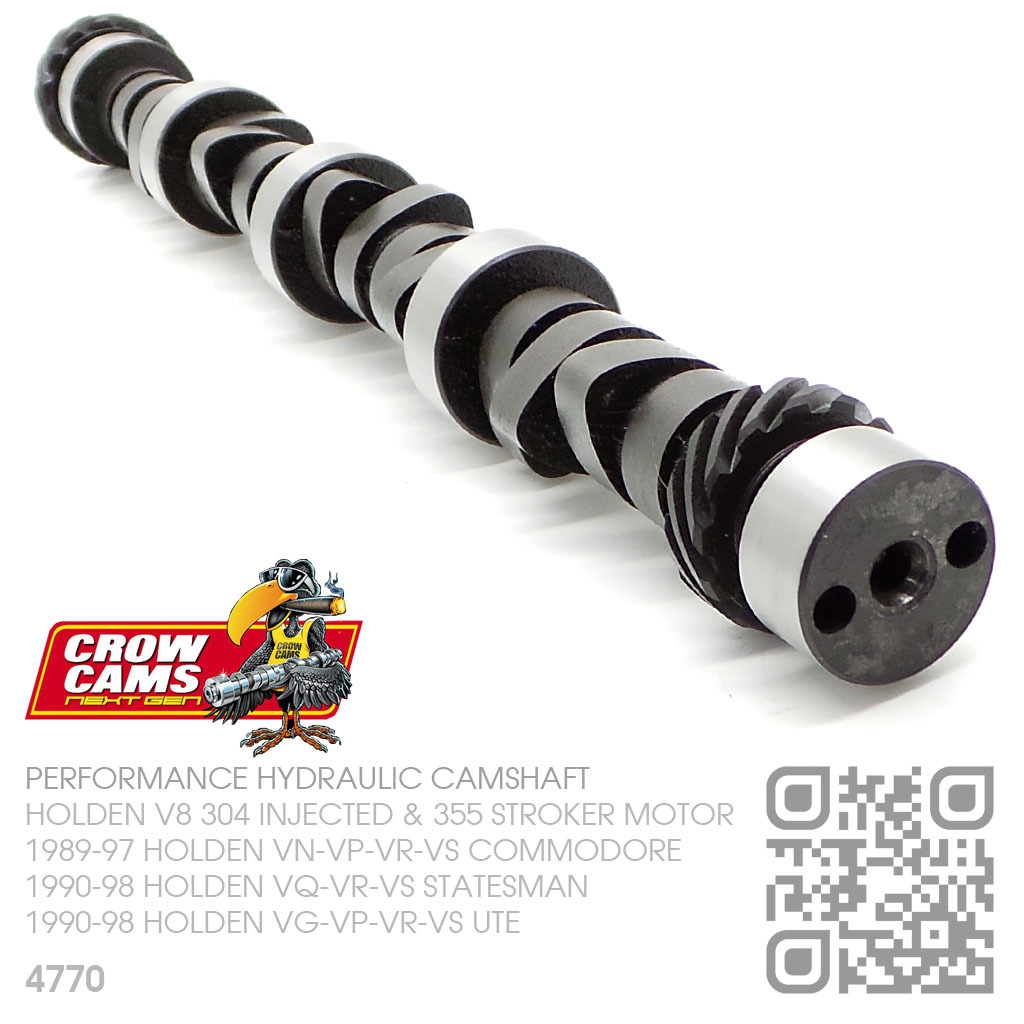

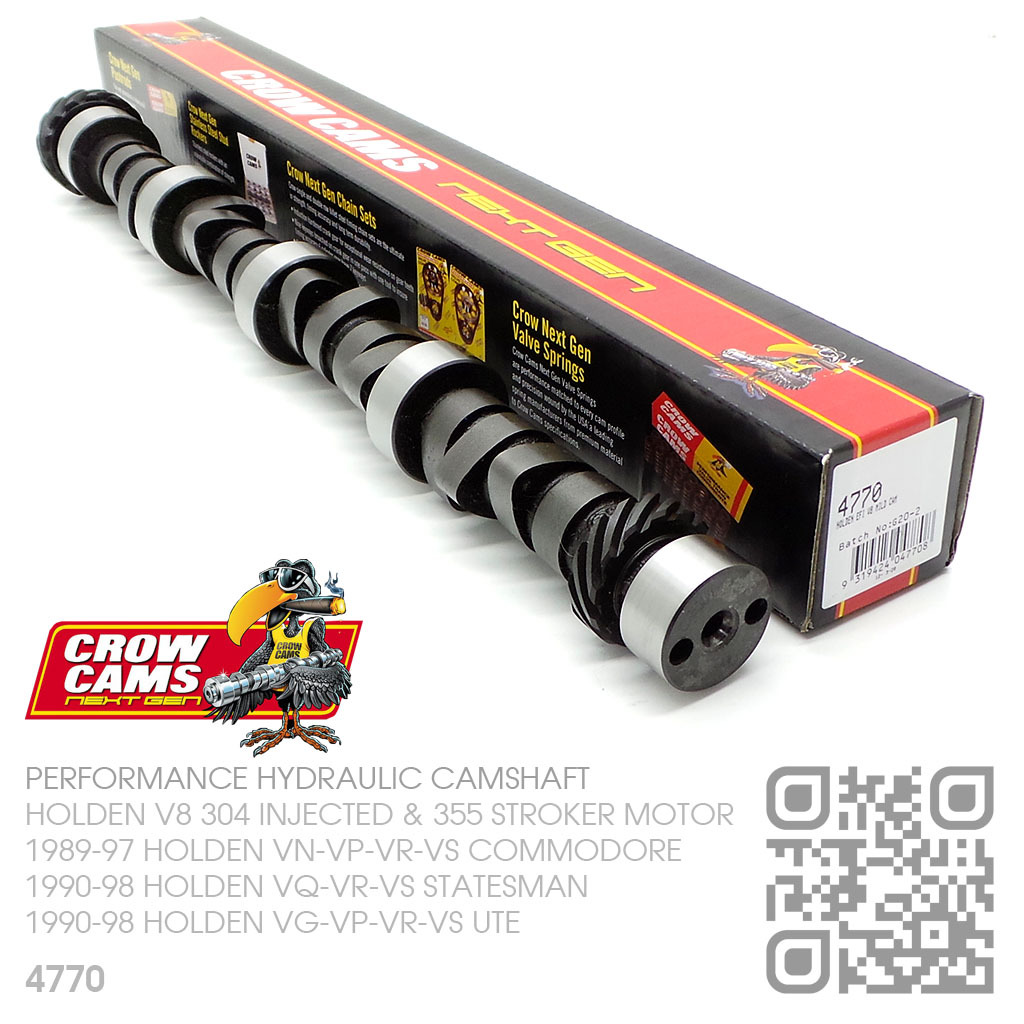

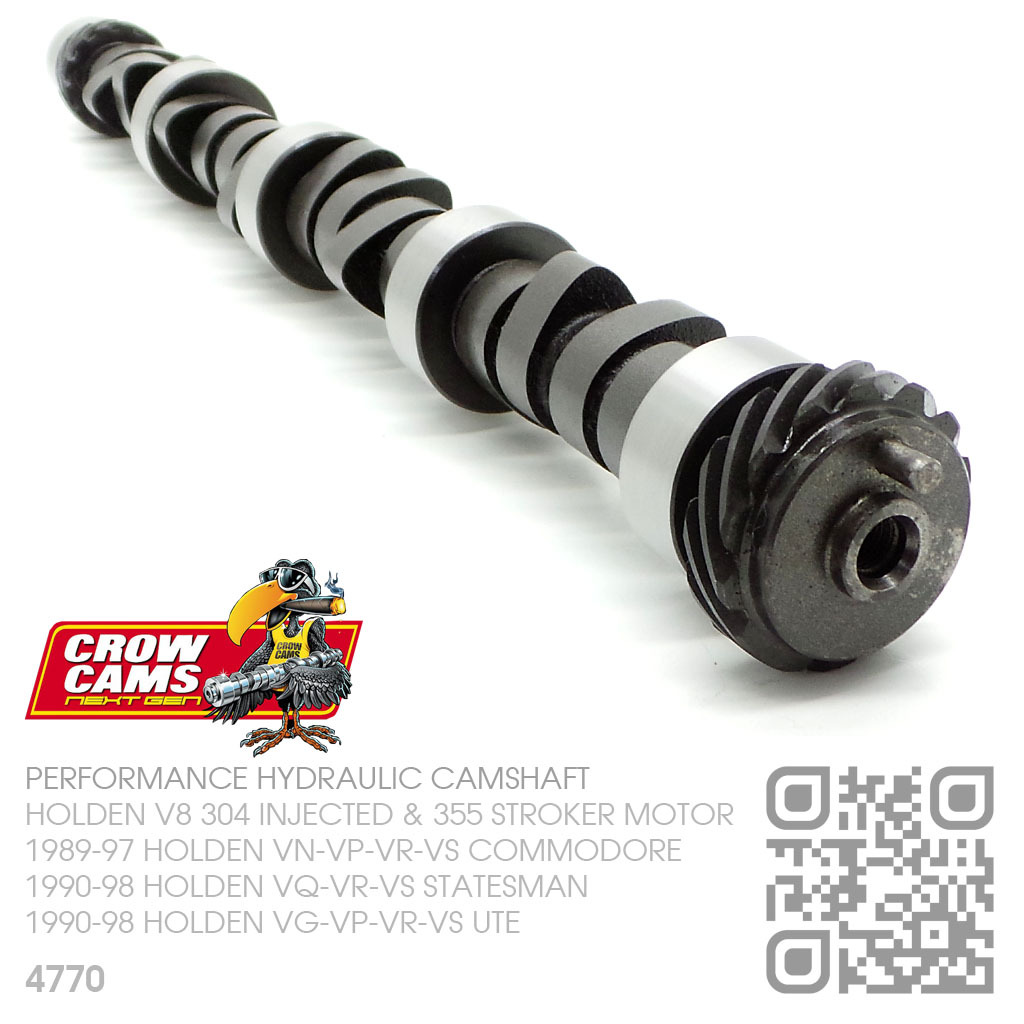

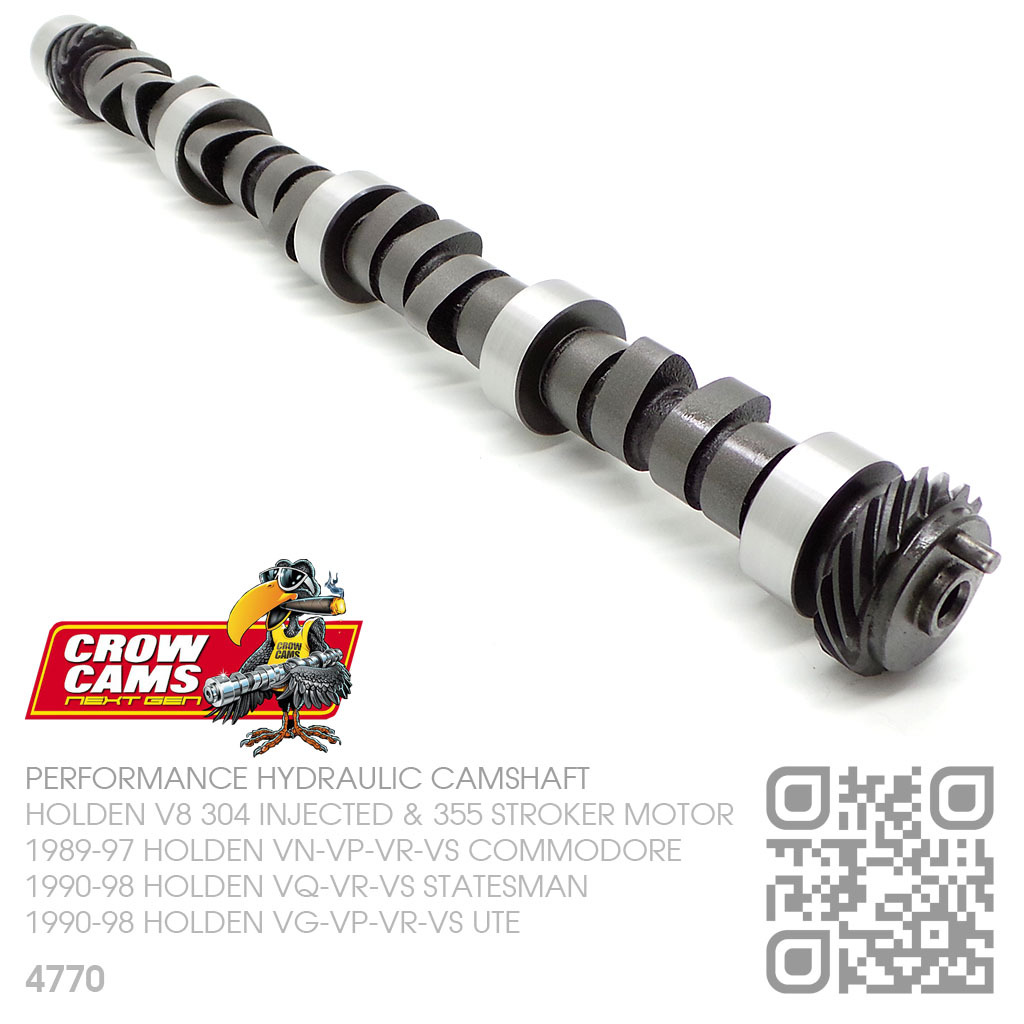

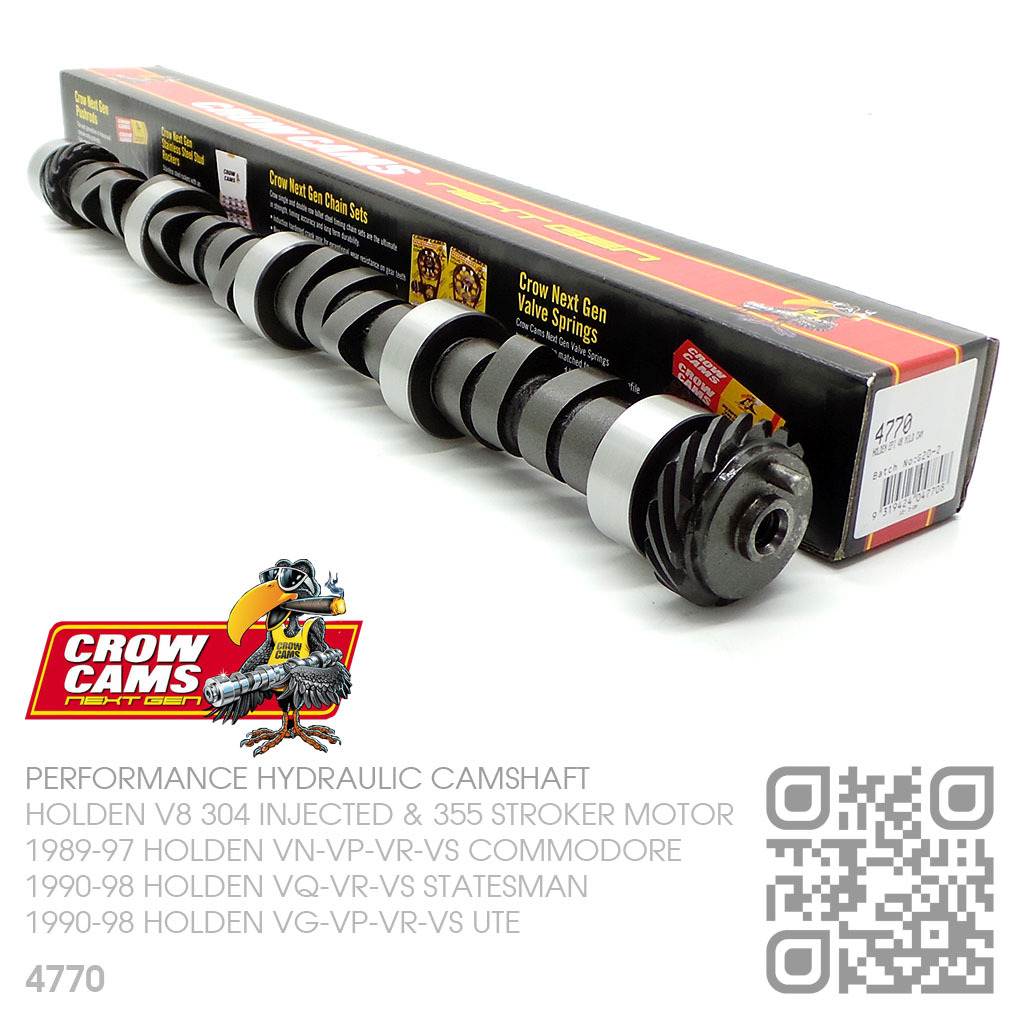

CROW CAMS 4770 PERFORMANCE BILLET HYDRAULIC CAMSHAFT [HOLDEN V8 304 INJECTED 5.0L & 355 STROKER 5.7L MOTOR]

1989-98 HOLDEN [VN-VP-VR-VS COMMODORE]

$413.50
In Stock


Calculate Shipping



Free shipping - $0.00

CROW CAMS PERFORMANCE BILLET HYDRAULIC CAMSHAFT
HOLDEN V8 304 INJECTED 5.0L & 355 STROKER 5.7L MOTOR

1989-97 HOLDEN [VN-VP-VR-VS COMMODORE]
1990-98 HOLDEN [VQ-VR-VS STATESMAN]
1990-98 HOLDEN [VG-VP-VR-VS UTE]

Description

CROW CAMS 4770 NEXT GEN PERFORMANCE BILLET HYDRAULIC CAMSHAFT
LB9 HOLDEN V8 304 INJECTED 5.0L MOTOR
L98 HOLDEN V8 355 STROKER 5.7L MOTOR (348ci)

03/1989-08/1997 HOLDEN [VN-VP-VR-VS COMMODORE]
03/1990-10/1998 HOLDEN [VQ-VR-VS STATESMAN/CAPRICE]
09/1990-10/1998 HOLDEN [VG-VP-VR-VS UTE]

Crow Cams' unique Next Gen cam design and CNC grinding technology is applied to a huge range of hydraulic lifter camshafts, for maximum torque and power in street or race applications.

Crow Cams' world class CNC grinding and inspection facilities have also been upgraded to ensure an even greater degree of grinding accuracy in terms of surface finish and cam position. These characteristics are checked on every cam on our CNC checking machines, which are regularly calibrated on our in-house Adcole camshaft coordinate measuring machine.

SPECIFICATIONS:
Camshaft Part Number: 4770
RPM Range: 2100 - 5000
Advertised Duration Intake: 280º
Advertised Duration Exhaust: 290º
Duration @.050" Intake: 214º
Duration @.050" Exhaust: 224º
Valve Lift Intake: 0.483"
Valve Lift Exhaust: 0.490"
Rocker Ratio: 1.65:1
Lobe Separation Angle: 111º

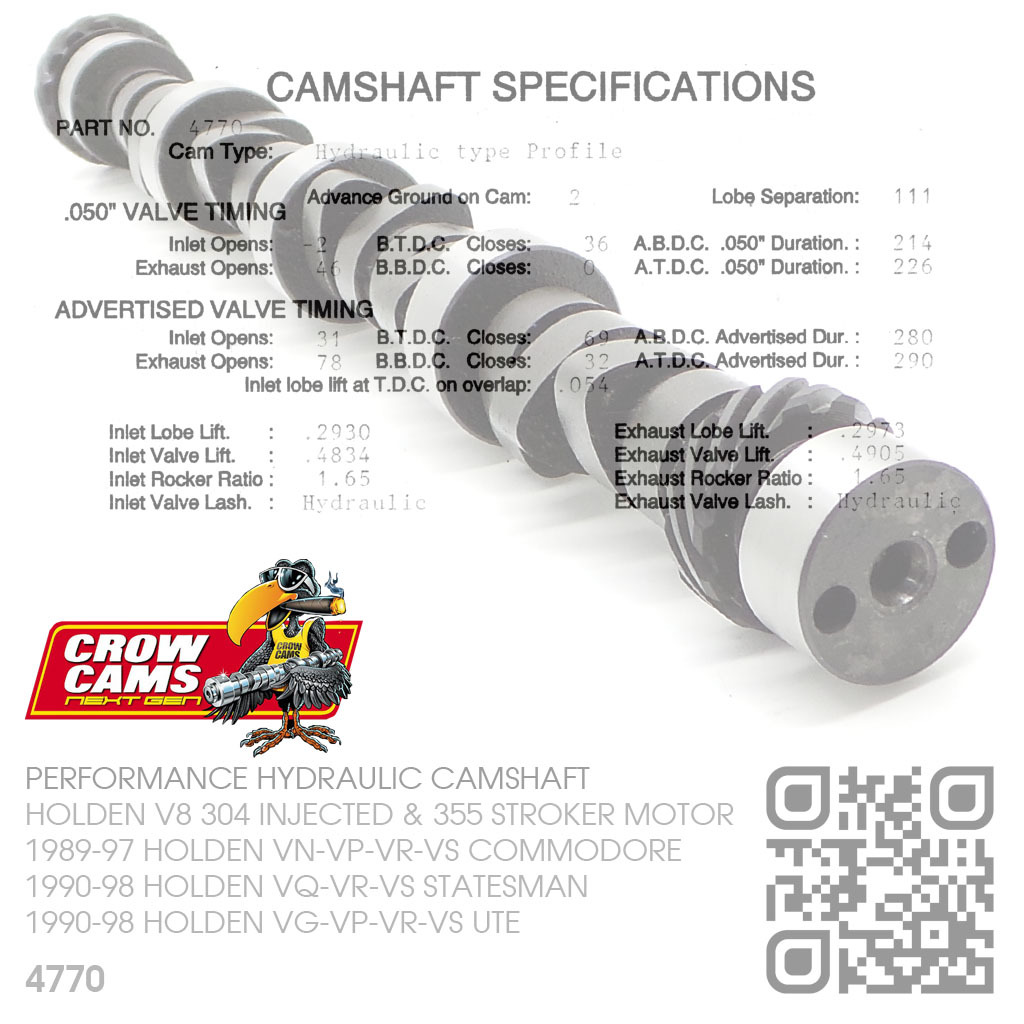

Detailed Cam Card: SEE LAST PRODUCT PHOTO
Camshaft Characteristics: MEDIUM PERFORMANCE CAM WITH GREAT TORQUE & MID RANGE POWER . BENEFITS WITH STALL CONVERTER

CAMSHAFT REQUIREMENTS:
Cylinder Head Requirements: PERFORMANCE VALVE SPRINGS
Engine Requirements: NEW PERFORMANCE HYDRAULIC LIFTERS
ECU Requirements: RE-TUNE/CALIBRATION REQUIRED

For more than 30 years, Crow Cams in Australia, have developed valve train products and developed unique camshafts.

SPECIAL NOTE:
NEW HYDRAULIC LIFTERS ARE HIGHLY RECOMMENDED
NOT SUITABLE FOR VT ROLLER CAM ENGINES

IMPORTANT NOTE:
THE FIRST 20 MINUTES OF RUN-IN, IS A CRITICAL TIME IN THE LIFE OF YOUR CAMSHAFT, DURING WHICH TIME THE LIFTER FACES BED INTO THE CAMSHAFT LOBES. OIL FILTER AND OIL CHANGE AFTER RUN IN PERIOD IS HIGHLY RECOMMENDED

CRITICAL NOTE:
USE ZDDP100 OIL ADDITIVE AND QUALITY MINERAL ENGINE OIL ONLY

MADE IN AUSTRALIA


HOLDEN V8 INJECTED MOTOR

LB9 HOLDEN V8 304 INJECTED 5.0L MOTOR
03/1989-08/1997 HOLDEN [VN-VP-VR-VS-VT COMMODORE]
03/1990-10/1998 HOLDEN [VQ-VR-VS STATESMAN]
09/1990-10/1998 HOLDEN [VG-VP-VR-VS UTE]

L98 HOLDEN V8 355 STROKER 5.7L MOTOR (348ci)
05/1994-08/1997 HSV [VR-VS GTS/SENATOR & LIMITED EDITIONS]

Warranty

Features

Specifications

SKU 4770
Model # 4770
Barcode # 9319424047708
Brand Crow Cams
Shipping Weight 4.0000kg
Shipping Width 0.610m
Shipping Height 0.060m
Shipping Length 0.060m
Shipping Cubic 0.002196000m3
