SKU: 35666

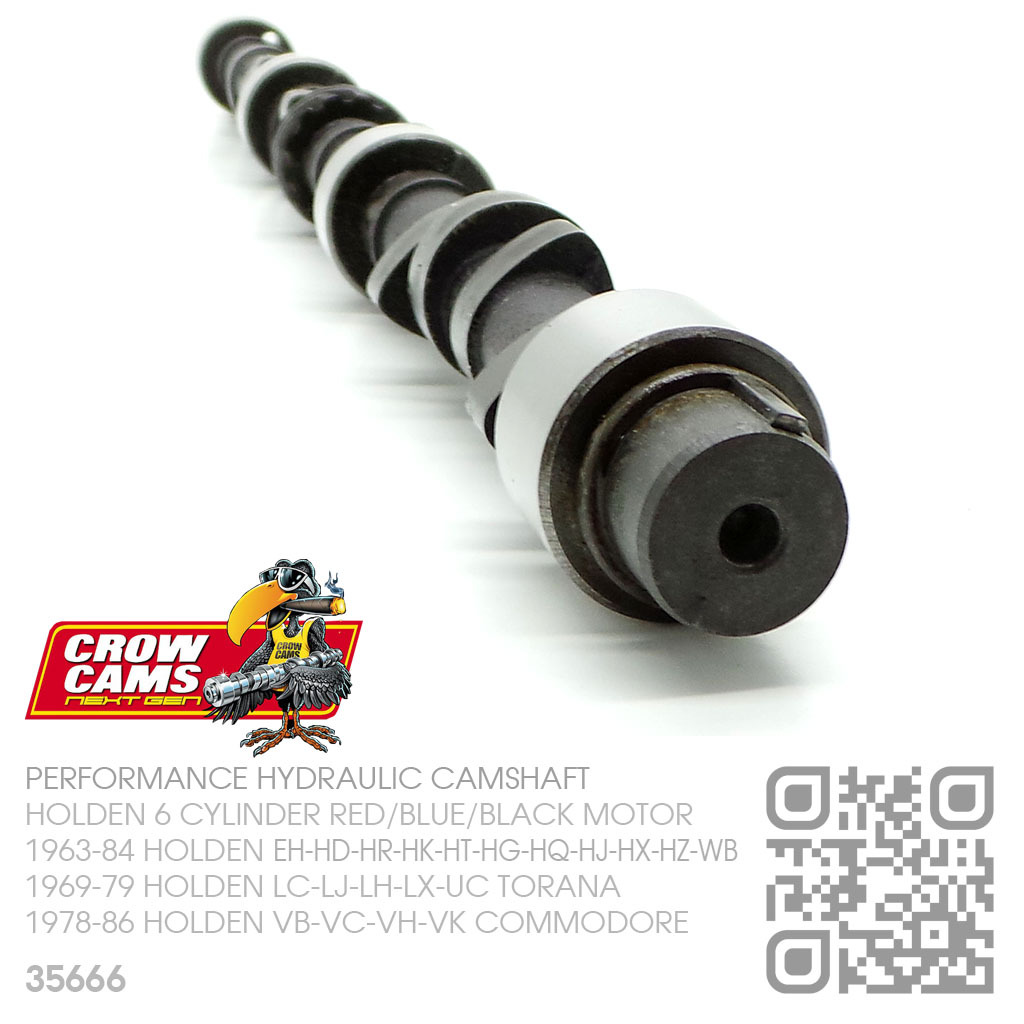

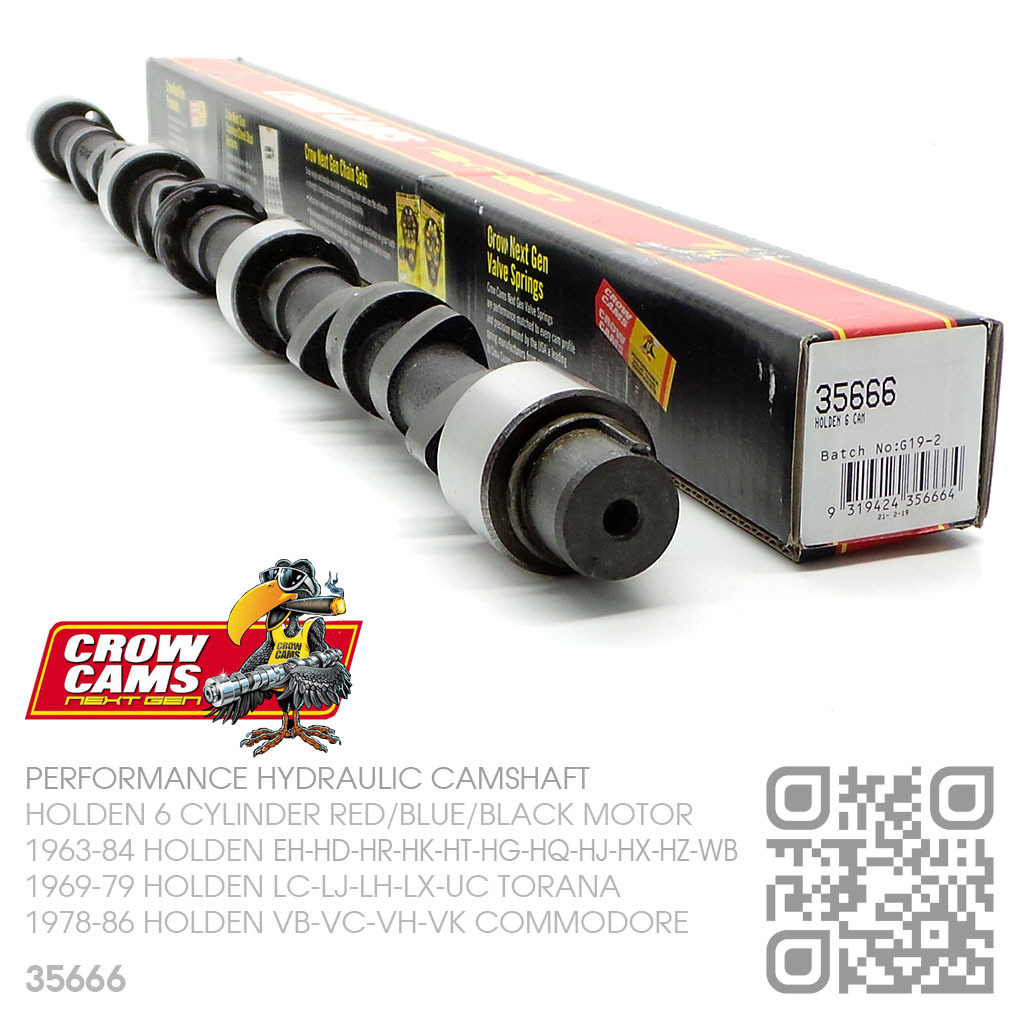

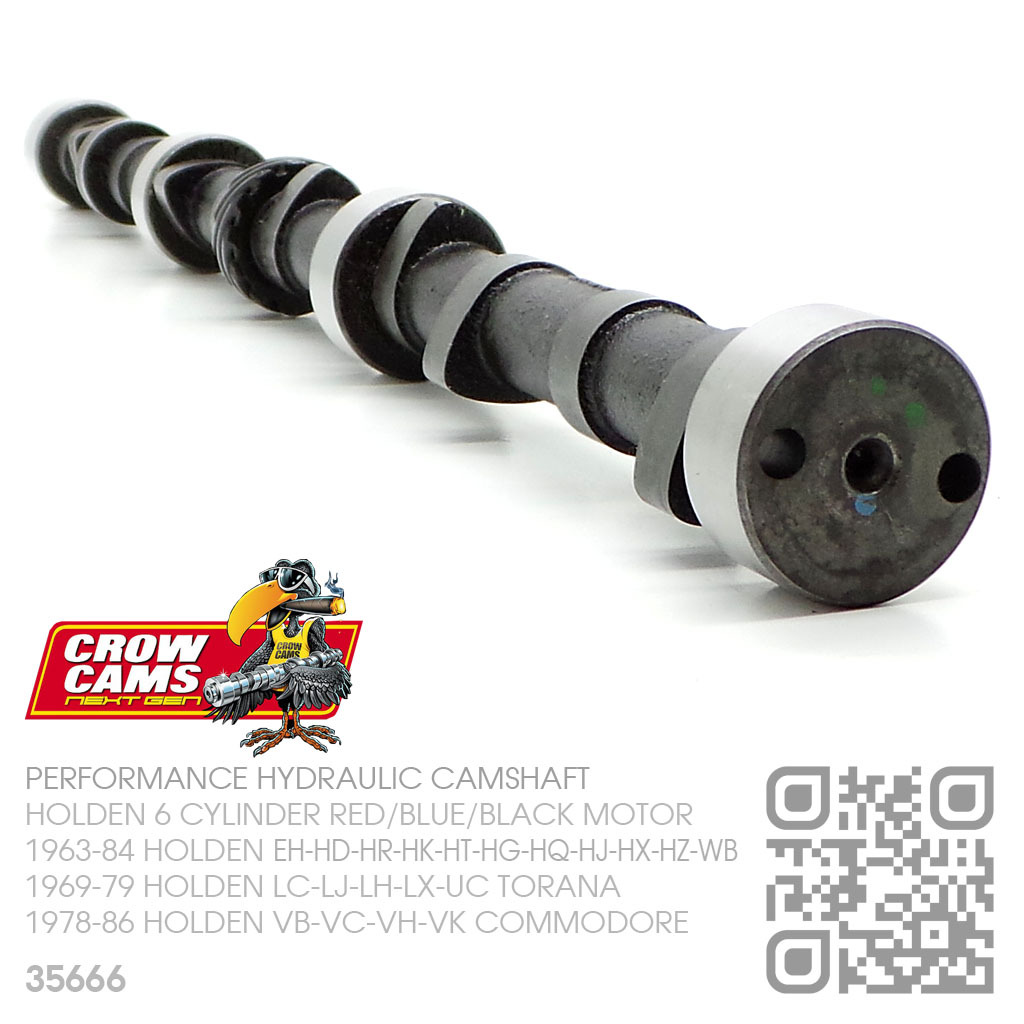

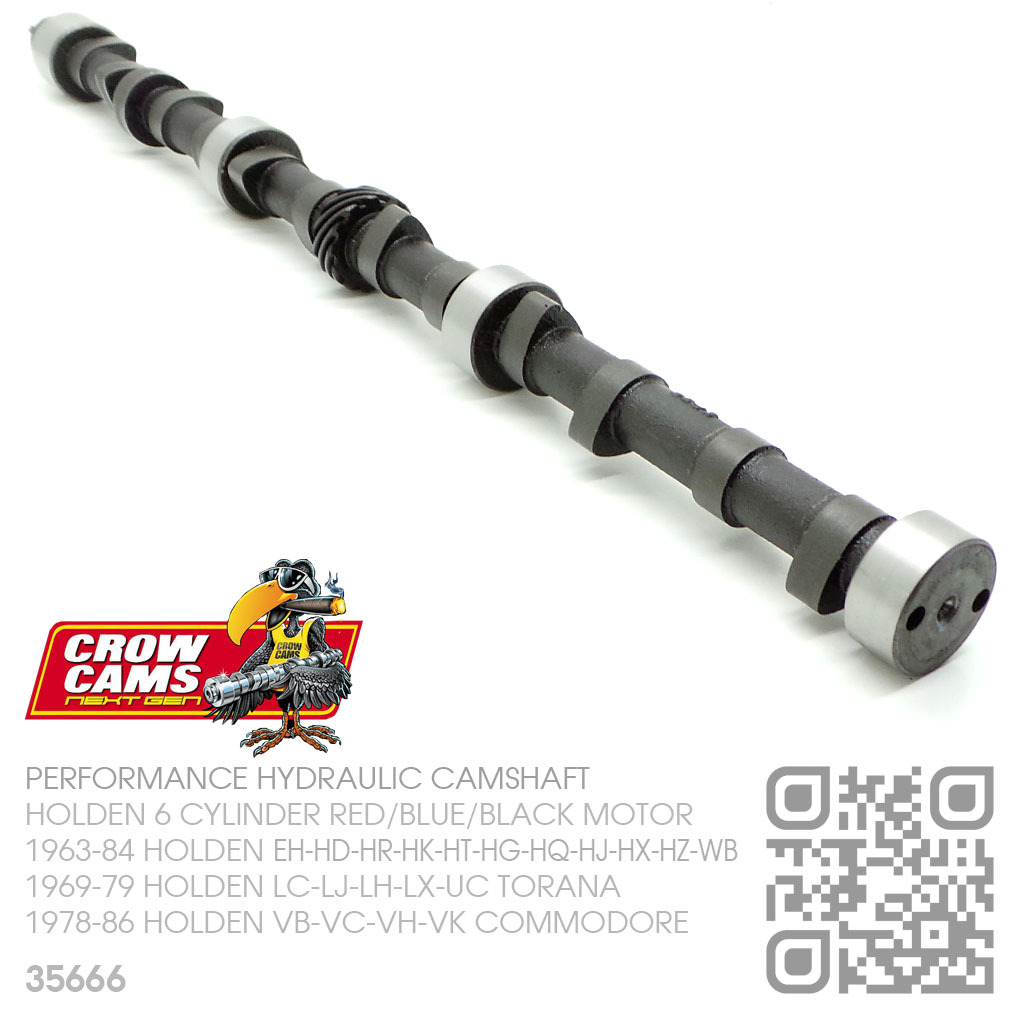

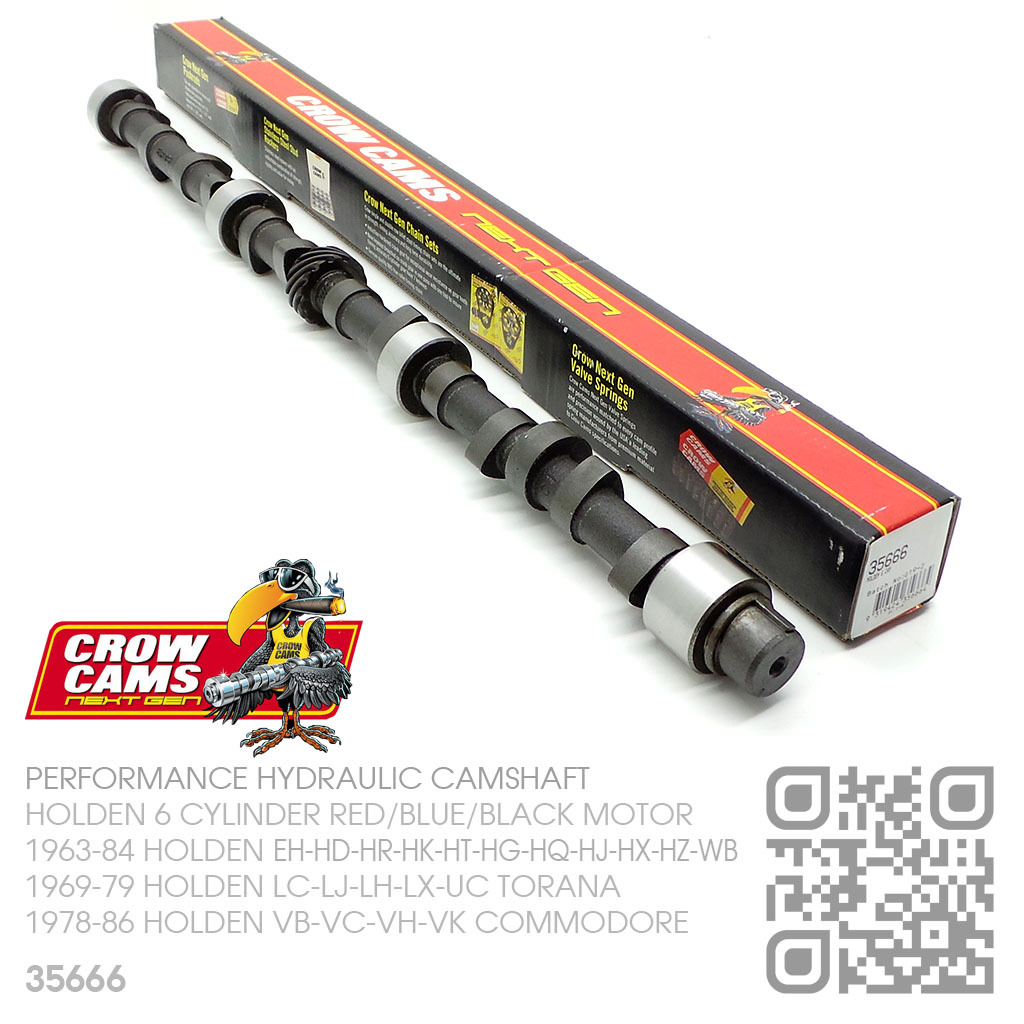

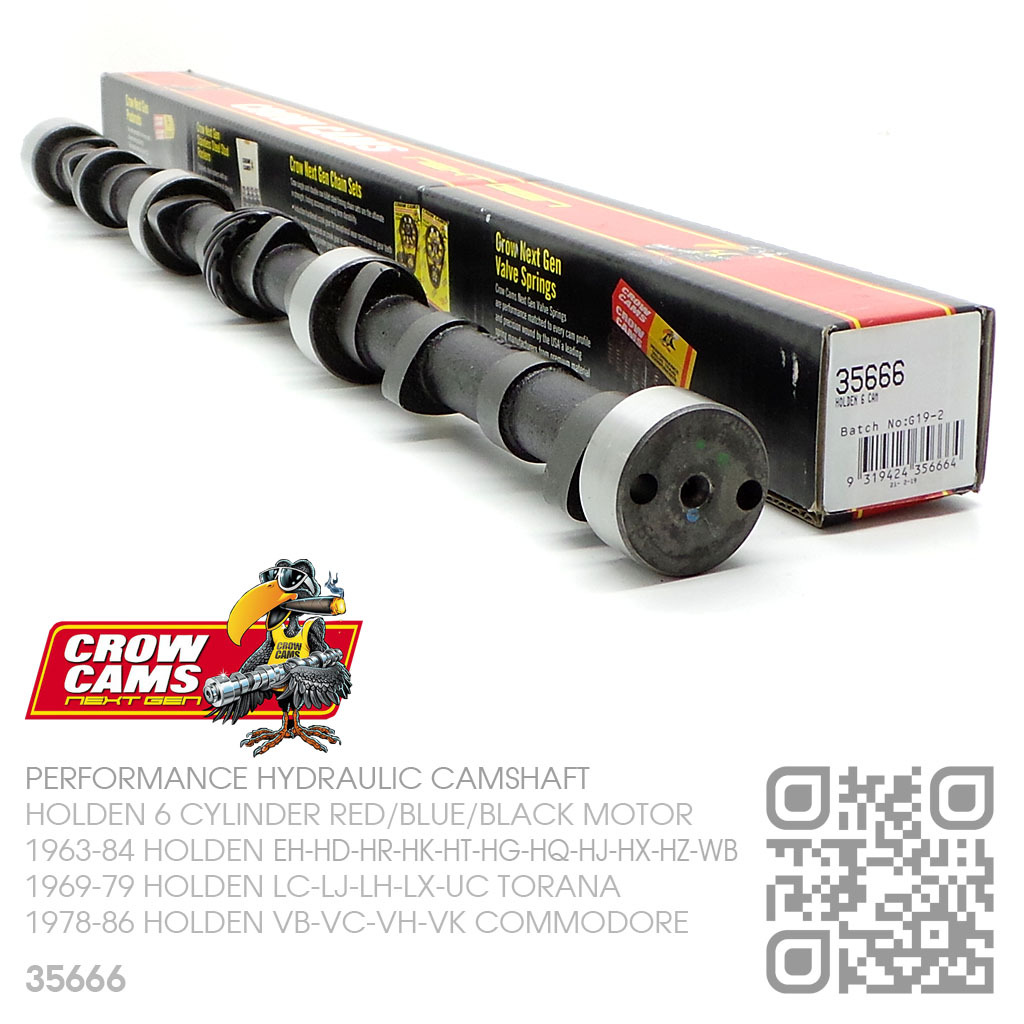

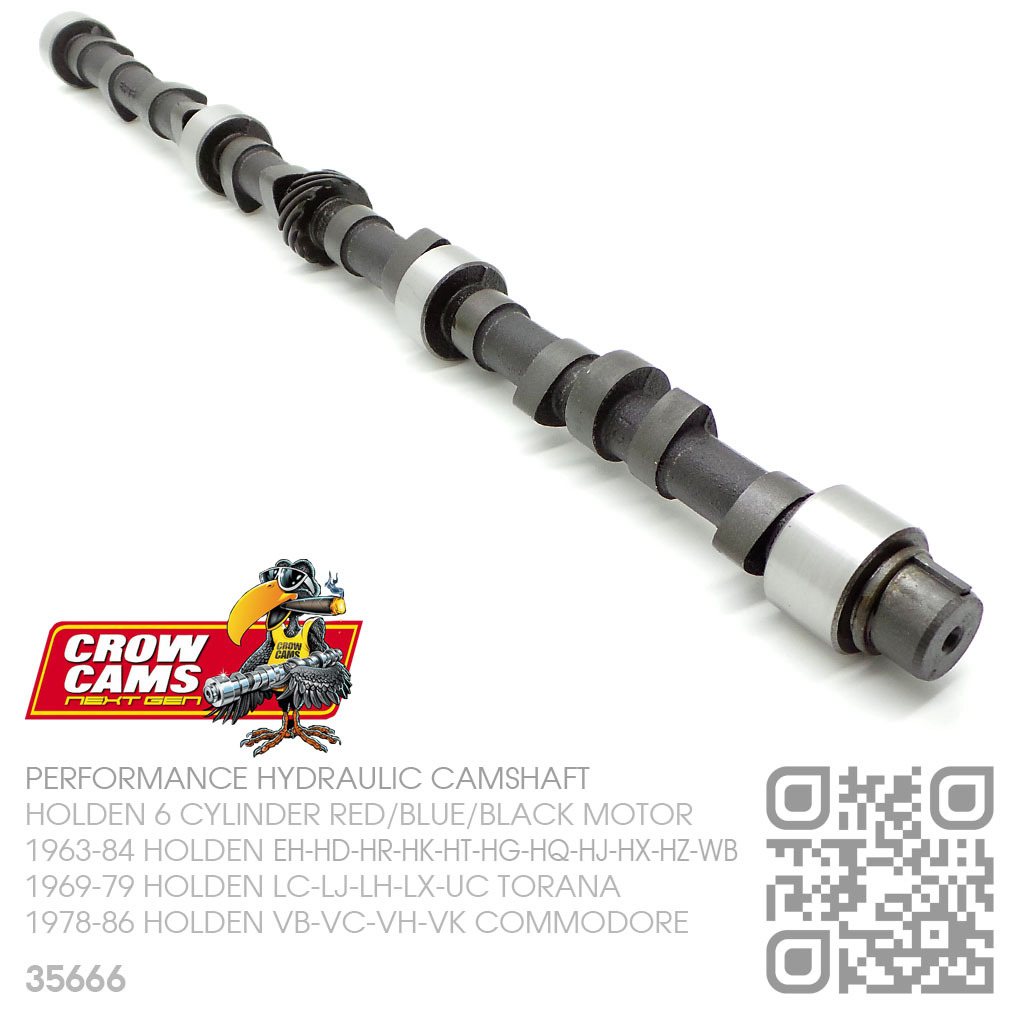

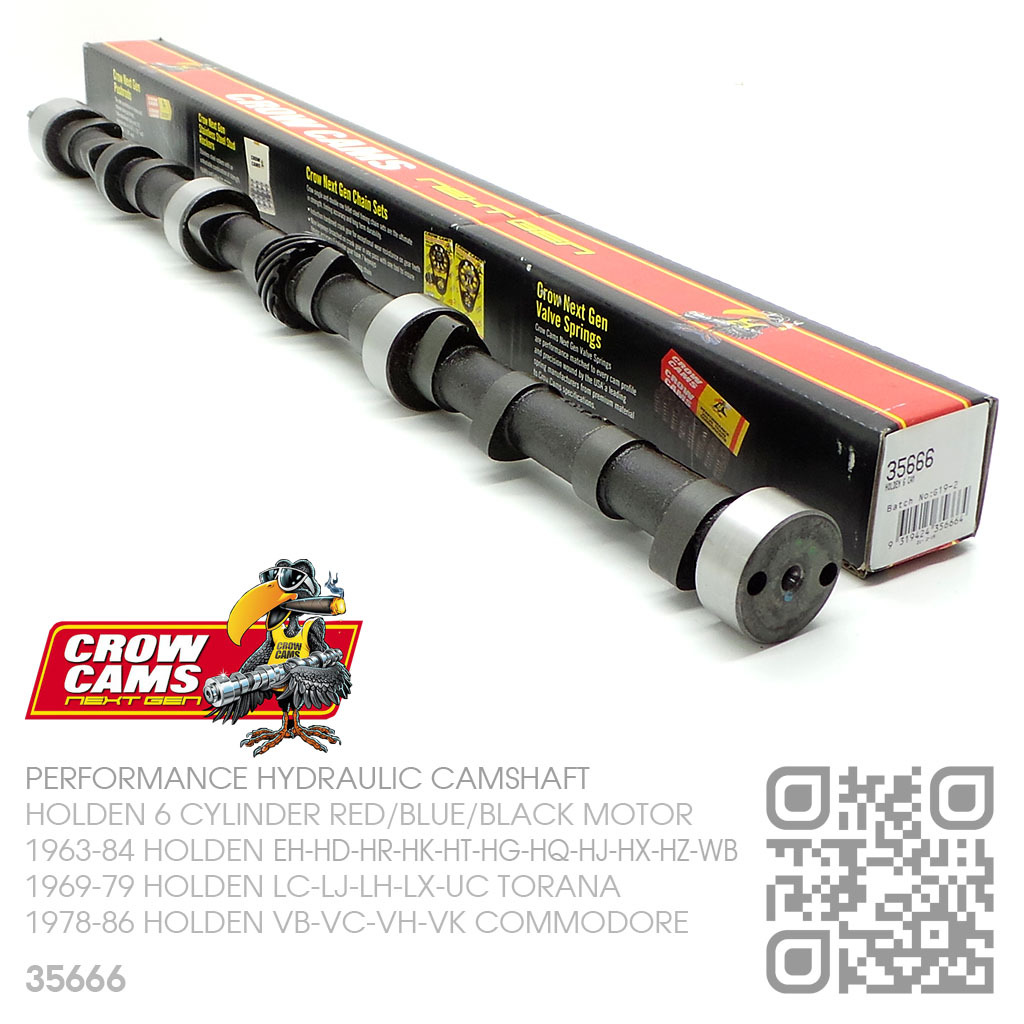

CROW CAMS 35666 PERFORMANCE BILLET HYDRAULIC CAMSHAFT [HOLDEN 6-CYL RED/BLUE/BLACK MOTOR]

1963-86 HOLDEN [EH-WB, LC-UC TORANA & VB-VK COMMODORE]

$498.12
In Stock


Calculate Shipping



Free shipping - $0.00

CROW CAMS 35666 PERFORMANCE BILLET HYDRAULIC CAMSHAFT
HOLDEN 6 CYLINDER RED/BLUE/BLACK MOTOR

1963-84 HOLDEN [EH-HD-HR-HK-HT-HG-HQ-HJ-HX-HZ-WB]
1969-79 HOLDEN [LC-LJ-LH-LX-UC TORANA]
1978-86 HOLDEN [VB-VC-VH-VK COMMODORE]

Description

CROW CAMS 35666 NEXT GEN PERFORMANCE BILLET HYDRAULIC CAMSHAFT
HOLDEN 6 CYLINDER RED/BLUE/BLACK MOTOR

08/1963-1971 HOLDEN [EH-HD-HR-HK-HT-HG SERIES]
07/1971-1984 HOLDEN [HQ-HJ-HX-HZ-WB SERIES]
10/1969-1979 HOLDEN [LC-LJ-LH-LX-UC TORANA]
10/1978-1986 HOLDEN [VB-VC-VH-VK COMMODORE]

Crow Cams' unique Next Gen cam design and CNC grinding technology is applied to a huge range of hydraulic lifter camshafts, for maximum torque and power in street or race applications.

Crow Cams' world class CNC grinding and inspection facilities have also been upgraded to ensure an even greater degree of grinding accuracy in terms of surface finish and cam position. These characteristics are checked on every cam on our CNC checking machines, which are regularly calibrated on our in-house Adcole camshaft coordinate measuring machine.

SPECIFICATIONS:
Camshaft Part Number: 35666
RPM Range: 1900 - 4800
Advertised Duration Intake: 270º
Advertised Duration Exhaust: 280º
Duration @.050" Intake: 204º
Duration @.050" Exhaust: 214º
Valve Lift Intake: 0.420"
Valve Lift Exhaust: 0.442"
Rocker Ratio: 1.50:1
Lobe Separation Angle: 112º

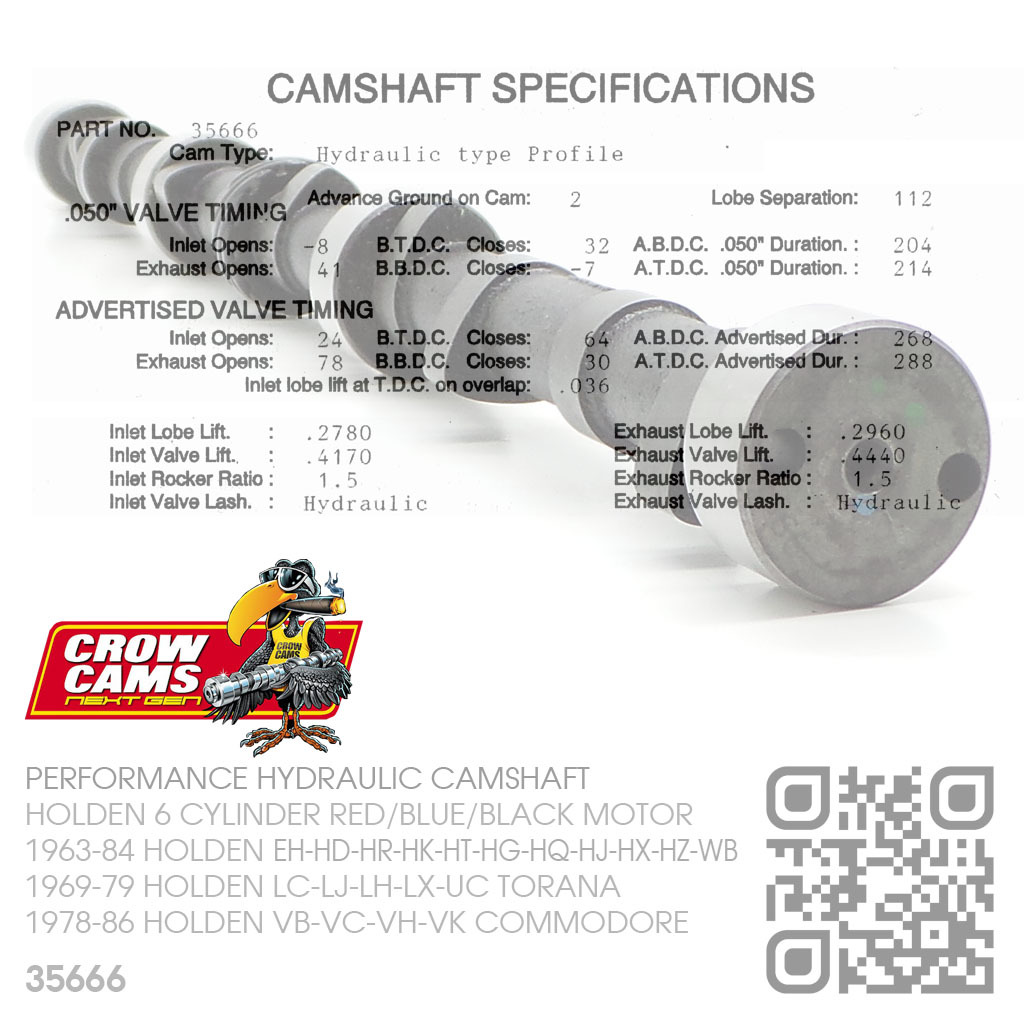

Detailed Cam Card: SEE LAST PRODUCT PHOTO
Camshaft Characteristics: MILD CAM WITH SMOOTH IDLE, INCREASED MID RANGE POWER & GOOD ECONOMY. SUITABLE FOR LPG APPLICATION

CAMSHAFT REQUIREMENTS:
Cylinder Head Requirements: PERFORMANCE VALVE SPRINGS
Engine Requirements: NEW PERFORMANCE HYDRAULIC LIFTERS

For more than 30 years, Crow Cams in Australia, have developed valve train products and developed unique camshafts.

SPECIAL NOTE:
NEW HYDRAULIC LIFTERS ARE HIGHLY RECOMMENDED
SOLID LIFTERS NOT SUITABLE FOR USE WITH THIS CAMSHAFT

CRITICAL NOTE:
USE ZDDP100 OIL ADDITIVE AND QUALITY MINERAL ENGINE OIL ONLY

MADE IN AUSTRALIA


138ci 2250 (2262cc) RED
10/1969-1973 HOLDEN [LC-LJ TORANA]

149ci (2442cc) RED
08/1963-1966 HOLDEN [EH-HD SERIES]

161ci 2600 (2638cc) RED
04/1966-1971 HOLDEN [HR-HK-HT-HG SERIES]
10/1969-1971 HOLDEN [LC TORANA & GTR]

173ci 2850 (2838cc) 2.85L RED/BLUE
07/1971-1971 HOLDEN [HG UTE/VAN]
07/1971-1980 HOLDEN [HQ-HJ-HX-HZ SERIES]
07/1971-1979 HOLDEN [LC-LJ-LH-LX-UC TORANA]
10/1978-1984 HOLDEN [VB-VC-VH COMMODORE]

179ci (2934cc) RED
08/1963-1966 HOLDEN [EH-HD SERIES]

186ci (3048cc) RED
04/1966-1971 HOLDEN [HR-HK-HT-HG SERIES]
08/1970-1972 HOLDEN [LC TORANA GTR-XU1]

202ci 3300 (3298cc) 3.3L RED/BLUE/BLACK
07/1971-1971 HOLDEN [HG UTE/VAN]
07/1971-1984 HOLDEN [HQ-HJ-HX-HZ-WB SERIES]
02/1972-1979 HOLDEN [LJ-LH-LX-UC TORANA]
10/1978-1986 HOLDEN [VB-VC-VH-VK COMMODORE]

Warranty

Features

Specifications

SKU 35666
Model # 35666
Barcode # 9319424356664
Brand Crow Cams
Shipping Weight 4.0000kg
Shipping Width 0.750m
Shipping Height 0.060m
Shipping Length 0.060m
Shipping Cubic 0.002700000m3
