SKU: 35647

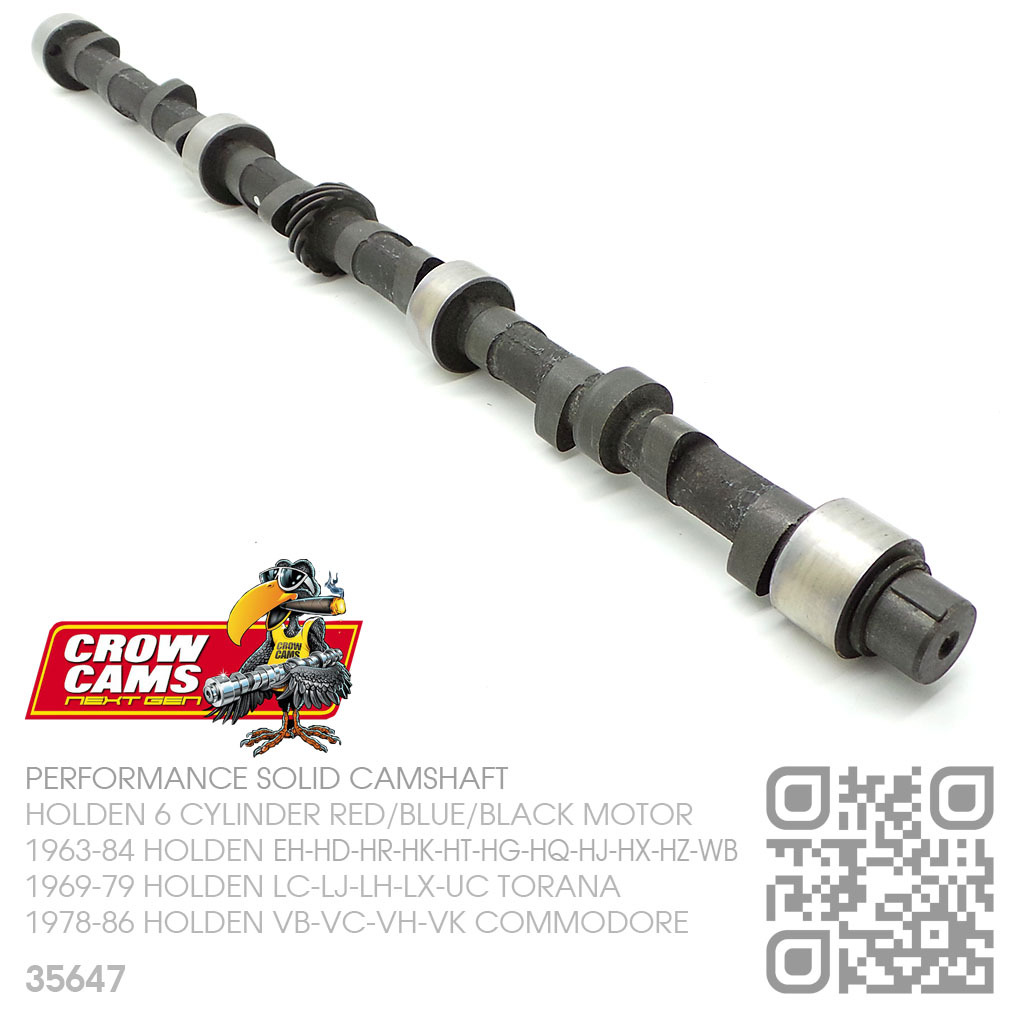

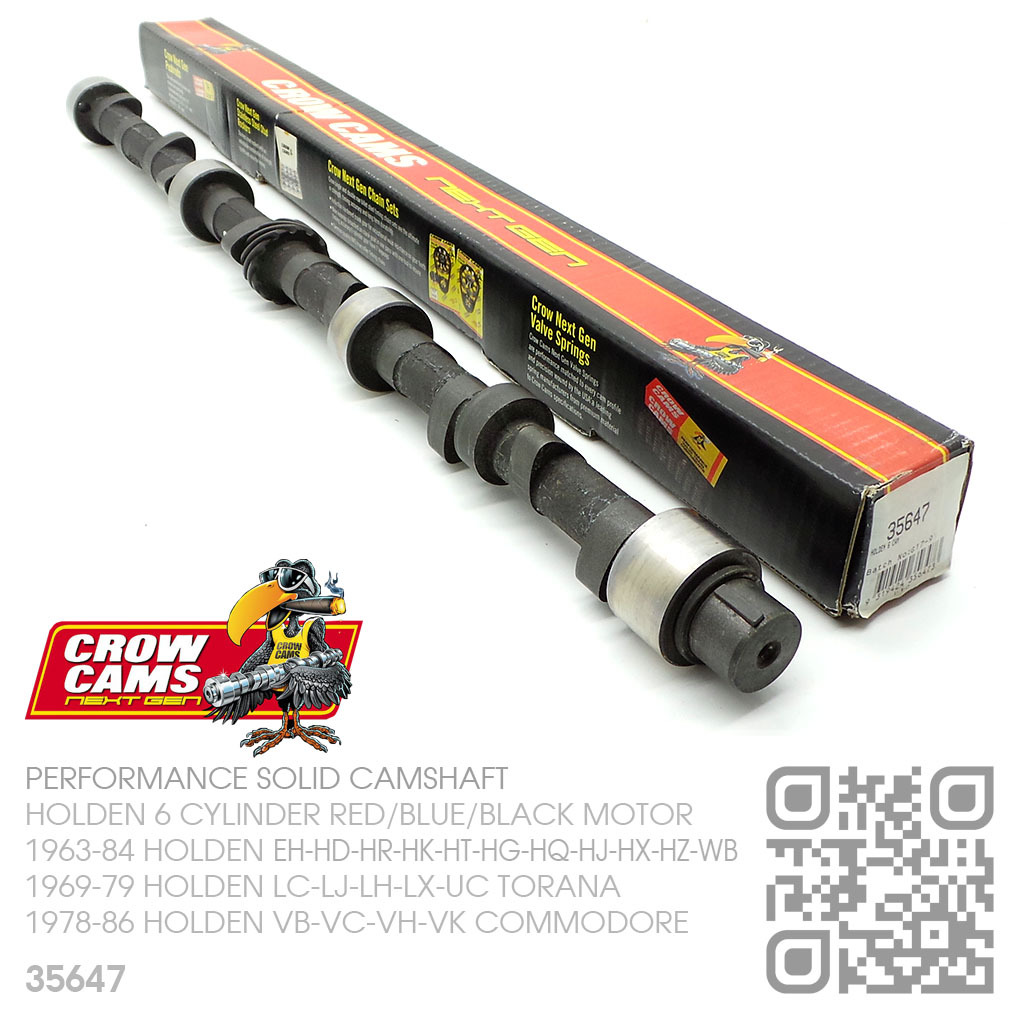

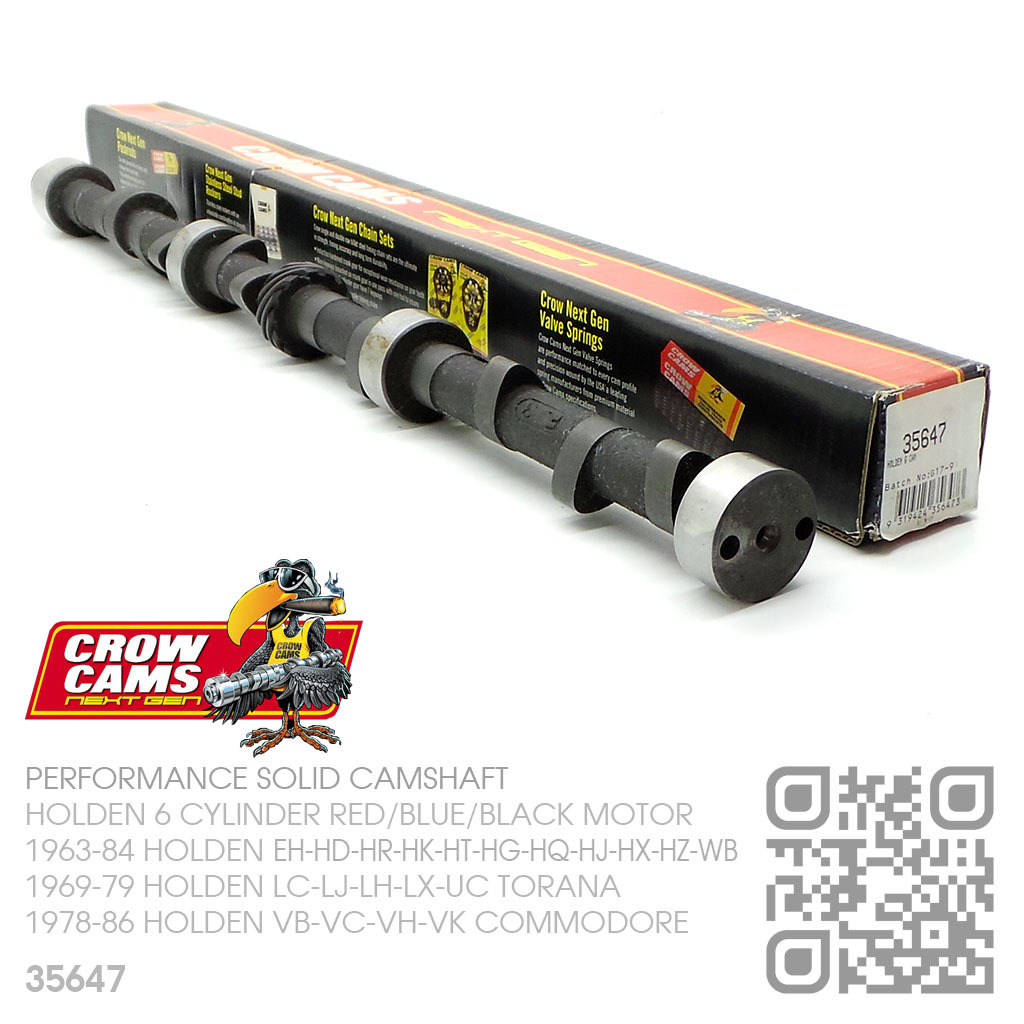

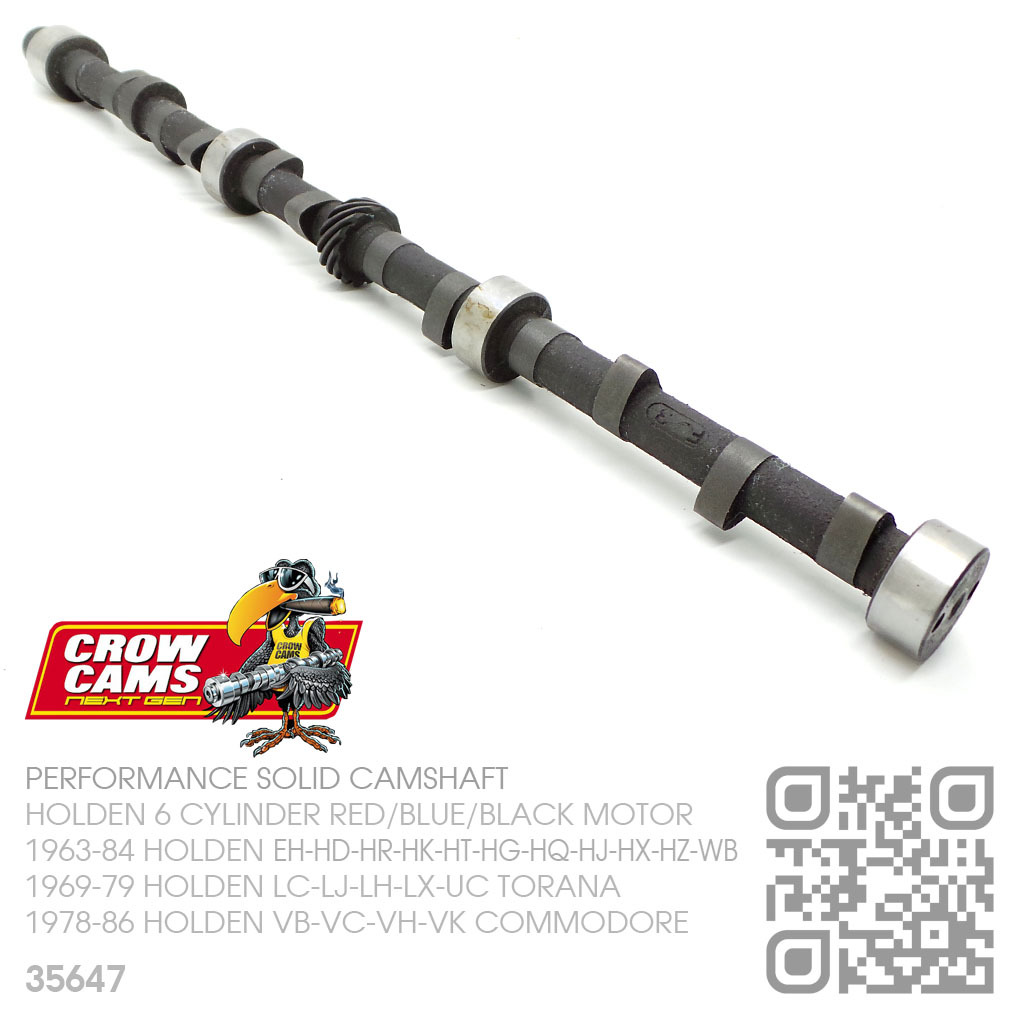

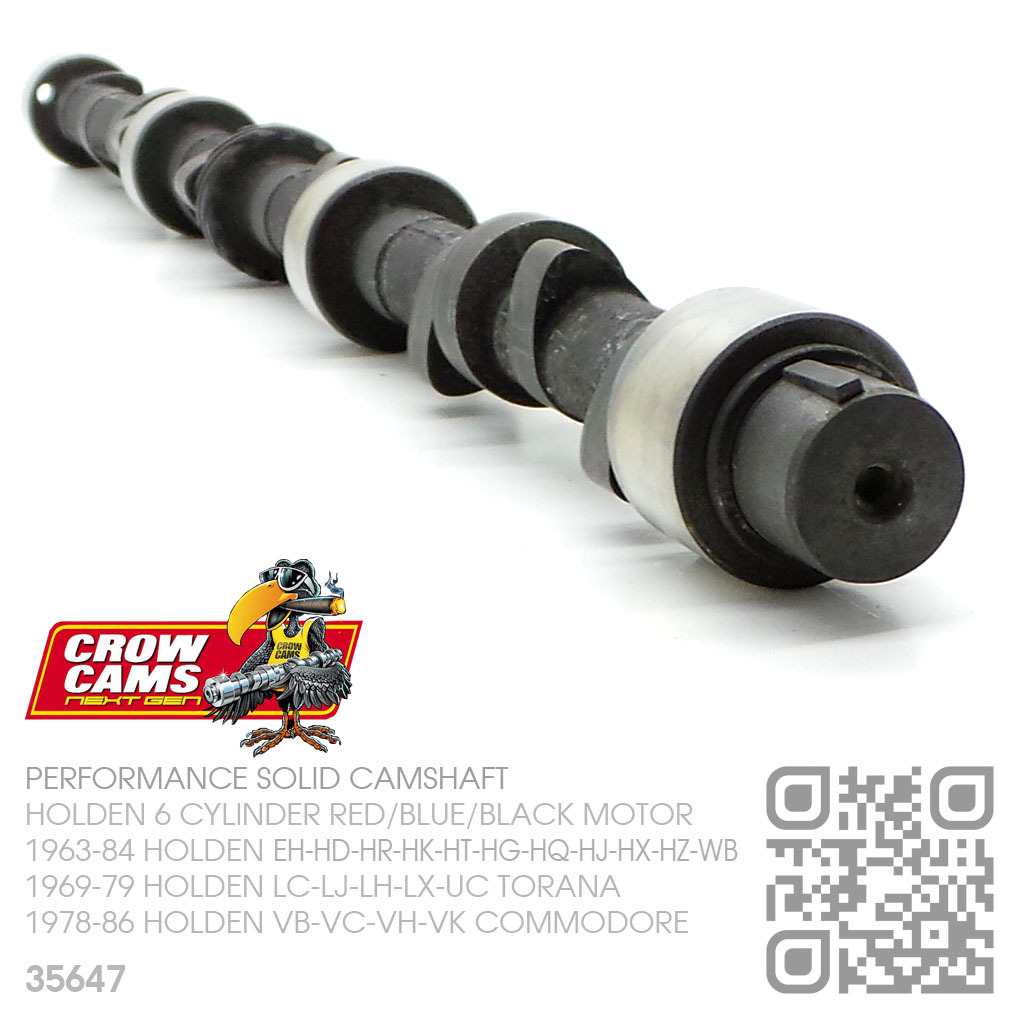

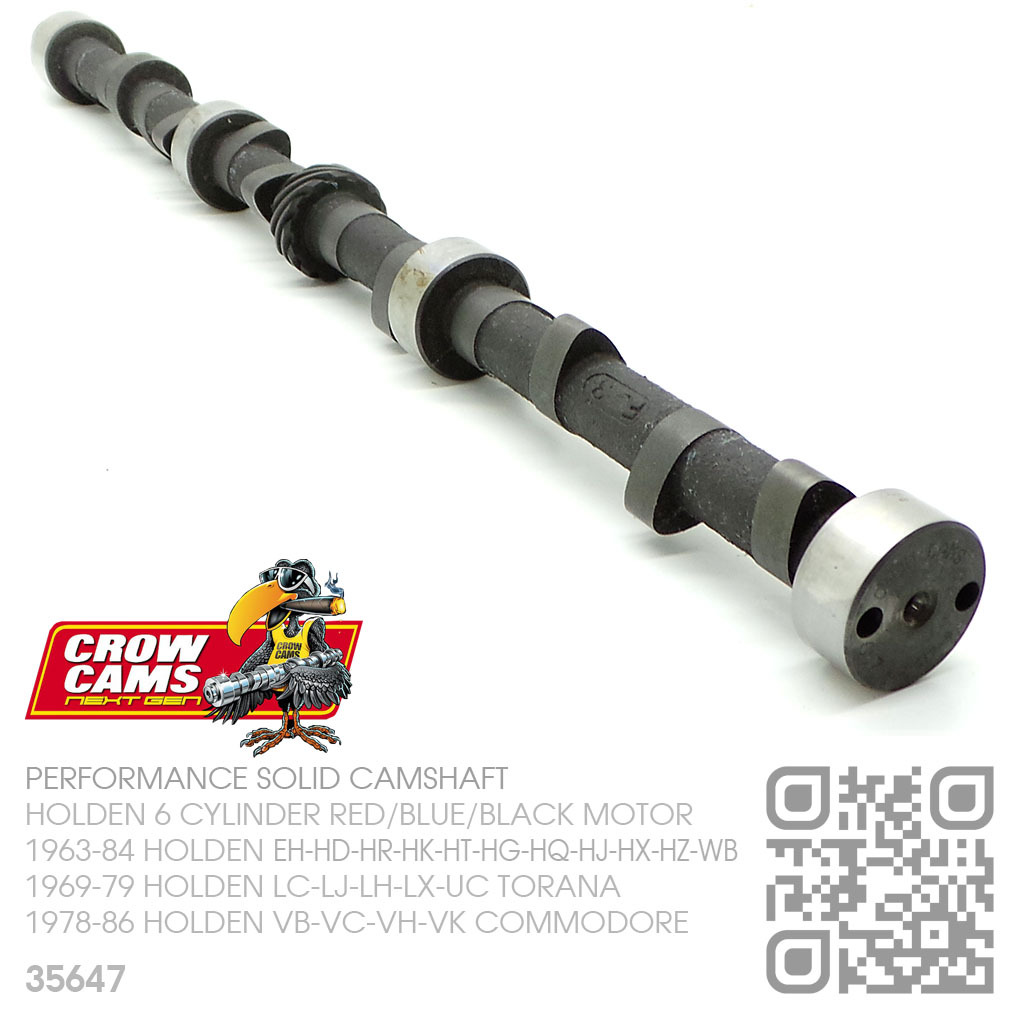

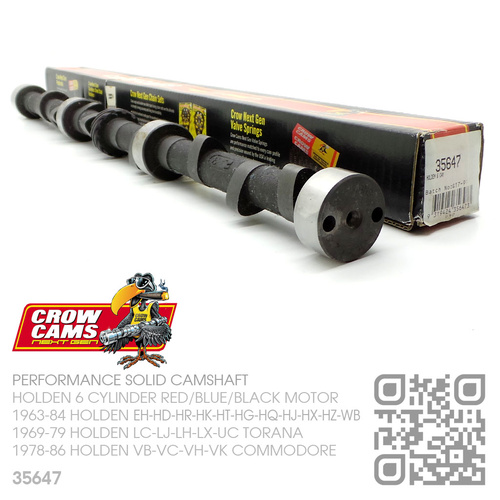

CROW CAMS 35647 PERFORMANCE BILLET SOLID CAMSHAFT [HOLDEN 6-CYL RED/BLUE/BLACK MOTOR]

1963-86 HOLDEN [EH-WB, LC-UC TORANA & VB-VK COMMODORE]

$432.97
In Stock


Calculate Shipping



Free shipping - $0.00

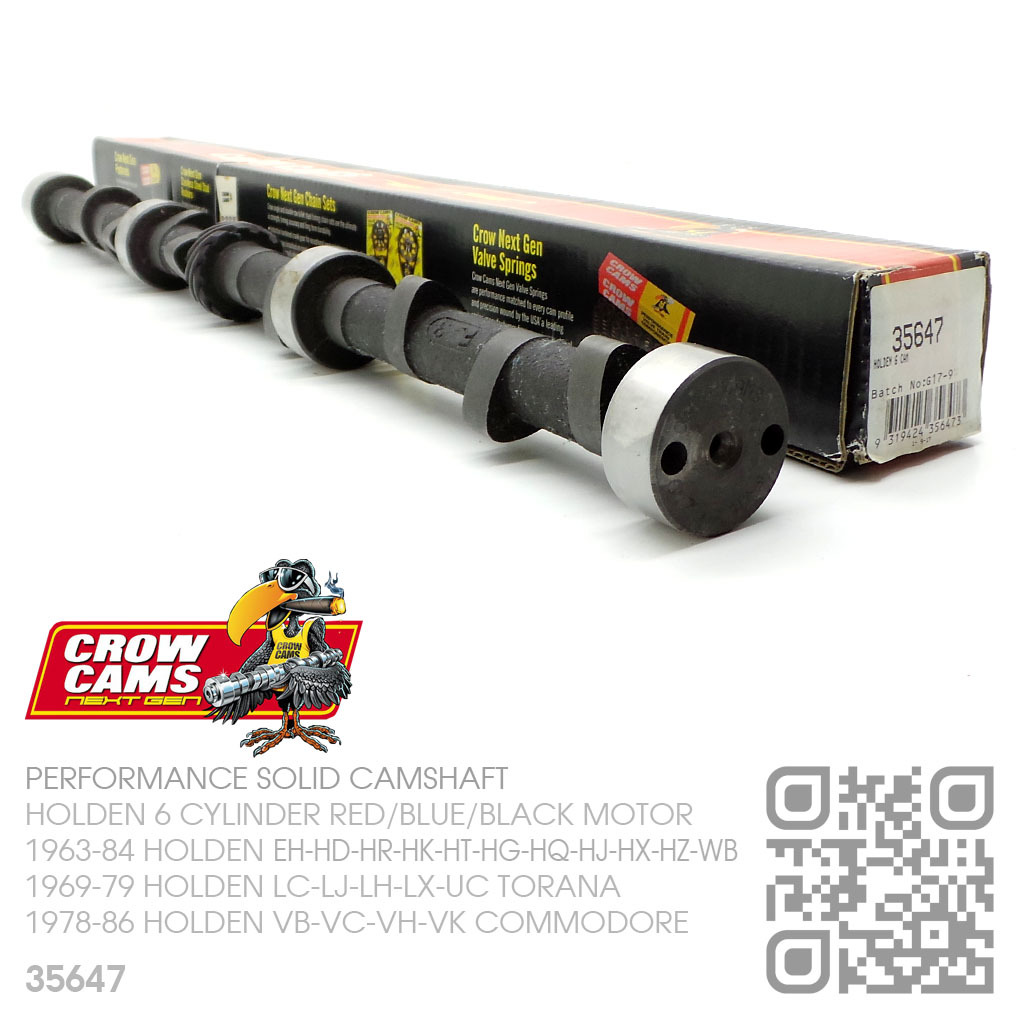

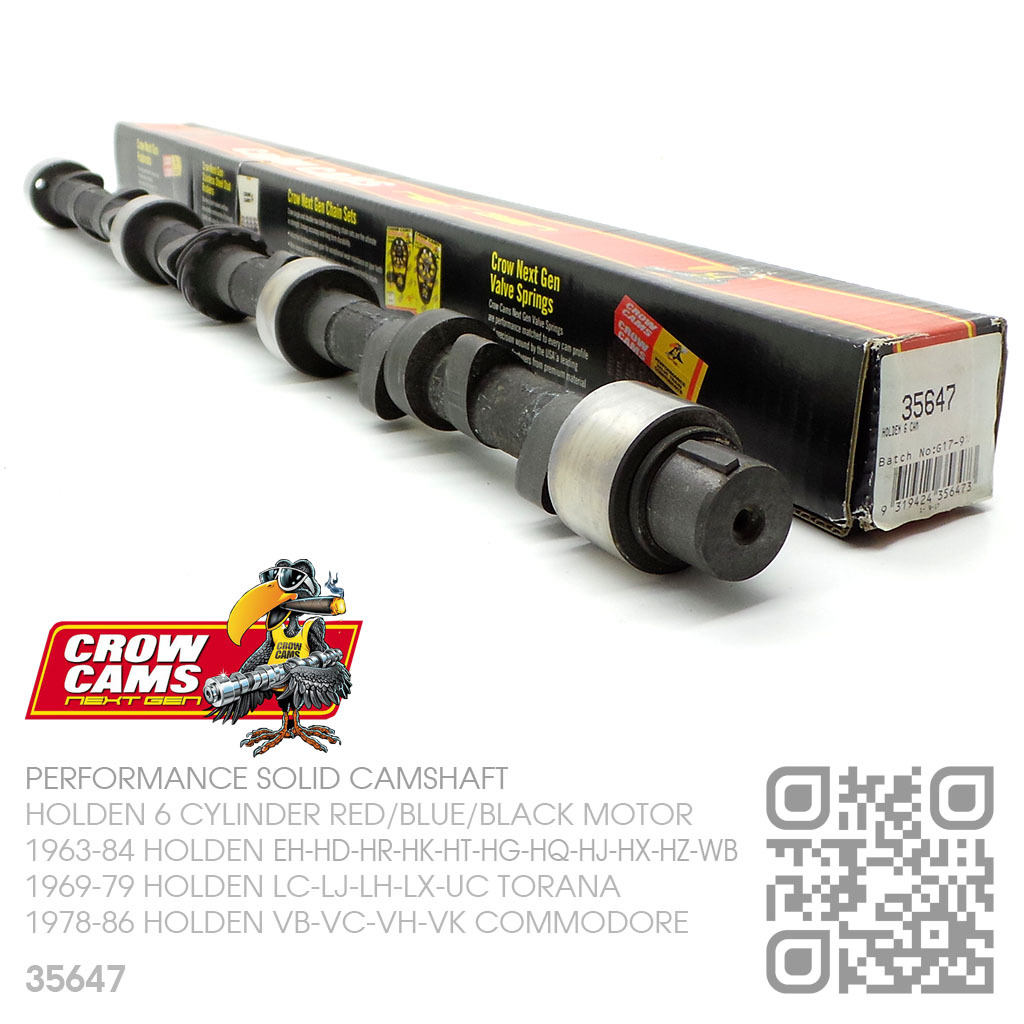

CROW CAMS 35647 PERFORMANCE BILLET SOLID CAMSHAFT
HOLDEN 6 CYLINDER RED/BLUE/BLACK MOTOR

1963-84 HOLDEN [EH-HD-HR-HK-HT-HG-HQ-HJ-HX-HZ-WB]
1969-79 HOLDEN [LC-LJ-LH-LX-UC TORANA]
1978-86 HOLDEN [VB-VC-VH-VK COMMODORE]

Description

CROW CAMS 35647 NEXT GEN PERFORMANCE BILLET MECHANICAL SOLID CAMSHAFT
HOLDEN 6 CYLINDER RED/BLUE/BLACK MOTOR

08/1963-1971 HOLDEN [EH-HD-HR-HK-HT-HG SERIES]
07/1971-1984 HOLDEN [HQ-HJ-HX-HZ-WB SERIES]
10/1969-1979 HOLDEN [LC-LJ-LH-LX-UC TORANA]
10/1978-1986 HOLDEN [VB-VC-VH-VK COMMODORE]

Crow Cams' unique Next Gen cam design and CNC grinding technology is applied to a huge range of mechanical solid lifter camshafts, for maximum torque and power in street or race applications.

Crow Cams' world class CNC grinding and inspection facilities have also been upgraded to ensure an even greater degree of grinding accuracy in terms of surface finish and cam position. These characteristics are checked on every cam on our CNC checking machines, which are regularly calibrated on our in-house Adcole camshaft coordinate measuring machine.

SPECIFICATIONS:
Camshaft Part Number: 35647
RPM Range: 3600 - 6600
Advertised Duration Intake: 308º
Advertised Duration Exhaust: 308º
Duration @.050" Intake: 254º
Duration @.050" Exhaust: 254º
Valve Lift Intake: 0.517"
Valve Lift Exhaust: 0.517"
Rocker Ratio: 1.50:1
Lobe Separation Angle: 107º

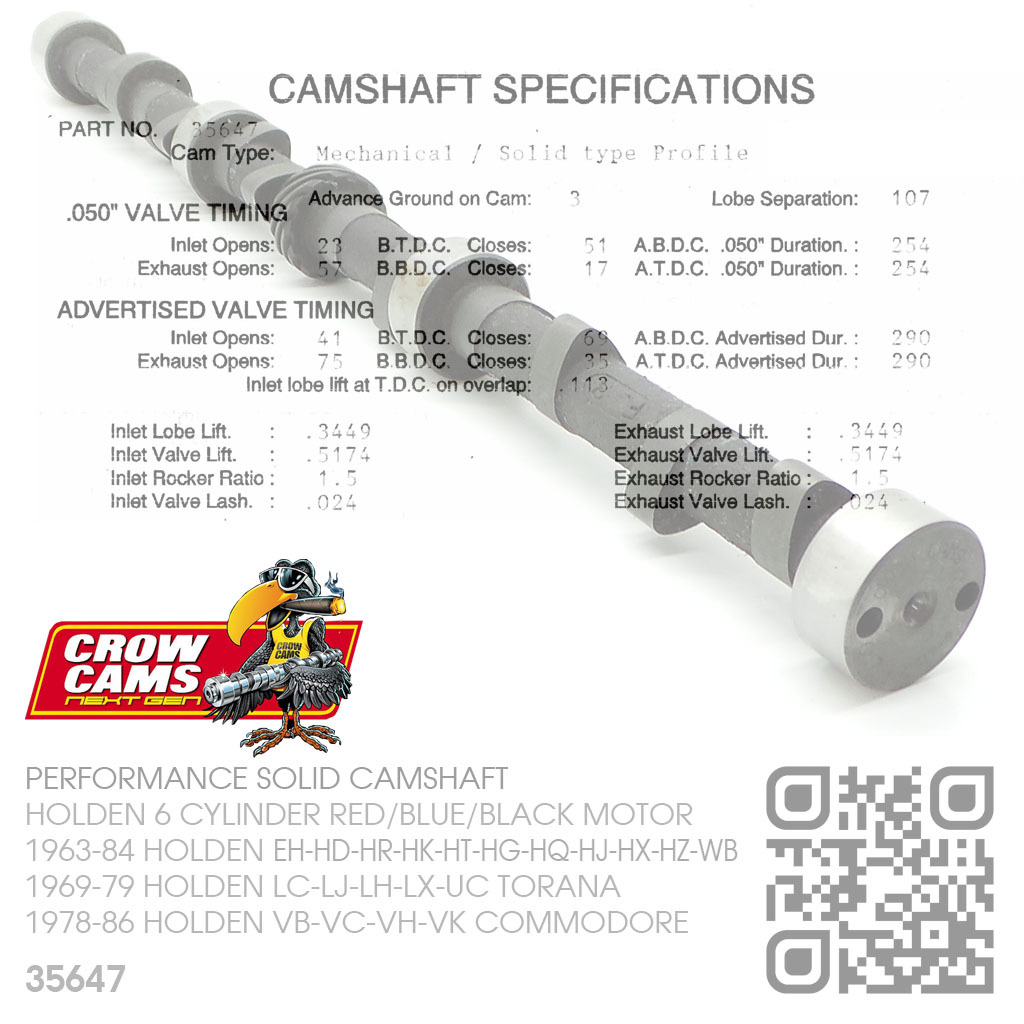

Detailed Cam Card: SEE LAST PRODUCT PHOTO
Camshaft Characteristics: RACE/COMPETITION MONSTER CAM WITH LARGE OVERLAP IDLE, HUGE HORSEPOWER POTENTIAL & CRAZY TOP END POWER. CROW CAMS LARGEST OFF THE SHELF CAM. SUIT SERIOUS ENGINE COMBO.

CAMSHAFT REQUIREMENTS:
Cylinder Head Requirements: PERFORMANCE DOUBLE VALVE SPRINGS, CHROMOLY RETAINERS & VITON VALVE STEM SEALS
Engine Requirements: NEW PERFORMANCE SOLID LIFTERS
Exhaust Requirements: PERFORMANCE HEADERS/EXTRACTORS
Ignition Requirements: ELECTRONIC or DUAL POINT
Intake Requirements: PERFORMANCE CARBURETTOR(S)
Transmission Requirements: HIGH STALL CONVERTER REQUIRED

For more than 30 years, Crow Cams in Australia, have developed valve train products and developed unique camshafts.

SPECIAL NOTE:
NEW SOLID LIFTERS ARE HIGHLY RECOMMENDED
HYDRAULIC LIFTERS NOT SUITABLE FOR USE WITH THIS CAMSHAFT

CRITICAL NOTE:
USE ZDDP100 OIL ADDITIVE AND QUALITY MINERAL ENGINE OIL ONLY

MADE IN AUSTRALIA


138ci 2250 (2262cc) RED
10/1969-1973 HOLDEN [LC-LJ TORANA]

149ci (2442cc) RED
08/1963-1966 HOLDEN [EH-HD SERIES]

161ci 2600 (2638cc) RED
04/1966-1971 HOLDEN [HR-HK-HT-HG SERIES]
10/1969-1971 HOLDEN [LC TORANA & GTR]

173ci 2850 (2838cc) 2.85L RED/BLUE
07/1971-1971 HOLDEN [HG UTE/VAN]
07/1971-1980 HOLDEN [HQ-HJ-HX-HZ SERIES]
07/1971-1979 HOLDEN [LC-LJ-LH-LX-UC TORANA]
10/1978-1984 HOLDEN [VB-VC-VH COMMODORE]

179ci (2934cc) RED
08/1963-1966 HOLDEN [EH-HD SERIES]

186ci (3048cc) RED
04/1966-1971 HOLDEN [HR-HK-HT-HG SERIES]
08/1970-1972 HOLDEN [LC TORANA GTR-XU1]

202ci 3300 (3298cc) 3.3L RED/BLUE/BLACK
07/1971-1971 HOLDEN [HG UTE/VAN]
07/1971-1984 HOLDEN [HQ-HJ-HX-HZ-WB SERIES]
02/1972-1979 HOLDEN [LJ-LH-LX-UC TORANA]
10/1978-1986 HOLDEN [VB-VC-VH-VK COMMODORE]

Warranty

Features

Specifications

SKU 35647
Model # 35647
Barcode # 9319424356473
Brand Crow Cams
Shipping Weight 3.8000kg
Shipping Width 0.750m
Shipping Height 0.060m
Shipping Length 0.060m
Shipping Cubic 0.002700000m3
