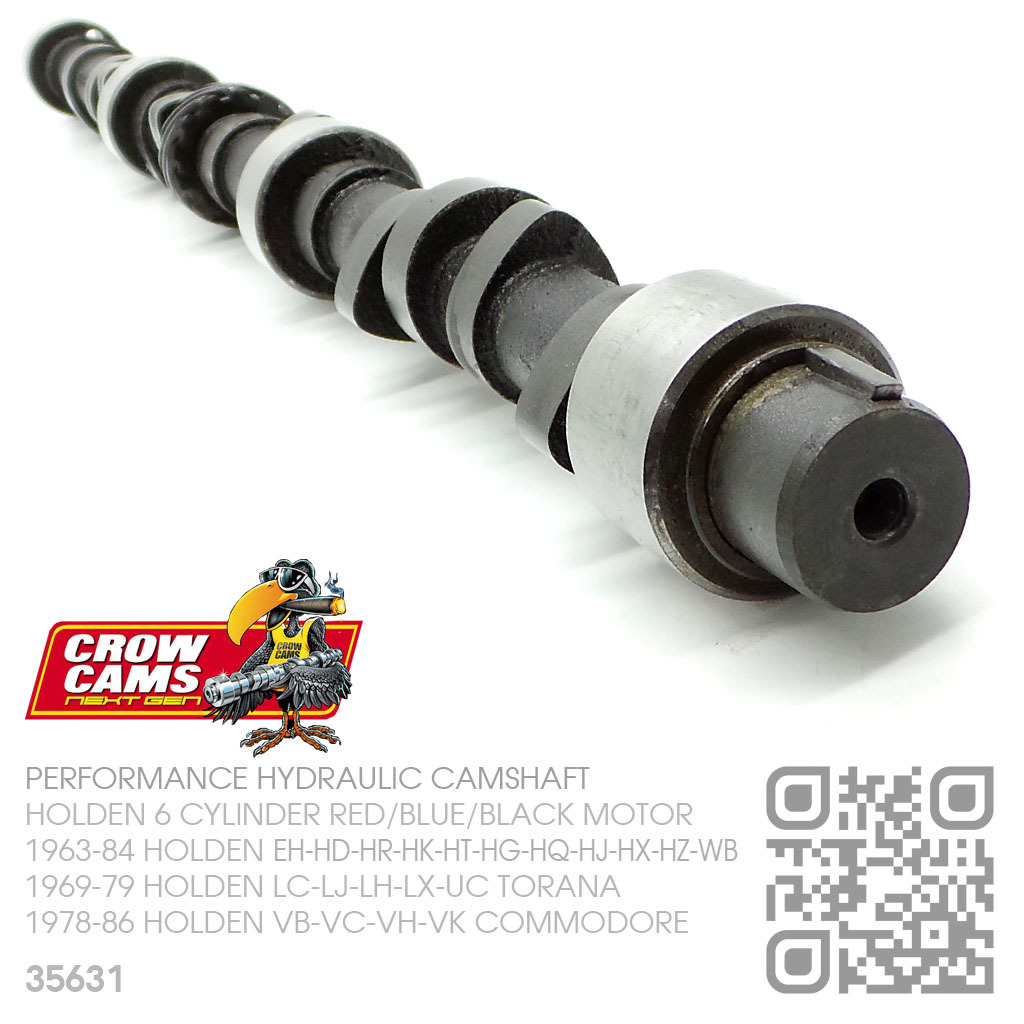

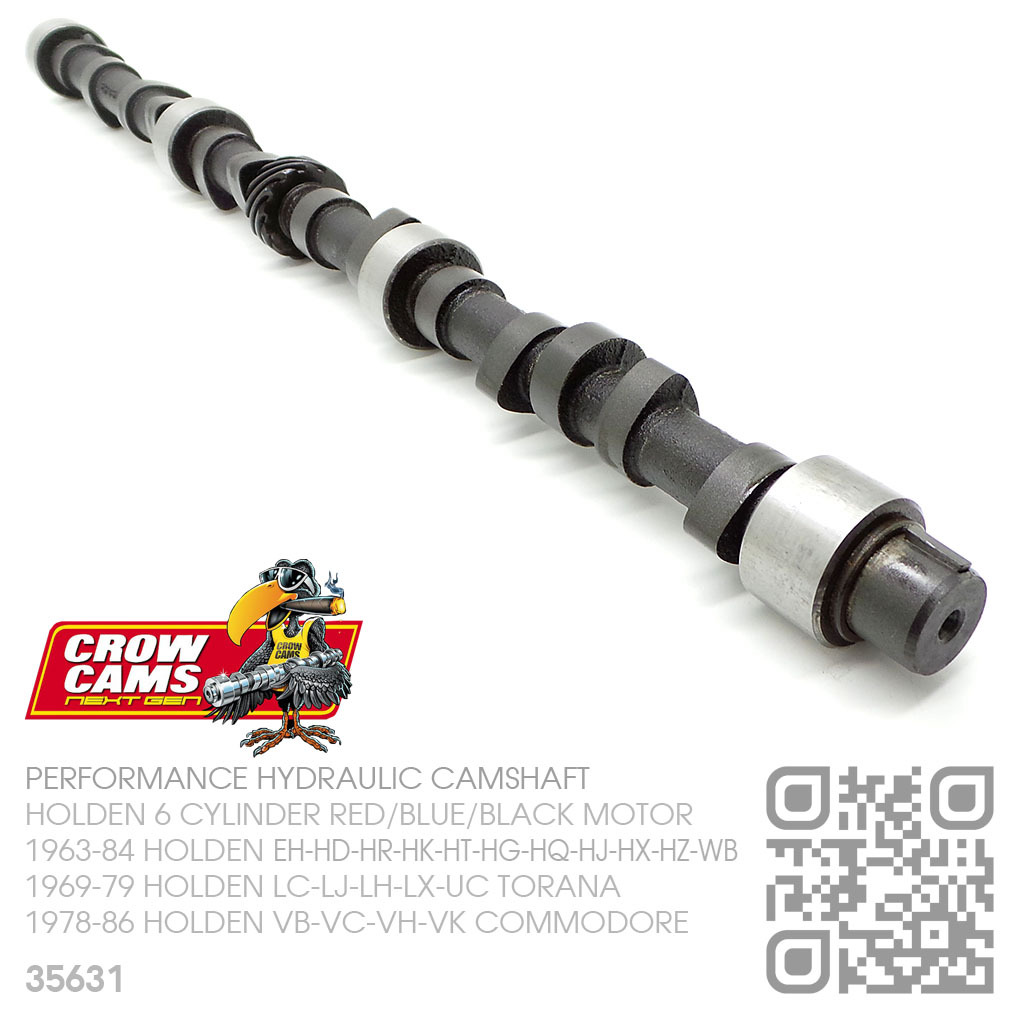

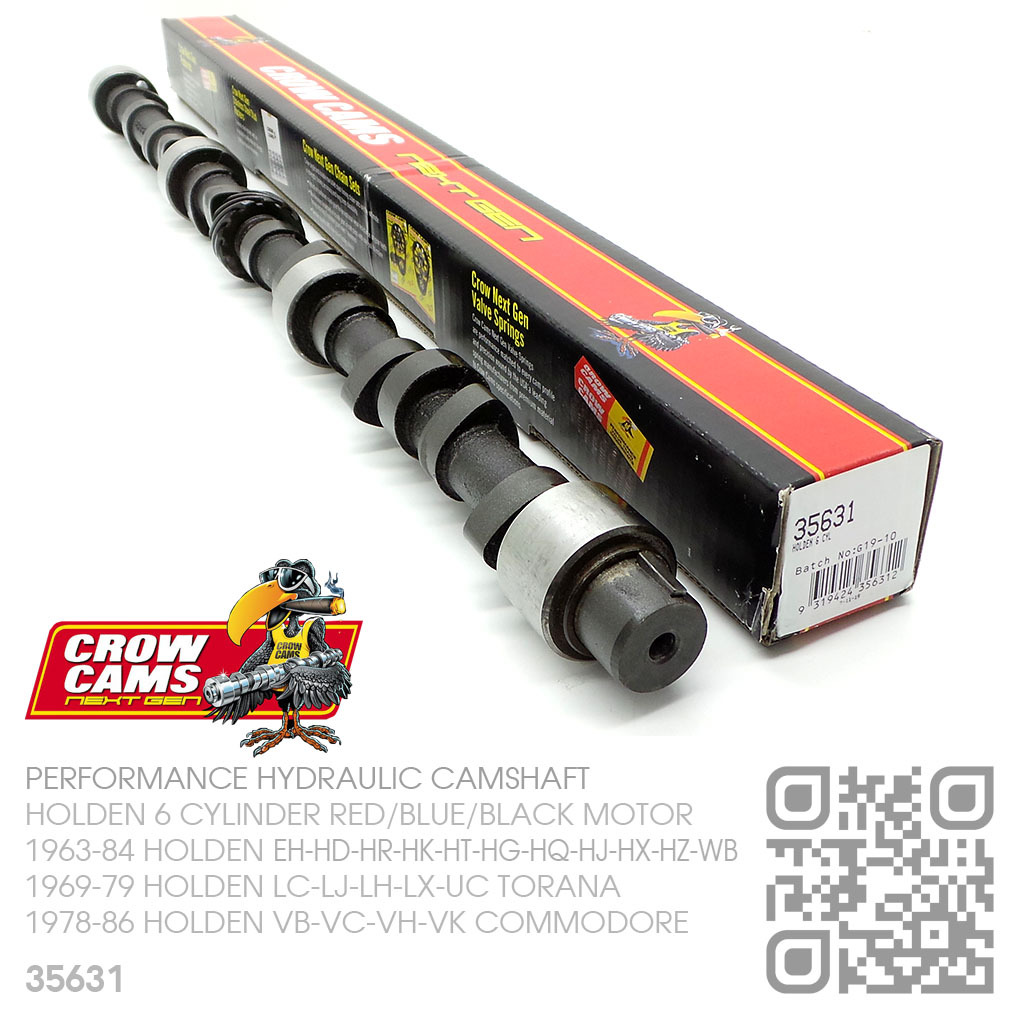

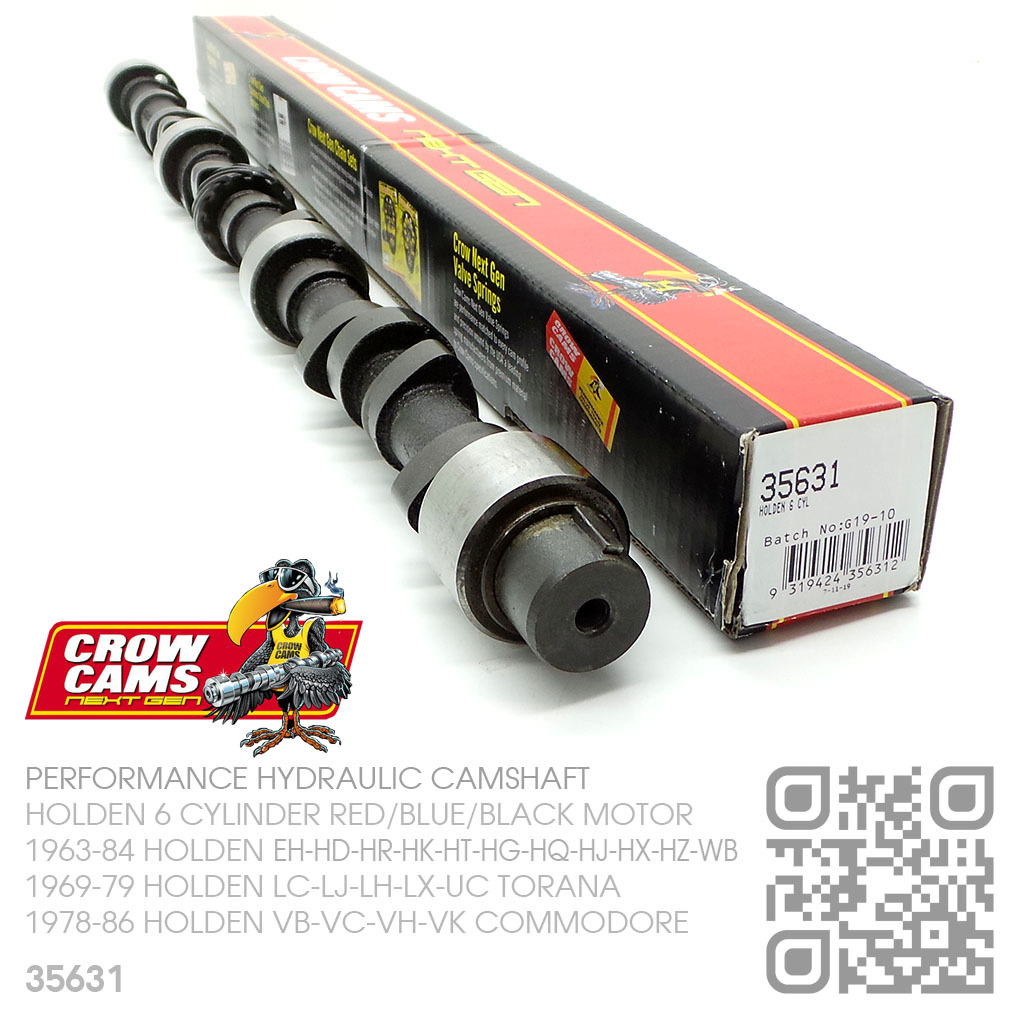

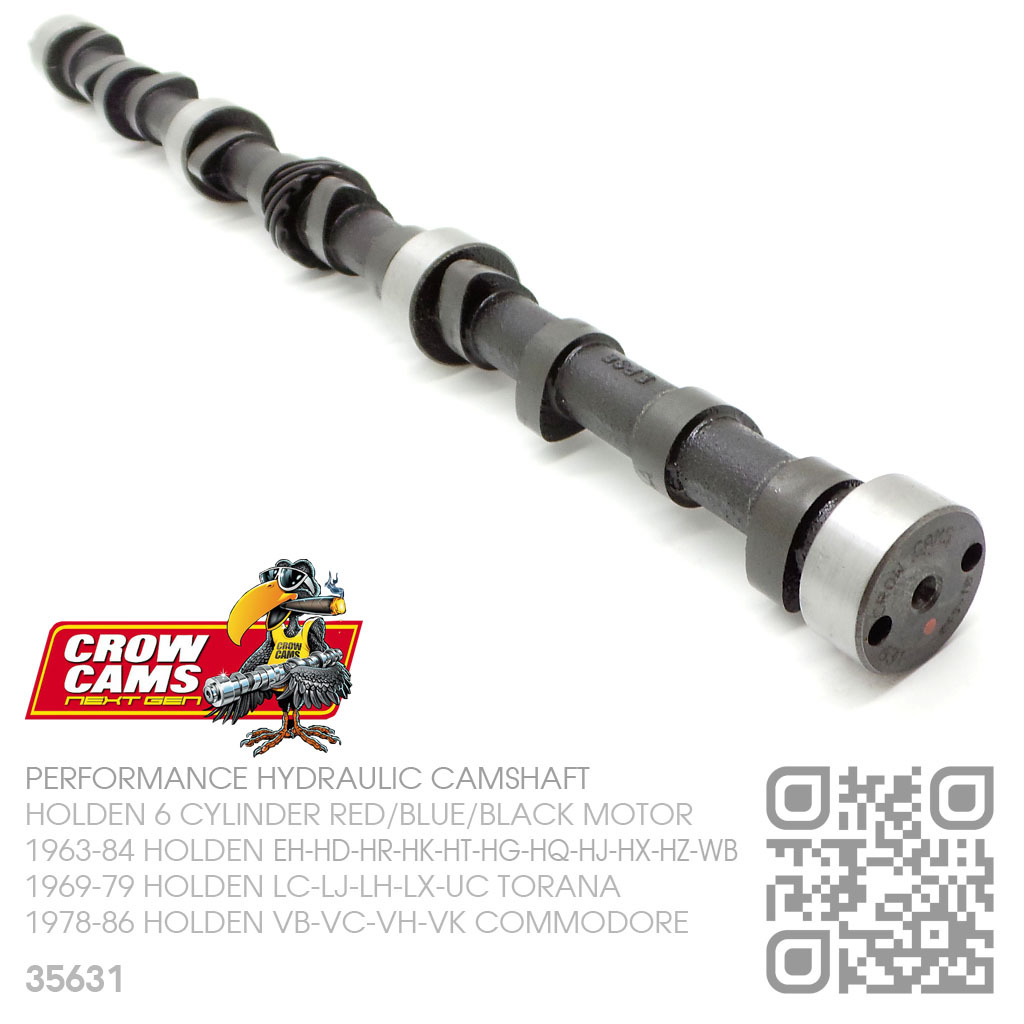

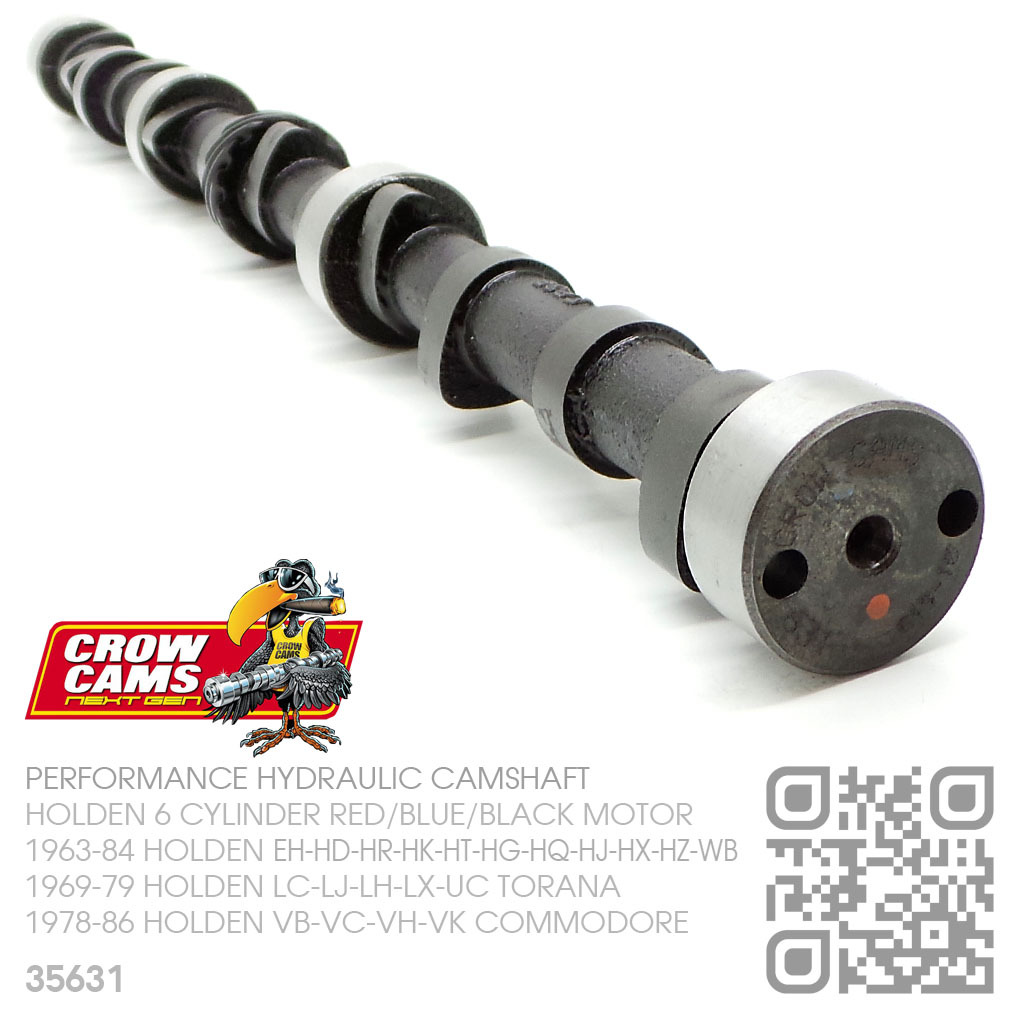

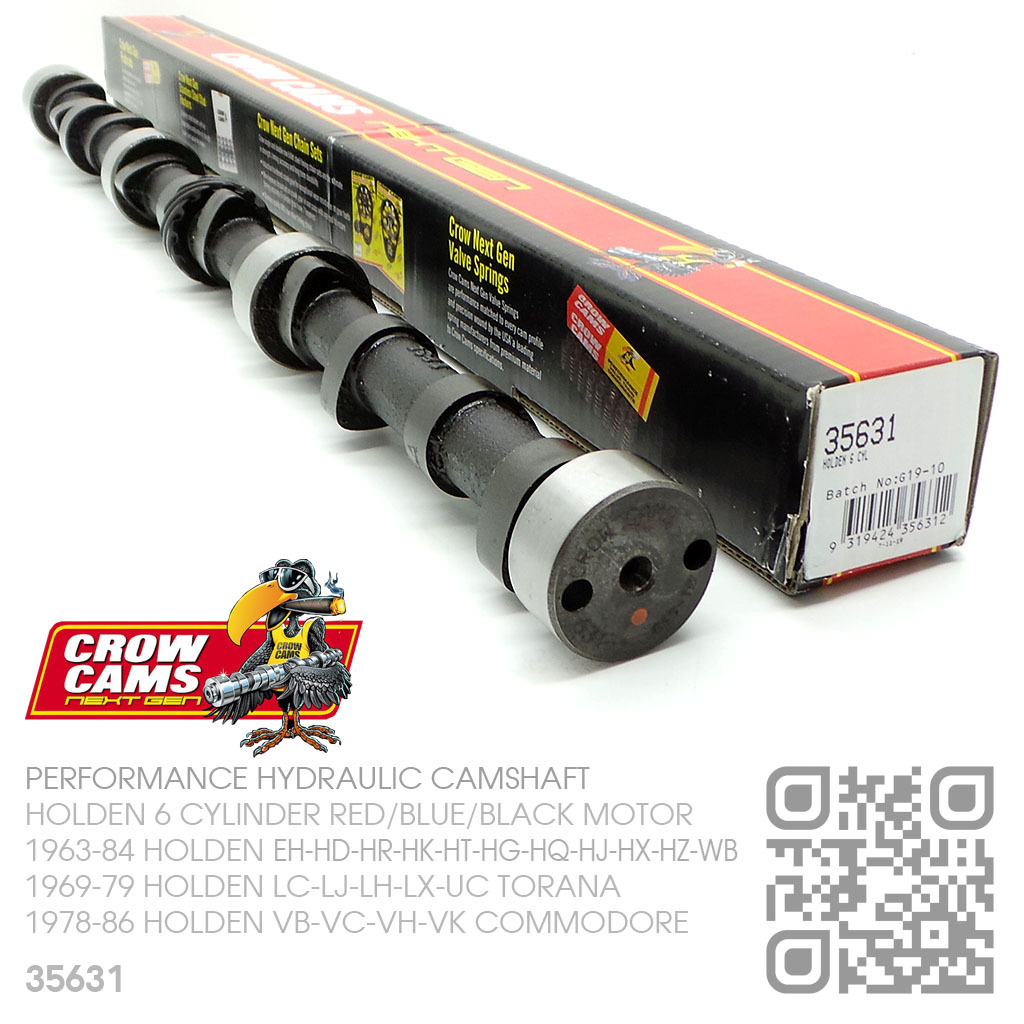

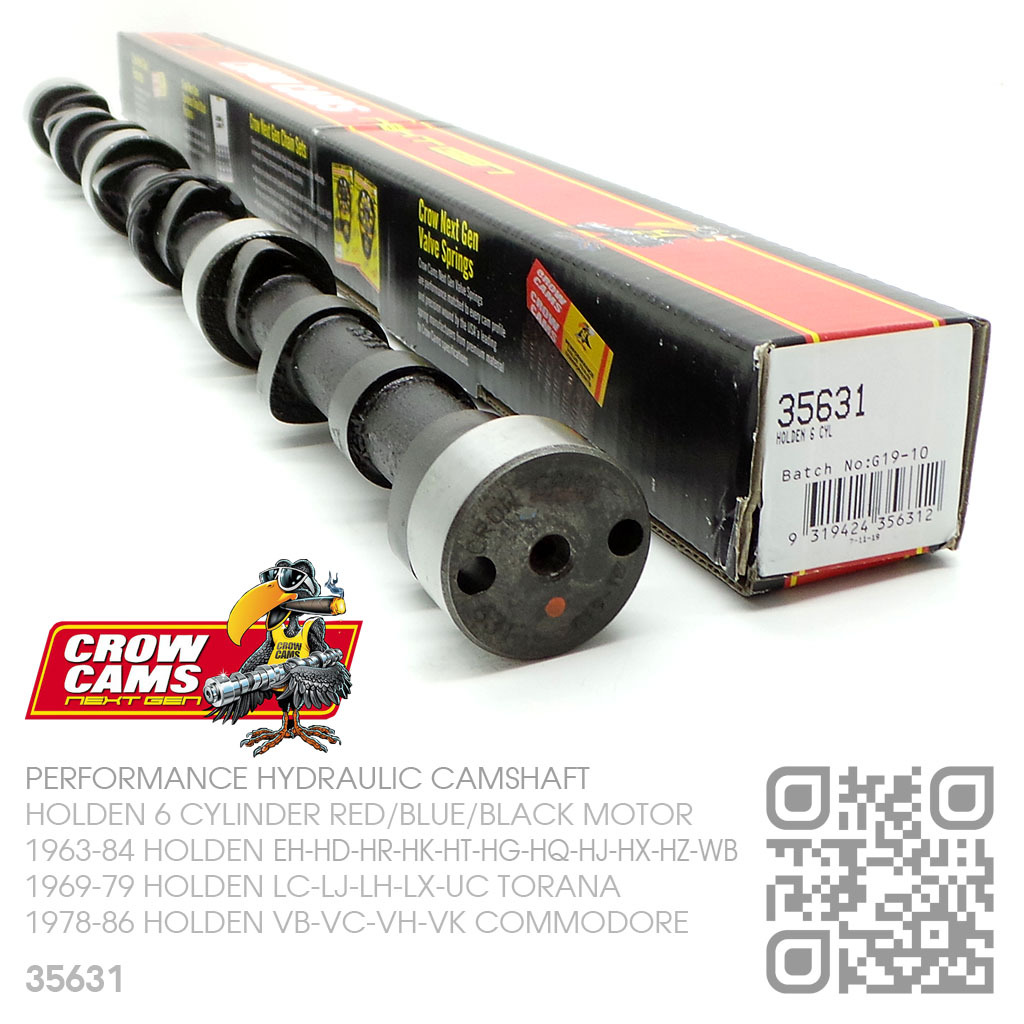

CROW CAMS 35631 PERFORMANCE BILLET HYDRAULIC CAMSHAFT [HOLDEN 6-CYL RED/BLUE/BLACK MOTOR]

CROW CAMS 35631 NEXT GEN PERFORMANCE BILLET HYDRAULIC CAMSHAFT
HOLDEN 6 CYLINDER RED/BLUE/BLACK MOTOR

08/1963-1971 HOLDEN [EH-HD-HR-HK-HT-HG SERIES]
07/1971-1984 HOLDEN [HQ-HJ-HX-HZ-WB SERIES]
10/1969-1979 HOLDEN [LC-LJ-LH-LX-UC TORANA]
10/1978-1986 HOLDEN [VB-VC-VH-VK COMMODORE]

Crow Cams' unique Next Gen cam design and CNC grinding technology is applied to a huge range of hydraulic lifter camshafts, for maximum torque and power in street or race applications.

Crow Cams' world class CNC grinding and inspection facilities have also been upgraded to ensure an even greater degree of grinding accuracy in terms of surface finish and cam position. These characteristics are checked on every cam on our CNC checking machines, which are regularly calibrated on our in-house Adcole camshaft coordinate measuring machine.

SPECIFICATIONS:
Camshaft Part Number: 35631
RPM Range: 1400 - 4200
Advertised Duration Intake: 269º
Advertised Duration Exhaust: 269º
Duration @.050" Intake: 202º
Duration @.050" Exhaust: 207º
Valve Lift Intake: 0.395"
Valve Lift Exhaust: 0.395"
Rocker Ratio: 1.50:1
Lobe Separation Angle: 112º

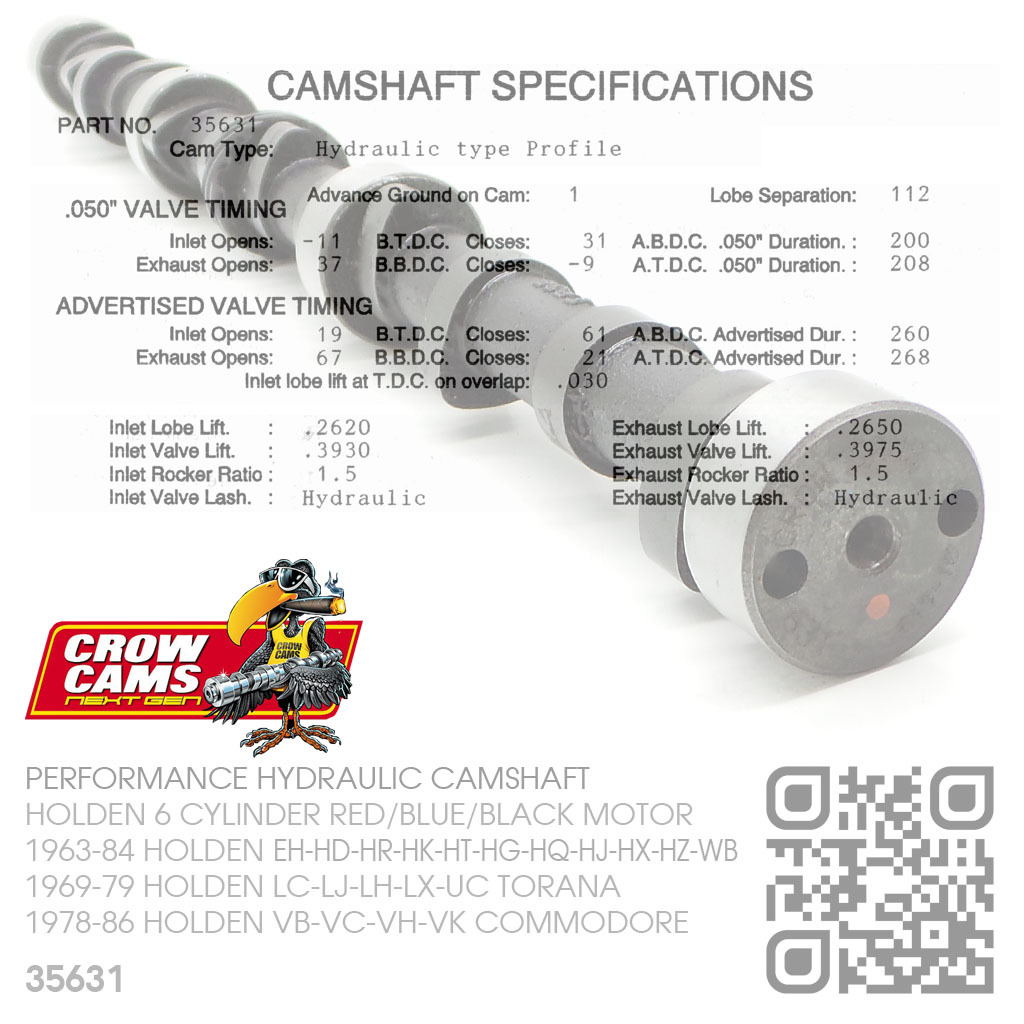

Detailed Cam Card: SEE LAST PRODUCT PHOTO
Camshaft Characteristics: MILD CAM FOR LPG WITH SMOOTH IDLE & GOOD POWER. SUITABLE FOR STANDARD ENGINE WITH MINIMAL MODIFICATIONS.

CAMSHAFT REQUIREMENTS:
Engine Requirements: NEW PERFORMANCE HYDRAULIC LIFTERS

For more than 30 years, Crow Cams in Australia, have developed valve train products and developed unique camshafts.

SPECIAL NOTE:
NEW HYDRAULIC LIFTERS ARE HIGHLY RECOMMENDED
SOLID LIFTERS NOT SUITABLE FOR USE WITH THIS CAMSHAFT

CRITICAL NOTE:
USE ZDDP100 OIL ADDITIVE AND QUALITY MINERAL ENGINE OIL ONLY

MADE IN AUSTRALIA
