GM PERFORMANCE CYLINDER HEAD BOLT KIT [HOLDEN V8 GEN III LS1 5.7L MOTOR]
1999-03 HOLDEN [VTII-VX-VY COMMODORE WH-WK STATESMAN]
Description

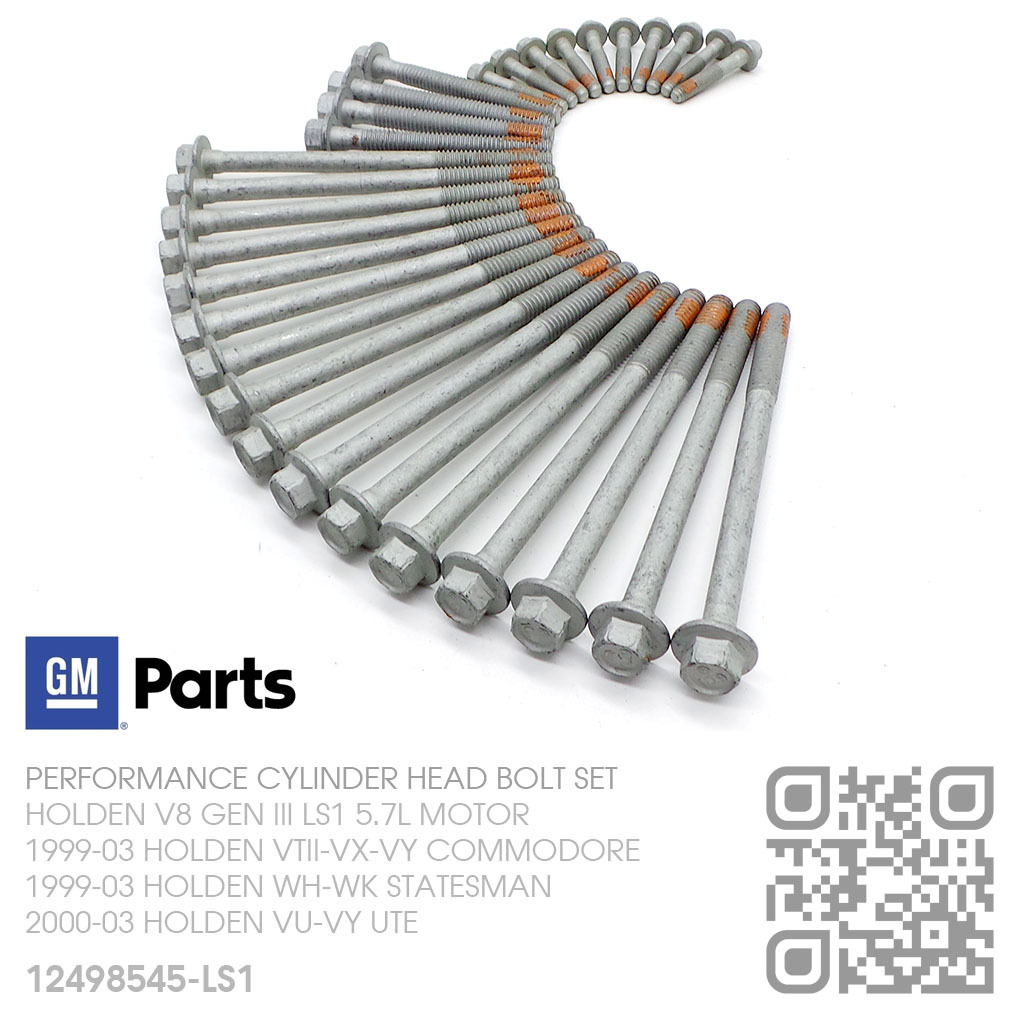

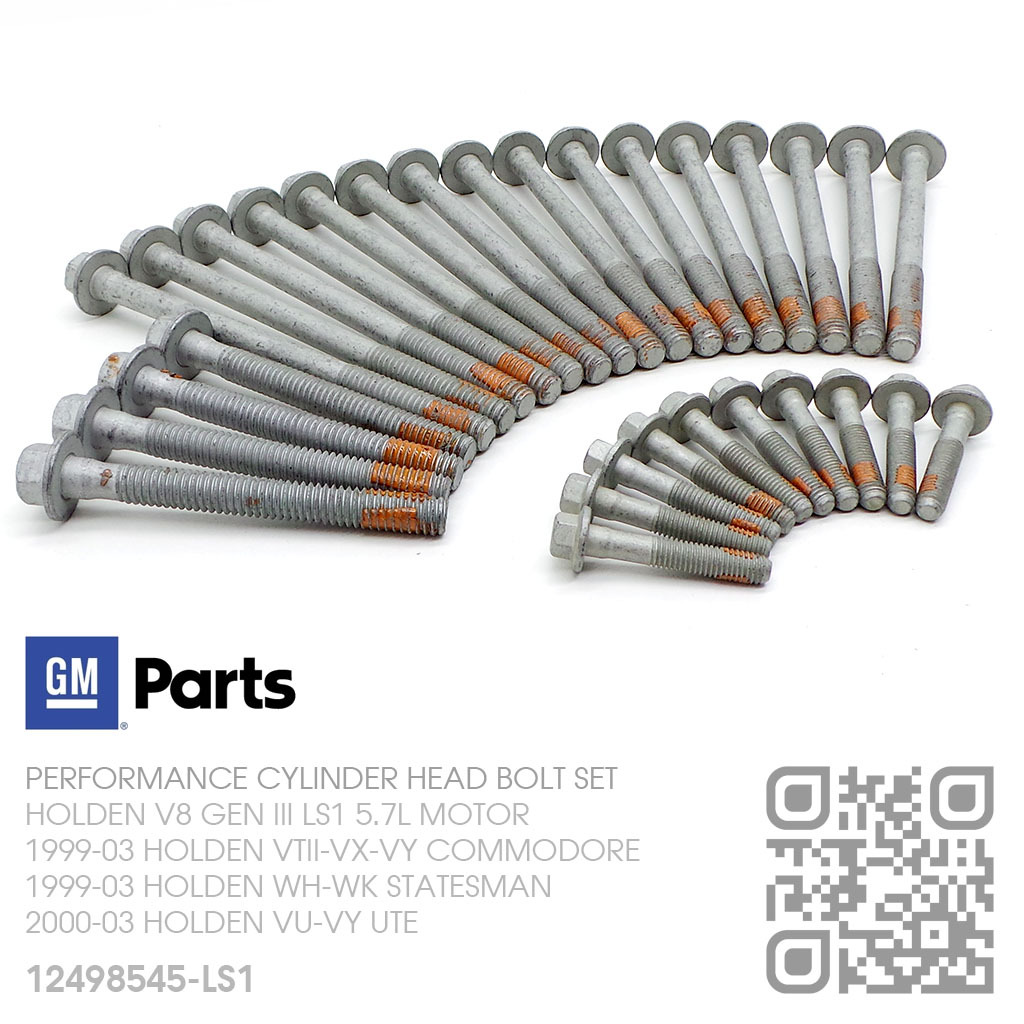

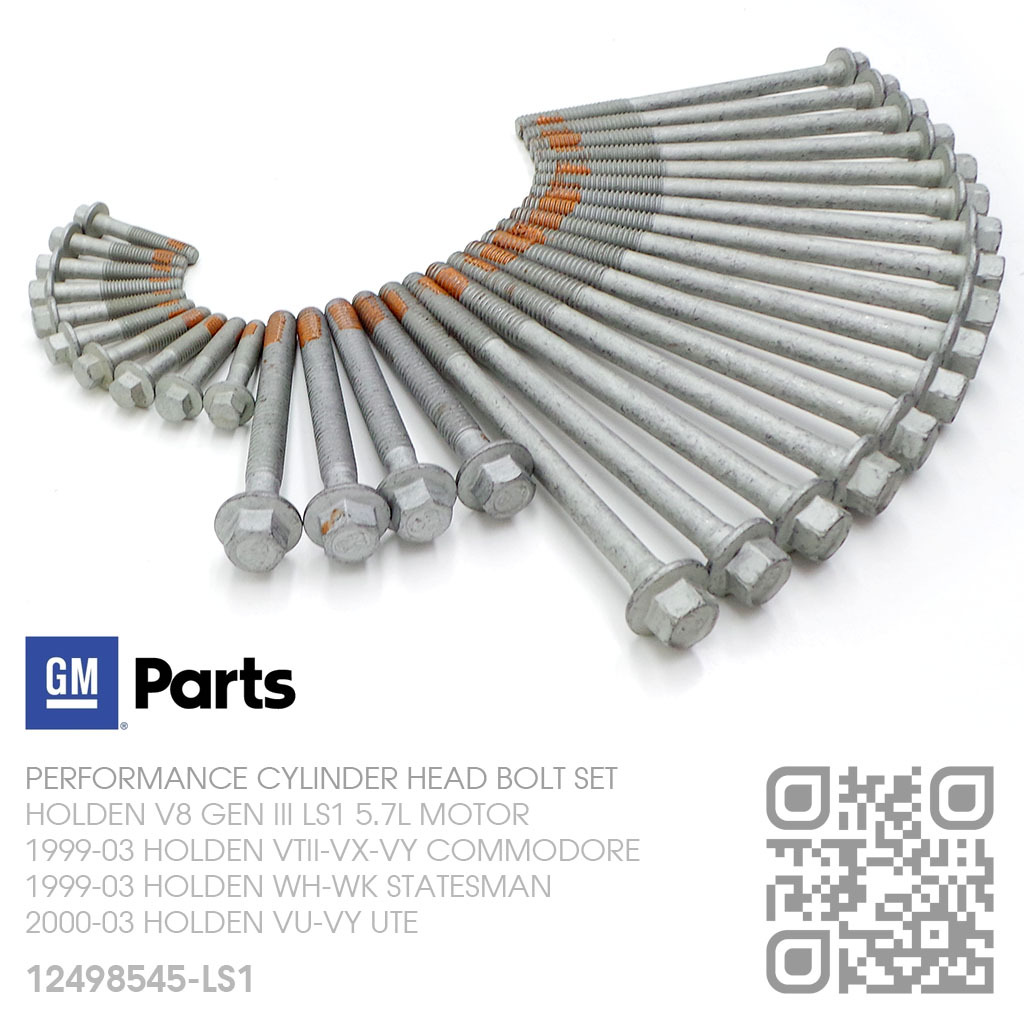

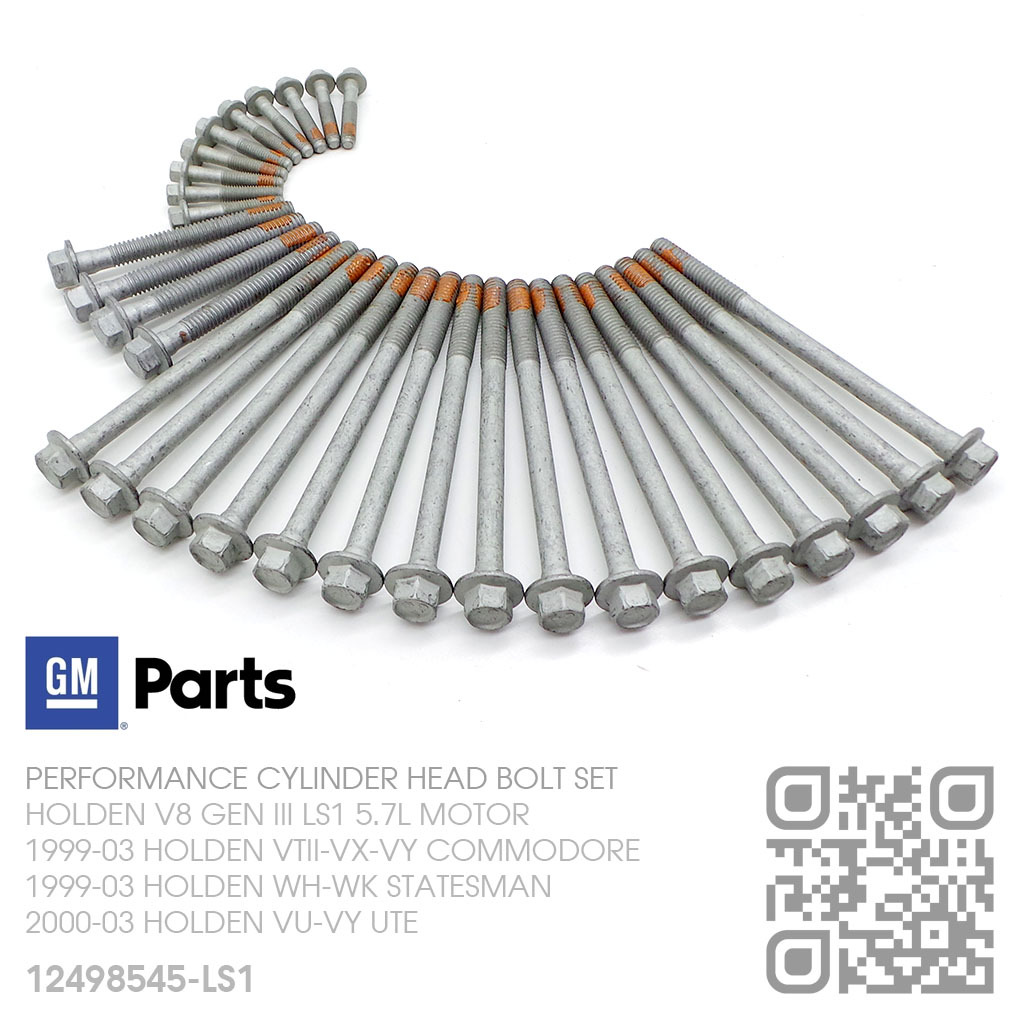

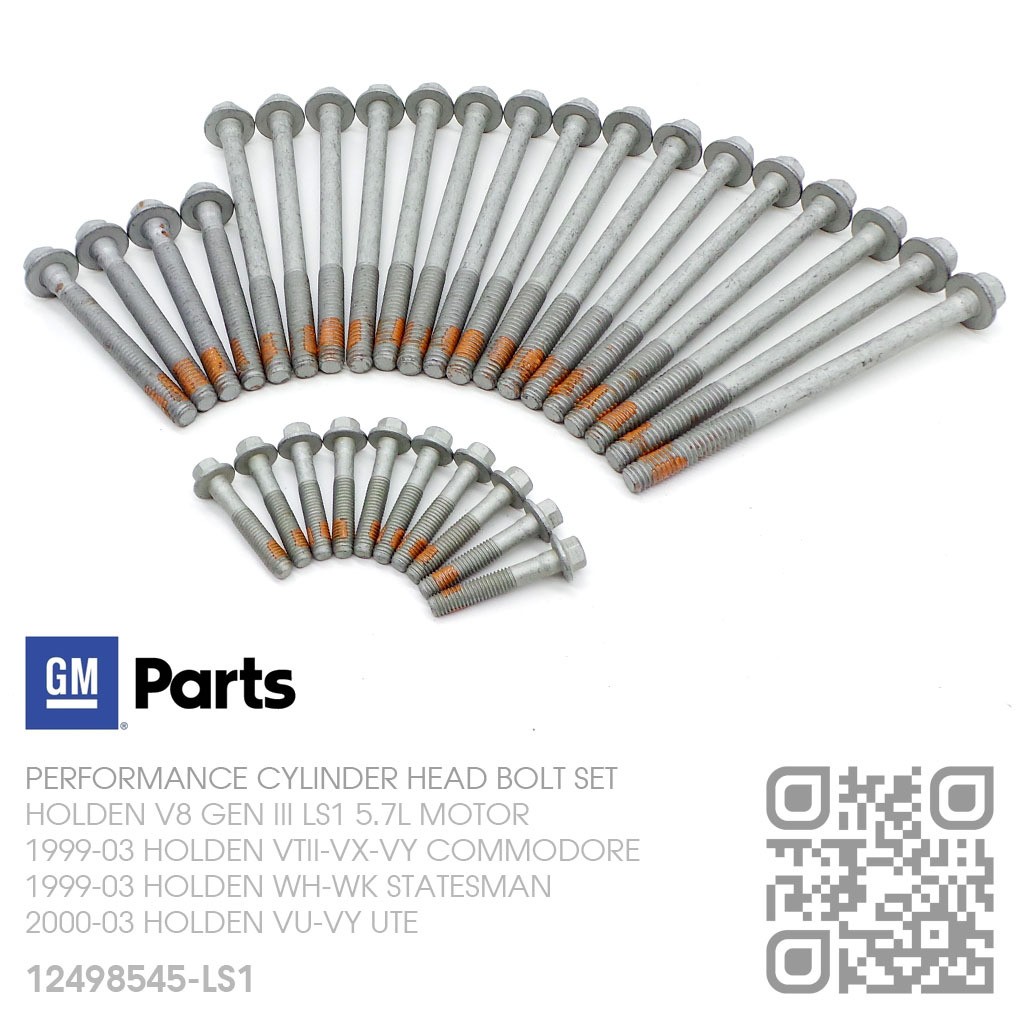

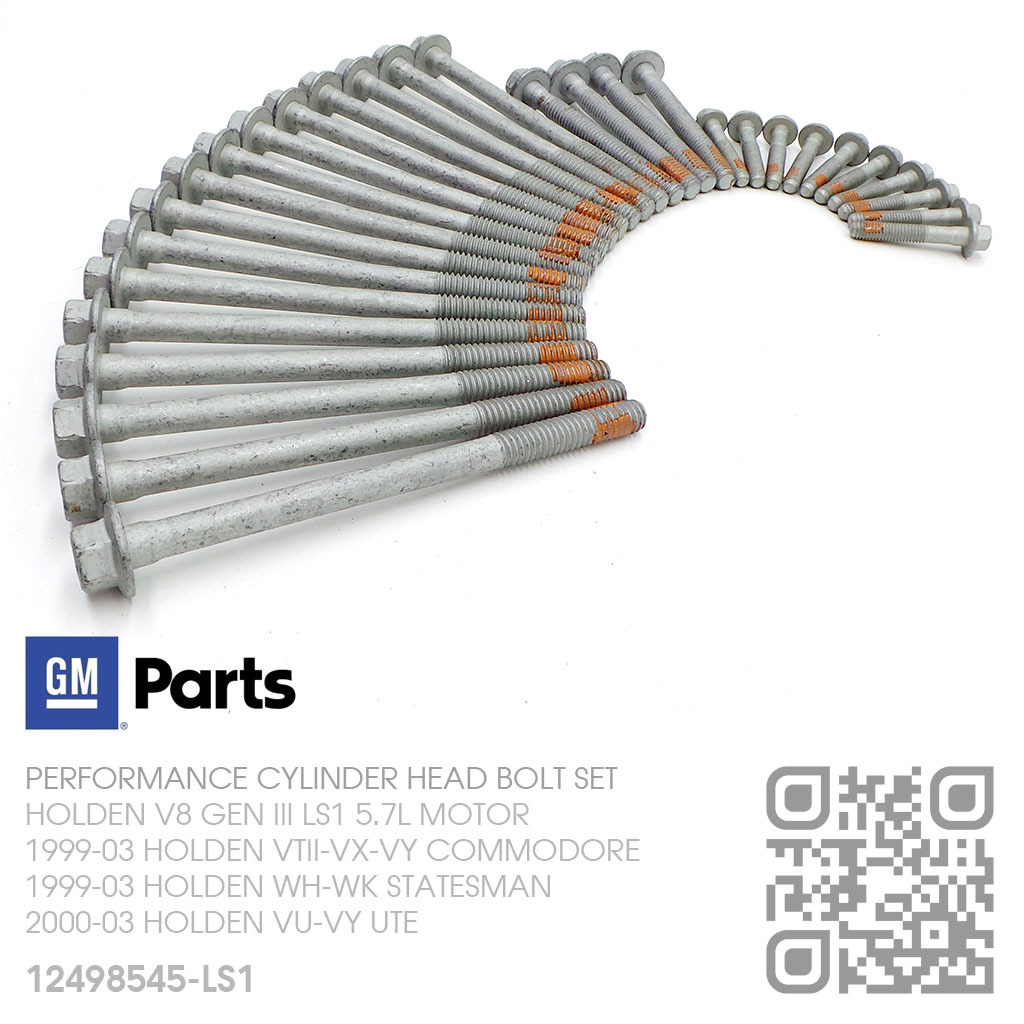

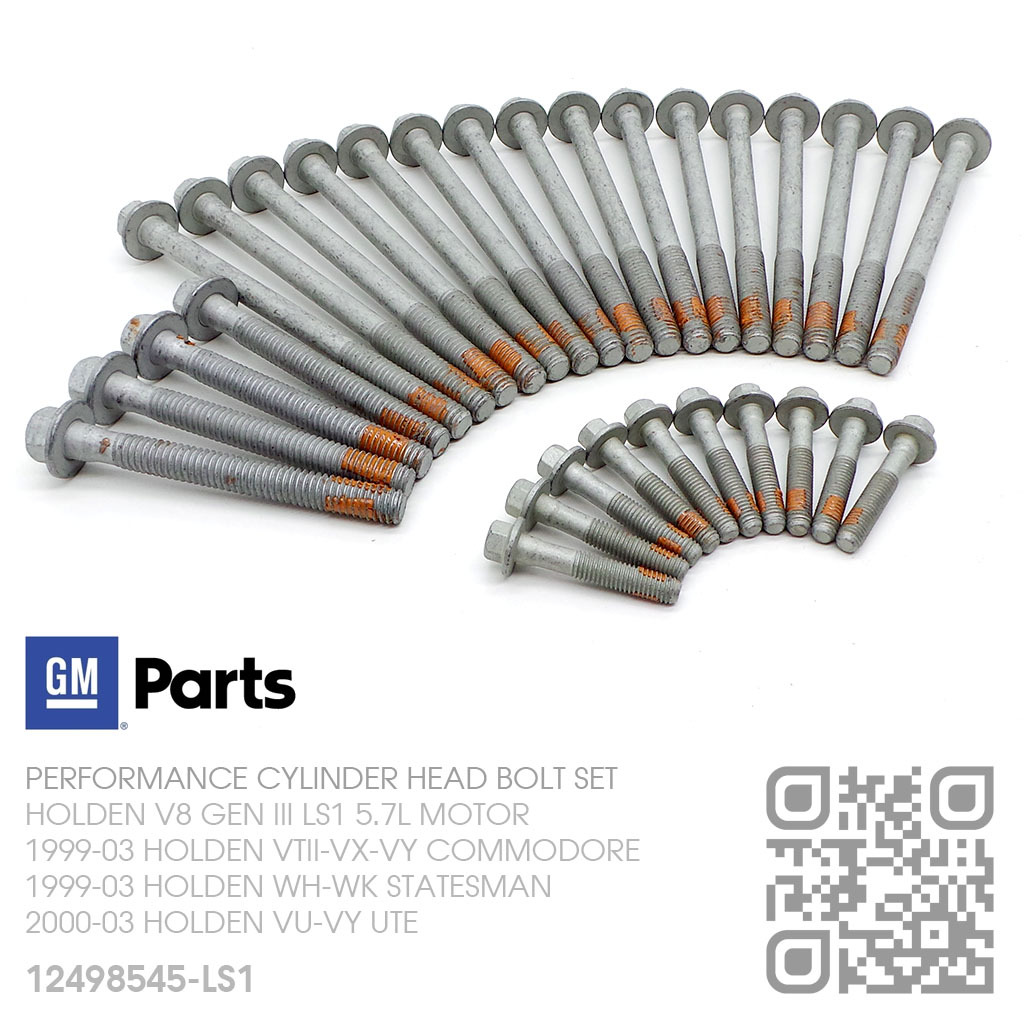

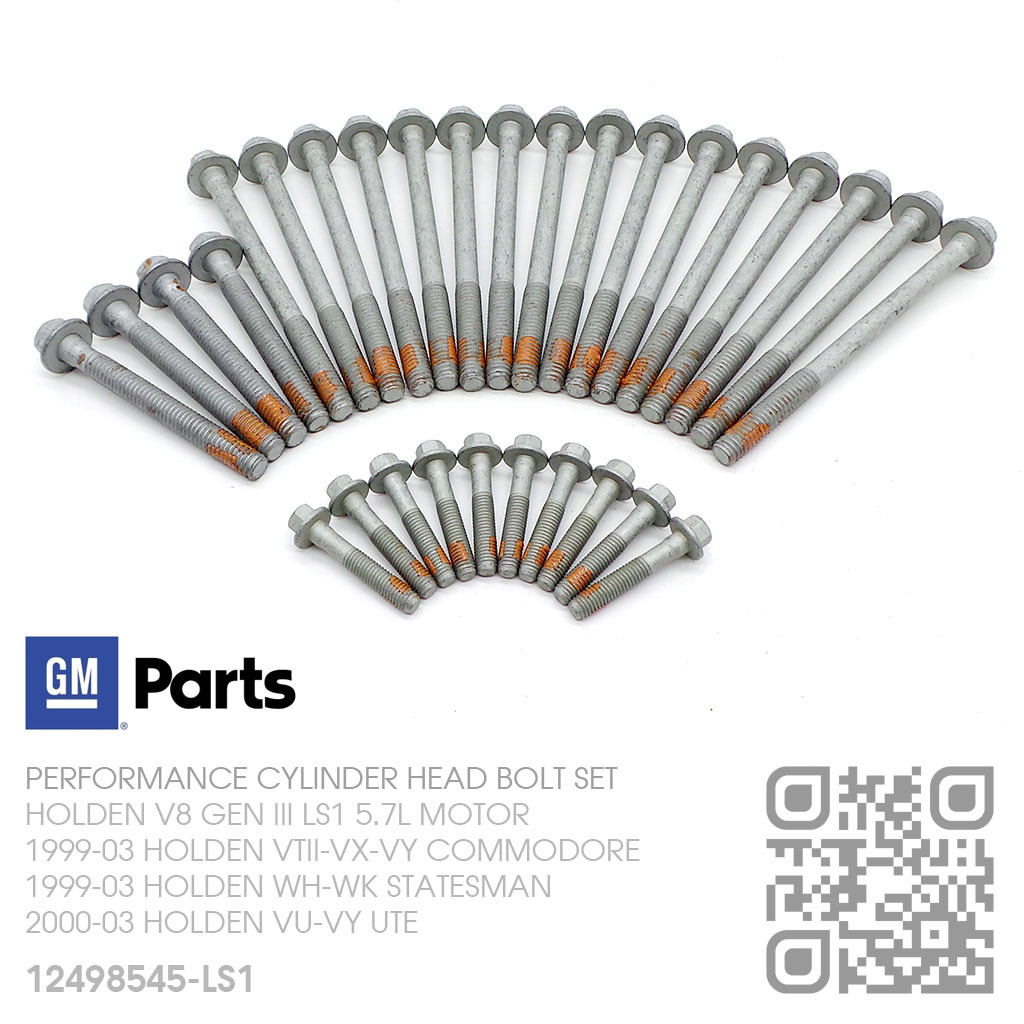

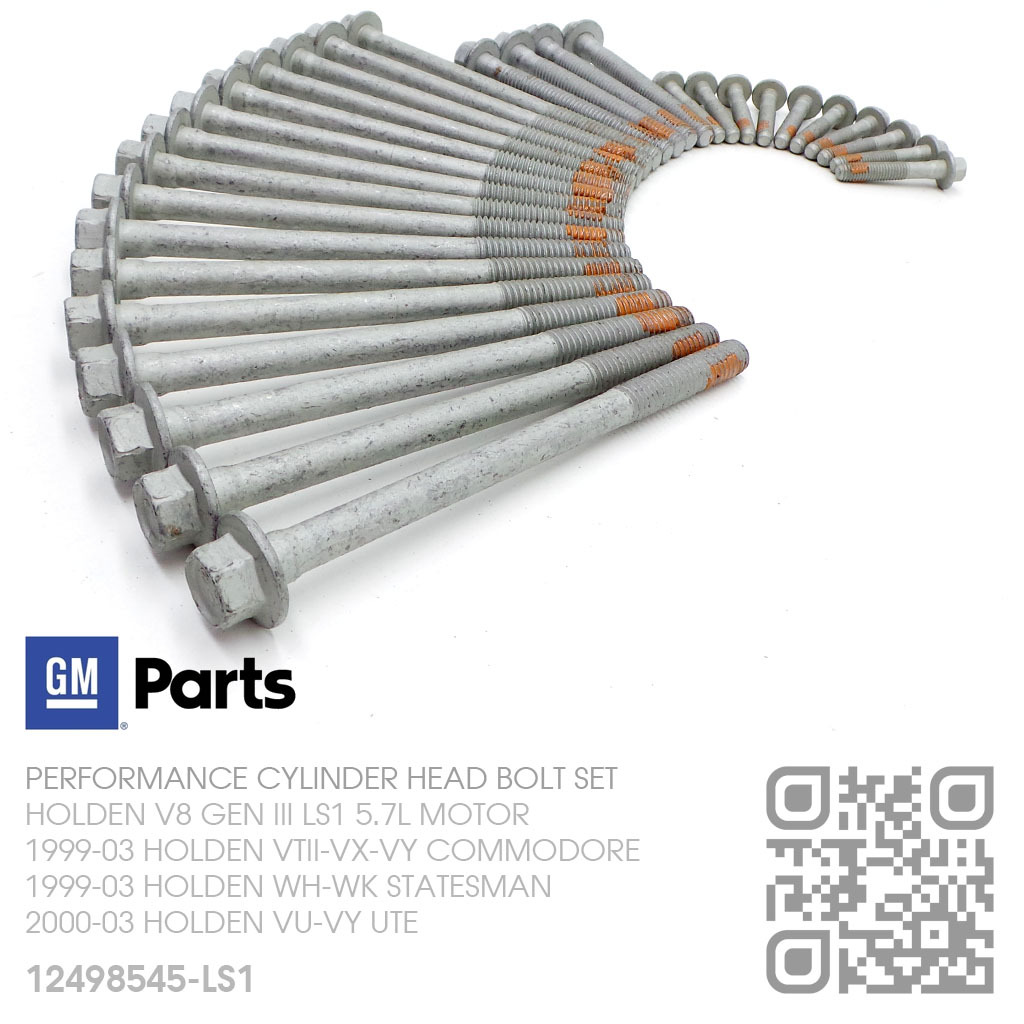

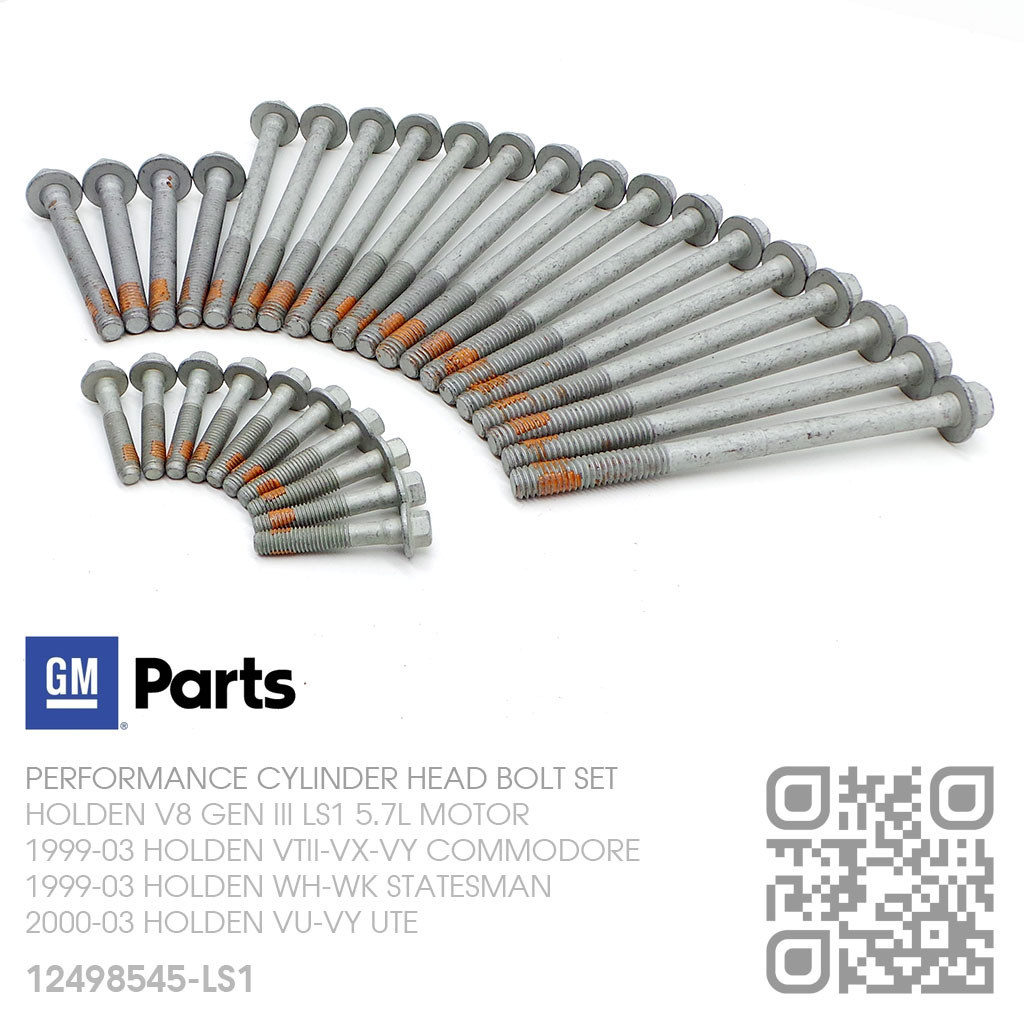

GM PERFORMANCE CYLINDER HEAD BOLT KIT
HOLDEN V8 GEN III LS1 5.7L MOTOR
FIRST DESIGN CYLINDER HEAD
05/1999-2003 HOLDEN [VTII-VX-VY COMMODORE]
06/1999-2003 HOLDEN [WH-WK STATESMAN]
12/2000-2003 HOLDEN [VU-VY UTE]
10/2001-2003 HOLDEN [V2 MONARO CV8]
It's important to replace cylinder head bolts on a LS series engine's when removing the cylinder head(s), some of bolts used in this engine are single use, due to the fact of the fasteners being torque to yield.
Using second hand bolts may cause premature failure and help open that can of worms when your trying to put it all back together or even worse when if the engine is running.
SPECIFICATIONS:
Head Type: Male Hex
Length: 110mm (4) & 155mm (16)
Thread: M11 X 2.00
Head Type: Male Hex
Length: 45mm (10)
Thread: M8 X 1.25
Quantity: 30 Pieces
The performance cylinder head bolts are made to exacting standards in the United States of America by General Motors (GM).
MAKE IT GENUINE!!! GO GM!!!
REPLACES GENERAL MOTORS (GM) PART# 11588291, 12560745 & 12558840
SPECIAL NOTE:
MUST HAVE 1MA ON REAR OF CYLINDER HEAD(S)
IMPORTANT NOTE:
FOLLOW HOLDEN'S RECOMMENDED TORQUE SEQUENCE AND TIGHTEN BOLTS TO SPECIFICATIONS
MADE IN USA
Warranty
Features
Specifications
SKU | 12498545-LS1 |
Model # | 12498545-2 |
Brand | General Motors |
Shipping Weight | 1.9000kg |
