SKU: 02-1000-HV8

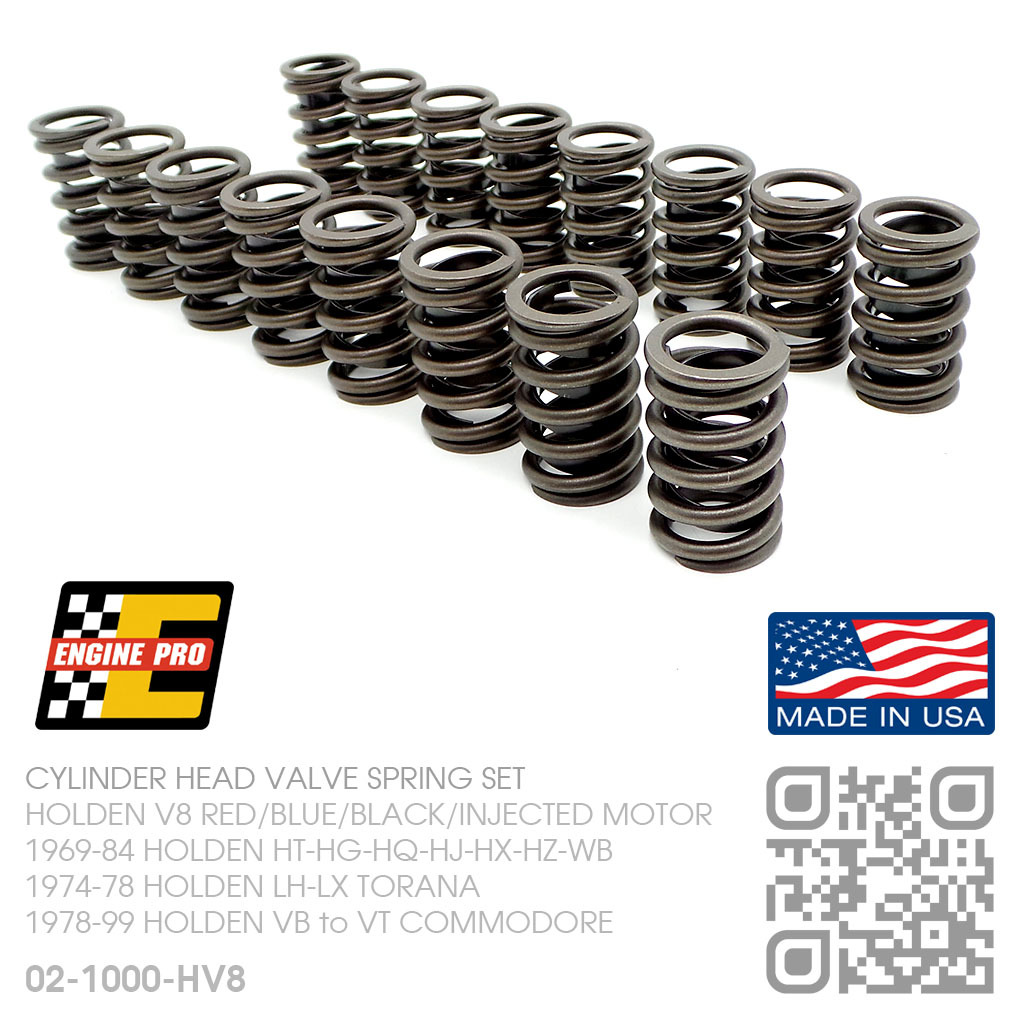

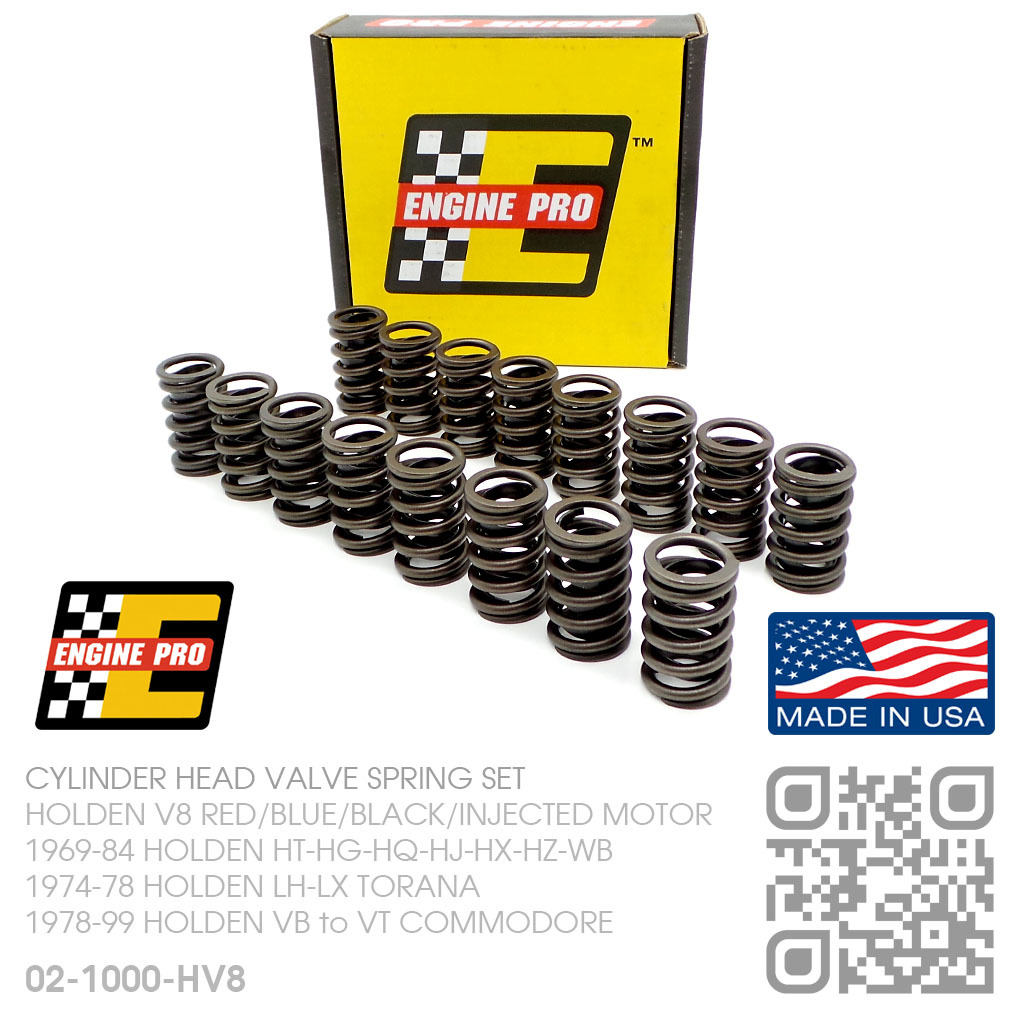

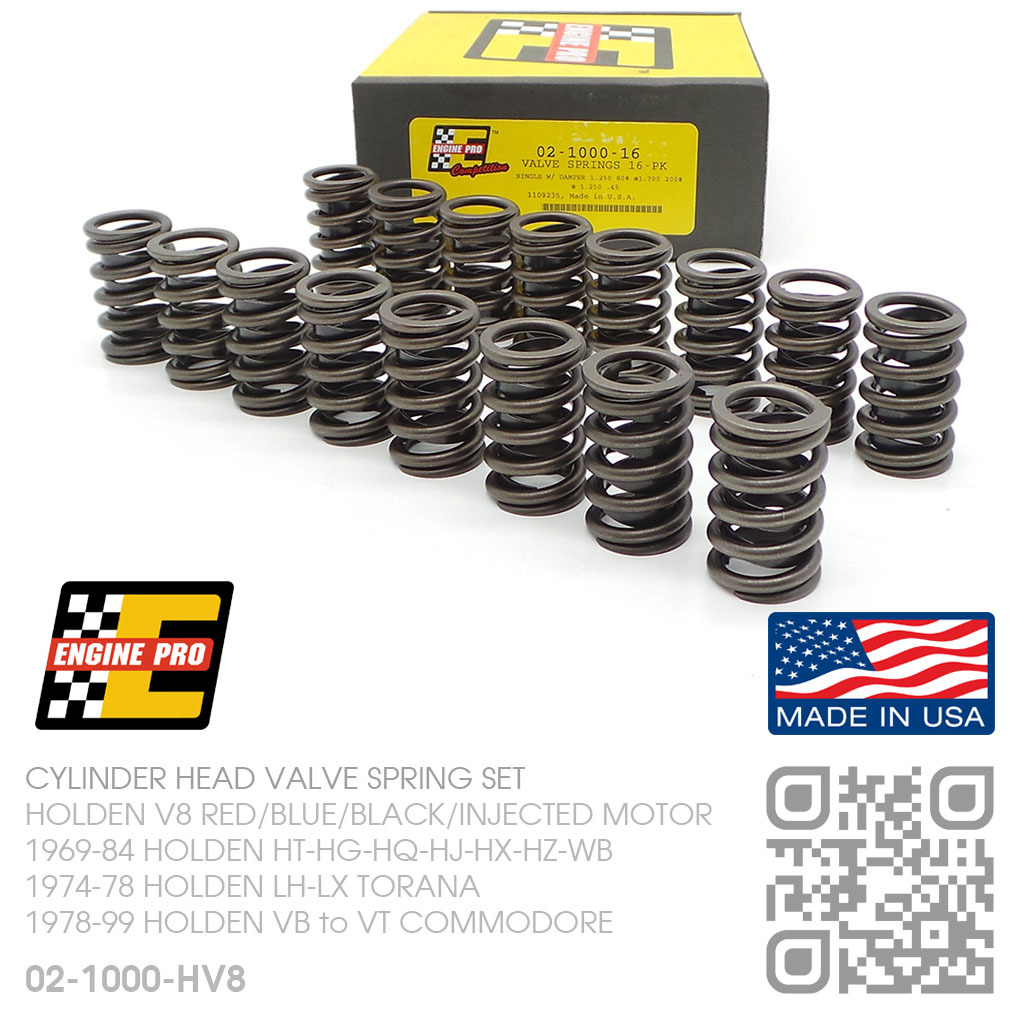

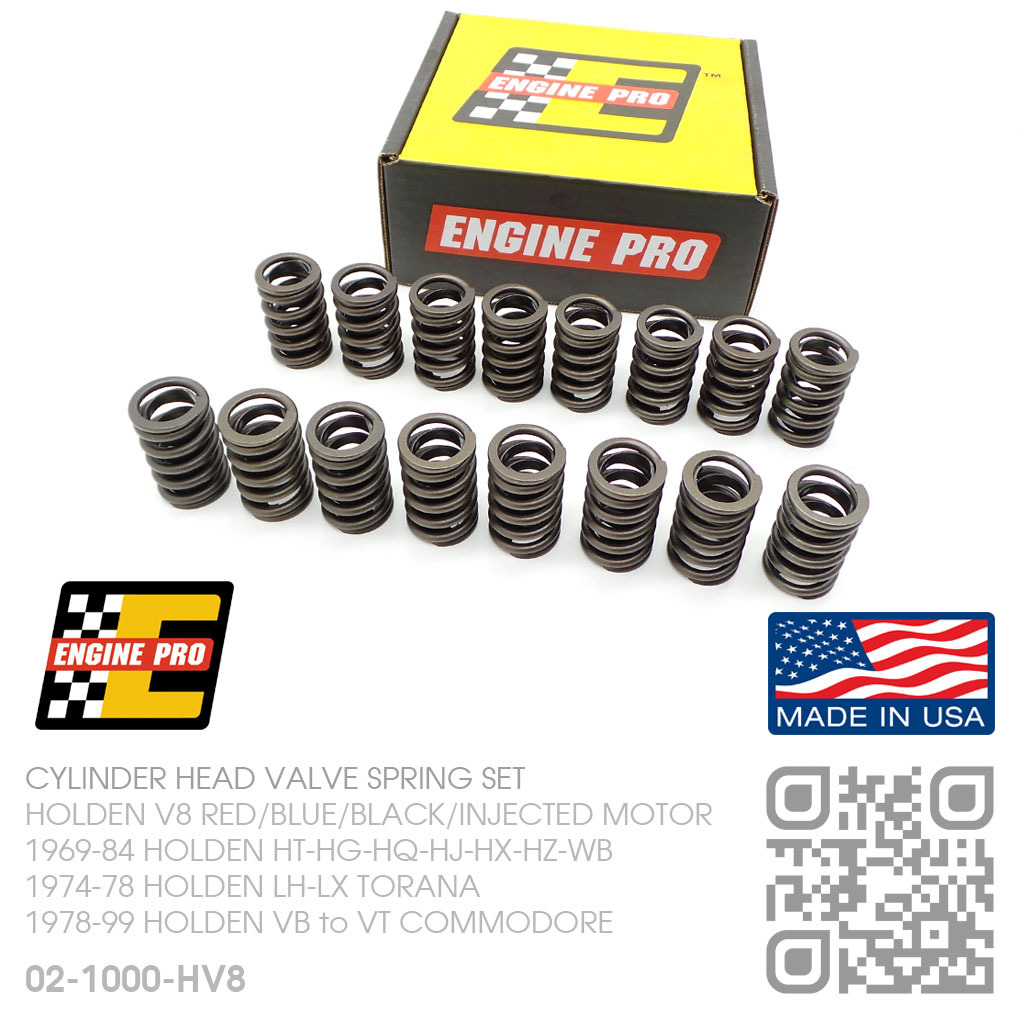

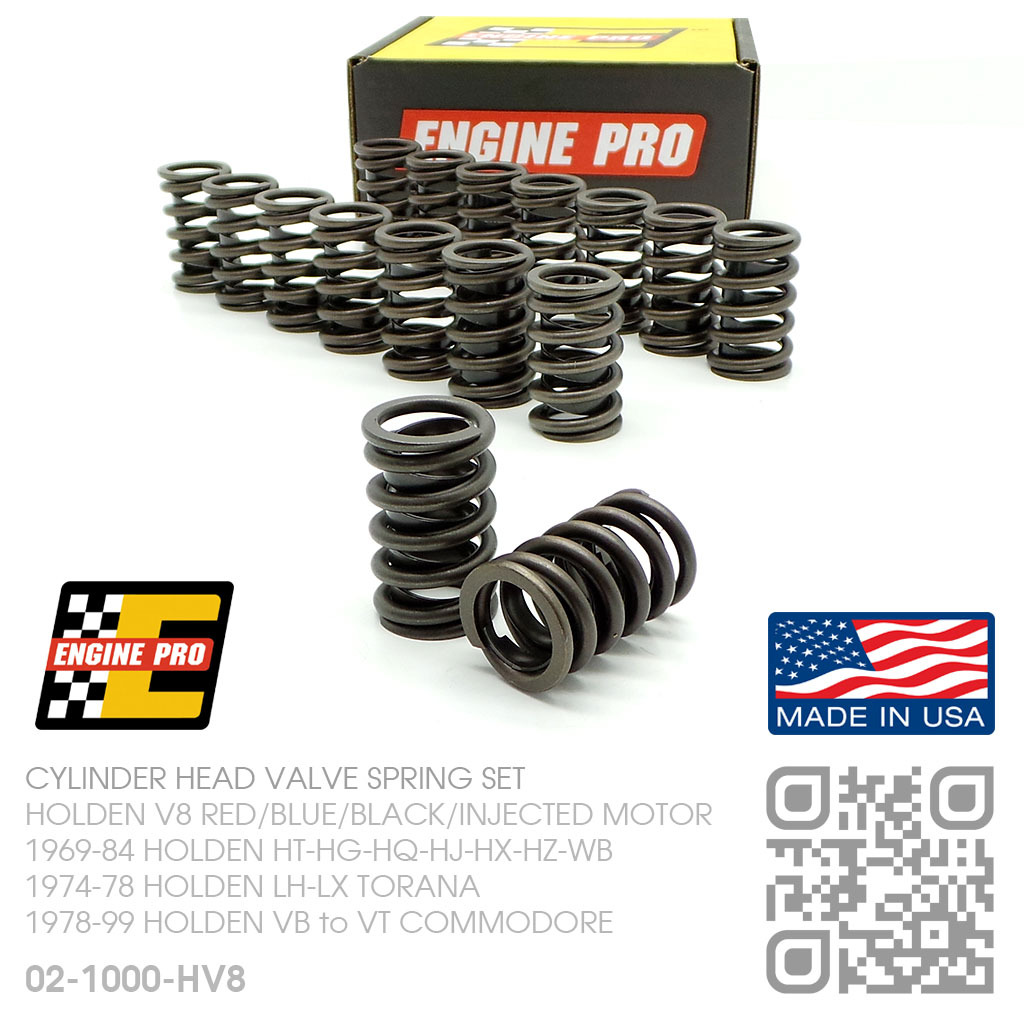

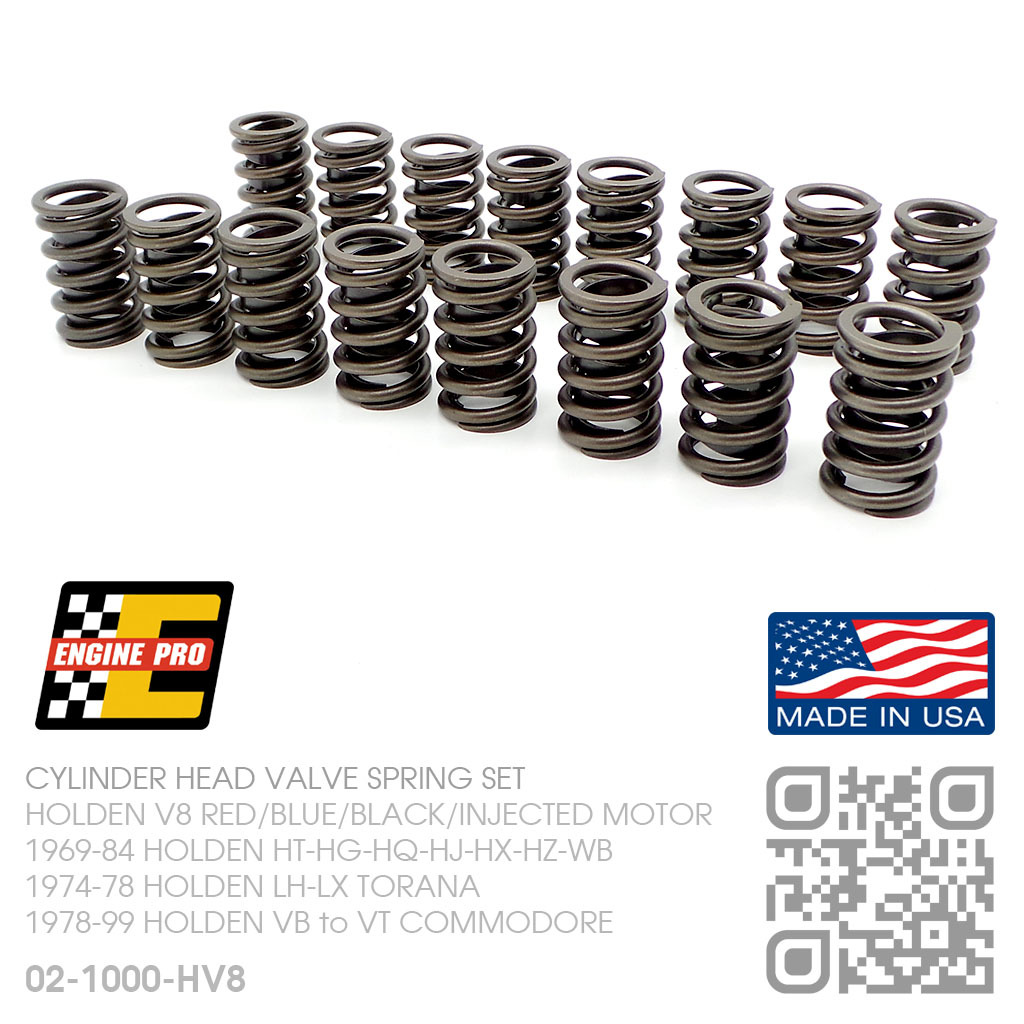

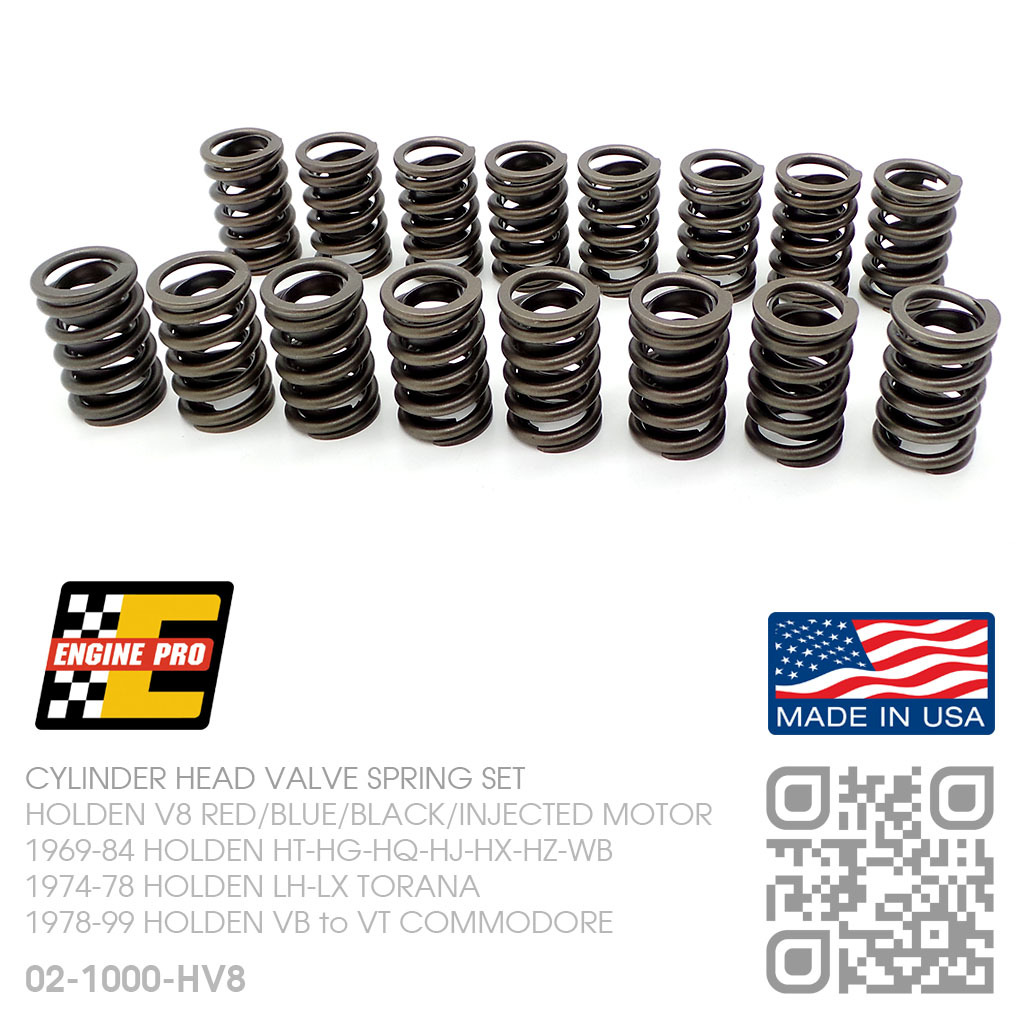

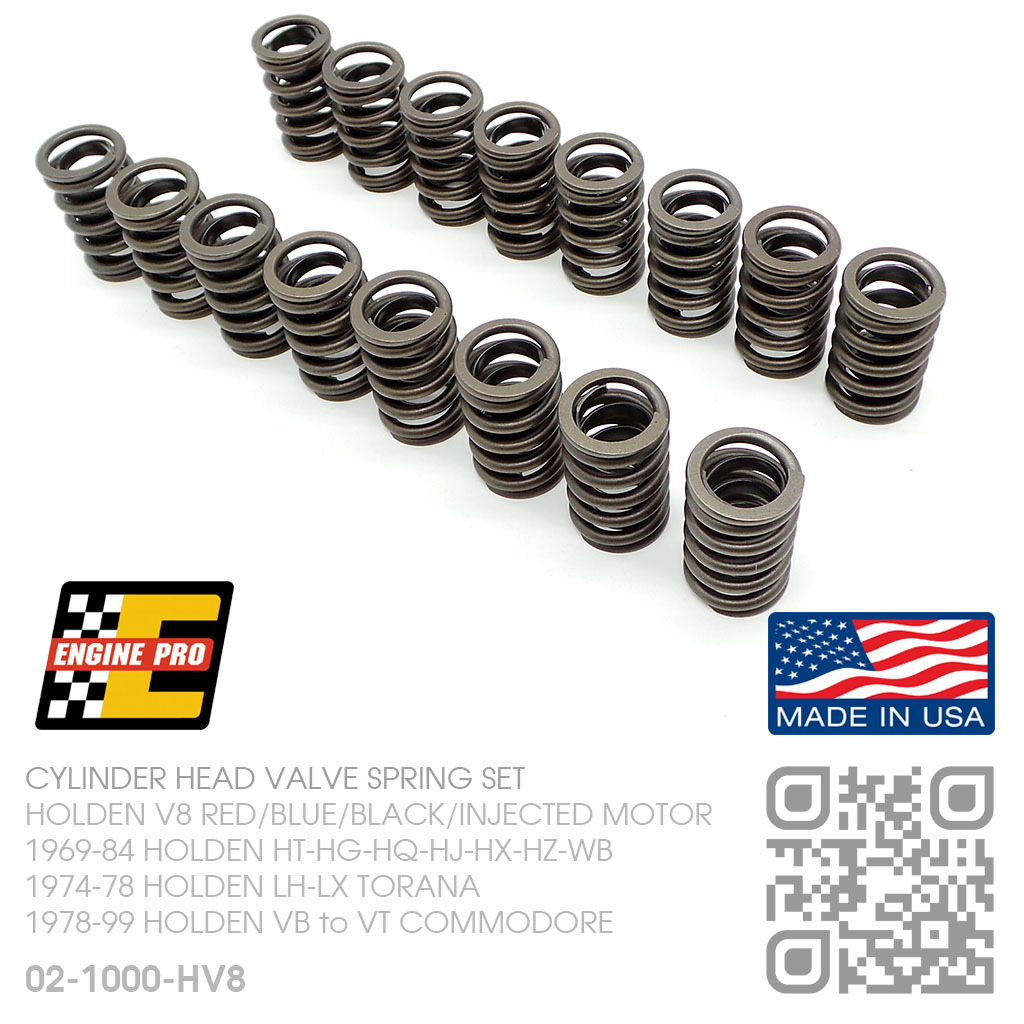

ENGINE PRO PERFORMANCE SINGLE VALVE SPRING SET [HOLDEN V8 RED/BLUE/BLACK/INJECTED MOTOR]

1969-00 HOLDEN [HT-WB, LH-LX TORANA & VB-VT COMMODORE]

$121.50
In Stock


Calculate Shipping



Free shipping - $0.00

ENGINE PRO PERFORMANCE SINGLE VALVE SPRING SET
HOLDEN V8 253 4.2L & 308 5.0L RED/BLUE MOTOR
HOLDEN V8 304 & 308 5.0L BLACK MOTOR
HOLDEN V8 304 INJECTED 5.0L MOTOR
HOLDEN V8 355 STROKER 5.7L MOTOR

Description

ENGINE PRO PERFORMANCE SINGLE VALVE SPRING SET
316lb/in VALVE SPRING RATE
HOLDEN V8 253 4.2L & 308 5.0L RED/BLUE MOTOR
HOLDEN V8 304 & 308 5.0L BLACK MOTOR
HOLDEN V8 304 5.0L INJECTED MOTOR
HOLDEN V8 355 5.7L STROKER MOTOR (348ci)

HOLDEN V8 RED/BLUE/BLACK MOTOR
05/1969-1984 HOLDEN [HT-HG-HQ-HJ-HX-HZ-WB SERIES]
03/1974-03/1978 HOLDEN [LH-LX TORANA]
10/1978-08/1988 HOLDEN [VB-VC-VH-VK-VL COMMODORE]

HOLDEN V8 INJECTED MOTOR
03/1989-1999 HOLDEN [VN-VP-VR-VS-VT COMMODORE]
03/1990-1999 HOLDEN [VQ-VR-VS STATESMAN/CAPRICE]
09/1990-2000 HOLDEN [VG-VP-VR-VS UTE]

Every Engine Pro performance valve spring goes through a multiple shotpeening process for maximum durability and stress relief. The chrome silicon alloy valves spring goes through a "Heat Set" process and special heat treatment are used to extend spring life and minimise load loss.

SPECIFICATIONS:
Outside Diameter: 1.230"
Inside Diameter: 0.876"
Closed Height: 1.700"
Closed Load: 91lb/in
Open Height: 1.250"
Open Load: 233lb/in
Coil Bind: 1.150"
Max Lift: 0.525"
Spring Rate: 316lb/in
Spring Type: SINGLE VALVE SPRING WITH DAMPER
Material: CHROME SILICON ALLOY
Set Quantity: 16

Since 1989, American Based Engine Pro has been manufacturing performance engine parts as is now one of the leading distrubutors to the performance engine building industry.

MADE IN USA


HOLDEN V8 RED MOTOR

L31 HOLDEN V8 308 5.0L RED MOTOR
05/1969-04/1980 HOLDEN [HT-HG-HQ-HJ-HX-HZ SERIES]
03/1974-03/1978 HOLDEN [LH-LX TORANA]
10/1978-03/1980 HOLDEN [VB COMMODORE]

L32 HOLDEN V8 253 4.2L RED MOTOR (HIGH COMP)
05/1969-04/1980 HOLDEN [HT-HG-HQ-HJ-HX-HZ SERIES]
03/1974-03/1978 HOLDEN [LH-LX TORANA]

L33 HOLDEN V8 253 4.2L RED MOTOR (LOW COMP)
05/1969-07/1976 HOLDEN [HT-HG-HQ-HJ SERIES]

L36 HOLDEN V8 253 4.2L RED MOTOR
10/1978-03/1980 HOLDEN [VB COMMODORE]

HOLDEN V8 BLUE MOTOR

L31 HOLDEN V8 308 5.0L BLUE MOTOR
03/1980-02/1984 HOLDEN [VC-VH COMMODORE]
04/1980-1984 HOLDEN [WB STATESMAN]

L36 HOLDEN V8 253 4.2L BLUE MOTOR
03/1980-02/1984 HOLDEN [VC-VH COMMODORE]
04/1980-1984 HOLDEN [WB COMMERCIAL]

HOLDEN V8 BLACK MOTOR

L31 HOLDEN V8 308 5.0L BLACK MOTOR
02/1984-08/1984 HOLDEN [VK COMMODORE]

LV2 HOLDEN V8 304 5.0L BLACK MOTOR
09/1984-08/1988 HOLDEN [VK-VL COMMODORE]

HOLDEN V8 INJECTED MOTOR

LB9 HOLDEN V8 304 INJECTED 5.0L MOTOR
07/1988-1988 HOLDEN [VL COMMODORE SS GROUP A]
03/1989-05/1999 HOLDEN [VN-VP-VR-VS-VT COMMODORE]
03/1990-04/1999 HOLDEN [VQ-VR-VS STATESMAN]
09/1990-2000 HOLDEN [VG-VP-VR-VS UTE]

L98 HOLDEN V8 355 STROKER 5.7L MOTOR (348ci)
05/1994-05/1999 HSV [VR-VS-VT GTS/SENATOR & LIMITED EDITIONS]

Warranty

Features

Specifications

SKU 02-1000-HV8
Model # 02-1000-16
Barcode # 846163003669
Brand Engine Pro
Shipping Weight 1.4000kg
Shipping Width 0.320m
Shipping Height 0.060m
Shipping Length 0.090m
Shipping Cubic 0.001728000m3
